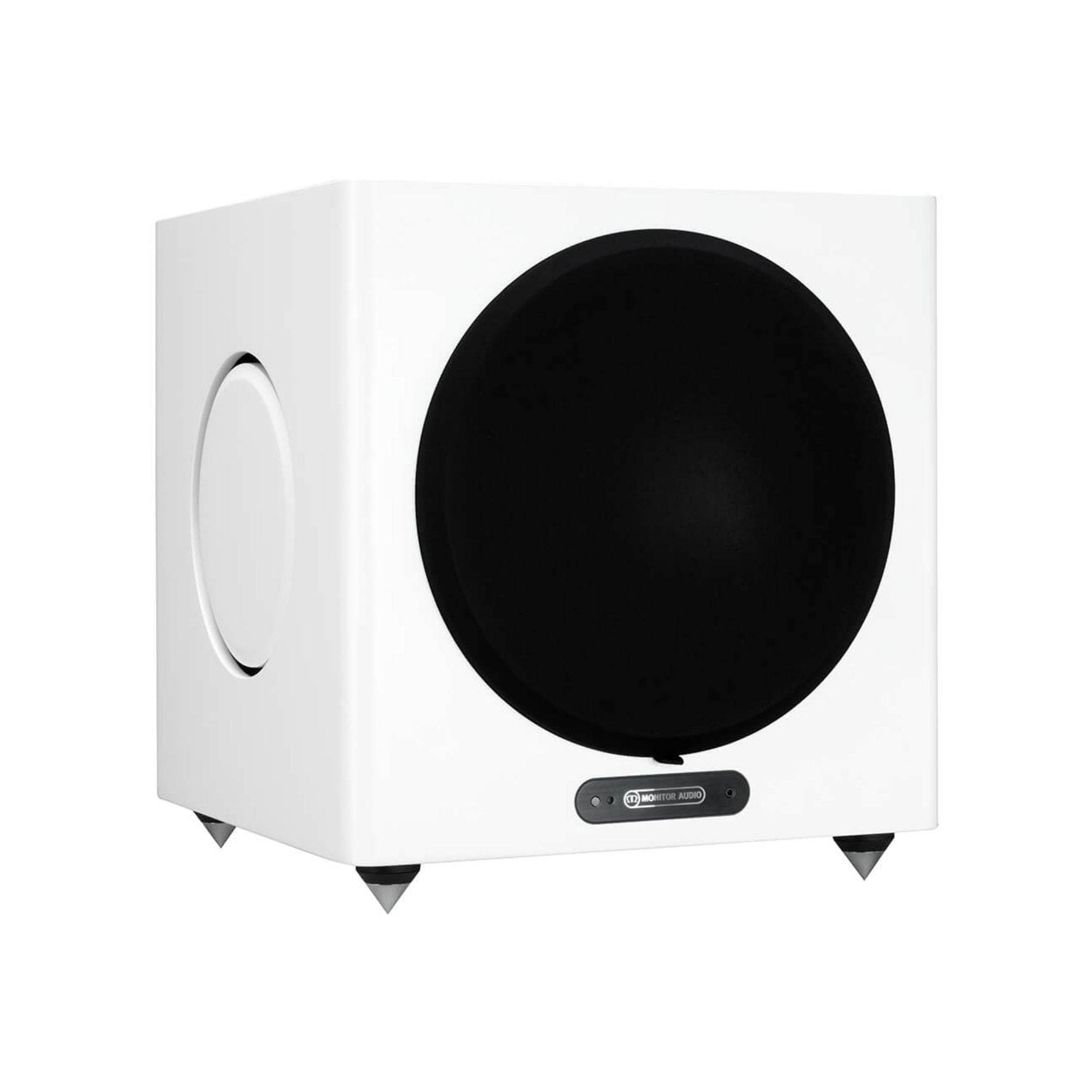

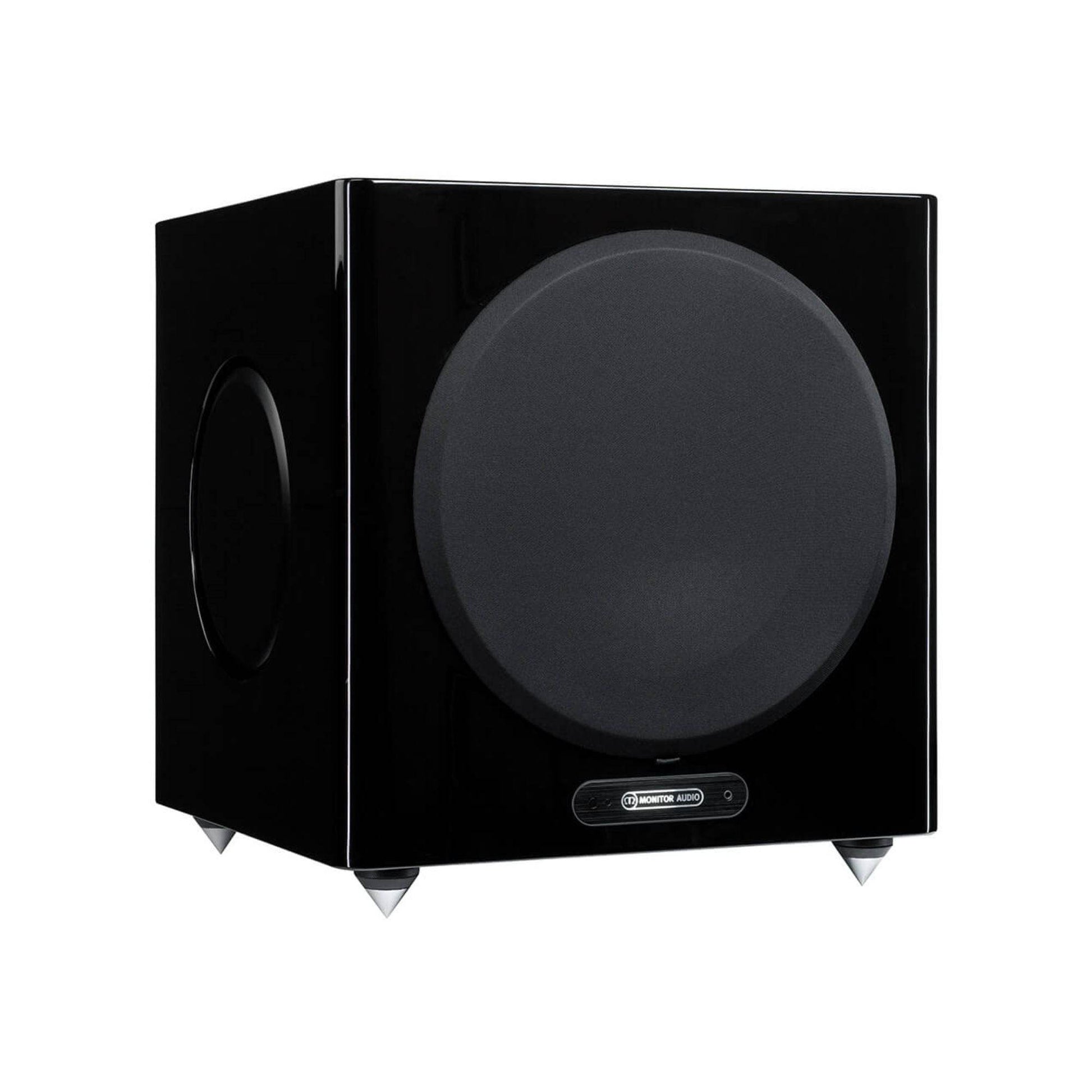

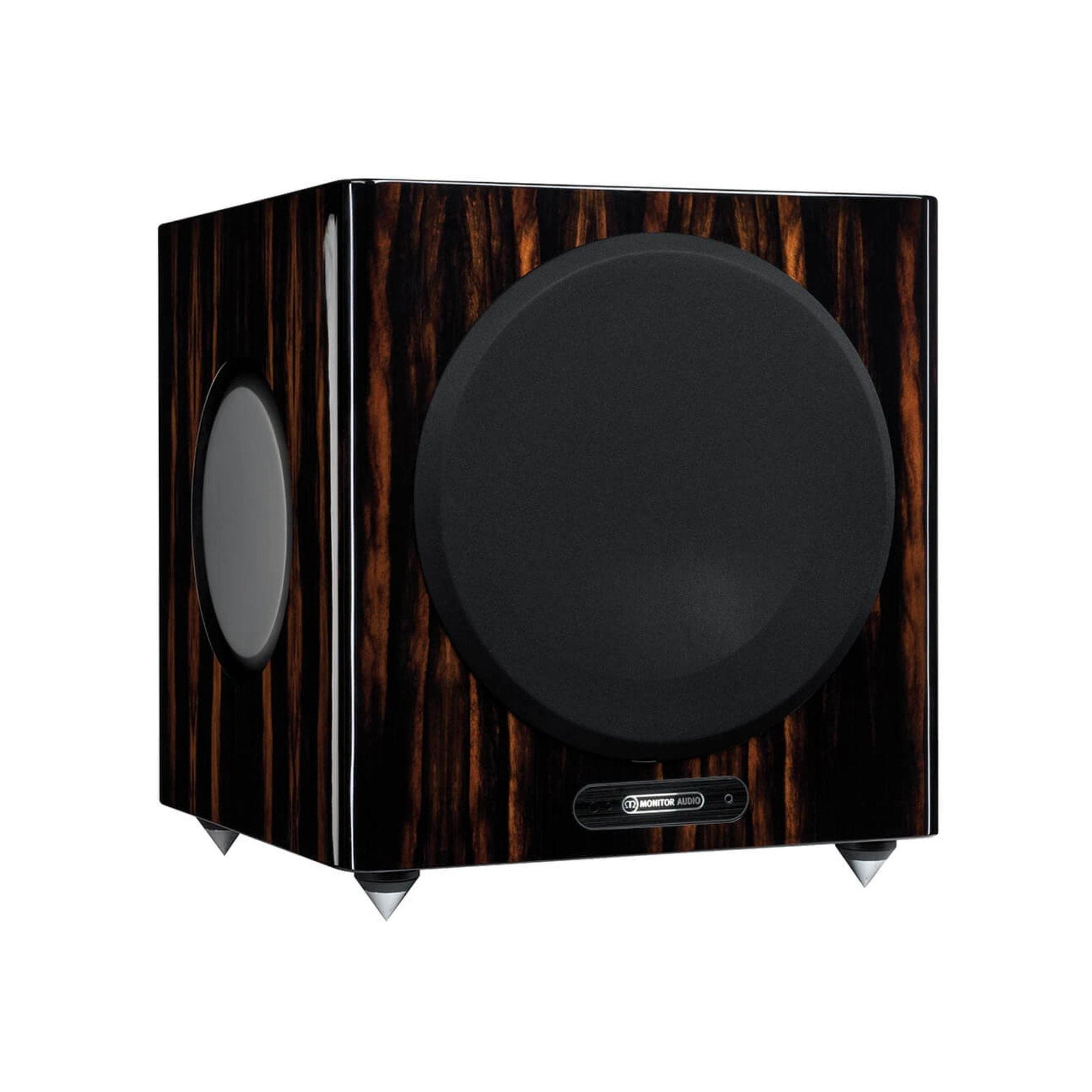

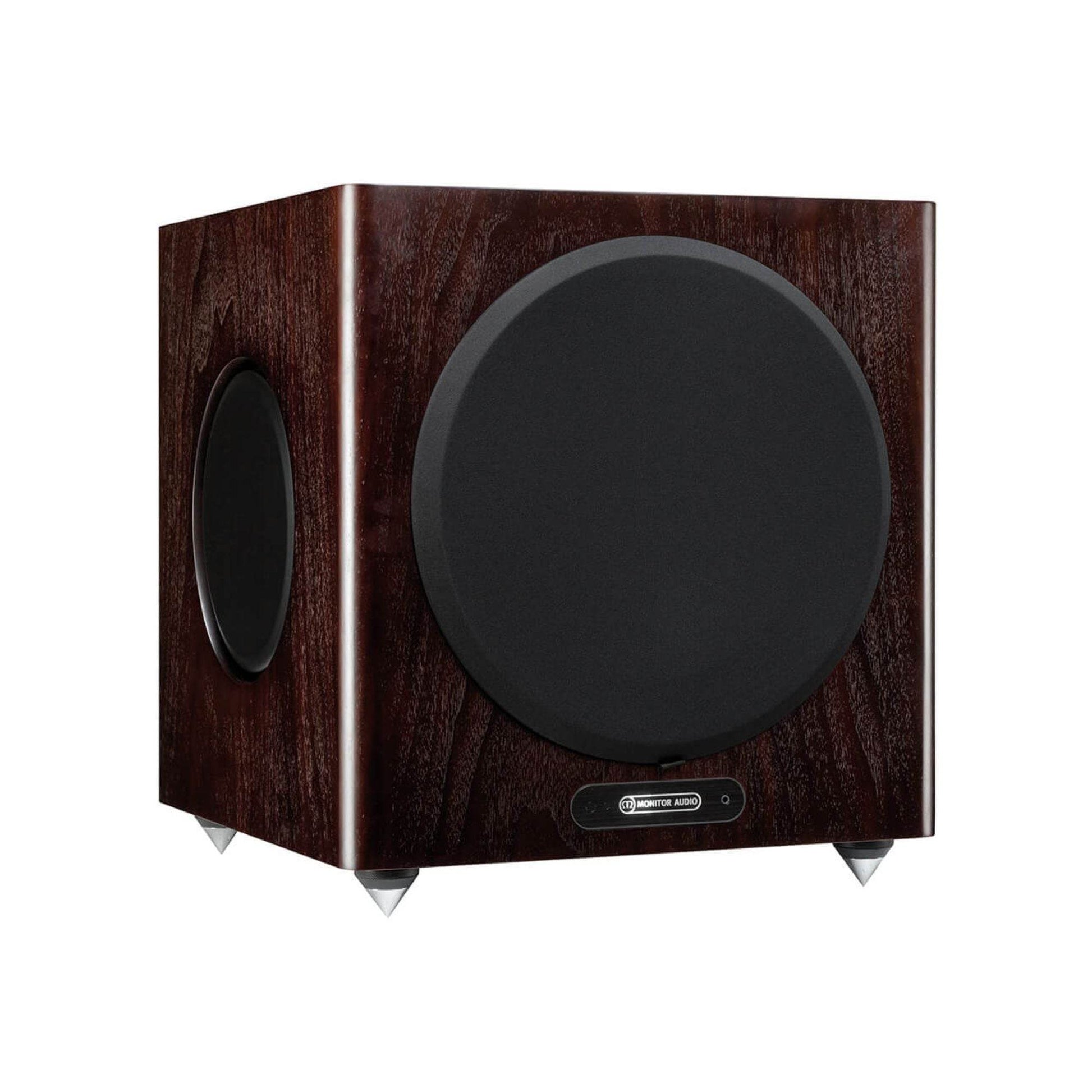

Monitor Audio Gold W12 – Active Subwoofer

Name: Monitor Audio Gold W12 - Active Subwoofer
Brand: Monitor Audio
SKU: MA-GOLD-W12
Price: 13954.50 AED
Availability: InStock

For lovers of deep, refined bass notes the Monitor Audio Gold W12 is a premium active subwoofer featuring a 12″ long-throw C-CAM driver, twin 200 mm Auxiliary Bass Radiators (ABRs) and 600 W Class D amplification — engineered to deliver punchy bass down to 20 Hz with advanced DSP tuning and Monitor Audio’s Automatic Position Correction (APC).

Description

The Gold W12 Subwoofer brings prodigious low frequency power and musical detail to both movie soundtracks and music. Its 12″ (305 mm) ultra-long-throw driver, supported by two 200 mm Auxiliary Bass Radiators (ABR), is driven by a 600 W Hypex Class-D amplifier delivering deep, controlled output with an extension down to ~20 Hz.

Performance & Tuning

The subwoofer offers extensive fine-tuning via a top-mounted controller or Monitor Audio’s SubConnect software. Four fully configurable user presets are available per input with modes including Flat, Music, Movie and Impact. Users can adjust frequency, slope, trim and detailed EQ filters for each preset. Night Mode reduces dynamic range for late-night listening.

Design & Technology

12″ dished C-CAM cone long-throw driver with a larger 75 mm voice coil and triple suspension for linear control at high excursion.
Two 200 mm ABRs (Auxiliary Bass Radiators) for increased output and low-frequency extension.
600 W Class-D amplifier with switching power supply for instantaneous high current delivery.
DSP processing for crossover, EQ and all control features; APC (Automatic Position Correction) for optimized in-room performance.

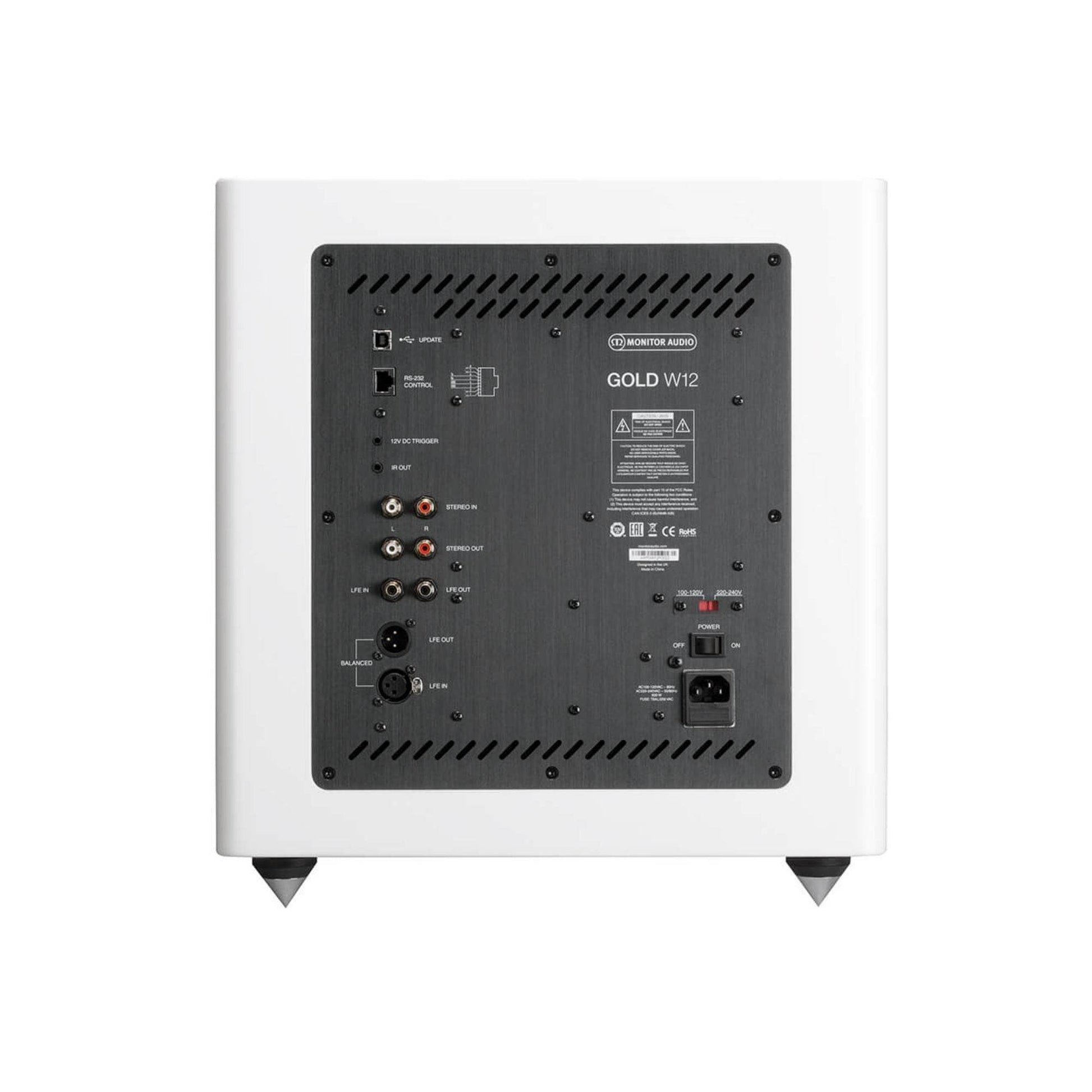

USB connection for SubConnect application, firmware updates and service.

Who it’s for

Ideal for high-end home cinema and music systems where very deep and authoritative bass is required without sacrificing musical detail or control.

**Monitor Audio Gold W12 – Specifications**
System Format	Long-throw 12″ driver with dished C-CAM cone; dual 200 mm ABR (auxiliary bass radiator); front baffle 36 mm, cabinet 25 mm MDF with internal bracing and sealed amplifier compartment.
Lower Frequency Limit	-3 dB @ 25 Hz / -10 dB @ 20 Hz (Free Field). Music preset (Default): -3 dB @ 19 Hz / -10 dB @ 16 Hz (In Room). Assignable Low Frequency Limit Protection Filter: -3 dB @ 12 Hz.
Upper Frequency Limit	-3 dB @ 150 Hz.
Drive Unit Complement	1 × 12″ C-CAM subwoofer driver (triple suspension, 3″ long-throw voice coil).
Linear Driver Excursion	19 mm peak-to-peak; total displacement 1.6 litres.
Amplifier Output	600 W (Hypex Class-D module).
Amplifier Classification	Class D with high current switch-mode power supply (SMPSU).
DSP	50 MIPS DSP core — 512 instructions/sample, 138 dB dynamic range, 56-bit double precision processing; MCU up to 50 MHz.
Digital Conversion	24-bit ADCs/DACs up to 48 kHz (ADAU1701 DSP core).
LED UI Control Panel	Adjustable brightness 0–100% with configurable auto-off; quick access to Trim & Mute, LPF, Phase, Preset Select.
Global Settings (via SubConnect)	Display brightness, dim, default preset, mute link outputs, 12 V trigger assignment, input gain (Master -80 to +20 dB, Trim -11 to +11 dB), phase (0–360° in 15° steps), night mode threshold, Auto On/Off options.
User Presets (via SubConnect)	4 fully configurable presets per input (Preset Name, LPF Frequency 20–135 Hz in 5 Hz steps, LPF slope -12 or -24 dB/oct, Input selection, Trim offset, EQ mode, user EQ filters, Room EQ on/off).
User Equalisation	6 fully controllable EQ filters plus 4 default filters (Flat / Music / Movie / Impact).
Room Correction EQ	6 system-controlled parametric EQ filters with advanced detection algorithm; measurement via control panel or SubConnect (up to 6 microphone positions).
Night Mode	Reduces dynamic range of louder sections according to user-selected threshold.
