Midas Pro Fader Set of 5 Touch-Sensitive 100mm Motorised Faders with 200mm Cable

Midas

AED 856.80 inc VAT.

PRO FADER (200 mm) features a high precision 100 mm travel track with a 10 kΩ linear law suitable for servo control applications, including an integrated touch sensing track and conductive T-Bar for automatic channel selection and fader hold detection. It mounts to console fascia panels with two M3 threaded pillars at 120 mm centers, includes a 200 mm cable with necessary connections, and is suitable for use in Midas PRO Series digital consoles and control centers, as well as replacing standard faders like Penny+Giles PGFM3200 and Alps K-Fader.

In stock
Request Quote
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: PRO FADER (200 mm) Categories: , Brand:

Description

PRO FADER (200 mm)

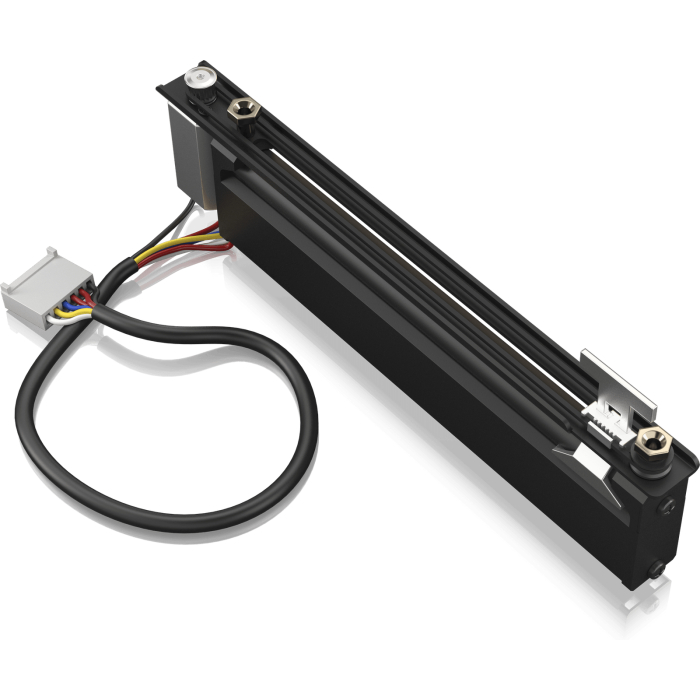

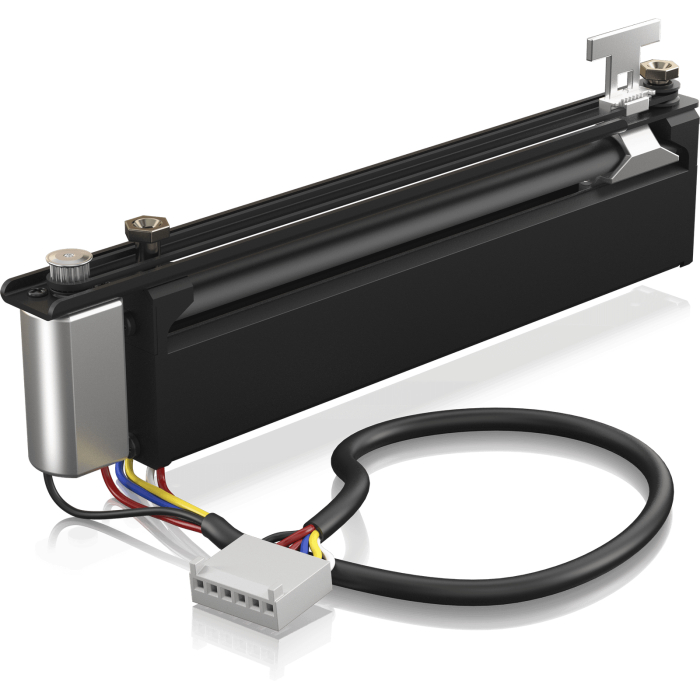

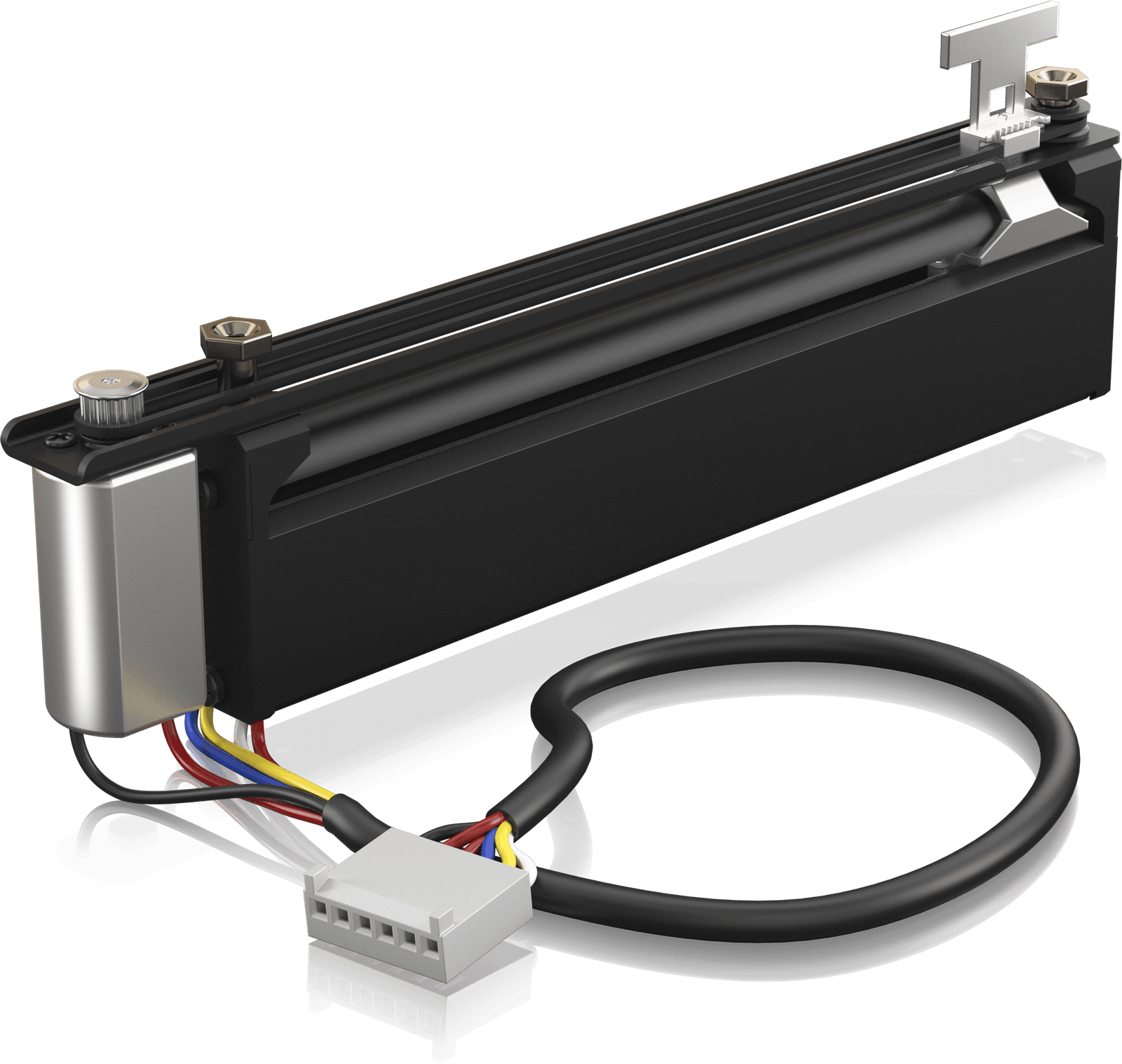

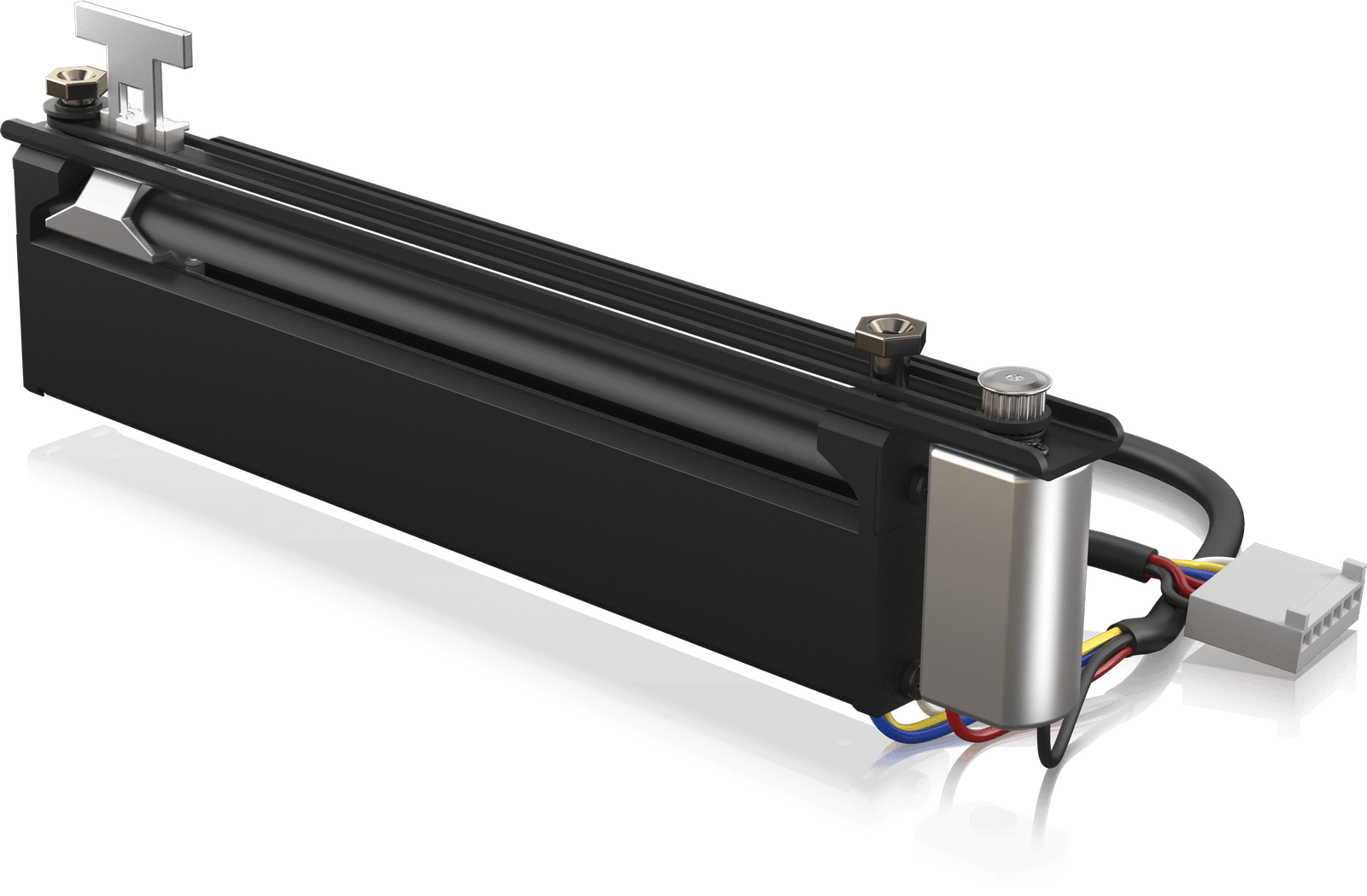

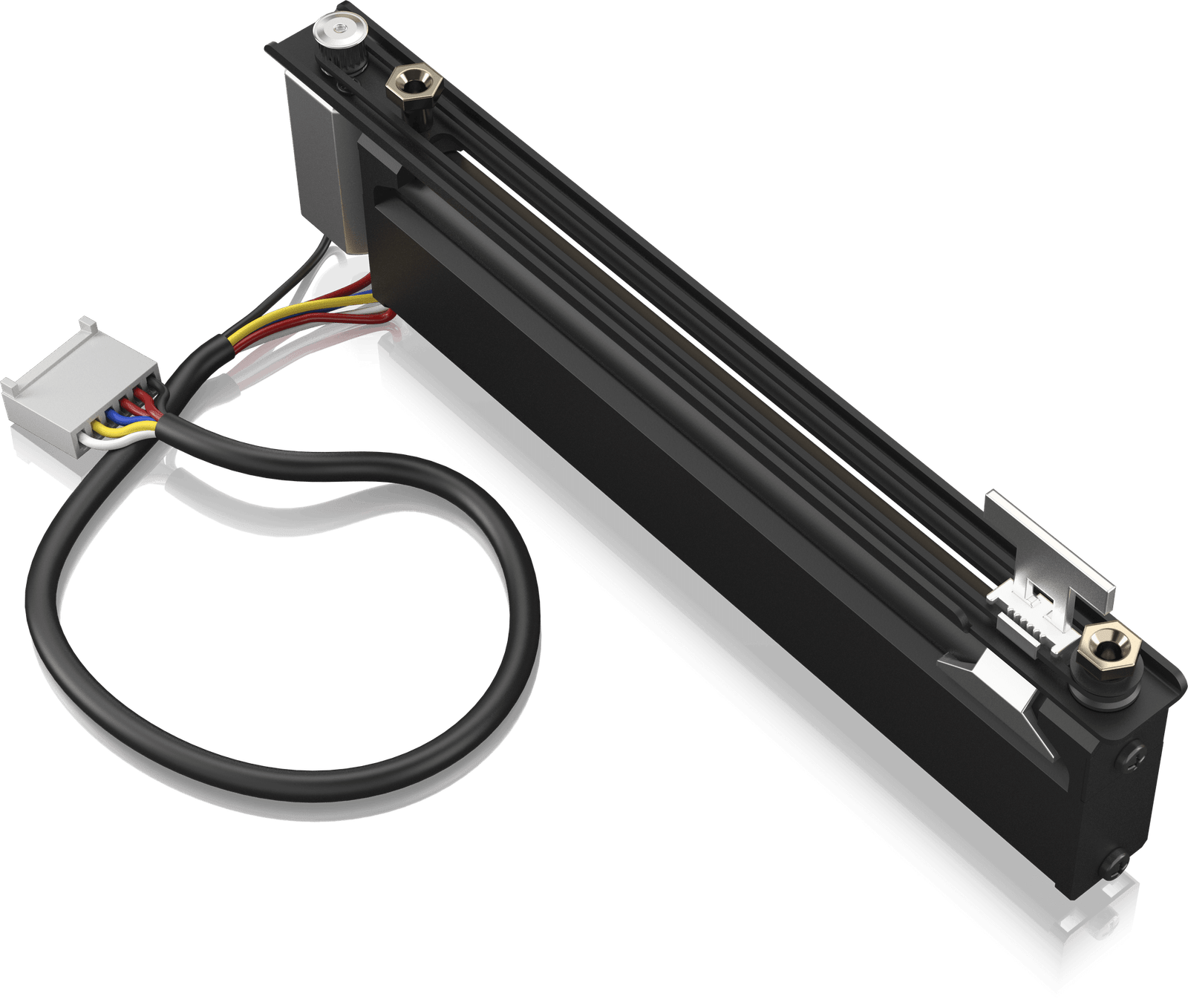

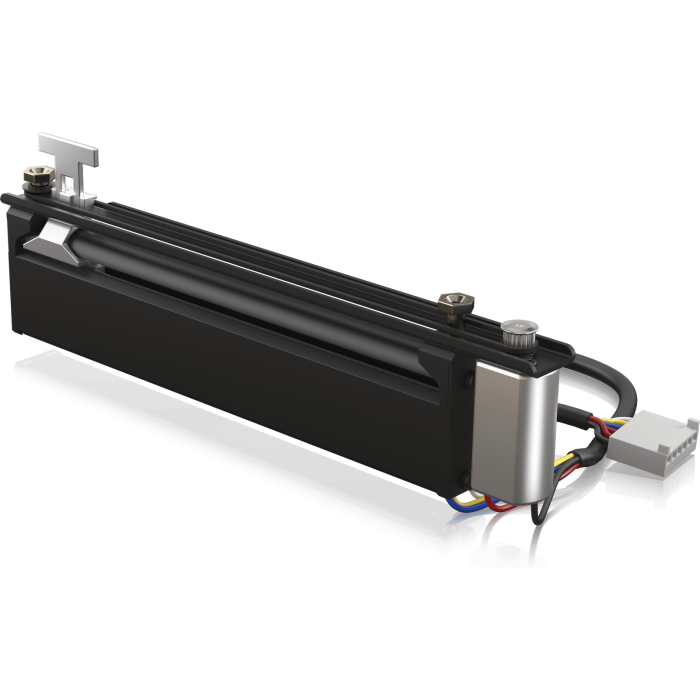

The PRO FADER (200 mm) is an advanced touch-sensitive motorised fader, designed specifically for Midas PRO Series digital consoles and control centres. Featuring a precise 100 mm travel track and a robust 10 kΩ linear law, this fader excels in servo control applications. The integrated touch sensing track and conductive T-Bar facilitate automatic channel selection in software and detect when the fader is being held, ensuring the motor is not driven unnecessarily. It mounts easily to console fascia panels with its M3 threaded pillars and 120 mm mounting centres.

This product is supplied as a set of five faders, suitable for use in input and output fader bays of all Midas PRO Series consoles. It serves as a direct replacement for well-known industry standards such as the Penny+Giles PGFM3200 and the Alps K-Fader.

Features

  • Touch-sensitive motorised 100 mm fader with 200 mm cable
  • High-endurance up to 1 million cycles
  • Premium quality wiper fingers (Palladium Silver-Copper alloy)
  • Touch-sensitive T-Bar and sensor track
  • High-precision 10 kΩ linear resistive track
  • Long-life Mabuchi motor
  • Compatible with Penny+Giles PGFM3200, Alps K-Fader, etc.

Specifications

Fader travel 100 mm
Track resistance 10 kΩ ± 20%
Track law Linear
Track linearity ± 2%
Mounting thread M3
Mounting centres 120 mm
Motor Mabuchi FF-050SB-09250
Motor drive voltage 8 V nominal
Connector 6-way 2.54 mm latching connector (Molex 22-01-2065 connector shell with 08-50-0031 crimps)
Cable length 200 mm
Connections 1 – Grey – Touch Sense, 2 – Blue – 0% Travel, 3 – Yellow – Wiper, 4 – Red – 100% Travel, 5 – Black – Motor (-), 6 – Red – Motor (+)
Dimensions 150 mm length x 13 mm width x 47 mm height
