LEGEND L6 500 Series Portable Chassis

The LEGEND L6 500 Series Portable Chassis allows you to create a custom audio processing setup by combining various modules to fit your needs. It can house up to 6 single-width modules and features advanced audio routing to reduce cable clutter. Its universal switch-mode power supply ensures reliable performance worldwide. The chassis can be used as a standalone device or installed in a standard 19″ rack with the included rackmount kit. It’s compatible with all 500 series modules and third-party plug-in cards, making it a versatile addition to any audio processing setup.

Features

• 500 series portable chassis for 6 single-width modules
• Advanced audio routing reduces cabling complexity
• Audio output link switches provide cable-free daisy-chain connections between modules
• Compressor bus link switches enable stereo and multi-channel dynamics sidechain linking

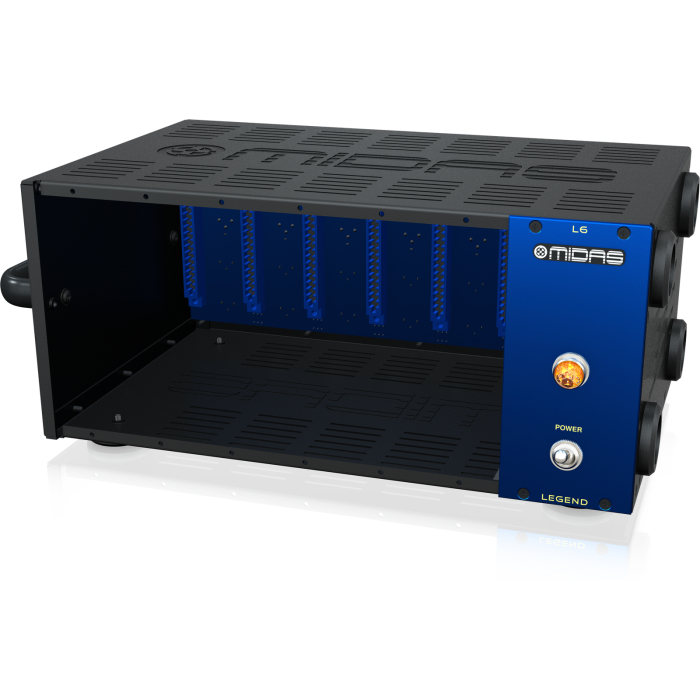

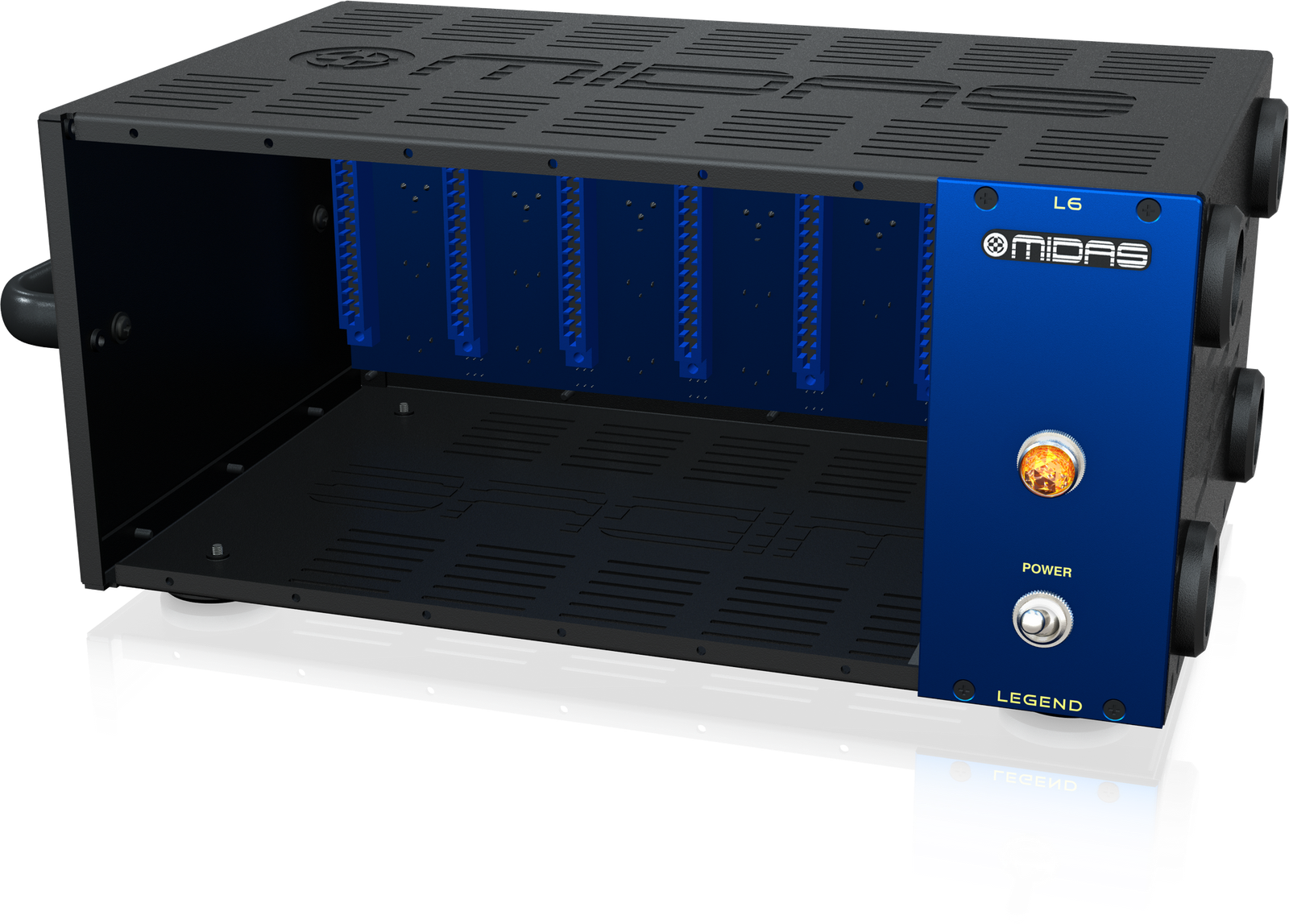

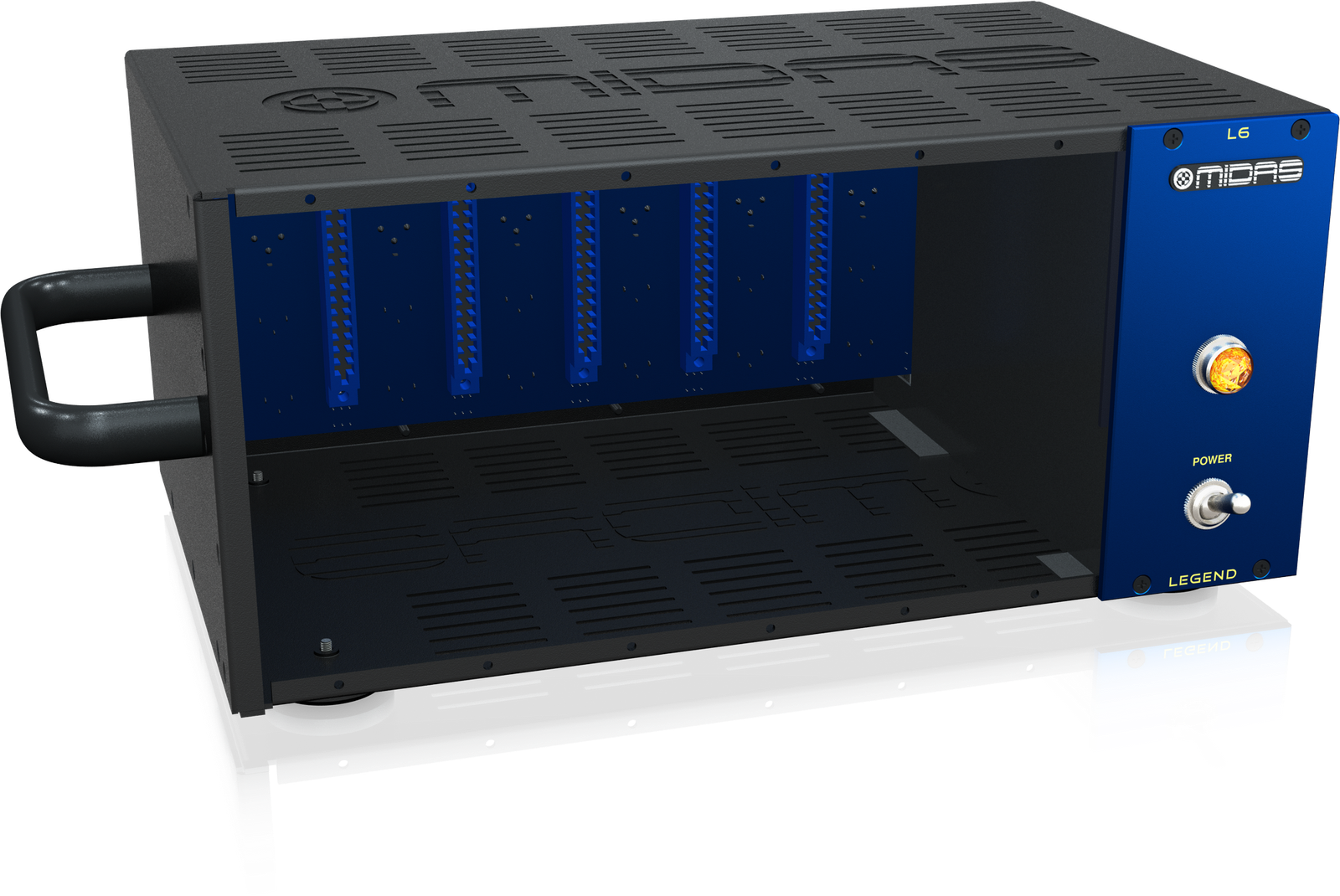

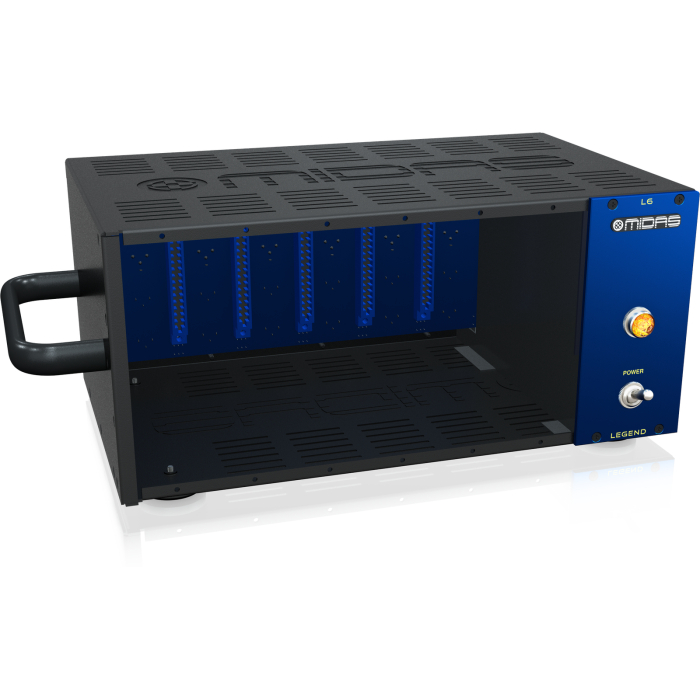

• Rugged free-standing chassis with convenient carrying handle for portable applications

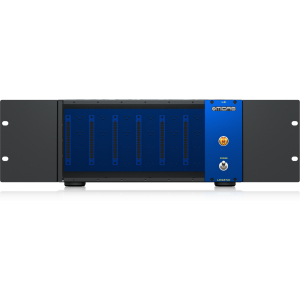

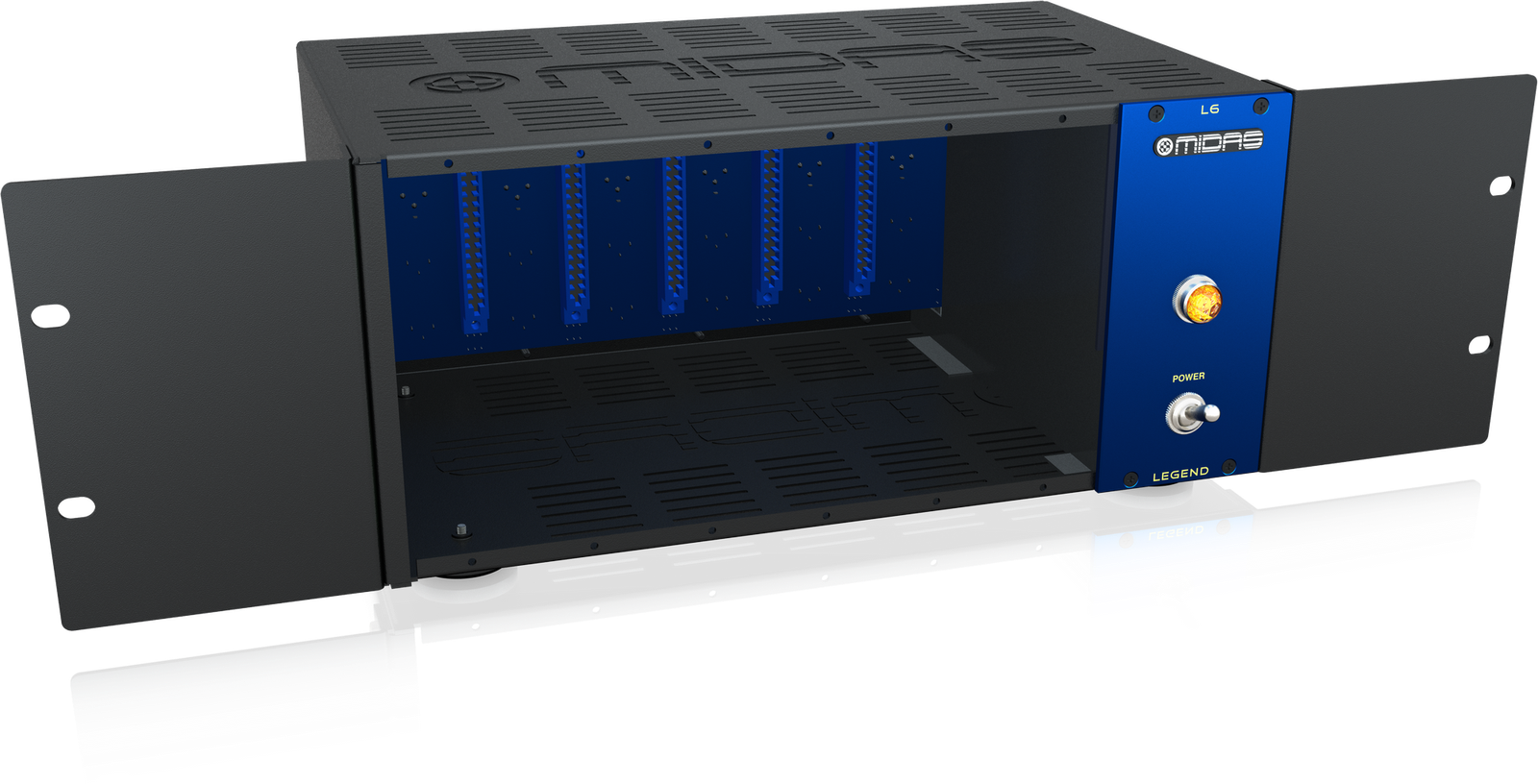

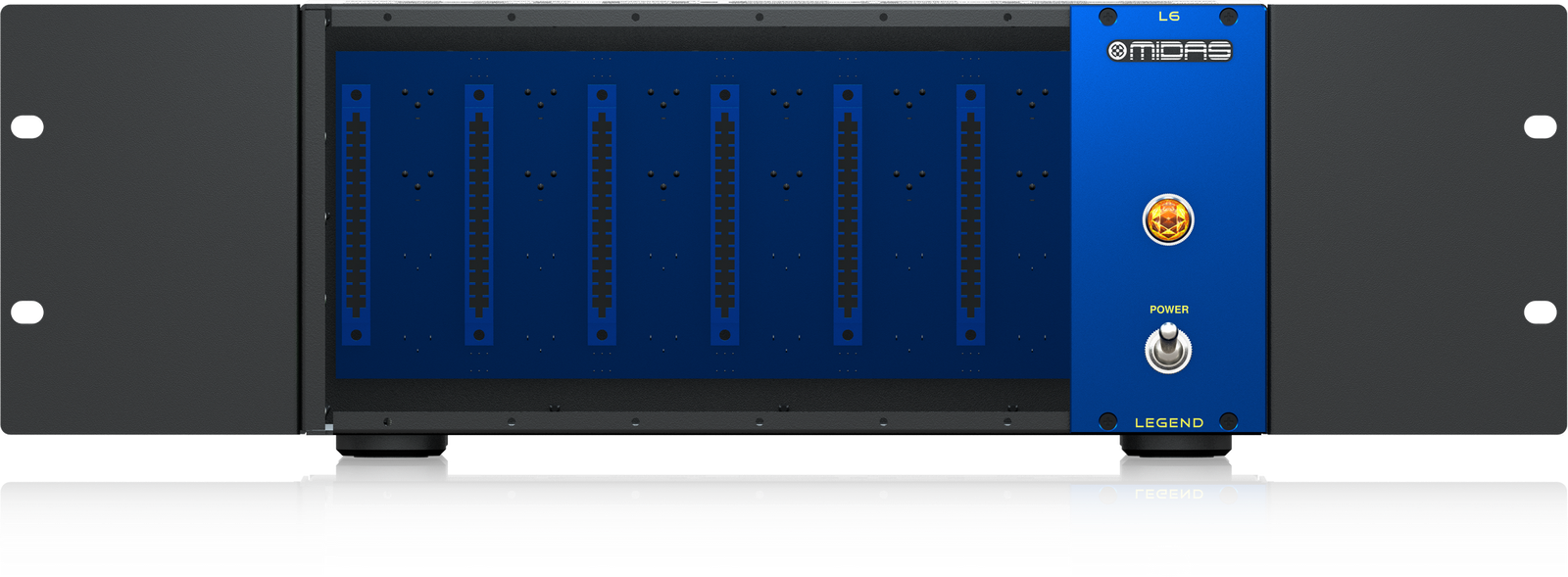

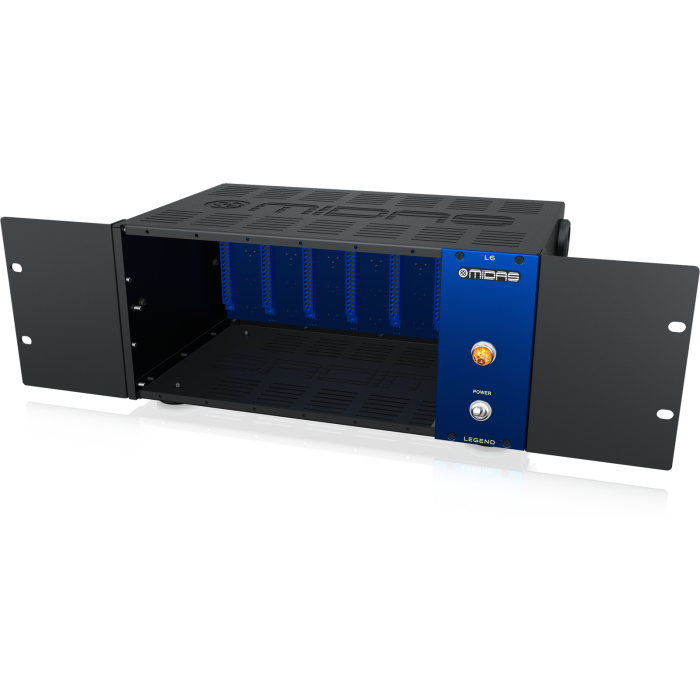

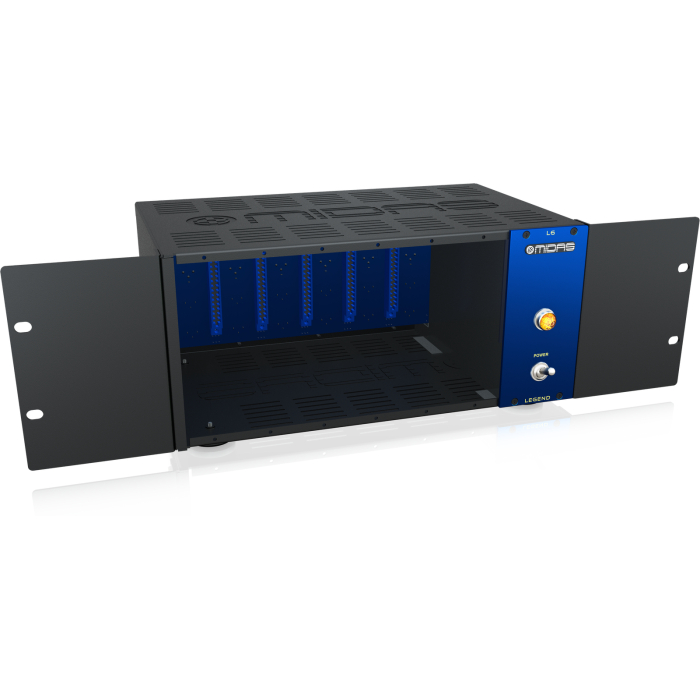

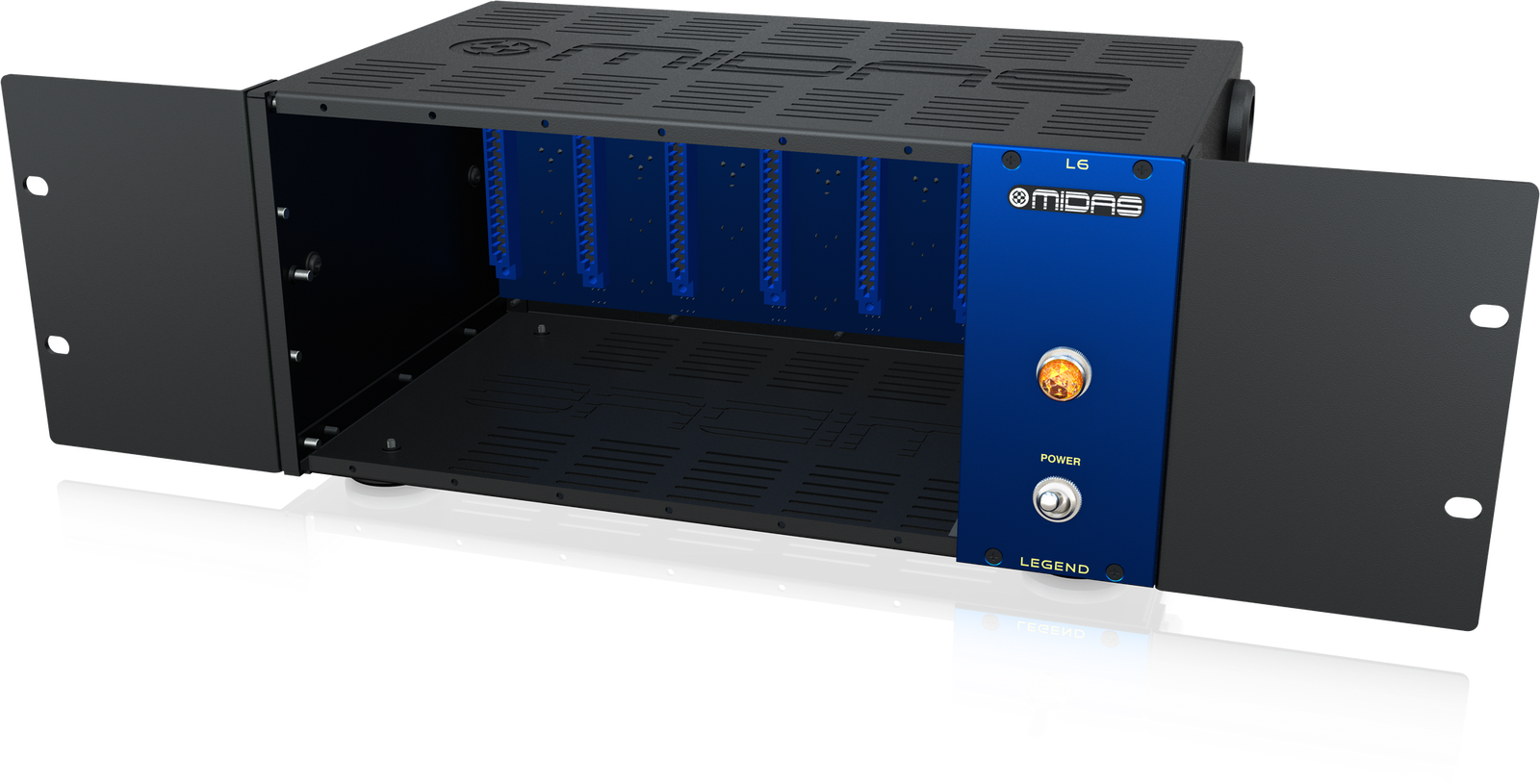

• 3U 19″ rackmount kit allows installation in recording studios and live touring racks (included)
• Earth lift switch eliminates any ground loop problems
• High power auto-ranging universal switch-mode power supply for use worldwide
• Over-specified ultra-low noise power supply output provides 3.2 A @ ±16 V and 300 mA @ +48 V

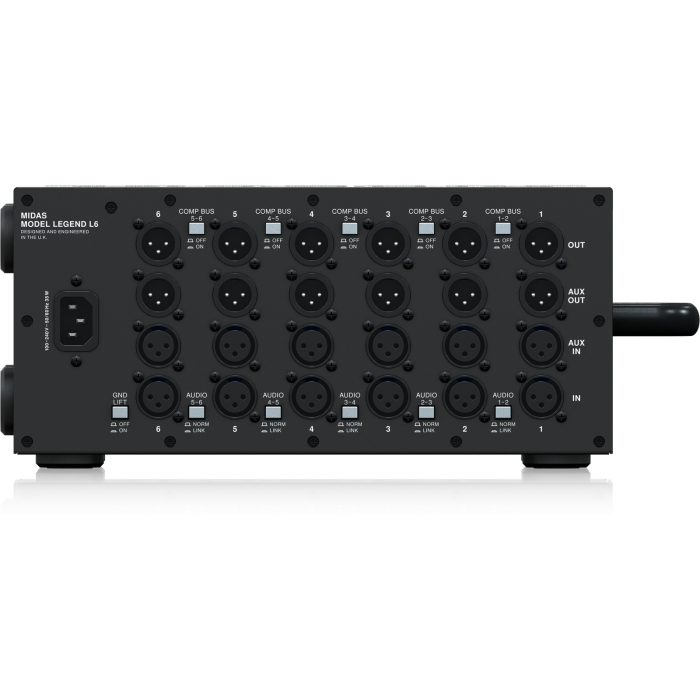

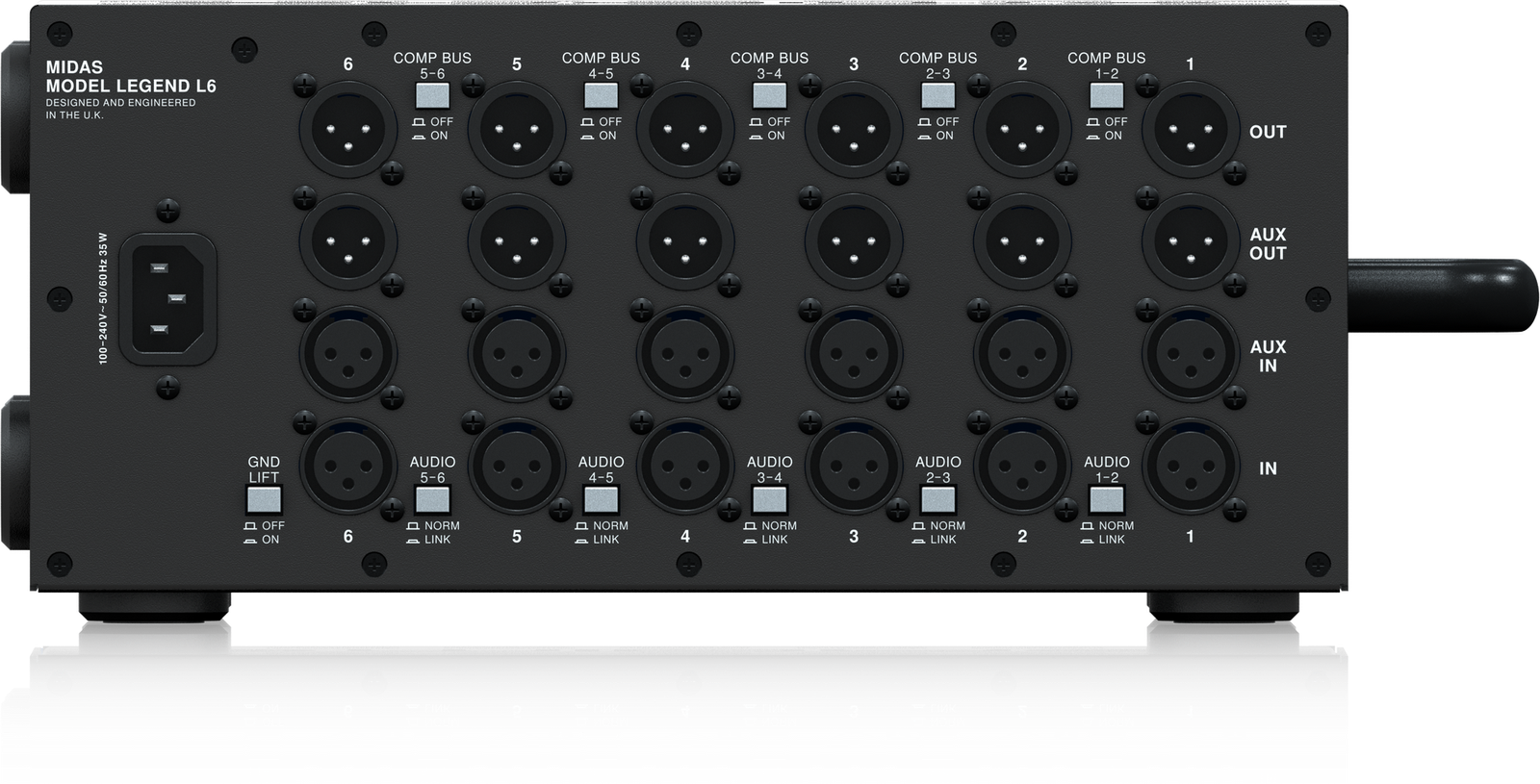

• Main and auxiliary inputs and outputs per channel on Neutrik XLR connectors
• Premium quality components throughout for crystal-clear audiophile signal path
