Midas Fibre 150M Rugged Multimode Optical Fibre Cable (150m Reel)

Midas

AED 8904 inc VAT.

The FIBRE-150M ruggedised multimode optical fibre cable offers a 150 metre bidirectional data link with Neutrik opticalCON DUO connectors, ensuring high reliability and protection against dirt and dust, ideal for concert and festival use. Compatible with MIDAS and KLARK TEKNIK optical snake interfaces, it supports 192 bidirectional channels of 24-bit digital audio at a 96 kHz sample rate.

In stock
Request Quote
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: FIBRE-150M Categories: , Brand:

Description

The FIBRE-150M ruggedised multimode optical fibre cable provides a bidirectional data link in a single 150 metre cable and features Neutrik opticalCON DUO connectors for high reliability, especially desirable in concert touring and festival applications where the optical connection needs to be protected against the ingress of dirt and dust. When used in conjunction with MIDAS and KLARK TEKNIK products equipped with optical snake interfaces, the FIBRE-150M cable can transmit 192 bidirectional channels of 24 bit digital audio at 96 kHz sample rate.

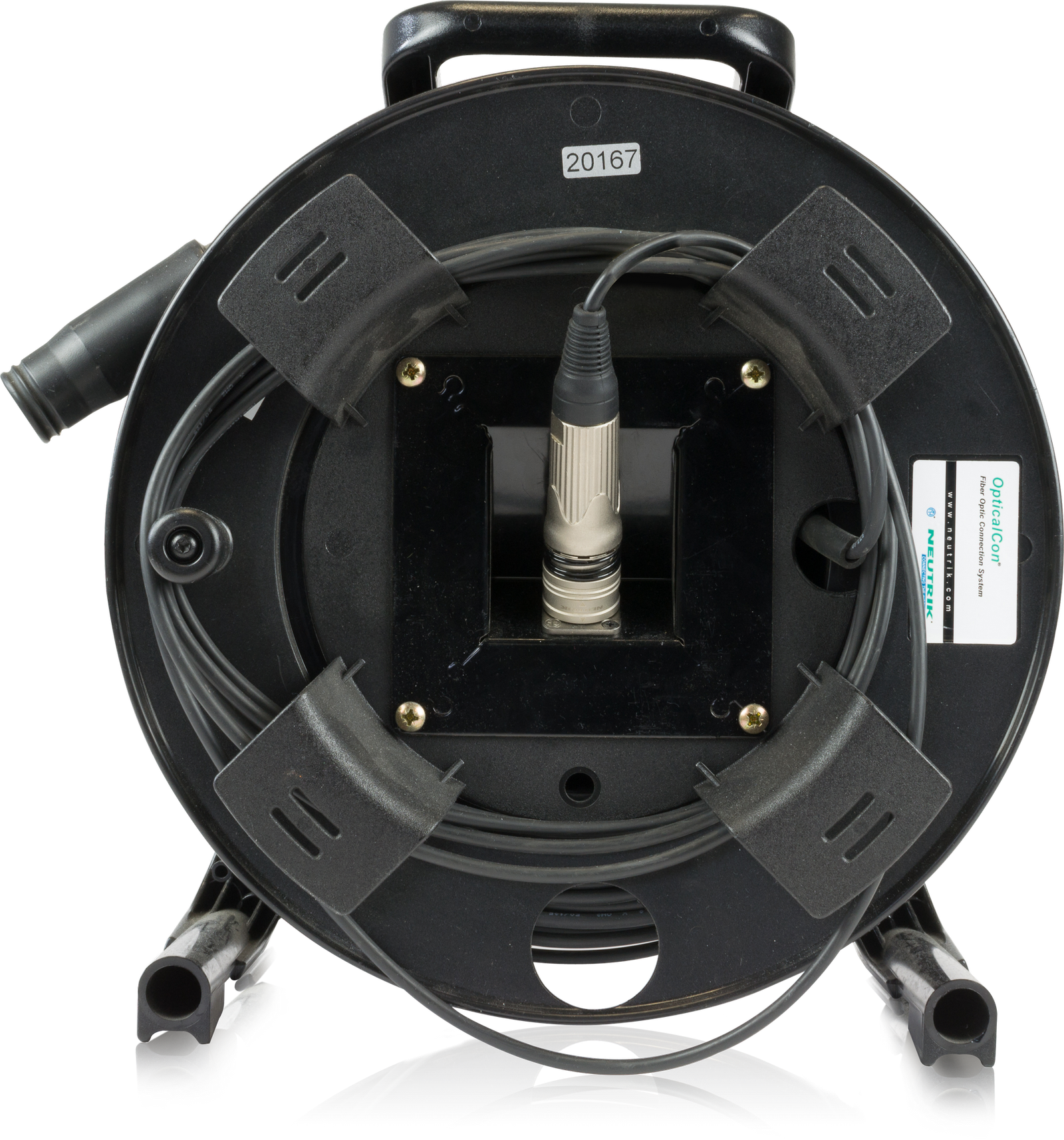

The opticalCON DUO cable connector accommodates a standard optical LC-Duplex connector in a ruggedised and durable all-metal housing with a protective rubber coating. It features a spring loaded push-pull locking mechanism and the optical connection is protected by a lockable metal cap with an integral O-ring seal. FIBRE-150M meets the IP65 standard for environmental protection when fitted to its mating chassis connectors.

Features

  • Ruggedised multimode optical fibre cable with Neutrik opticalCON* DUO connectors
  • Length 150 metres

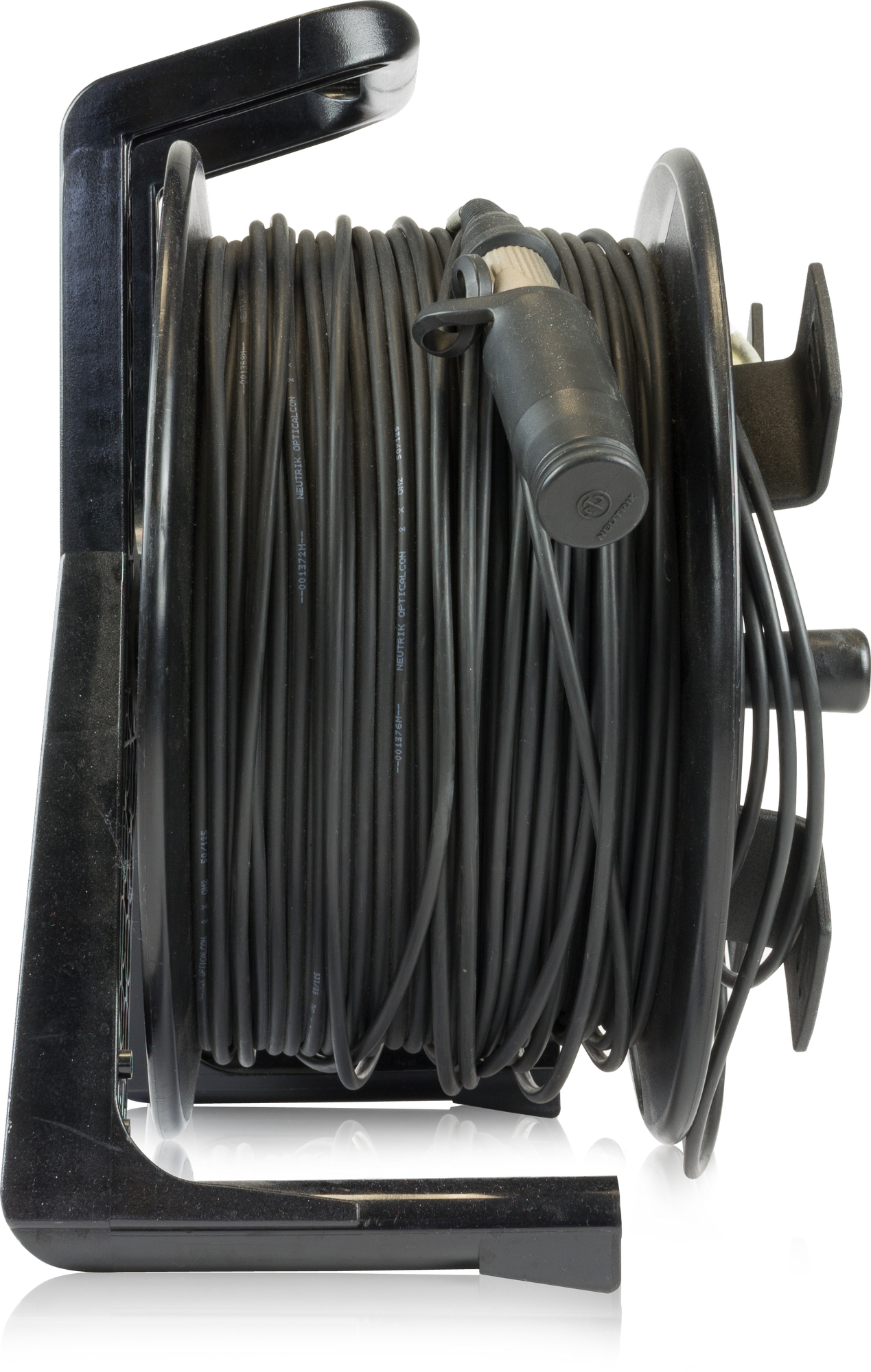

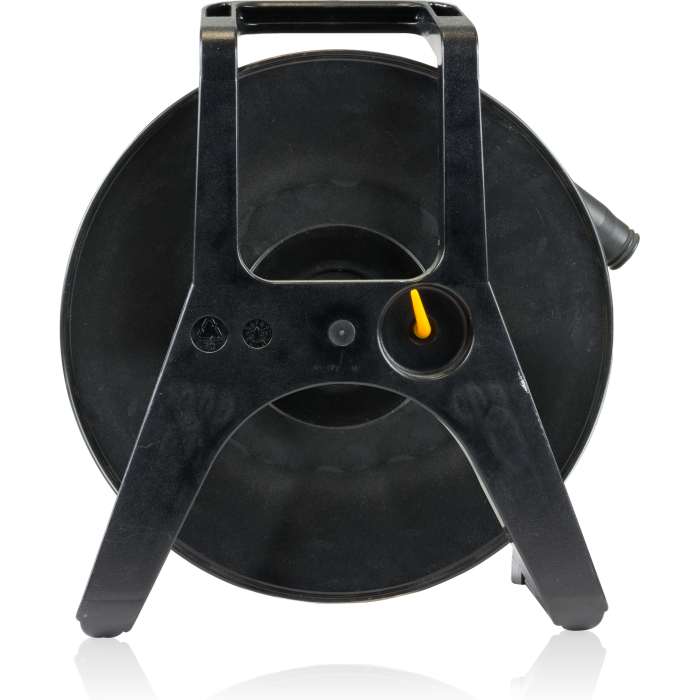

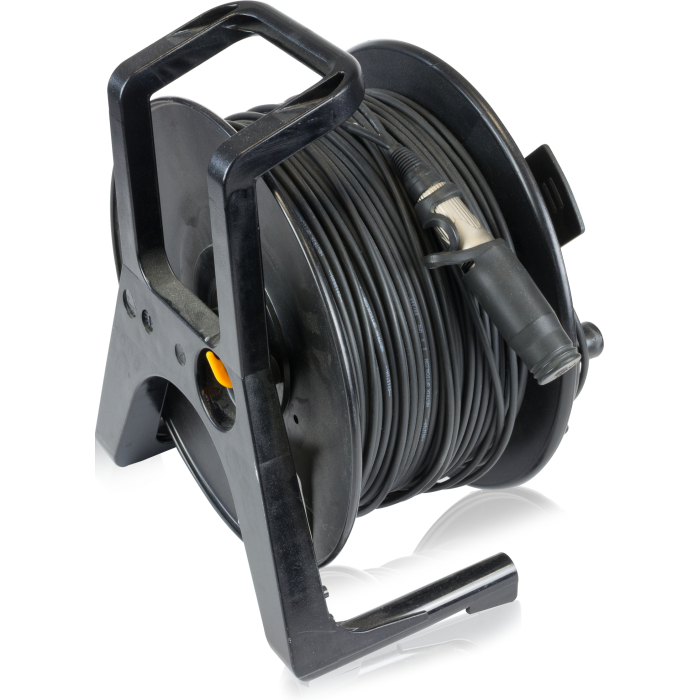

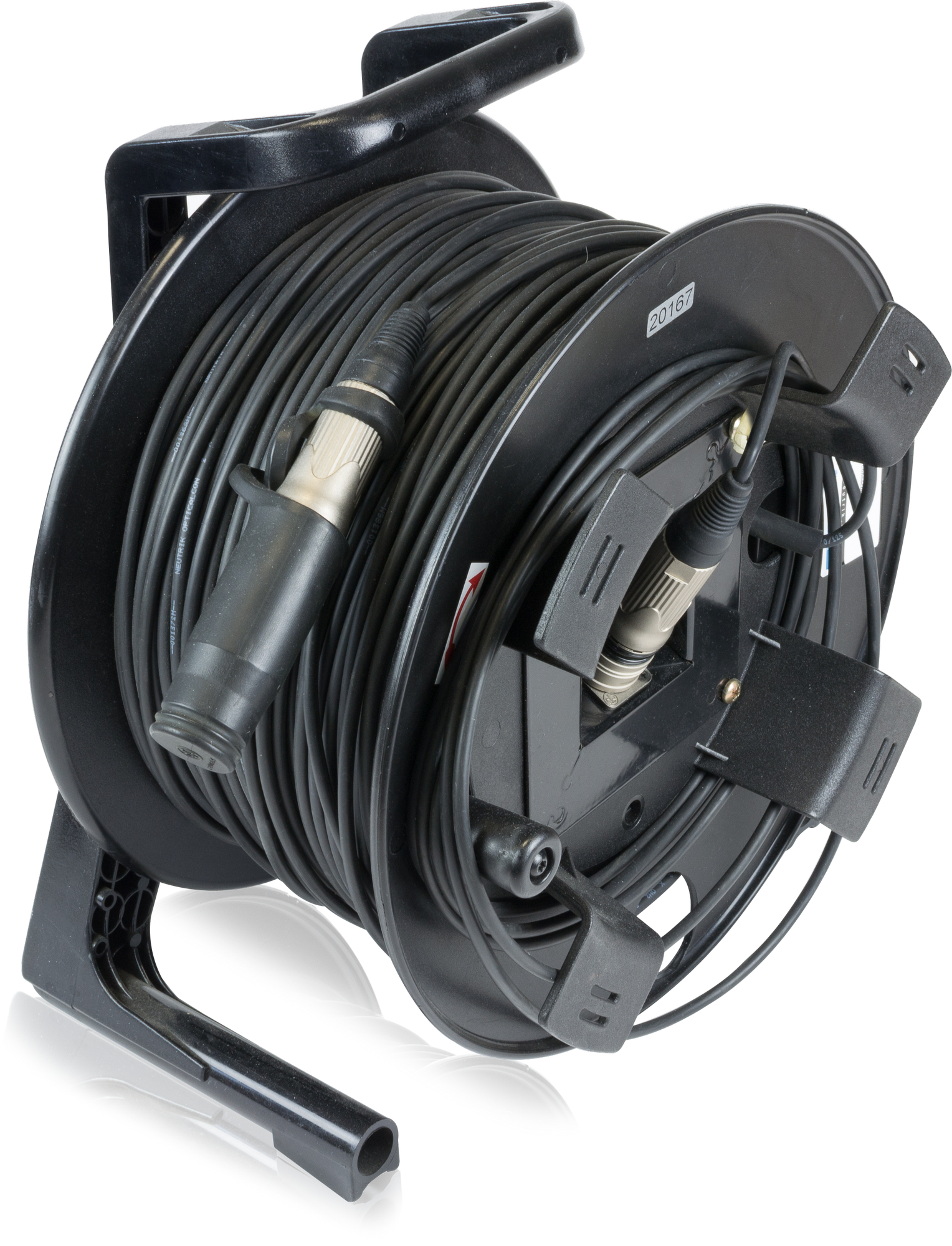

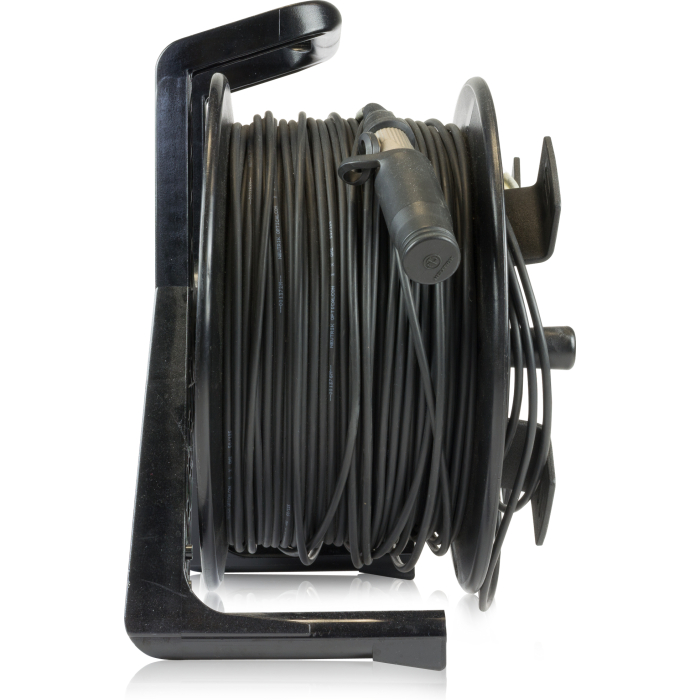

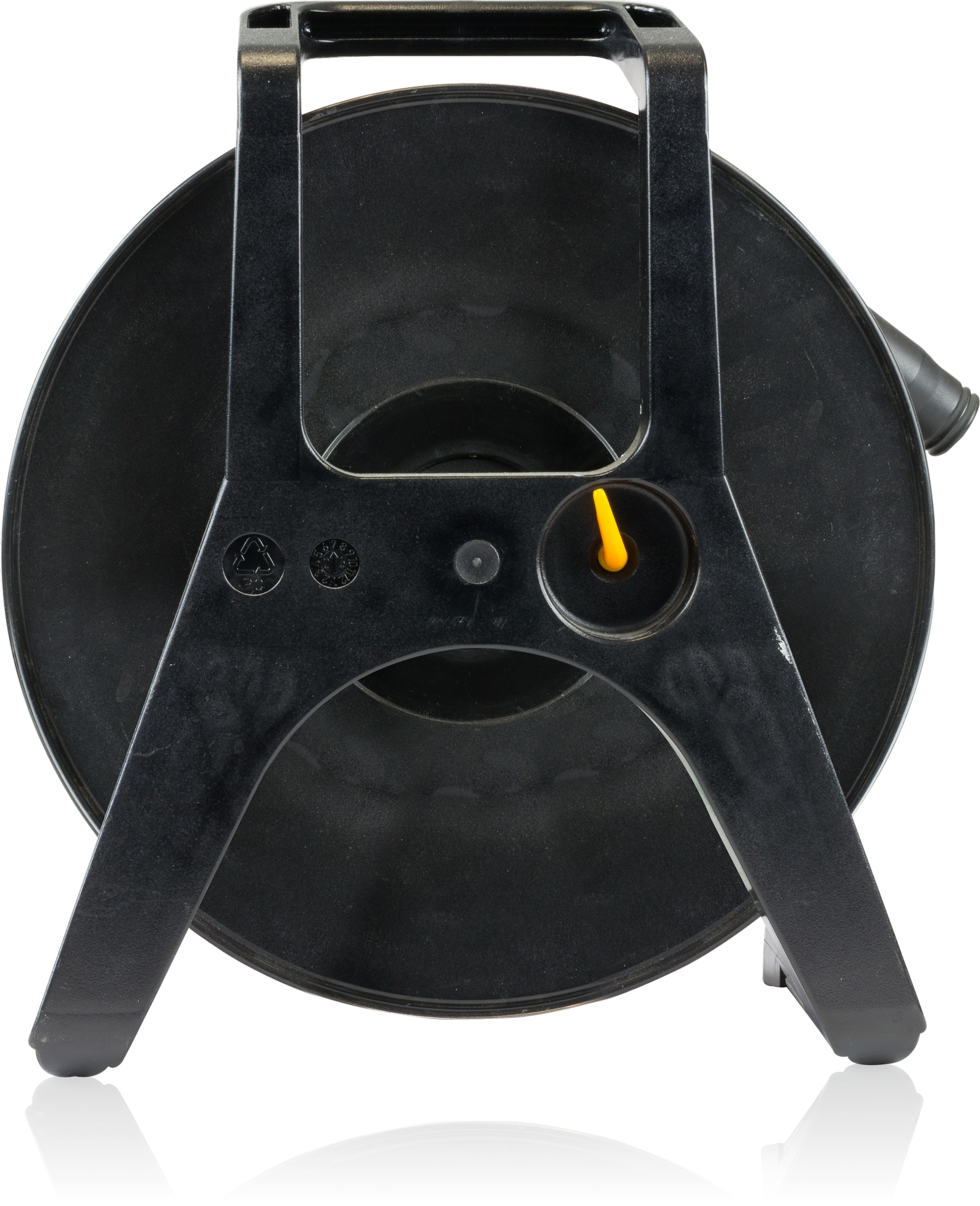

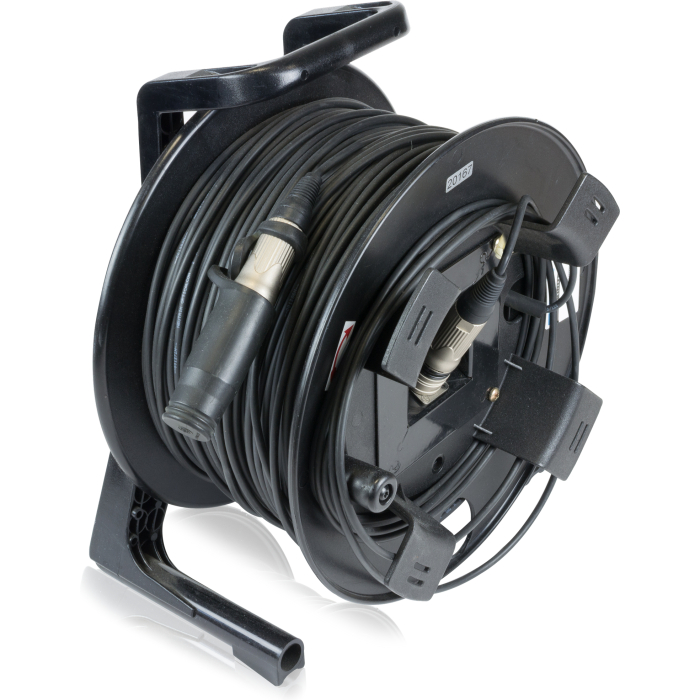

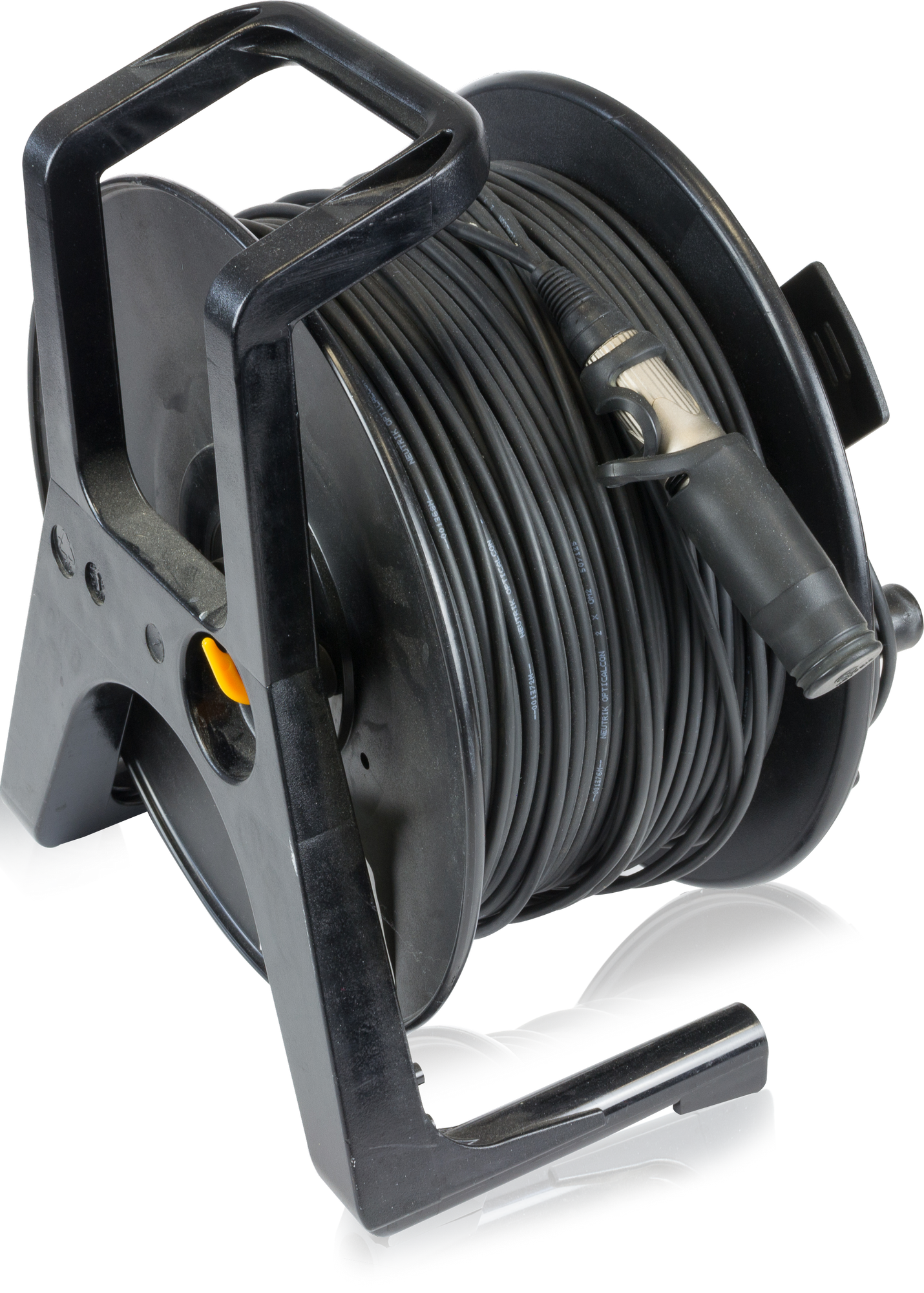

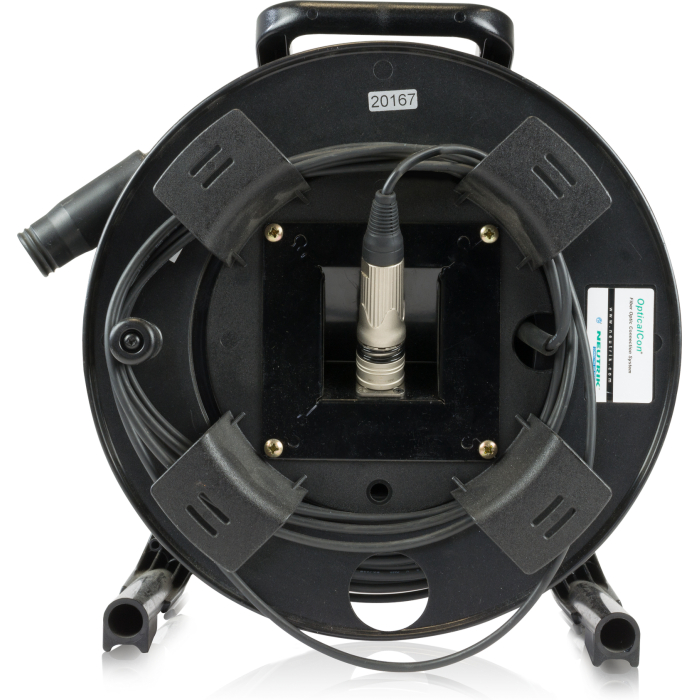

  • Supplied on Schill* GT310 drum with rubberised frame and integral carrying handle

Specifications

Neutrik Part Number NKO2-A-2-150
Cable length 150 metres (Anti-kink to Anti-kink)
Connector type opticalCON DUO NKO2-A
Optical fibre connection LC-Duplex
Optical fibre type 2M multimode PC
Optical fibre standard OM3
Optical fibre core diameter 50 Om
Optical fibre overall diameter 900 Om
Numerical aperture 0.2
Proof test level 100 kpsi
Wavelength 850 nm/1300 nm
Attenuation 3.0 dB/km (850 nm) 1.0 dB/km (1300 nm)
Insertion loss < 0.5 dB per connection
Minimum return loss 45 dB
Cable diameter 5.4 ± 0.25 mm
Maximum tensile load 1800 N (Installation) 600 N (Operation)
Minimum bend radius 80 mm (Installation) 40 mm (Operation)
Cable reel Schill GT310
Cable reel dimensions 310 mm diameter x 230 mm deep x 360 mm high (12.2″ x 9.1″ x 14.2″)
Operating temperature -25°C to +75°C
Flammability UL94HB
Protection (when mated) IP65
Net weight 14.5 kg (30.8 lbs)
