Description

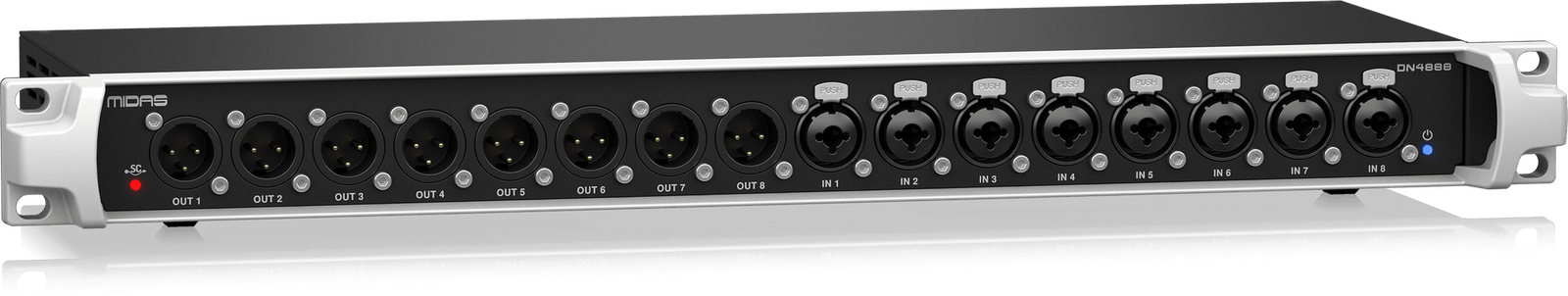

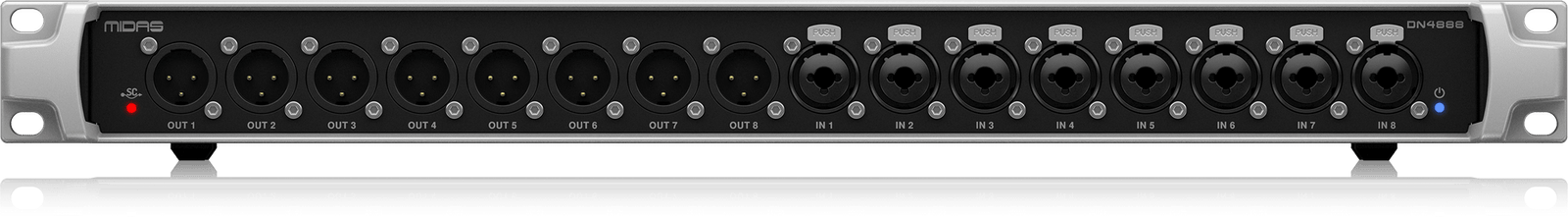

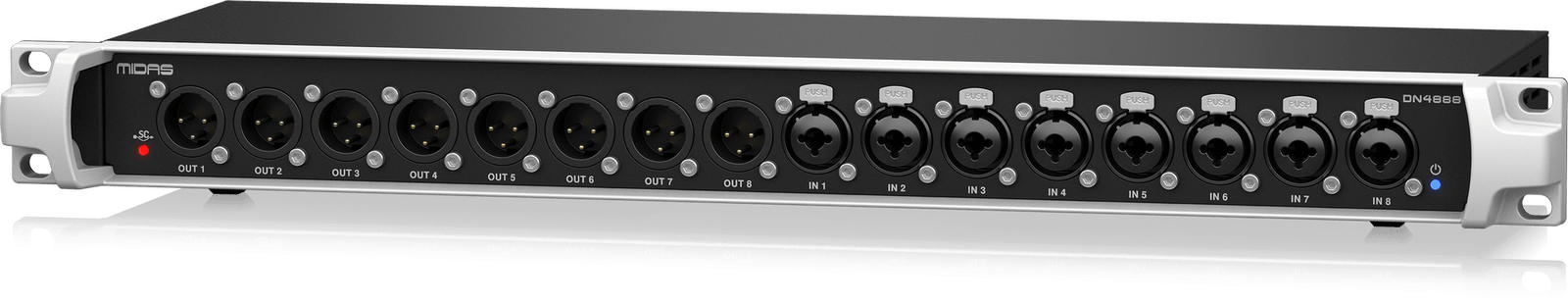

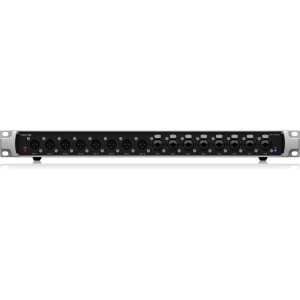

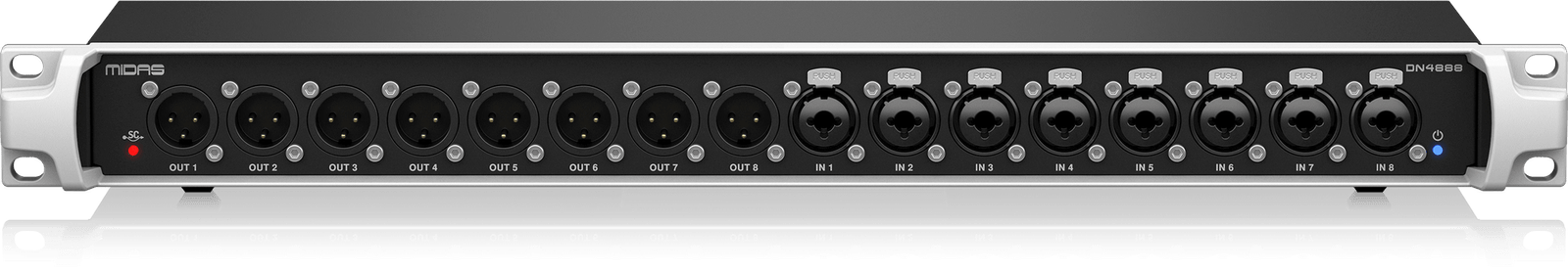

DN4888 Audio Interface Breakout Box
The DN4888 is the perfect solution for connecting additional equipment to your monitor or FOH console. It provides 8 additional analogue inputs and outputs to enable the integration of 8 analogue inserts or wireless devices, such as microphones and in-ear systems.
The StageConnect interface ensures seamless connectivity with other StageConnect devices using a single XLR cable, offering scalable, versatile setups for your audio needs. DN48XX Series can be daisy-chained with automatic channel negotiation.
Key Features
- Breakout box with 8 balanced XLR line in and 8 balanced XLR line out
- Analogue I/O box for StageConnect devices, Turbosound iQ, Behringer WING, and Ultranet receivers
- 32-channel audio transmission at sub-millisecond latency
- Cascading capability with other StageConnect boxes
- Flexible connectivity using standard microphone cables
- Supports bi-directional audio and remote power configurations
- Master mode for multi-channel audio exchange
- Slave modes for various channel configurations
- Dual Ultranet outputs for monitoring systems and speakers
- External power supply for standalone use and remote power
Specifications
Processing
| D/A conversion |
24-Bit, 48/44.1 kHz, 114 dB |
| StageConnect bus capacity |
32 ch, 24-Bit PCM audio |
| I/O latency |
0.05 ms |

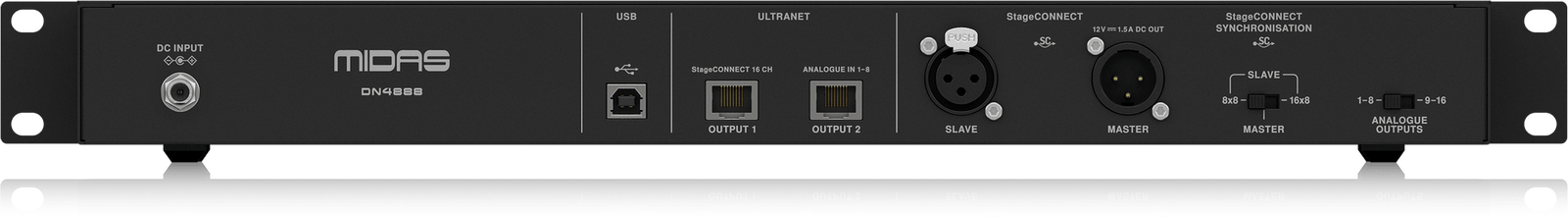

Connectors
| Analog Inputs |
8 x XLR female jacks, balanced |
| Impedance |
20 kΩ unbalanced / 40 kΩ balanced |
| Max. input level |
+21 dBu |
| Analog Outputs |
8 x XLR male jacks, balanced |
| Impedance |
100 Ω unbalanced / 200 Ω balanced |
| Max. output level |
+21 dBu |
| Ultranet |
2 x RJ45 |
| Shielded CAT5e cable max. length |
75 m |
| StageConnect |
1 XLR male, 1 XLR female |
| Shielded balanced DMX cable max. length |
40 m |
| USB |
Type B |
System
| Frequency response |
20 Hz – 20 kHz ±0.2 dB |
| Dynamic range |
110 dB DA / 106 dB AD |
| Cross talk rejection @ 1 kHz |
110 dB DA / 104 dB AD |
| Noise |
-90 dBu DA / -106 dBFS AD |
| Distortion |
0.004% DA / 0 dBu, 0.004% AD / 0 dBu in / 1 kHz |
Power
| Power supply |
12 VDC / 2.5 A (30 W), remote power input/output via XLR |
| Power consumption |
8.5 W |
Physical
| Standard operating temperature range |
5° – 45° C (41° – 113° F) |
| Dimensions |
49 x 483 x 169 mm (1.9 x 19.0 x 6.7″) |
| Weight |
2.2 kg (4.9 lbs) |
