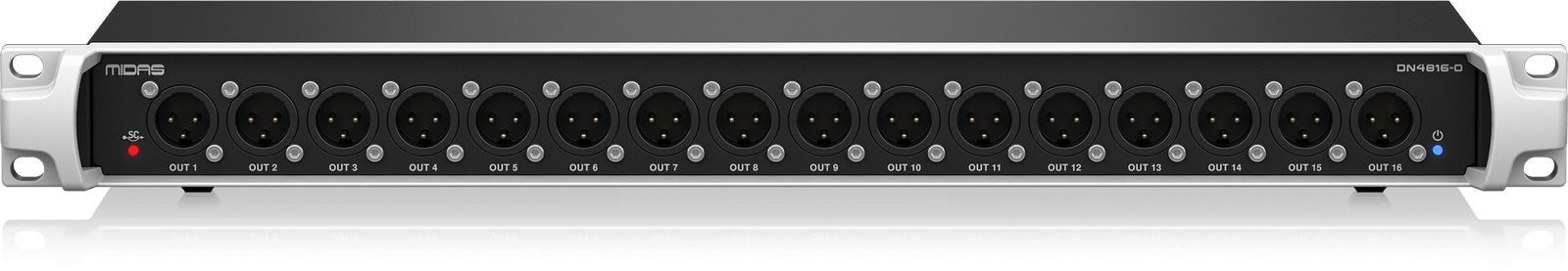

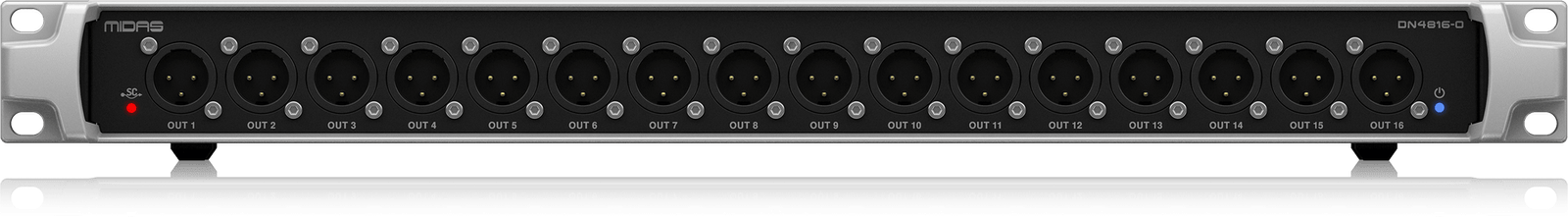

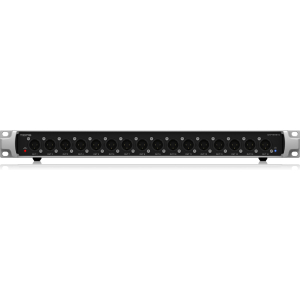

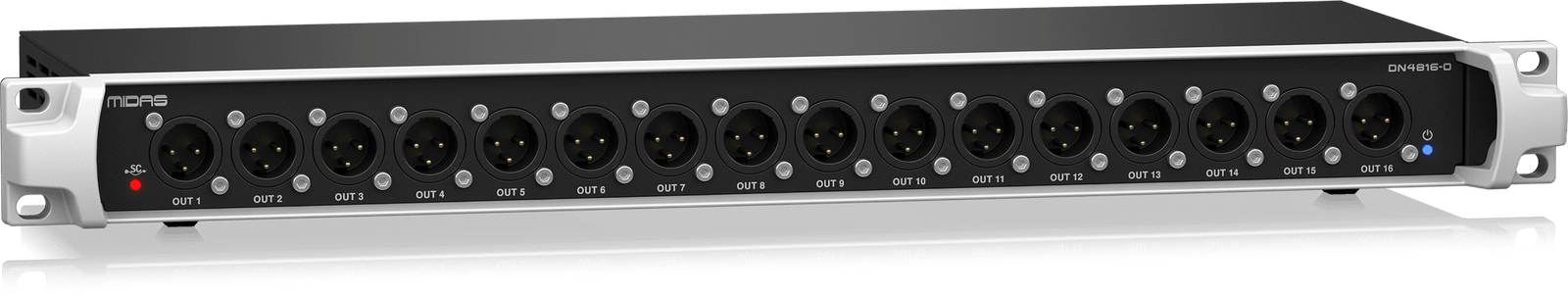

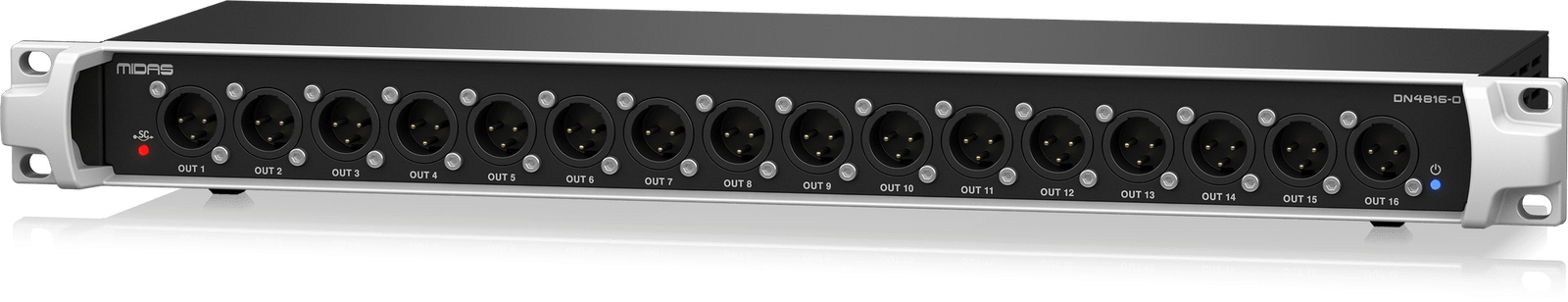

Midas DN4816-O StageConnect Interface with 16 XLR Outputs and ULTRANET Connectivity

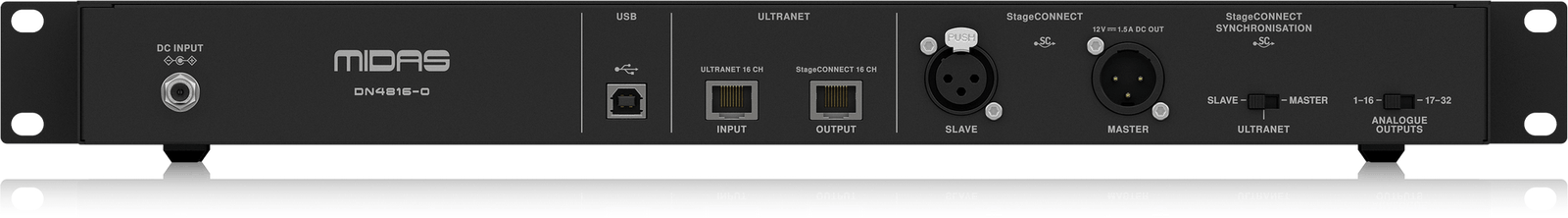

The DN4816-O is the optimal choice for expanding the line output capacities of your monitor or front-of-house console. Offering 16 analog outputs, it seamlessly integrates with additional gear such as wireless transmitters for in-ear monitoring. The DN4816-O also features an Ultranet input, enabling the transfer of signals from an AIR mixer through StageConnect.

The StageConnect interface supports multi-channel audio transmission via a simple XLR cable link to other StageConnect devices. The array of available I/O options ensures scalable connectivity within your side rack. Devices in the DN48XX Series can be connected in a daisy-chain fashion, automatically coordinating channels for efficient connectivity.

Features

• Equipped with 16 balanced XLR line out for StageConnect and Behringer Ultranet systems.
• Analog output compatibility with StageConnect devices, Midas HUB4, Behringer WING, and Ultranet transmitters including Midas MR18/M32, DL16/DL32 stageboxes.
• Delivers 32-channel audio transmission via StageConnect with sub-millisecond latency, utilizing 24-Bit uncompressed PCM at 44.1/48 kHz over standard XLR microphone or DMX cables.
• Enables cascading up to two units for a total of 32 low-latency analog outputs from a single StageConnect source.
• Offers flexible connectivity on stage and across side racks with any balanced microphone cable.
• Supports bi-directional audio configurations with control data and remote power provision.
• Operates in Master mode, facilitating multi-channel audio exchange within a StageConnect device chain.
• Can function as either Master or Slave, synchronized to StageConnect or Ultranet input streams.
• Ultranet output empowers direct connections to Turbosound iQ speaker systems and Behringer P16 personal monitors.
• Includes an external power supply for standalone functionality and remote power capability on StageConnect Master outputs.
