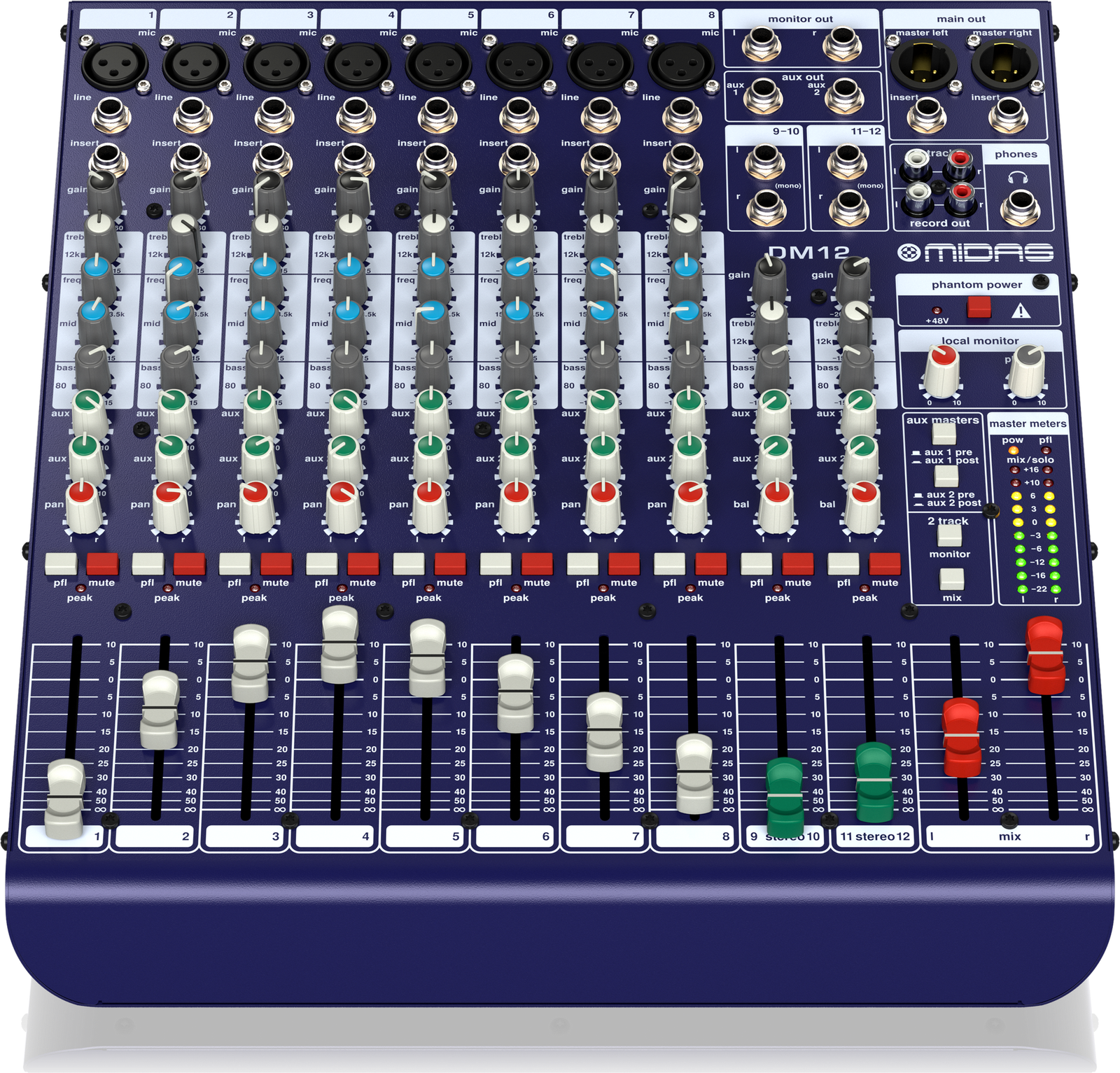

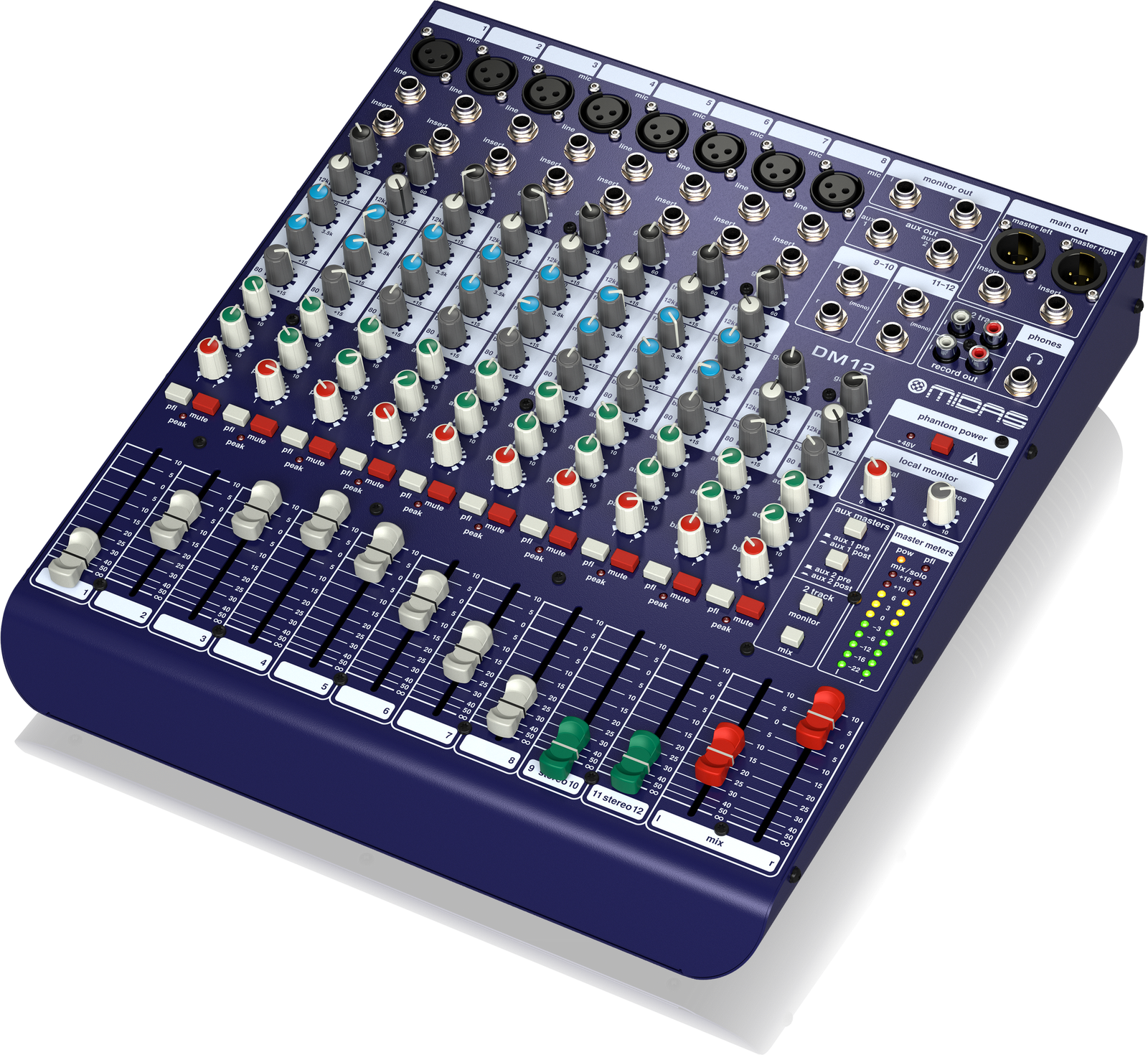

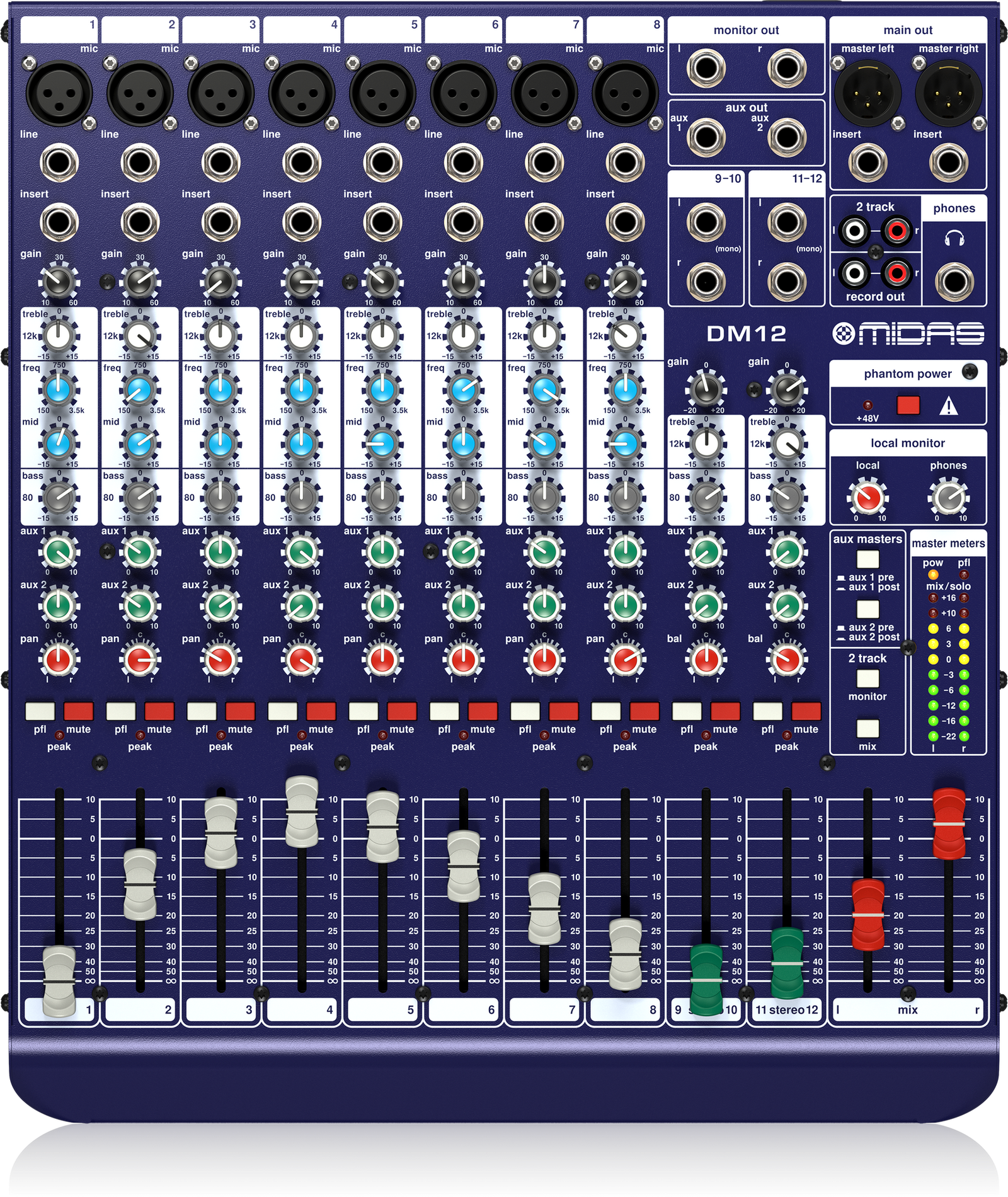

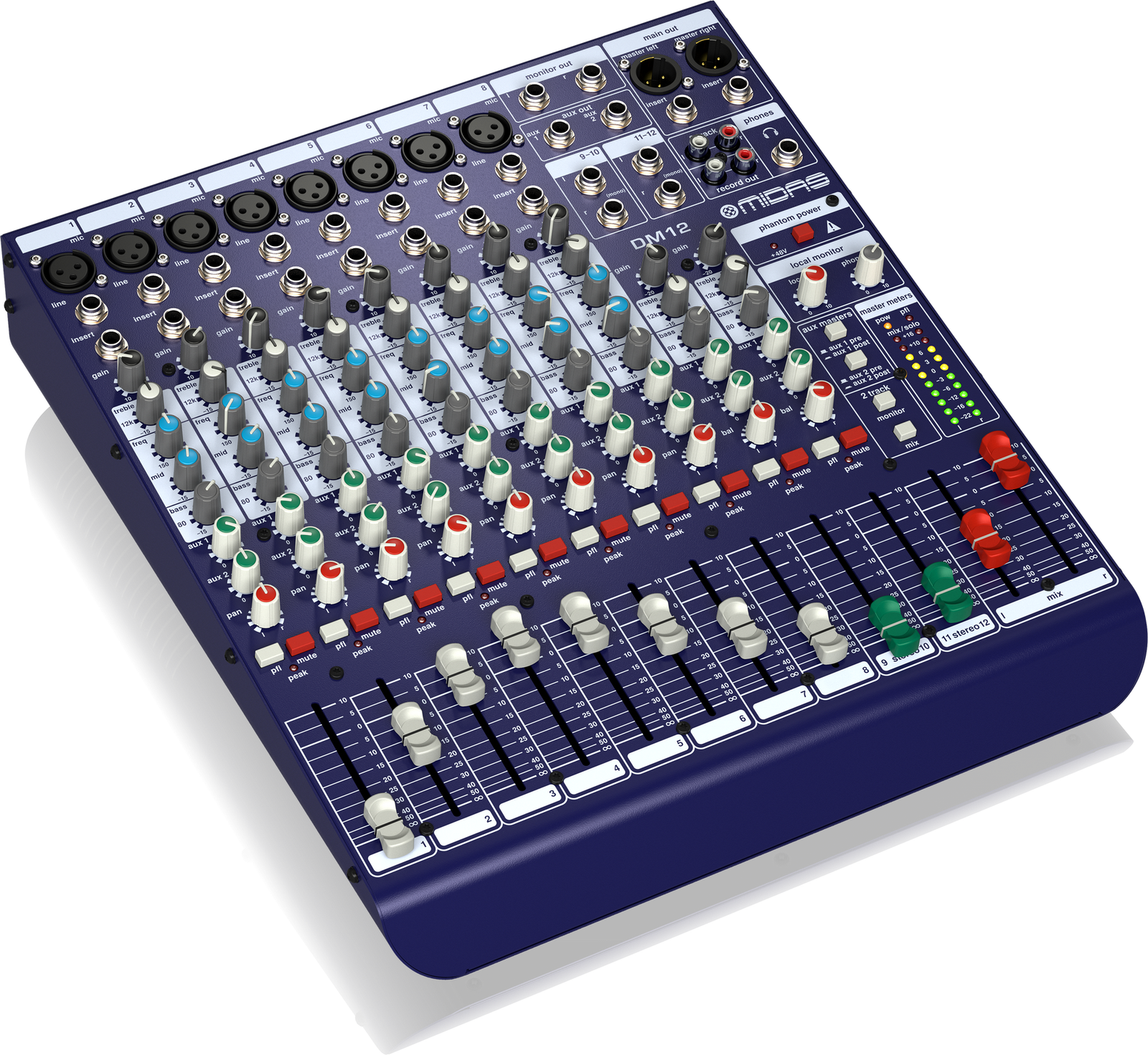

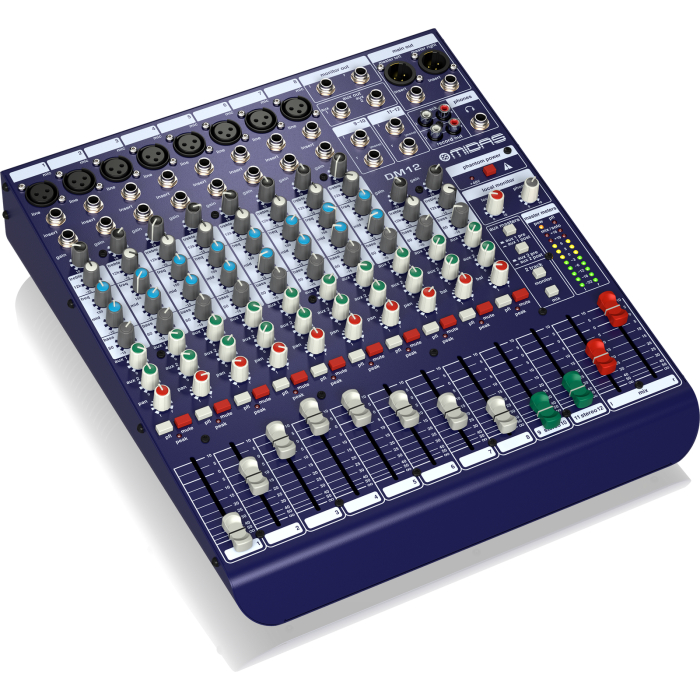

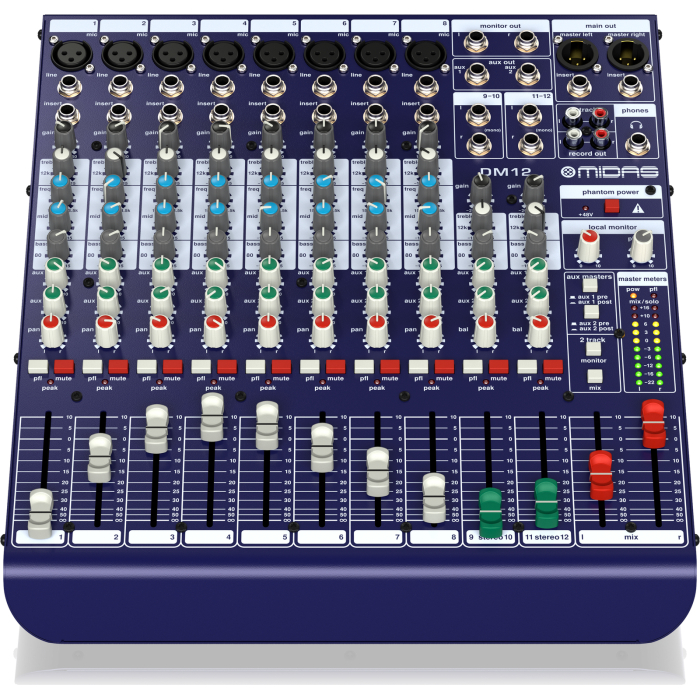

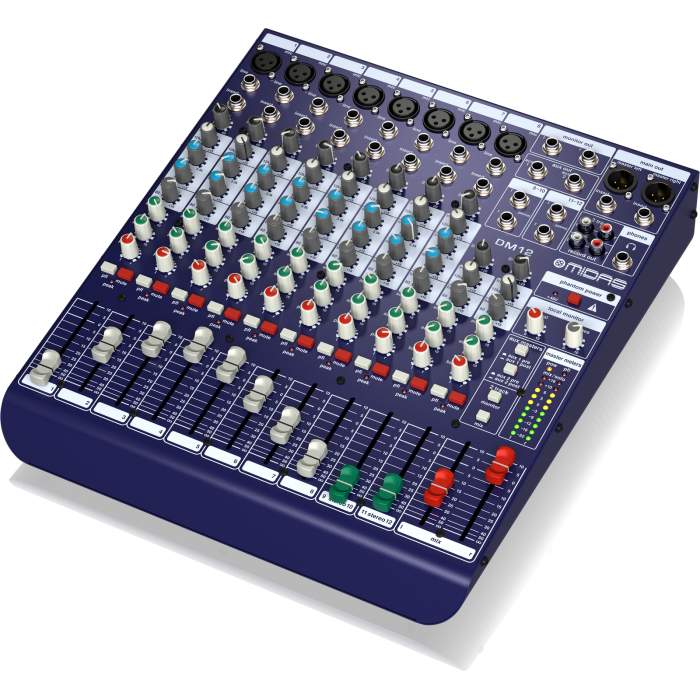

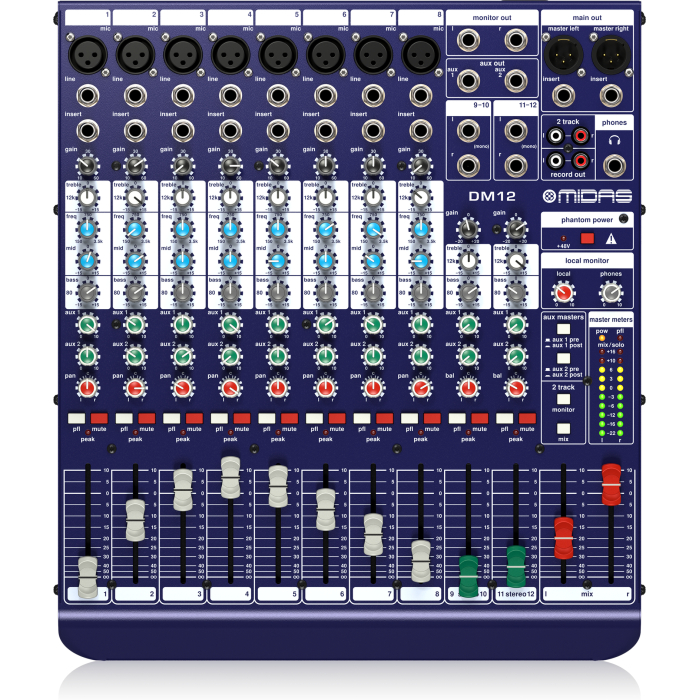

Midas DM12 12-Input Analog Mixer with Midas Microphone Preamplifiers

Midas

AED 1668.45 inc VAT.

The DM12 is a compact mixing console ideal for stage or studio use, delivering excellent sonic performance and versatility. It features 8 Midas microphone preamplifiers with +48V Phantom Power, known for their transparency and low noise. All 12 channels include TRS Line Inputs, mono channel inserts, and 3-band EQ with mid-frequency sweep. Additional features comprise pre/post-fader aux sends, monitor outs, and 2-track RCA I/O, making the DM12 a comprehensive and affordable analogue mixer.

In stock
Request Quote
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: DM12 Categories: , Brand:

Description

The compact DM12 honours your stage or studio desktop space, while providing incredible sonic performance, amazing versatility and an unheard of level of affordability.

What is the secret behind DM12’s superb, studio-quality sound? The DM12 features 8 award-winning, Midas microphone preamplifiers with true +48 V Phantom Power, acclaimed by audio engineers the world over for their transparency and nuanced low noise, high-headroom design. Add to this TRS Line Inputs on all 12 channels (8 mono and 2 stereo), mono channel Inserts and 3-band EQ with mid-frequency sweep, 2 switchable pre/post-fader aux sends, 2 monitor outs and 2-track RCA I/O, and you have an analogue work of art – the fully featured DM12!

Features

  • Live performance and studio recording analogue mixer with 12 input channels
  • 8 mono input channels with award-winning Midas microphone preamplifiers
  • 2 electronically-balanced stereo line input channels on 1/4″ TRS connectors
  • 3 band EQ on mono channels with swept mid band
  • 2 aux sends with pre/post fader switching
  • 60 mm precision long-life faders
  • Rugged chassis construction for durability in portable applications
  • Auto-ranging universal switch-mode power supply

Specifications

Specification Details
Mic inputs (MIDAS mic preamp) 8
Type XLR, balanced
Mic EIN @ 60 dB gain, 50 O source at insert send -131 dBu, unweighted, 20 Hz to 20 kHz
Mic EIN @ 60 dB gain, 150 O source at insert send -128 dBu, unweighted, 20 Hz to 20 kHz
Noise @ 10dB Gain, at insert send -97 dBu, unweighted, 20 Hz to 20 kHz
Frequency response (-1 dB) at main output 20 Hz to 20 kHz (-1 dB)
Frequency response (-3 dB) at main output 70 kHz (-3 dB)
Mic Gain range +10 dB to +60 dB
Max. input level +11 dBu @ +10 dB gain
CMRR @ +60dB gain Typically -90 dB
Impedance 2 kO, balanced
Distortion (THD+N) at 0 dBu 0.005% @ 1kHz
Phantom power Switchable, +48 V
Line Input Type ¼” TRS, balanced
Line Input Impedance 20 kO balanced/unbalanced
Line Gain range -10 dB to +40 dB
Max. input level +30 dBu
Stereo Inputs Type 4 x ¼” TRS connector, balanced
Stereo Inputs Impedance 20 kO balanced/unbalanced
Stereo Inputs Gain range -20 dB to +20 dB
Stereo Inputs Max. input level +21 dBu
Equaliser Low ±15 dB @ 80 Hz, shelving
Equaliser Mid (mono inputs only) ±15 dB @ 150 Hz to 3.5 kHz, variable semi-parametric
Equaliser High ±15 dB @ 12 kHz, shelving
Channel Inserts Type ¼” TRS connector, unbalanced
Channel Inserts Max. input/output level +21 dBu
Aux Sends Type 2 x ¼” TRS connector, balanced
Aux Sends Impedance 240 O balanced, 120 O unbalanced
Aux Sends Max. output level +21 dBu
Monitor Out Type 2 x ¼” TRS connector, balanced
Monitor Out Impedance 240 O balanced, 120 O unbalanced
Monitor Out Max. output level +21 dBu
Main Out Type 2 x XLR, electronically balanced
Main Out Impedance 100 O balanced, 50 O unbalanced
Main Out Max. output level +21 dBu
Main Out Inserts Type 2 x ¼” TRS connector, unbalanced
Main Out Inserts Max. input/output level +21 dBu
Phones Output Type ¼” TRS connector, unbalanced
Phones Output Impedance 25 O
Phones Output Max. output level +21 dBu
2-Track Input Type 2 x RCA, unbalanced
2-Track Input Impedance 20 kO
2-Track Input Max. input level +21 dBu
Record Out Type 2 x RCA, unbalanced
Record Out Impedance 1 kO
Record Out Max. output level +21 dBu
Main Mix System Noise Main mix @ -, channel fader @ -8: -104 dBu, unweighted, 20 Hz to 20 kHz
Main mix @ 0 dB, channel fader @ -8 -91 dBu, unweighted, 20 Hz to 20 kHz
Main mix @ 0 dB, channel fader @ 0 dB -84 dBu, unweighted, 20 Hz to 20 kHz
Power Supply 100-240 V~ 50/60 Hz, switchable (T 1.6 A H 250 V)
Power consumption 40 W

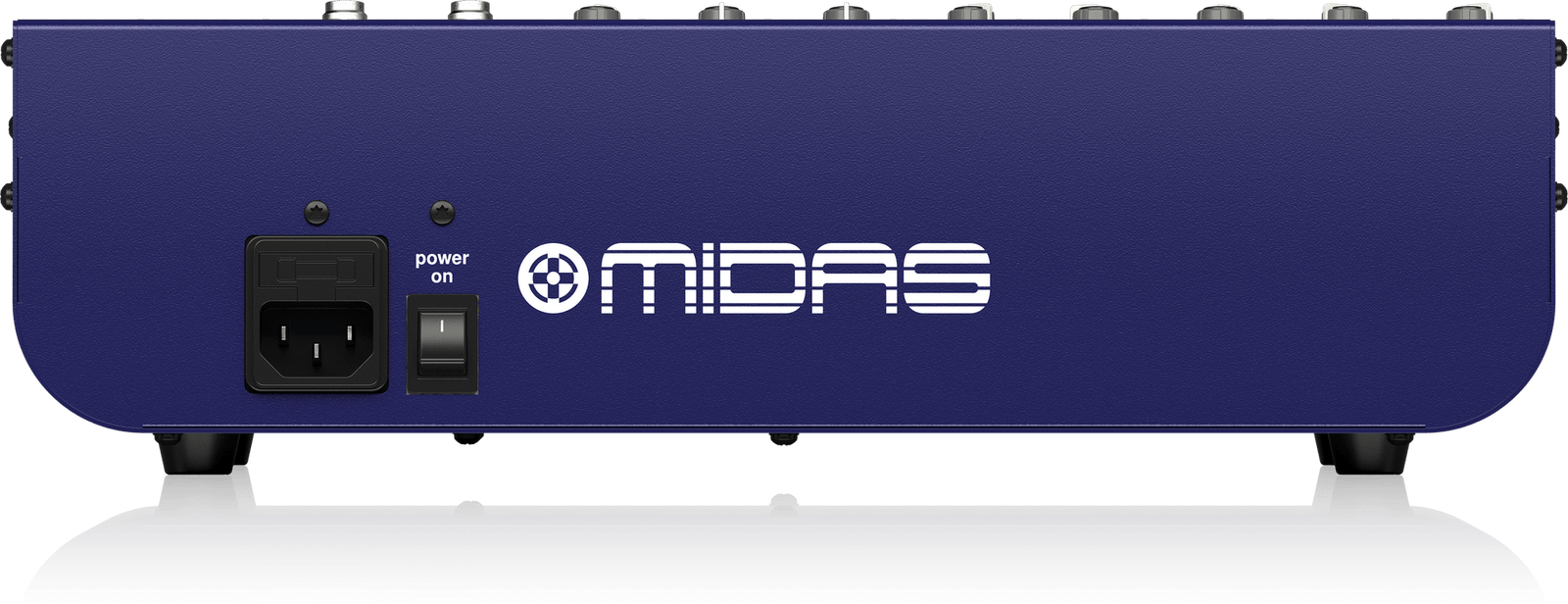

Mains connection Standard IEC receptacle
Dimensions (H x W x D) 95 x 328 x 370 mm (3.7 x 12.9 x 14.6″)
Weight 3.9 kg (1.8 lbs)
