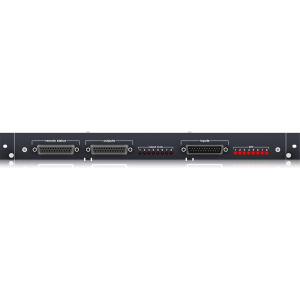

Midas DL444 8-In 8-Out Analog Card with Microphone Preamplifiers and D-Type Connectors

Midas

AED 1666.35 inc VAT.

The DL444 is an 8-channel modular analogue input/output card designed for MIDAS PRO Series control centres and modular I/O boxes. It includes MIDAS microphone preamplifiers with switchable +48V phantom power and servo-balanced electronic outputs capable of driving long cable runs. Featuring low latency 24-bit 96 kHz ADC and DAC converters, the DL444 minimizes distortion and noise. Balanced inputs and outputs on 25-way D-type connectors make this card ideal for maximizing channel counts in fixed installations, and it includes an automatic mute feature when the audio signal path is muted through the PRO Series control centre.

In stock
Request Quote
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: DL444 Categories: , Brand:

Description

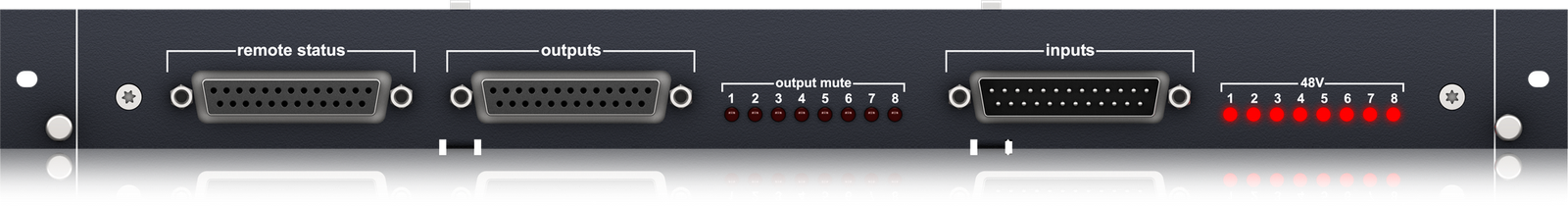

DL444 Modular 8 Channel Analog Mic/Line Input and Output Card

The DL444 is designed for MIDAS PRO Series control centers and modular I/O boxes. It includes award-winning MIDAS microphone preamplifiers equipped with switchable +48 V phantom power, offering superior performance for both modular input and line level output configurations. This card utilizes premium low latency 24-bit 96 kHz ADC and DAC converters, reducing distortion and noise artefacts while ensuring high-quality audio signals. Designed for fixed installations, it has 8 inputs and outputs on 25 way D-type connectors, with servo-balanced electronic outputs delivering high current drive for long cable runs. Additionally, an automatic output mute feature enhances reliability when the signal is muted via the PRO Series control centre.

Features

  • Award-winning MIDAS microphone preamplifiers with switchable +48 V phantom power
  • Low latency 24 bit 96 kHz ADC and DAC converters
  • 8 inputs with selectable microphone or line level on a 25 way D-type connector
  • 8 electronically balanced line outputs on a 25 way D-type connector
  • High output current drive for long cable runs
  • +48 V and Output mute LEDs per channel with remote status monitoring
  • Compatible with Midas PRO3, PRO6, PRO9, PRO X, DL351, and DL451

Specifications

Specification Details
Sample rate 96 kHz
Dynamic range >110 dB unweighted (20 Hz – 20 kHz)
Maximum input level Mic/Line (Unity Gain) +21 dBu, Mic/Line (-2.5 dB Gain) +24 dBu
Maximum output level +21 dBu
CMRR @ 1 kHz Mic Input (Unity Gain) Typically >70 dB, Mic Input (45 dB Gain) Typically >90 dB
Mic EIN (45 dB Gain) -127 dBu
Noise (Unity gain) <-89 dBu unweighted (20 Hz – 20 kHz)
Frequency response ±0.5 dB (20 Hz – 20 kHz, relative to 1 kHz)
THD+N (Unity Gain) <0.01%
Crosstalk @ 1 kHz <-90 dB
Input impedance 10k Ω
Output impedance 50 Ω
Connectors 25 way D connectors Balanced
Phantom power +48 V, individually switchable per channel
