Microphone Preamp

Midas DL431 Microphone Splitter, 24 Input, 72 Output with Independent Microphone Preamplifiers

Midas

AED 26212.20 inc VAT.

The DL431 is a 6U 19″ rack I/O unit tailored for microphone signal splitting, featuring 24 mic/line level inputs, 72 line level outputs, and top-notch Midas sound quality. It includes two independent Midas microphone preamplifiers with 2.5 dB gain steps, a third fixed gain preamplifier per input, two dual redundant AES50 network interfaces, dual redundant Ethernet control ports, and a MIDI Interface (In, Out, Thru), making it perfectly compatible with Midas PRO3, PRO6, PRO9, XL8, and PRO X digital consoles for a reliable digital snake connection.

In stock
Request Quote
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: DL431 Categories: , , Brand:

Description

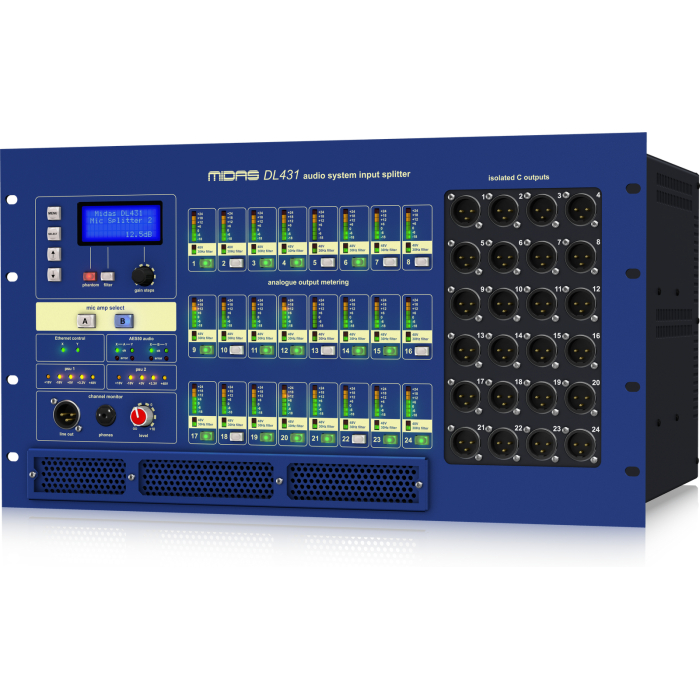

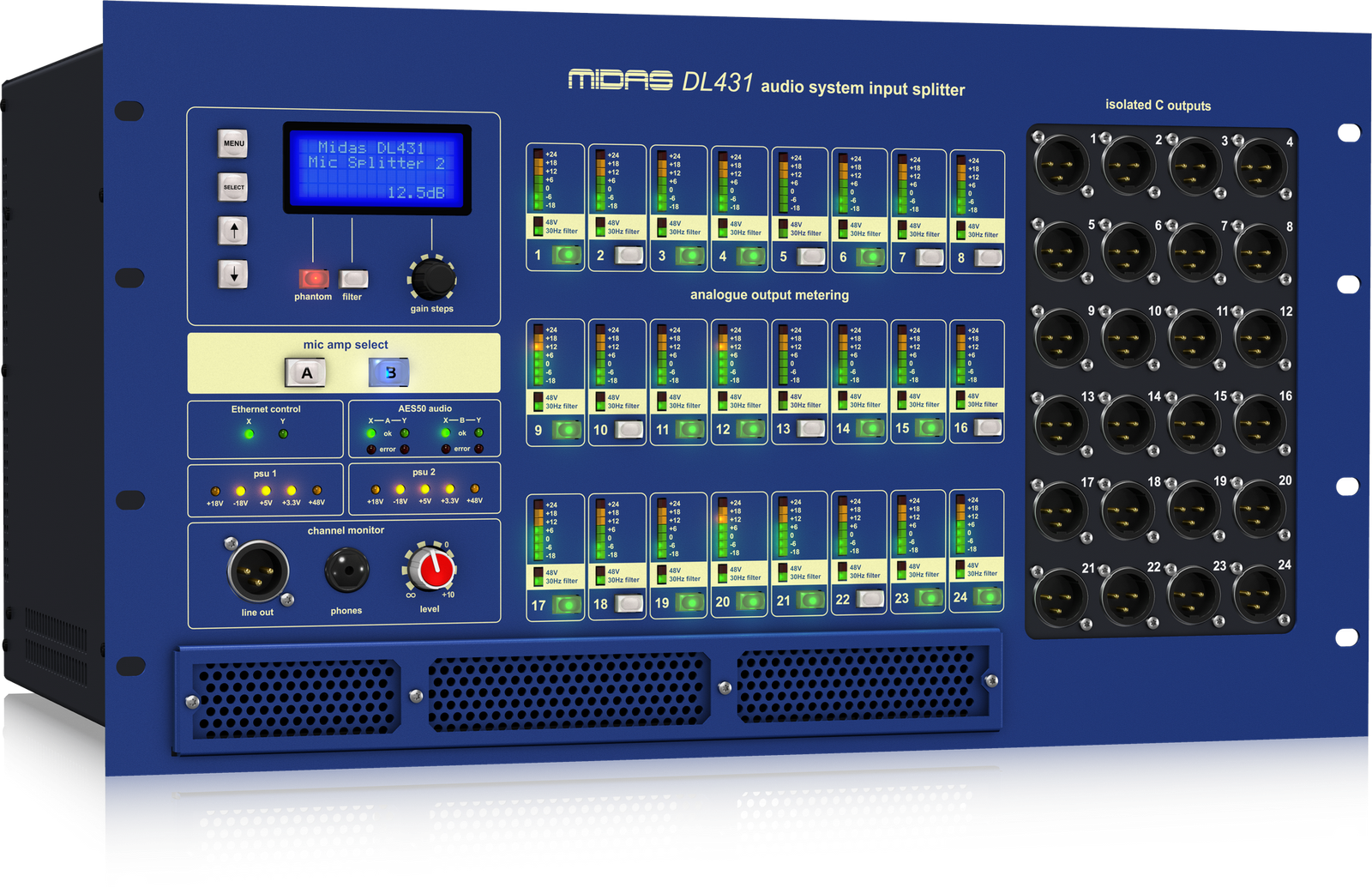

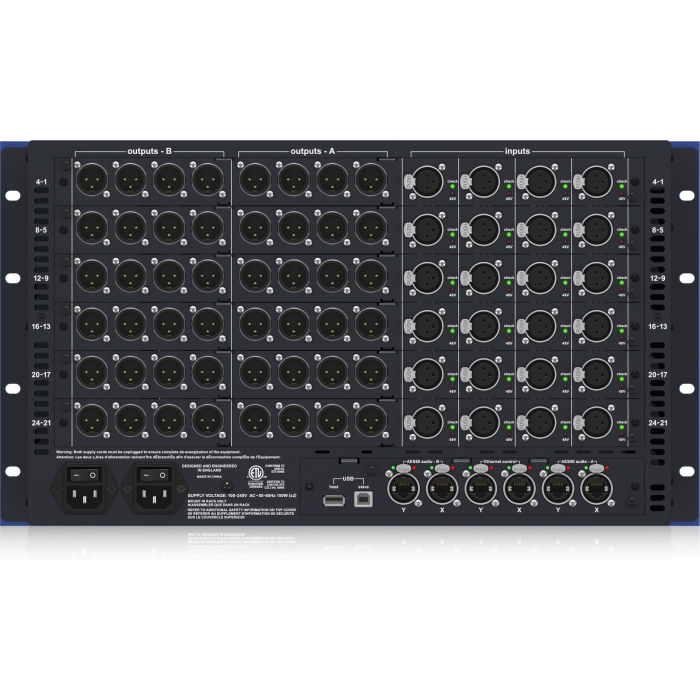

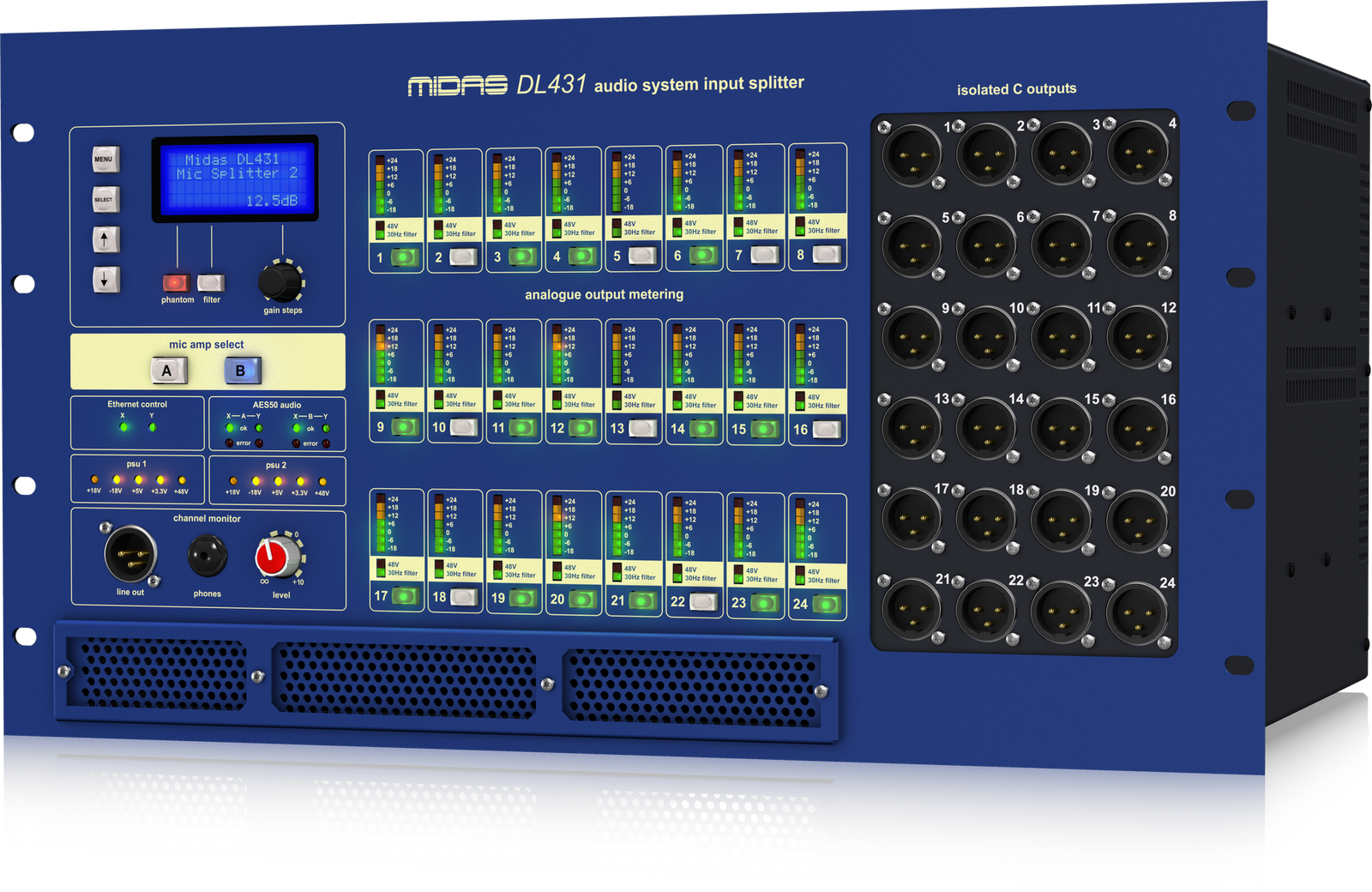

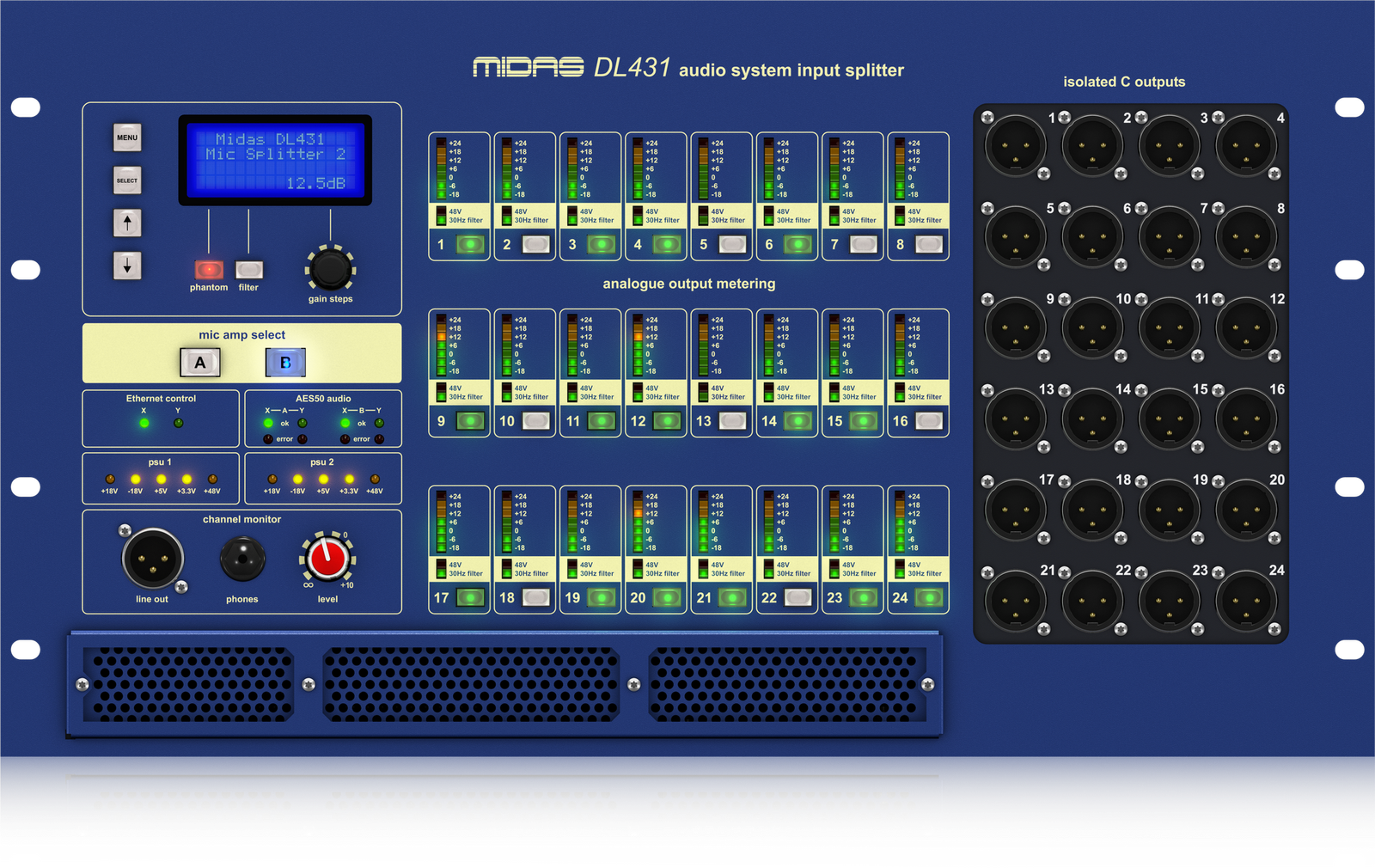

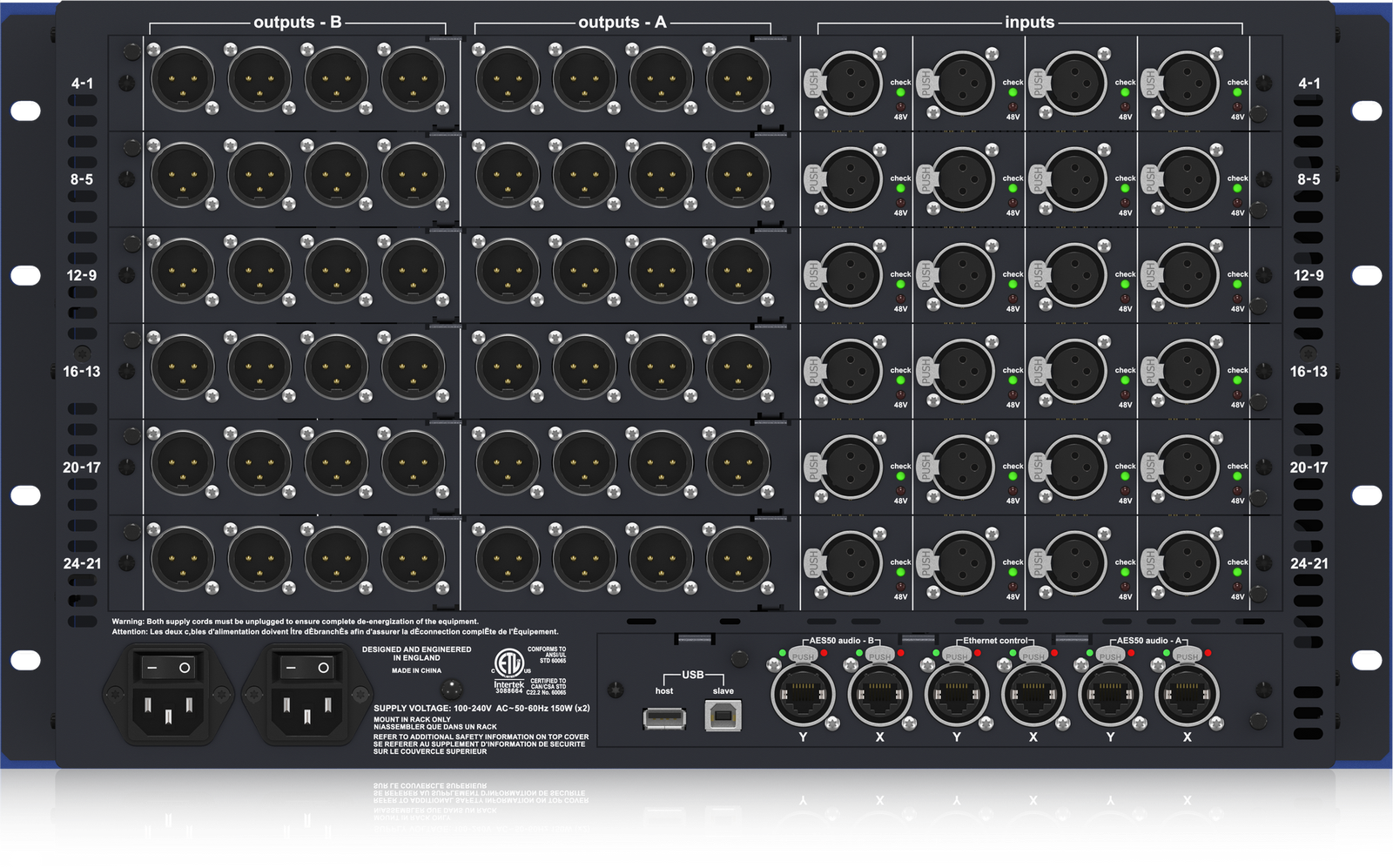

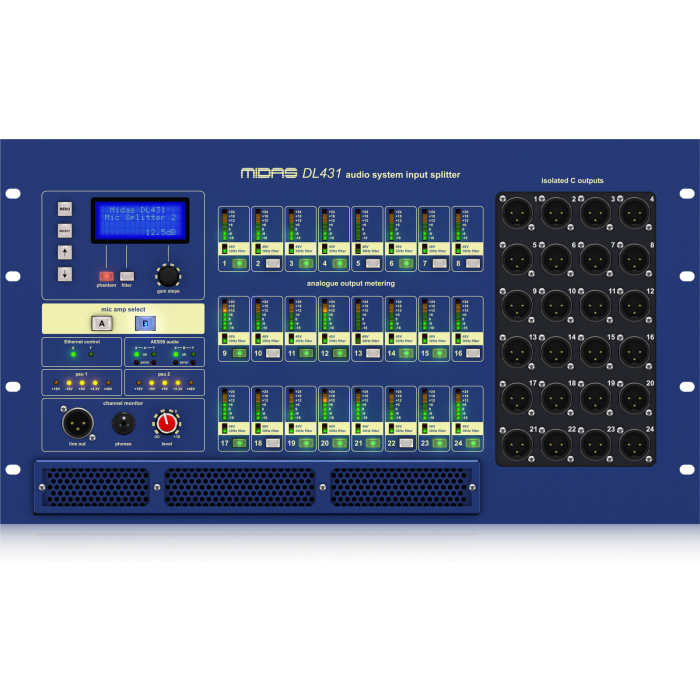

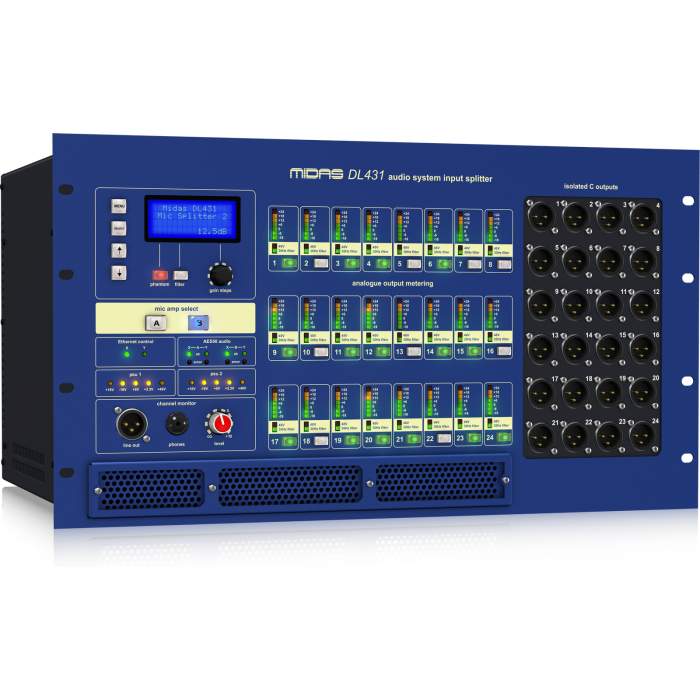

DL431 Rack I/O Unit for Mic Signal Splitting

The DL431 is a meticulously designed 6U 19″ fixed-configuration rack I/O unit intended for professional microphone signal splitting applications. Featuring 24 mic/line level inputs and 72 line level outputs, it ensures the highest audio fidelity with the acclaimed Midas sound quality. Leveraging our proven technologies, the DL431 stands as the optimal choice for audio professionals.

Features

  • 24-channel microphone splitter with electronically and transformer balanced outputs
  • 3 Midas microphone preamplifiers per channel with switchable +48V phantom power
  • Independent dual redundant AES50 network ports
  • Integrated headphone amplifier for local channel monitoring
  • 24-bit audio processing with 96 kHz sample rate
  • Remote operation capability up to 80 meters via CAT5/5e cable
  • Programmable settings from both front panel controls and console
  • Status indicator LEDs and configuration LCD display on front panel
  • Neutrik etherCON AES50 network ports
  • Rugged 6U chassis designed for portability and durability
  • Dual redundant auto-ranging universal power supplies

Specifications

Dimension 6U x 402 mm deep
Net Weight 21.5 kg
Power Requirements 100 to 240 VAC, 50 to 60 Hz
Operating Temperature Range +5°C to +40°C
Storage Temperature Range -20°C to +60°C
Dynamic Range (DL431 Analogue Input to DL431 Analogue Output) 124 dB unweighted
Dynamic Range (DL431 Analogue Input to DL451 Analogue Output) 110 dB unweighted

Inputs and Outputs

Analogue Inputs 24 mic/line level inputs
Analogue Outputs 72 line level outputs
Digital Outputs Dual redundant AES50 network interfaces
