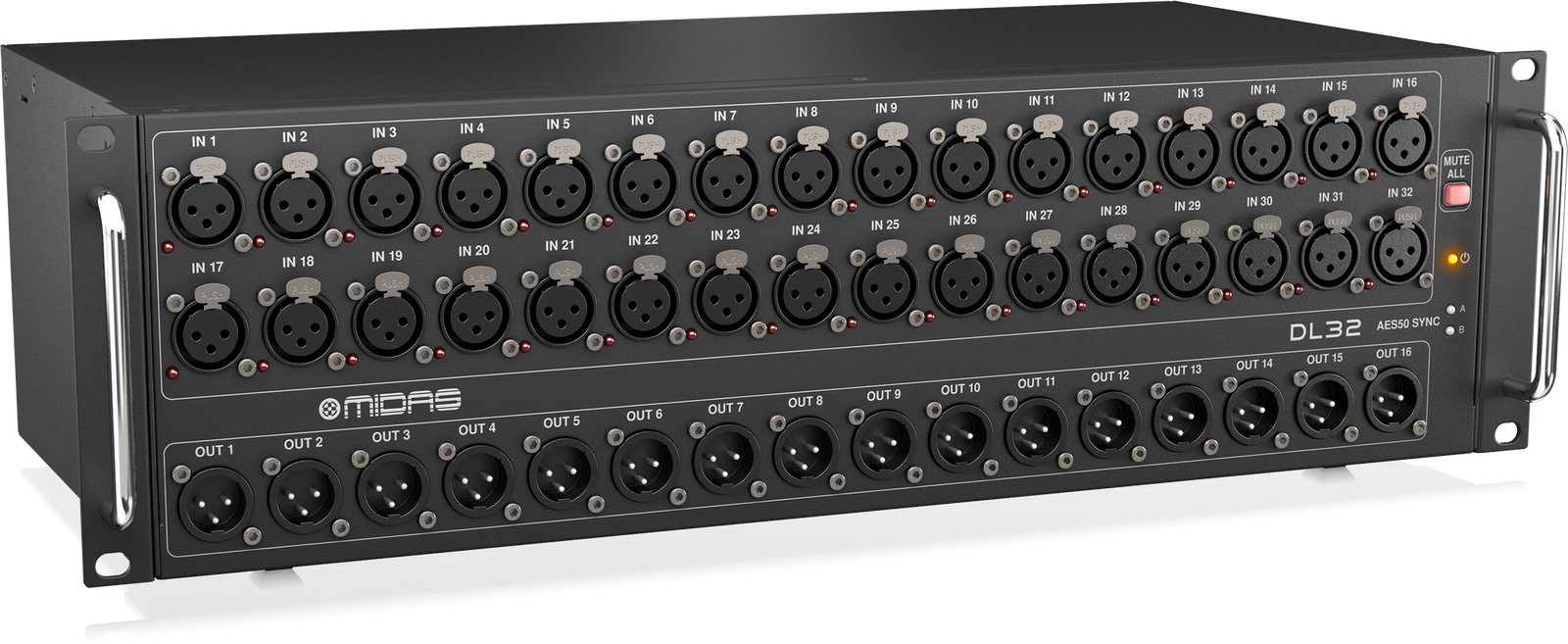

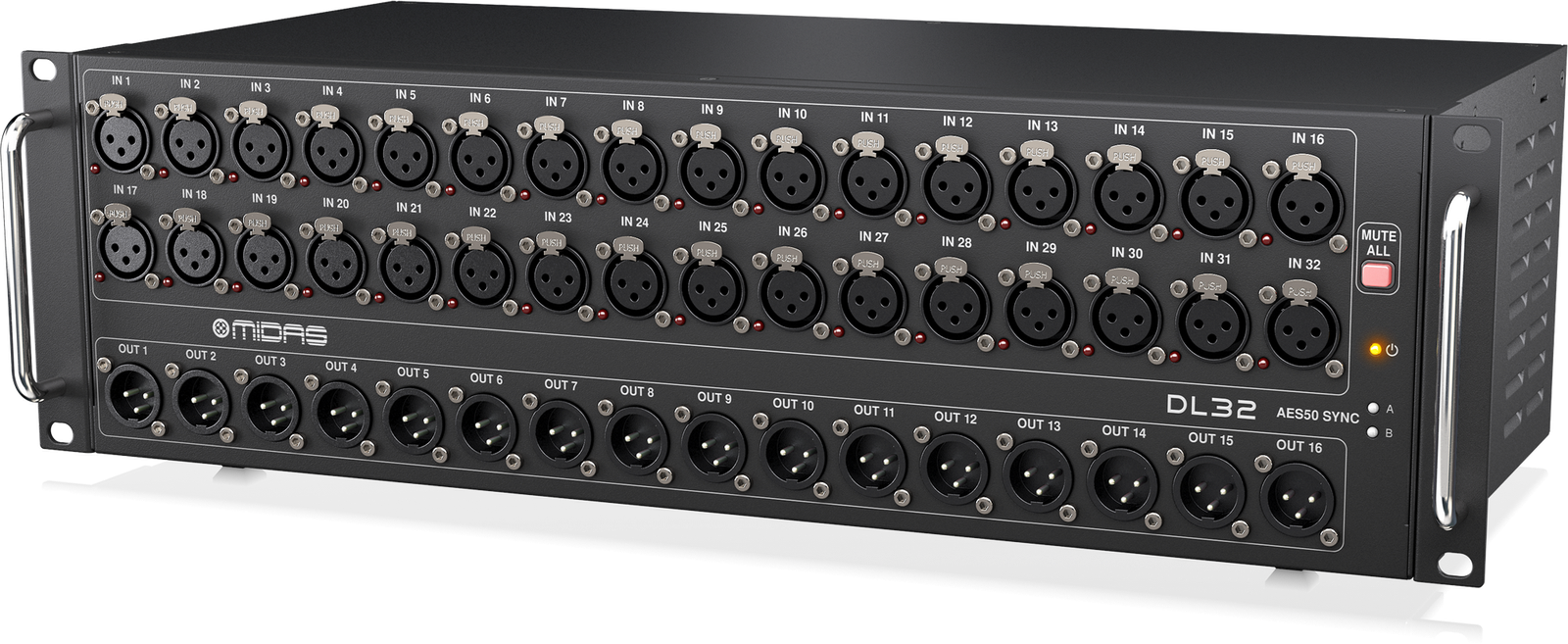

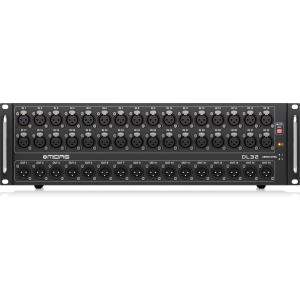

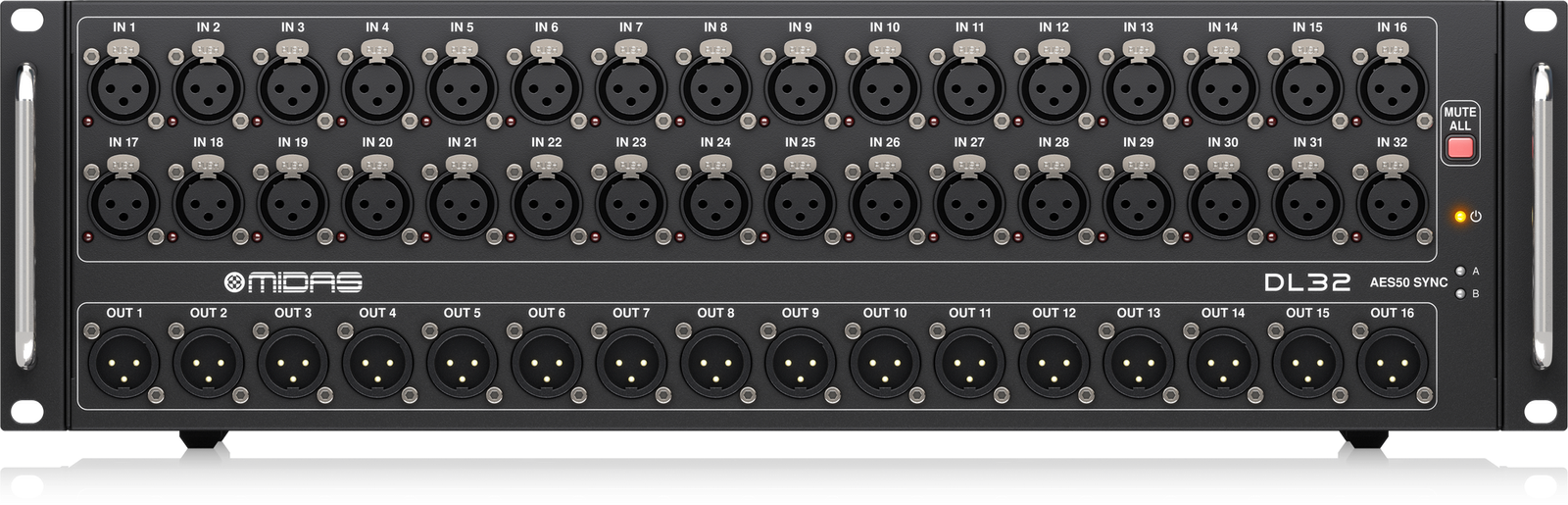

Midas DL32 Stage Box, 32 Input, 16 Output, with 32 Microphone Preamplifiers, ULTRANET and ADAT Interfaces

AED 7900 inc VAT.

The DL32 digital stage box features 32 Midas PRO Series remote-controllable mic preamps and 16 balanced analog XLR returns, all connected via a single Cat 5e cable up to 100 meters, streamlining the live-entertainment production workflow with advanced AES50 SuperMAC technology.

In stock

Request Quote

Estimated Delivery: 2–3 business days across the UAE
Free Shipping & Returns : On all orders over AED 1000

Guaranteed Safe And Secure Checkout

Description

DL32 Digital Stage Box

The DL32 is a highly affordable, I/O packed digital stage box designed to revolutionize live-entertainment production workflow. It’s perfect for connecting onstage talent with your Front of House (FOH) console and offers seamless integration into modern audio setups using a single Cat 5e cable.

Features

32 remote-controllable Midas PRO Series microphone preamplifiers with 48 V phantom power.
16 electronically balanced low impedance line level outputs.
ULTRANET personal monitoring system connectivity for enhanced in-ear monitoring.
Dual AES50 SuperMAC ports for cascading additional stageboxes without a merger or router.
MIDI In/Out for efficient control between Midas consoles and on-stage MIDI devices.
2 AES-3 ports for direct connection to PA system controllers with digital inputs.
Rugged 3U rackmount chassis ideal for portable applications.

Specifications

Specification	Details
Type	Digital Stage Box
Compatibility	AES50/Ultranet systems
Channels	32 x 16
Inputs – Mic Preamps	32 x XLR
Phantom Power	Yes
Outputs – Main	16 x XLR (line)

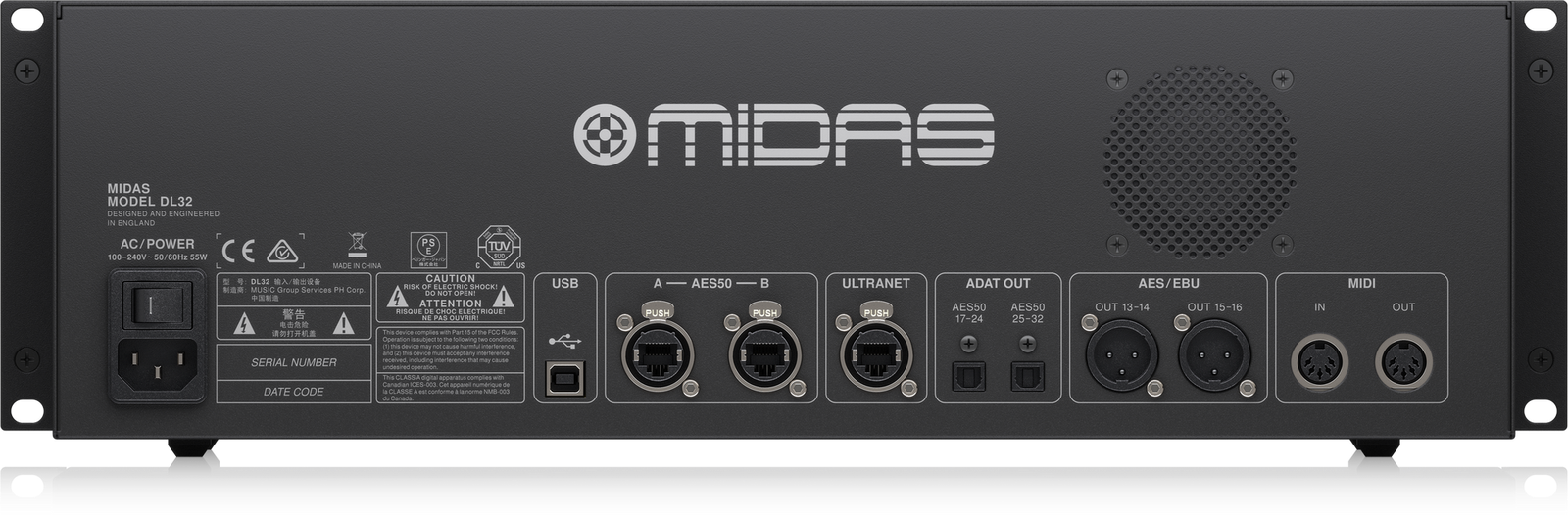

Inputs – Digital	2 x EtherCon (AES50)
Outputs – Digital	2 x EtherCon (AES50), 2 x XLR (AES/EBU), 2 x Optical Toslink (ADAT)
Data I/O	1 x Ethernet (Ultranet monitoring)
USB	1 x Type B
Computer Connectivity	USB, Ethernet
MIDI I/O	In/Out
Rackmountable	3U
Dimensions	Depth: 9.5″, Width: 19″
Weight	12.5 lbs.
