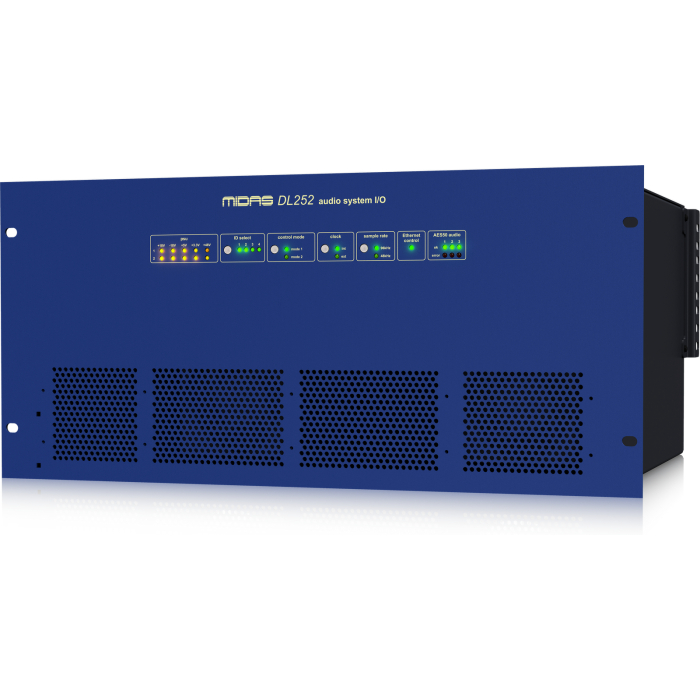

Name: Midas DL252 Stage Box with 16 Inputs, 48 Outputs, and 16 Microphone Preamplifiers
Brand: Midas
SKU: DL252
Price: 11766.30 AED
Availability: InStock

Midas DL252 Stage Box with 16 Inputs, 48 Outputs, and 16 Microphone Preamplifiers

AED 11766.30 inc VAT.

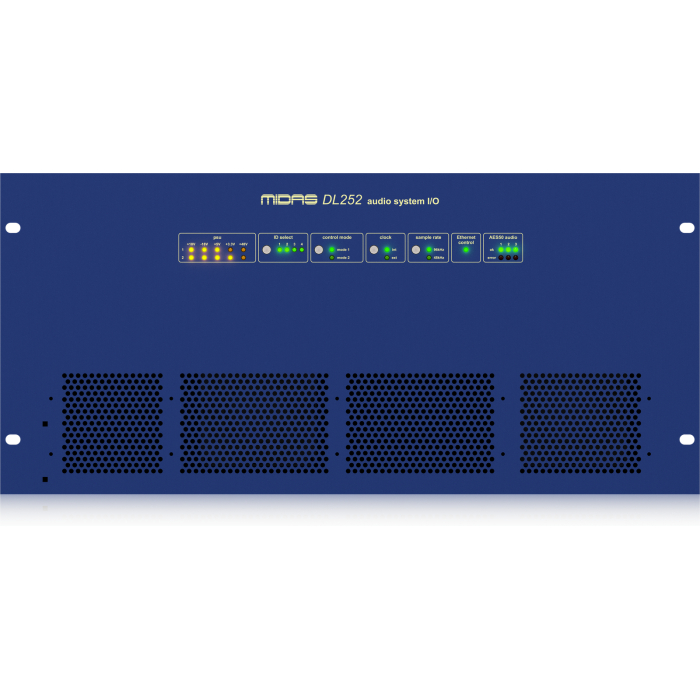

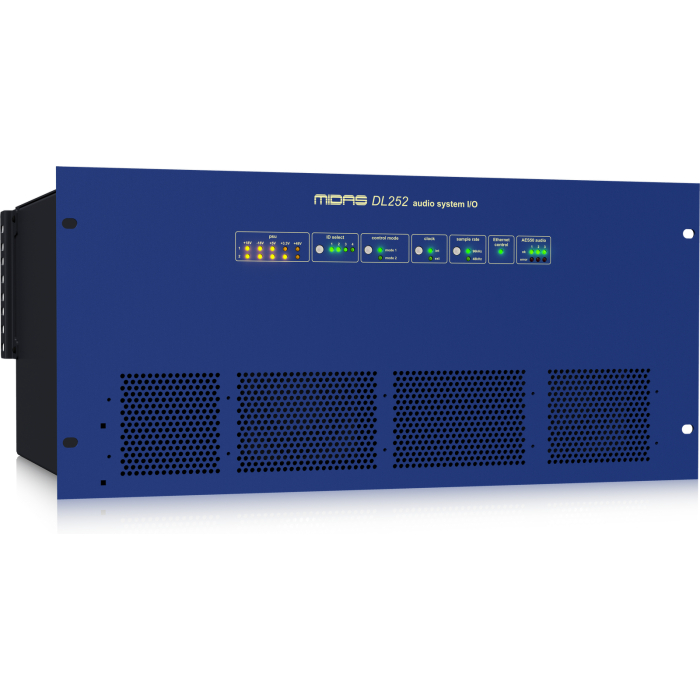

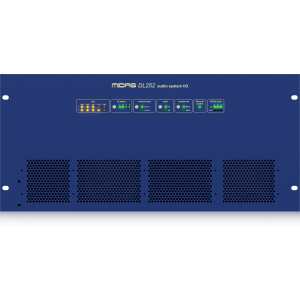

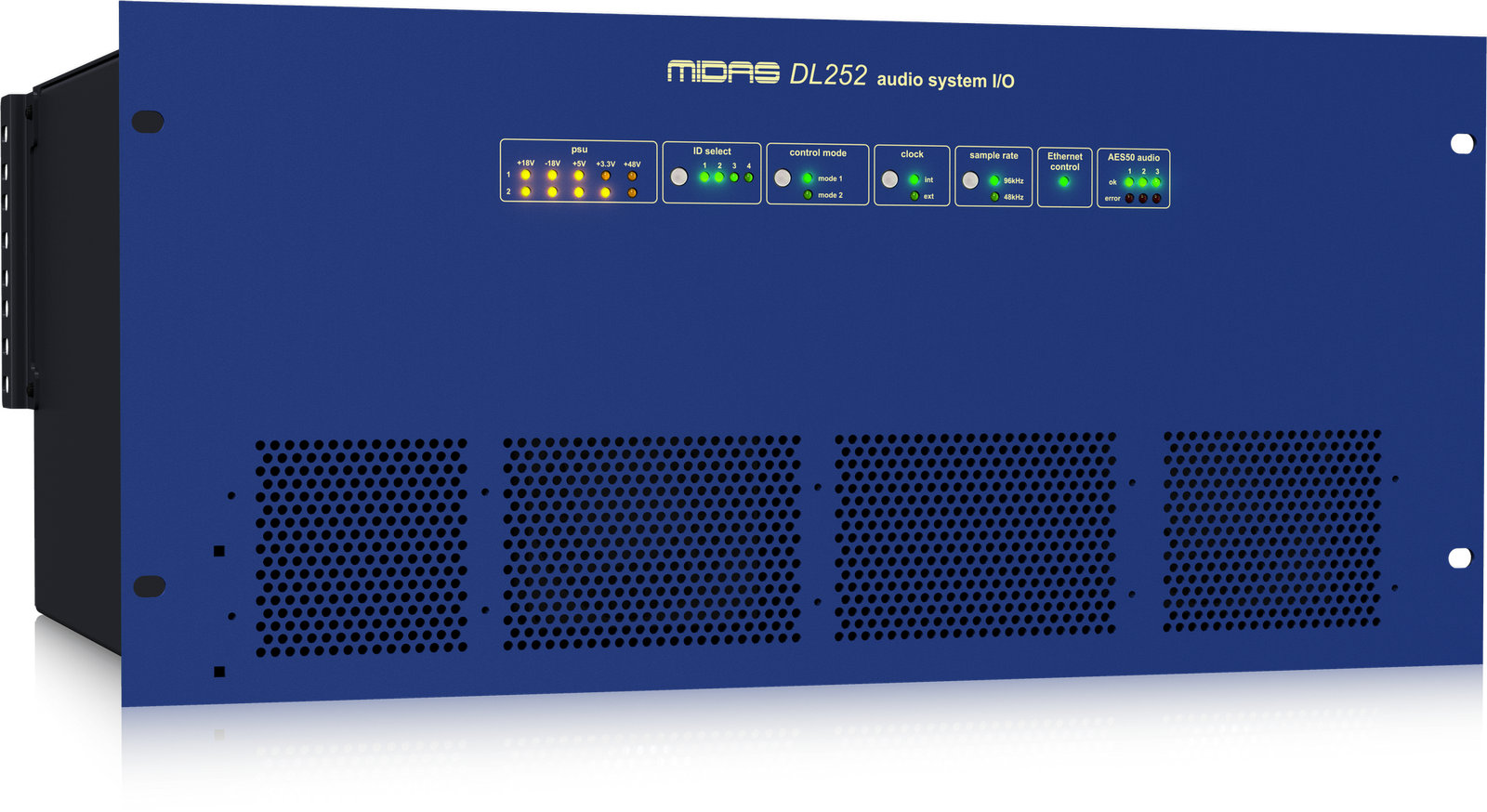

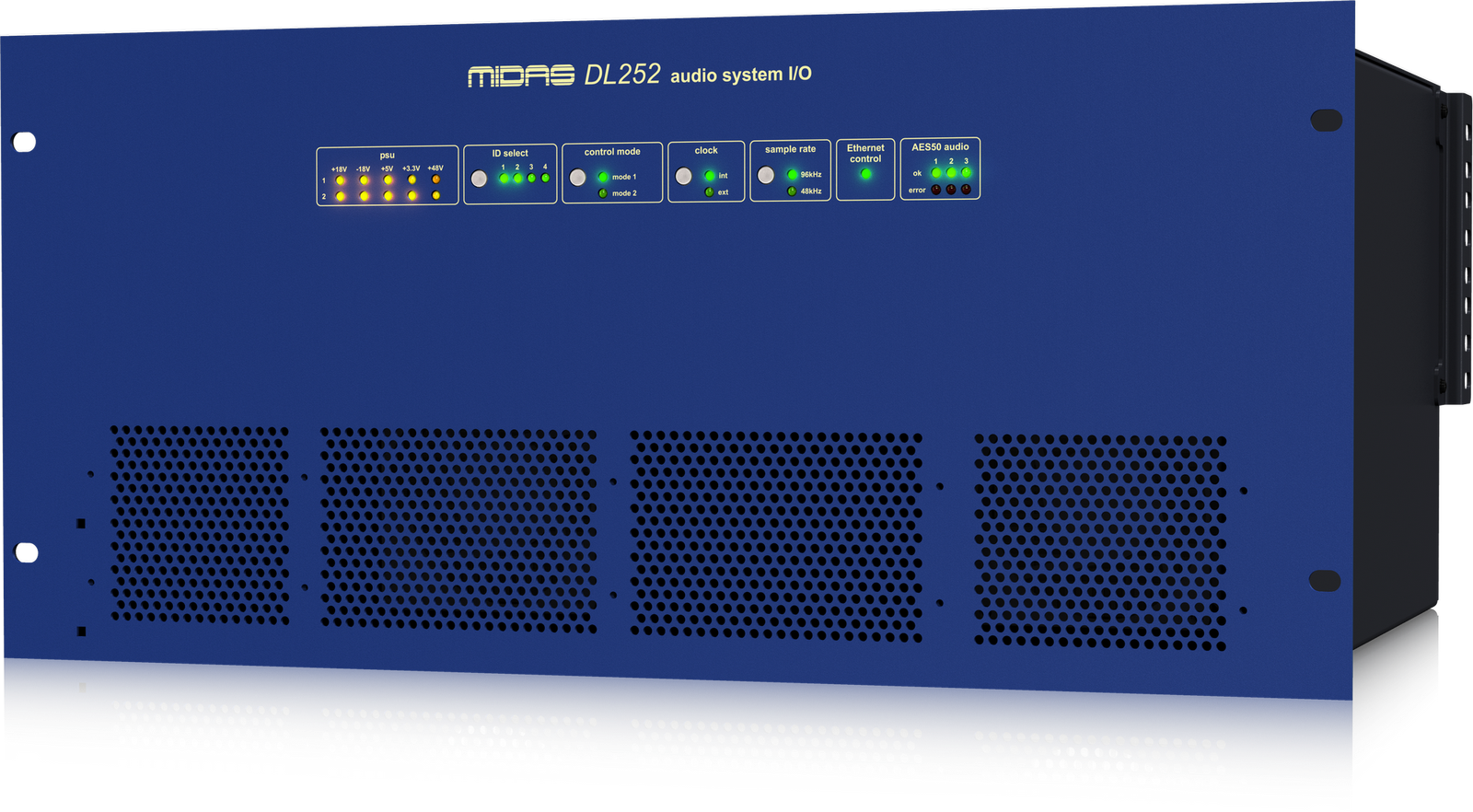

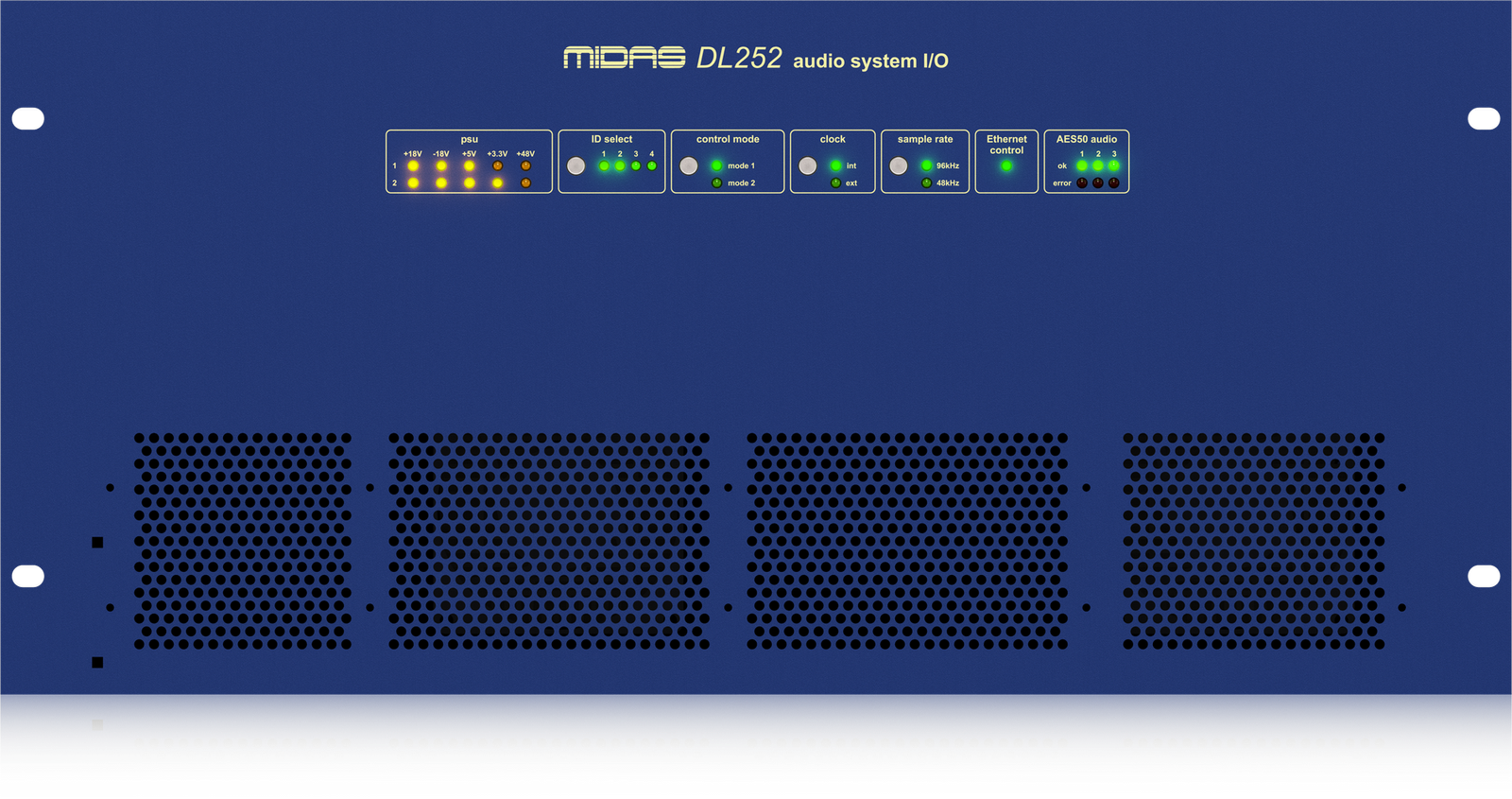

The DL252 is a 5U rack-mounted I/O unit featuring 16 mic/line inputs, 48 line outputs, and renowned Midas sound quality. It includes award-winning Midas microphone preamps with 2.5 dB gain steps, three AES50 network ports with N+1 redundancy, an Ethernet control port, and a MIDI interface, making it an ideal digital snake partner for Midas M32 and PRO Series digital consoles.

In stock

Request Quote

Estimated Delivery: 2–3 business days across the UAE
Free Shipping & Returns : On all orders over AED 1000

Guaranteed Safe And Secure Checkout

Description

DL252 Audio Interface

The DL252 is a professional-grade, 5U 19″ fixed-configuration rack I/O unit, engineered for high-quality audio performance. Featuring legendary Midas sound utilizing well-proven technologies, the DL252 is perfect for studio and live sound applications. It includes 16 superior microphone preamplifiers and 48 line level outputs, with flexible connectivity options ensuring a reliable operation.

Features

16 award-winning Midas microphone preamplifiers with switchable +48 V phantom power
48 actively balanced low impedance line level outputs
Selectable 96 kHz or 48 kHz sample rate operation
Remote operation up to 100 m via CAT5/5e cable
All settings programmable from front panel controls or console
PSU status indicator LEDs and configuration switches on front panel
3 AES50 network ports for redundant connections
MIDI In, Out, and Thru connectors
Features Neutrik etherCON* AES50 network ports
Rugged 5U rackmount chassis for durability in portable applications
Dual redundant auto-ranging universal switch-mode power supplies

Specifications

General Statistics
XLR connections	–
Resilience	N+1 cable redundancy and dual redundant PSUs

General Specifications
Sampling rate	48 kHz, 96 kHz
Dynamic range	107 dB, 22 Hz to 22 kHz (no pre-emphasis)
Maximum gain	45 dB
Crosstalk at 1 kHz	-100 dB physically adjacent input channels
Crosstalk at 10 kHz	-90 dB physically adjacent input channels
Dimensions	5U x 414 mm deep
Net weight	10 kg
Shipping weight	18 kg
Power requirements	100 to 240 VAC, 50 to 60 Hz
Power consumption at 115 V	1 PSU: 85 W, 85 VA; 2 PSUs: 110 W, 110 VA
Power consumption at 230 V	1 PSU: 90 W, 100 VA; 2 PSUs: 110 W, 135 VA
Operating temperature range	+5°C to +40°C
Storage temperature range	-20°C to +60°C
