Microphone Preamp

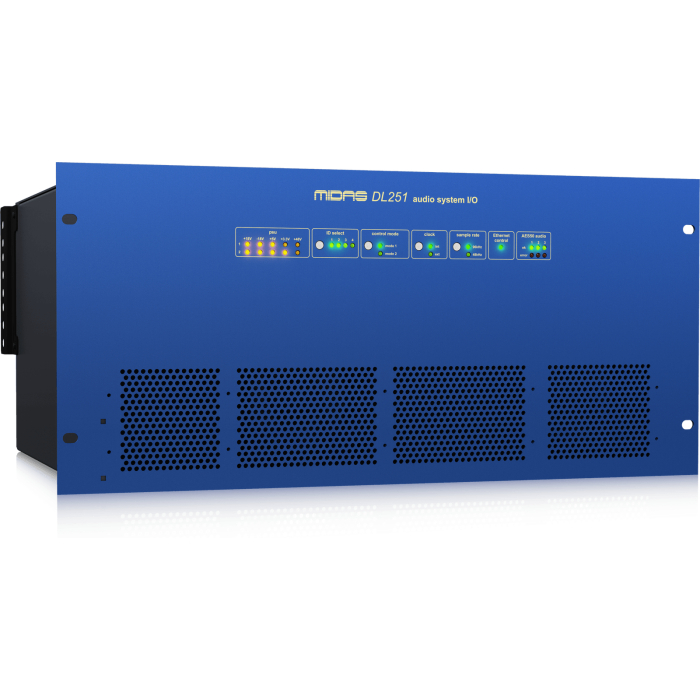

Midas DL251 Stage Box, 48 Input, 16 Output, with 48 Microphone Preamplifiers

Midas

AED 19969.95 inc VAT.

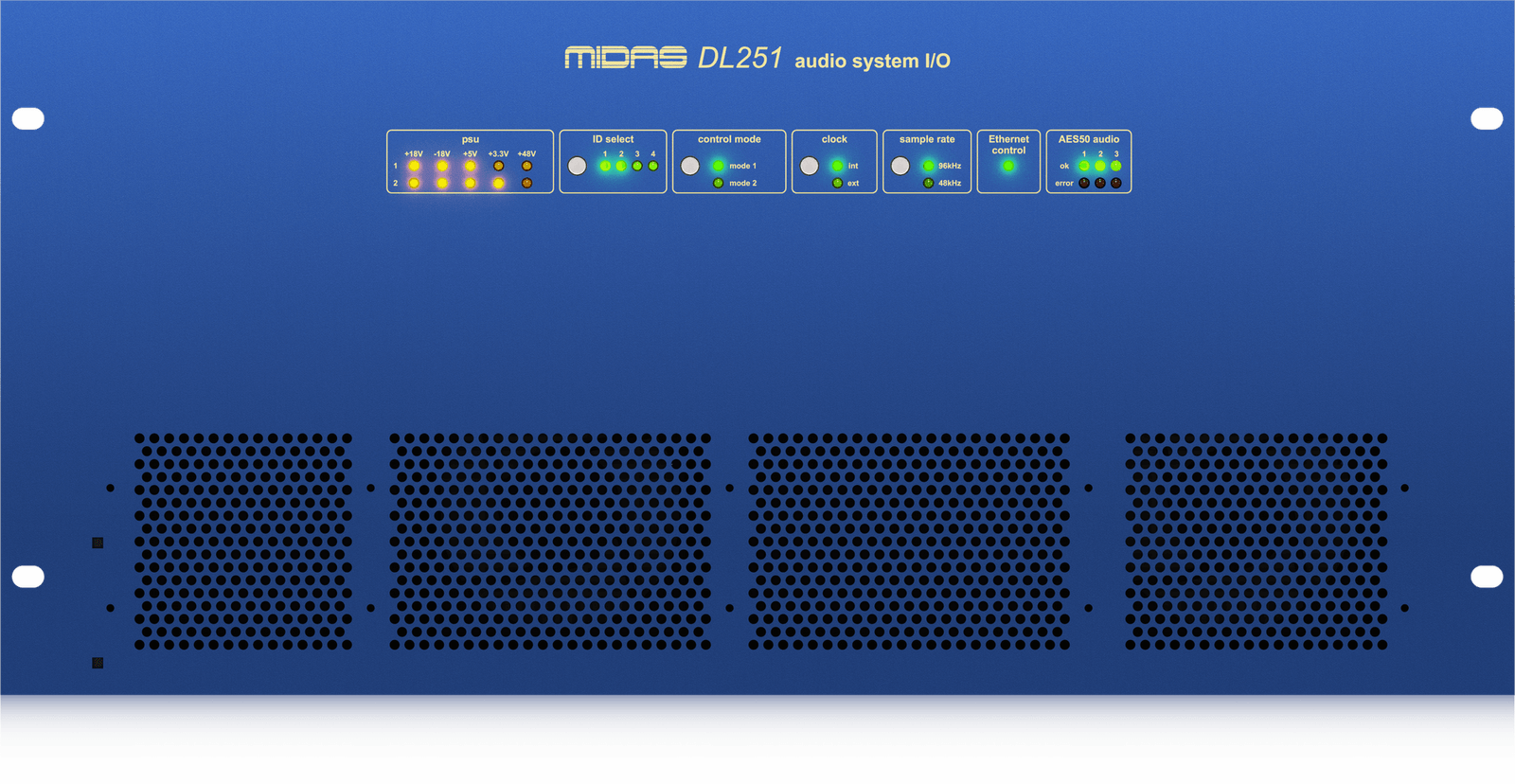

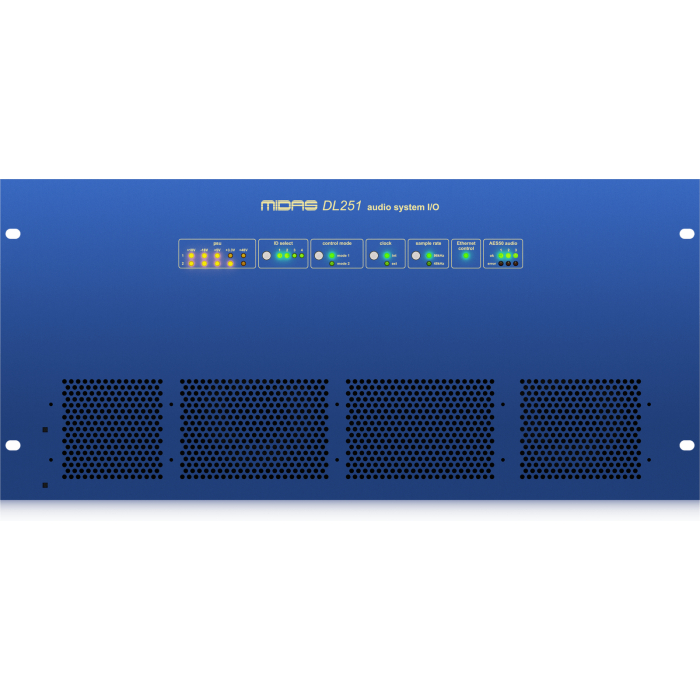

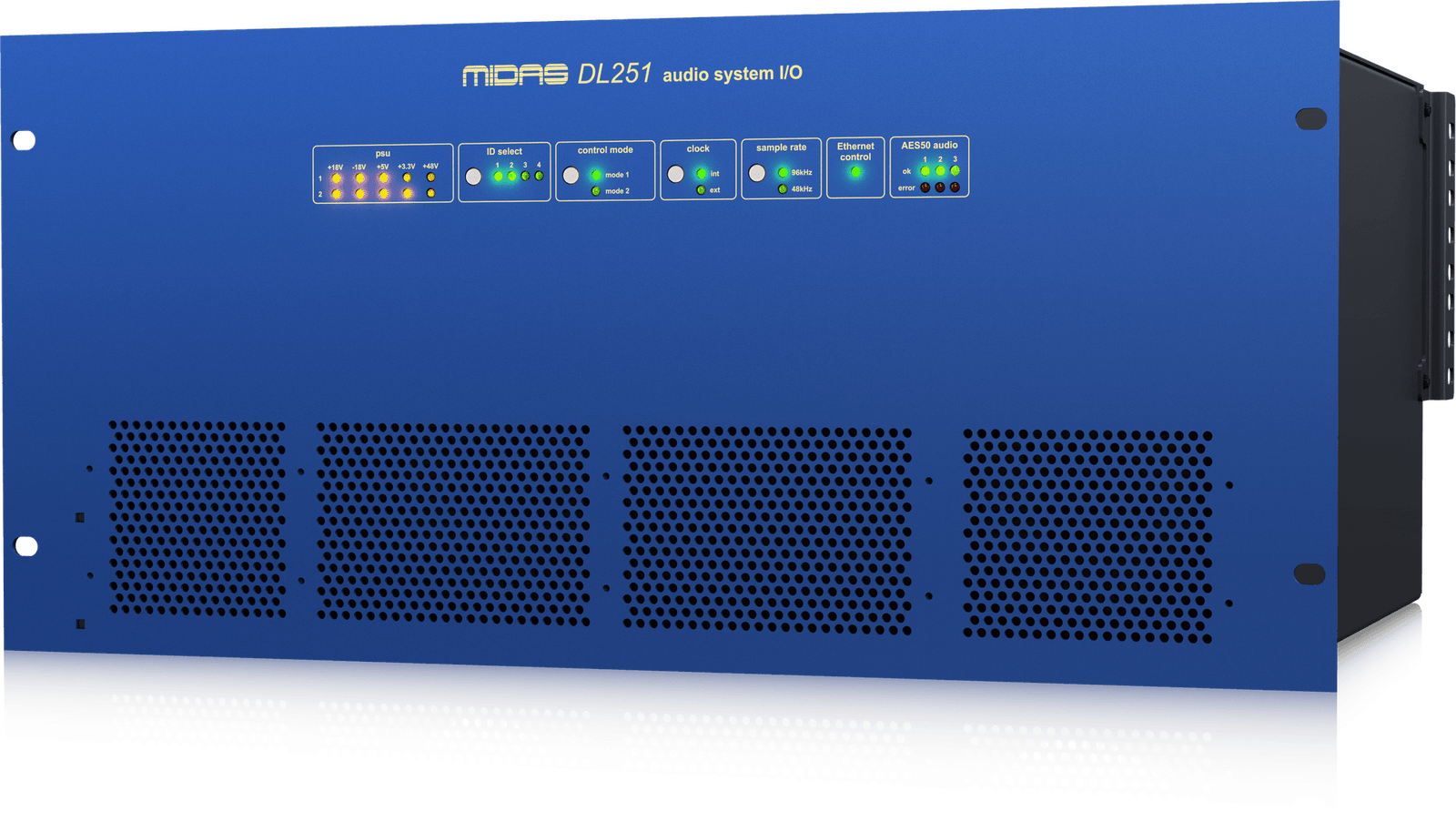

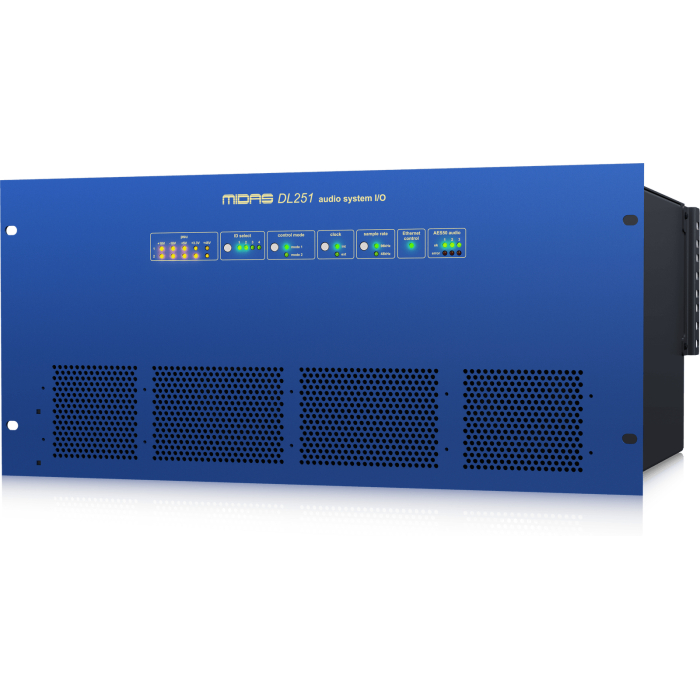

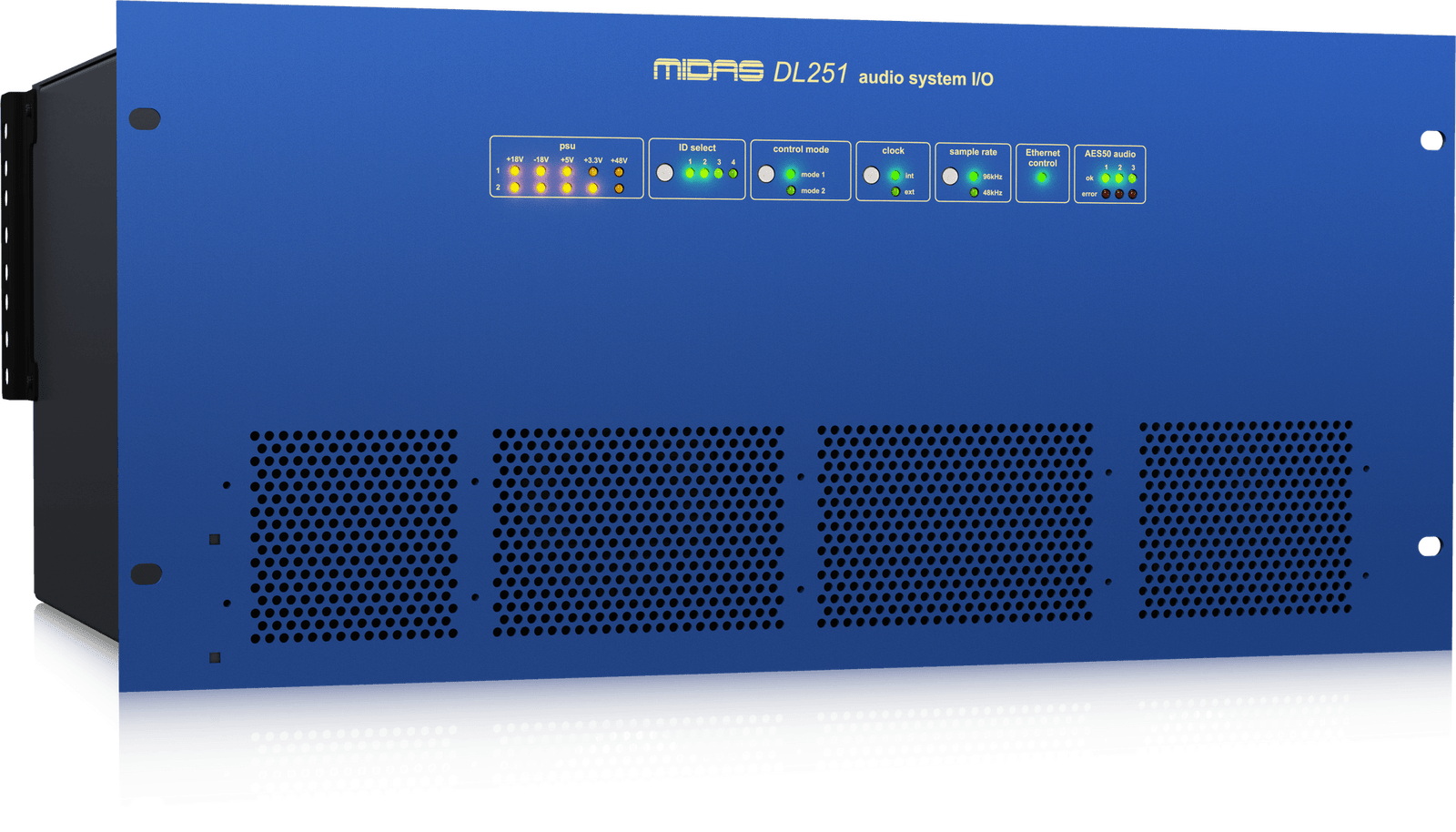

The DL251 is a 5U 19″ fixed-configuration rack I/O unit featuring 48 mic/line level inputs, 16 line level outputs, and delivers renowned Midas sound quality through proven technologies. It includes Midas microphone preamplifiers with 2.5 dB analogue gain steps, three AES50 network ports for N+1 redundancy, an Ethernet control port, and a MIDI Interface (In, Out, Thru), making it a perfect companion for Midas M Series and PRO Series digital consoles.

In stock
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: DL251 Categories: , , Brand:

Description

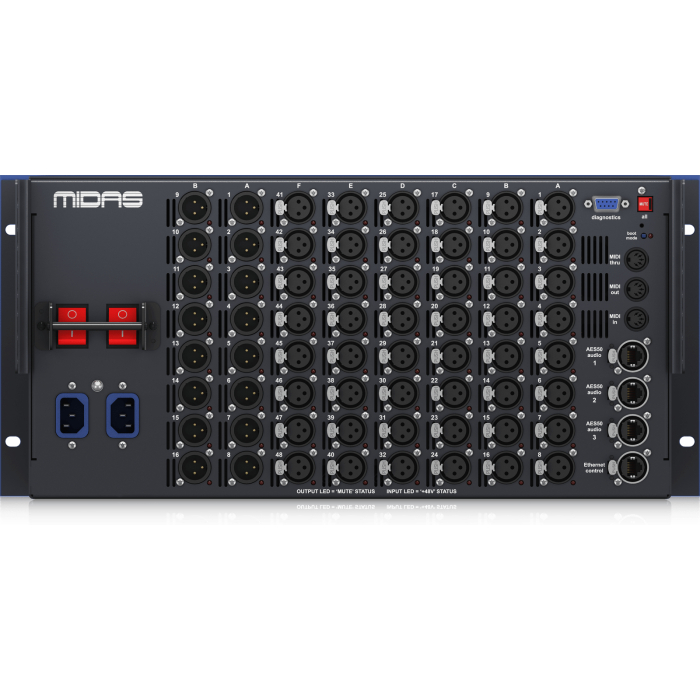

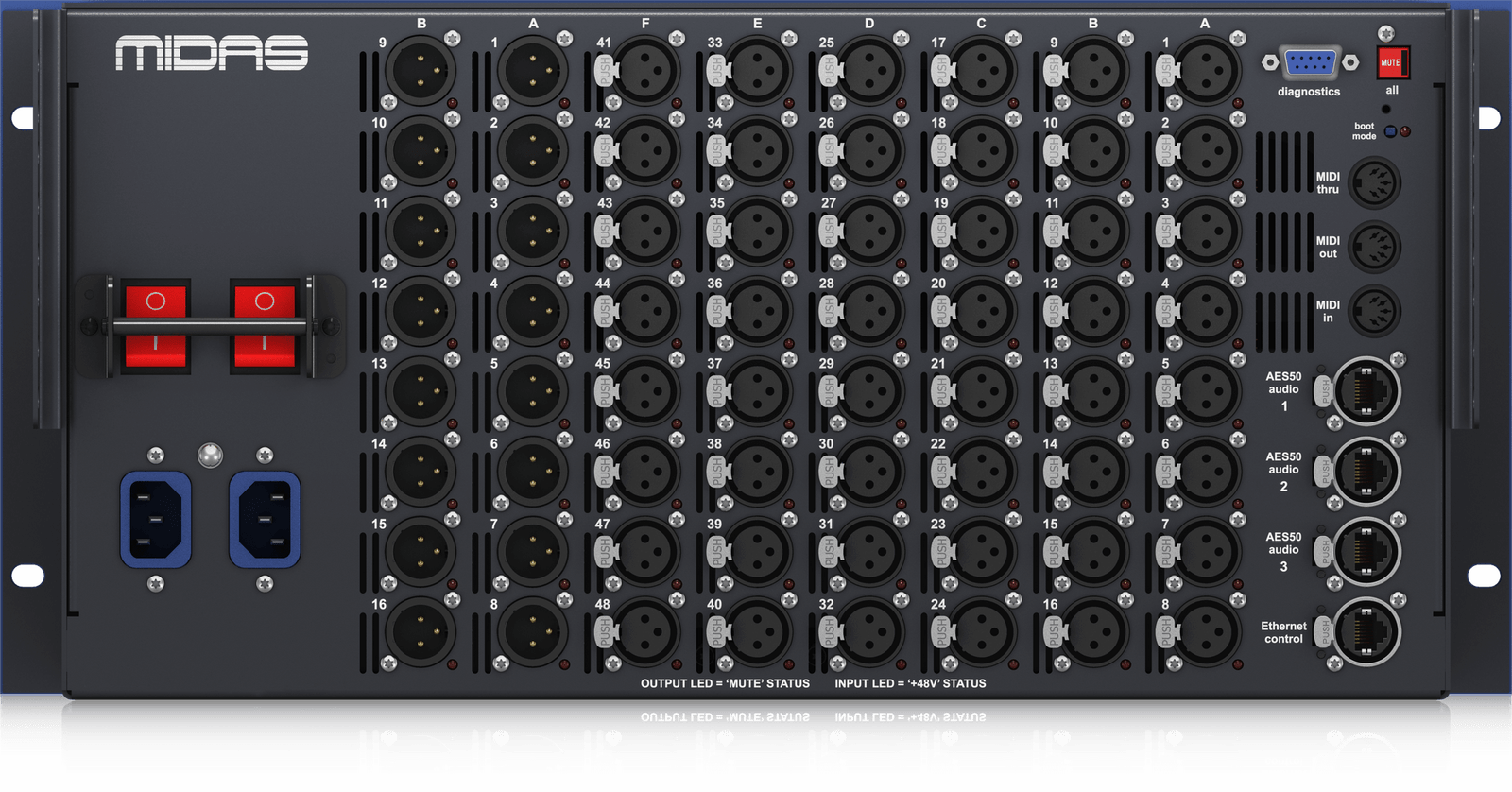

DL251 is a 5U 19″ fixed-configuration rack I/O unit with 48 mic/line level inputs and 16 line level outputs and delivers legendary Midas sound quality utilising our time-tested and road-proven technologies. Featuring award-winning Midas microphone preamplifiers with 2.5 dB analogue gain steps and three AES50 network ports providing N+1 redundancy, plus an Ethernet control port and a MIDI Interface (In, Out, Thru), the DL251 is the ideal partner to the Midas M Series and PRO Series digital consoles, enabling a digital snake connection from Front of House to stage.



Features

  • 48 award-winning Midas microphone preamplifiers with switchable +48 V phantom power
  • 16 actively balanced low impedance line level outputs
  • Selectable 96 kHz or 48 kHz sample rate operation
  • Remote operation up to 100 m via CAT5/5e cable
  • All settings programmable from front panel controls or console
  • PSU status indicator LEDs and configuration switches on front panel
  • 3 AES50 network ports for redundant connections
  • MIDI In, Out and Thru connectors
  • Features Neutrik etherCON* AES50 network ports
  • Rugged 5U rackmount chassis for durability in portable applications
  • Dual redundant auto-ranging universal switch-mode power supplies



Specifications

General Statistics
XLR connections
Resilience N + 1 cable redundancy and dual redundant PSUs
General Specifications
Sampling rate 48 kHz, 96 kHz
Dynamic range 107 dB, 22 Hz to 22 kHz (no pre-emphasis)
Maximum gain 45 dB
Crosstalk @ 1 kHz -100 dB physically adjacent input channels
Crosstalk @ 10 kHz -90 dB physically adjacent input channels
Dimensions 5U x 414 mm deep
Net weight 10 kg
Shipping weight 18 kg
Power requirements 100 to 240 VAC, 50 to 60 Hz
Power consumption at 115 V 1 PSU: 85 W, 85 VA 2 PSU: 110 W, 110 VA
Power consumption at 230 V 1 PSU: 90 W, 100 VA 2 PSU: 110 W, 135 VA
Operating temperature range +5°C to +40°C
Storage temperature range -20°C to +60°C
System Inputs and Outputs
I/O box inputs
Box analogue outputs
MIDI
48 kHz I/O digital system inputs and outputs
96 kHz I/O digital system inputs and outputs
Input and Output Characteristics
Analogue input characteristics
Analogue output characteristics
48 kHz digital I/O characteristics
96 kHz digital I/O characteristics





Key Features


Specification Details
Feature Name Feature Value
