Midas DL231 24×24 Active Microphone Splitter with Dual Midas Preamplifiers per Input

Name: Midas DL231 24x24 Active Microphone Splitter with Dual Midas Preamplifiers per Input
Brand: Midas
SKU: DL231
Price: 25771.20 AED
Availability: InStock

AED 25771.20 inc VAT.

The 5 RU DL231 Active Microphone Splitter from Midas is a versatile device featuring 24 inputs and 24 outputs, with dual independent Midas preamplifiers per channel and switchable 48V phantom power. Its dedicated PCB layout ensures proper grounding and separation for analog and digital signals. Equipped with Ethernet control, four AES50 ports for dual-redundant audio interfaces, and MIDI in, out, and thru ports, it is ideal for professional setups involving Midas consoles.

In stock

Request Quote

Estimated Delivery: 2–3 business days across the UAE
Free Shipping & Returns : On all orders over AED 1000

Guaranteed Safe And Secure Checkout

SKU: DL231 Categories: Electronics Audio, Microphone Preamp, Microphones Brand: Midas

Description
Additional information

Description

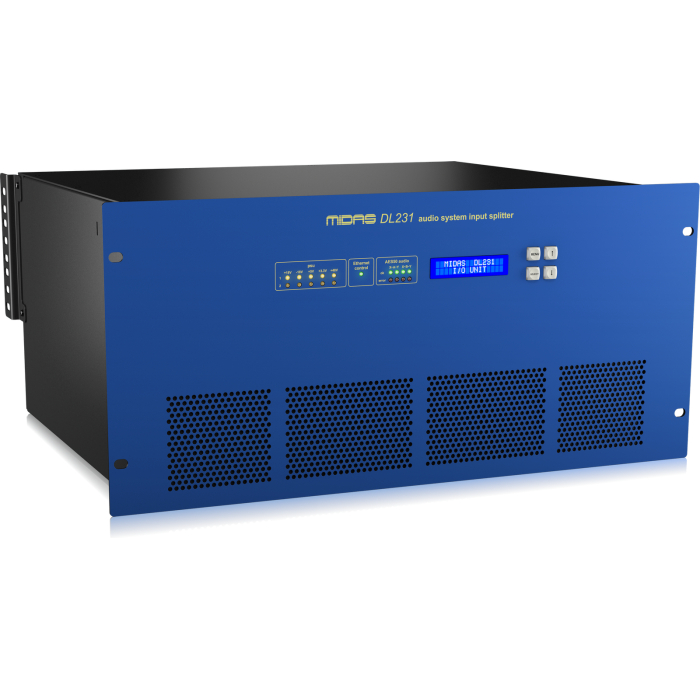

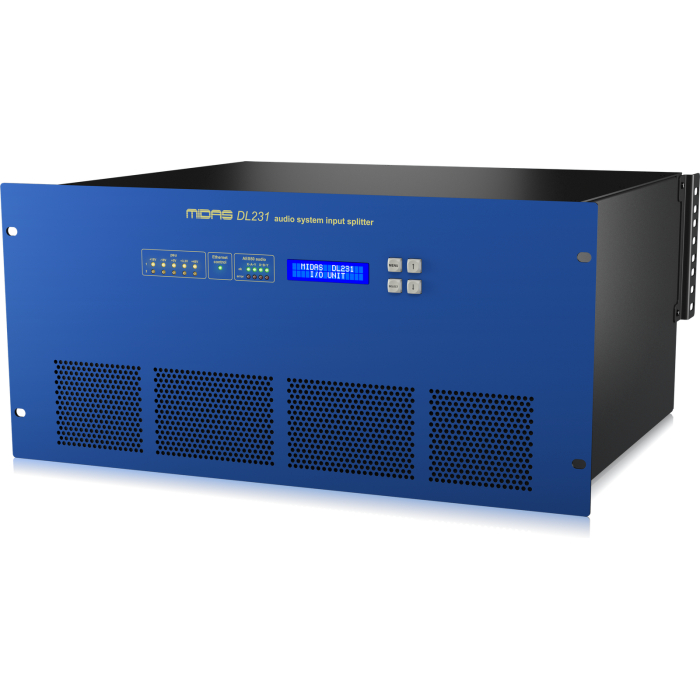

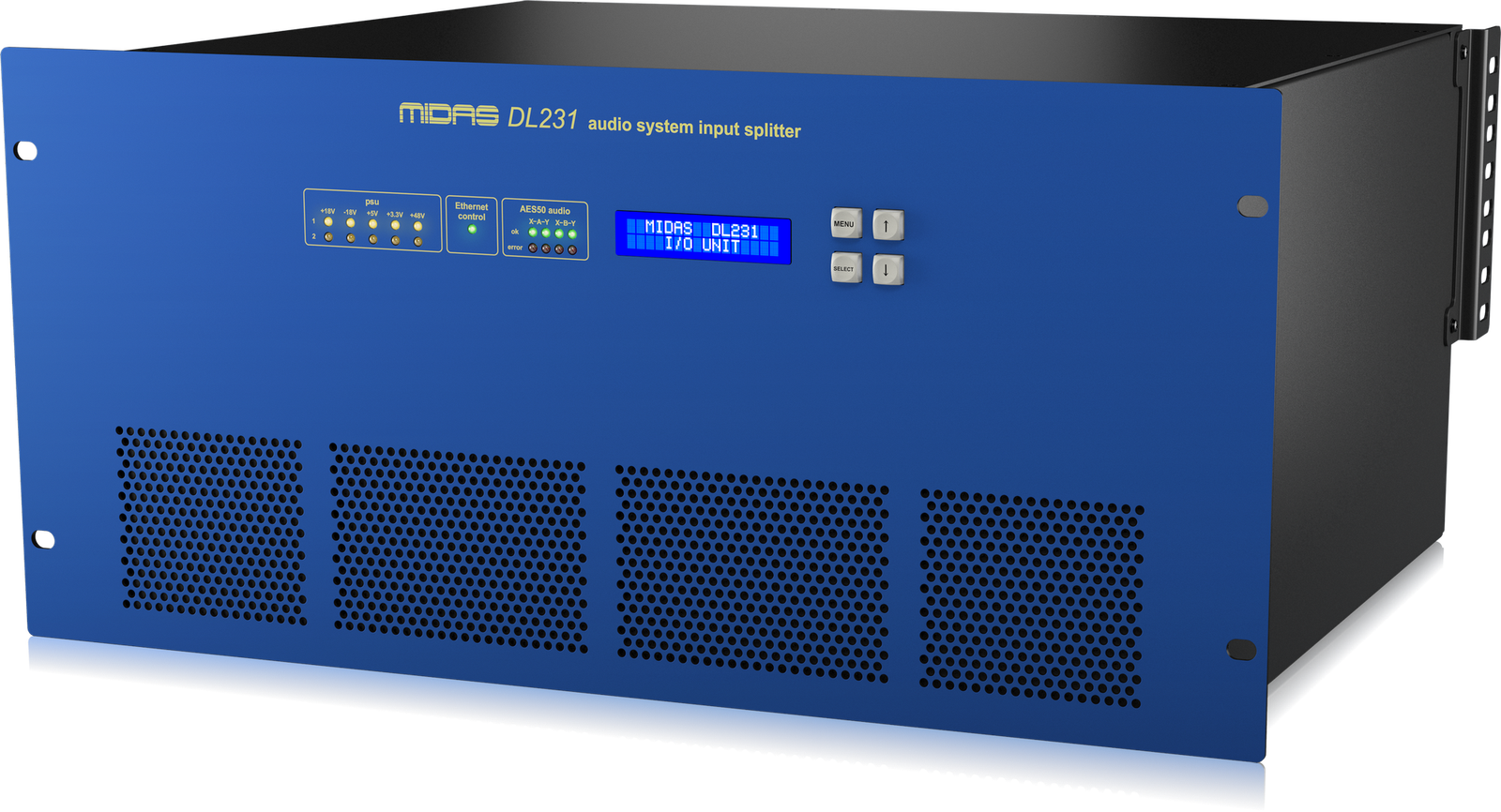

5 RU DL231 Active Microphone Splitter by Midas

The Midas DL231 is an active microphone splitter boasting 24 inputs and 24 outputs, designed to handle both analog and digital signals. Each input channel features two award-winning Midas microphone preamplifiers with switchable 48V phantom power, and the unit supports selectable 96 kHz or 48 kHz sampling rates. The DL231 is equipped with an Ethernet control port and four AES50 ports for dual-redundant operation of two independent digital audio interfaces. MIDI connectivity is also supported with dedicated in, out, and thru ports.

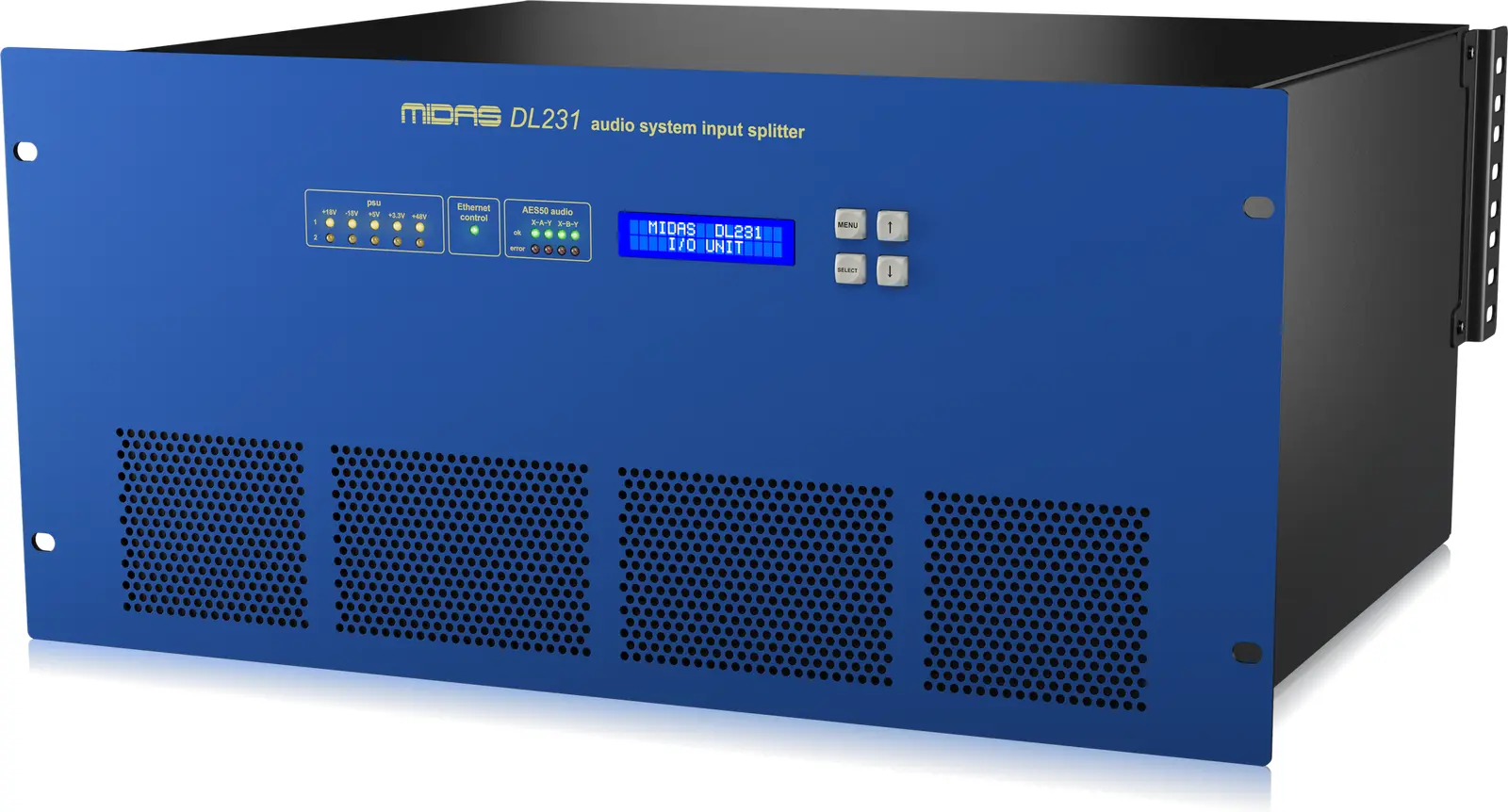

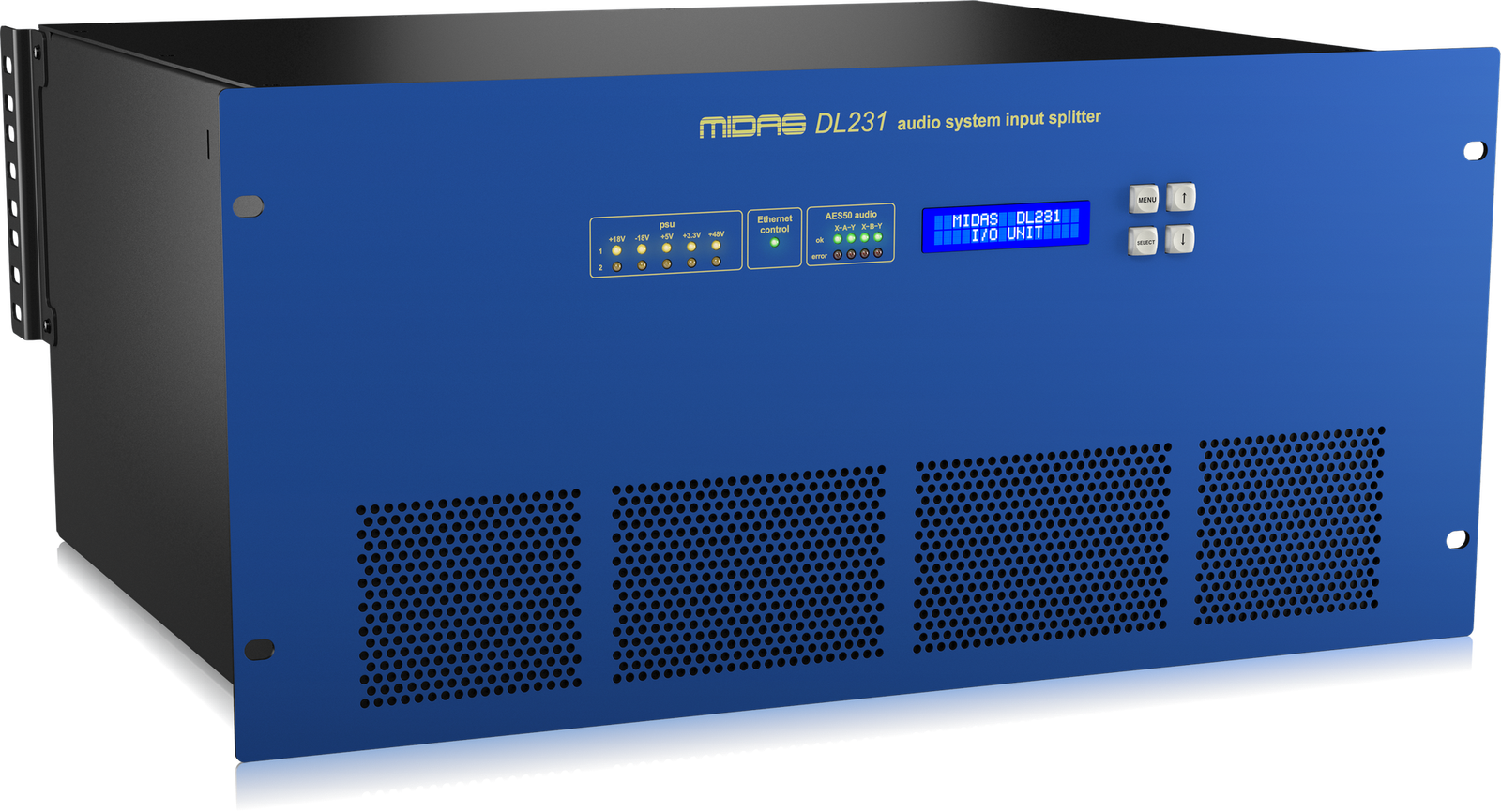

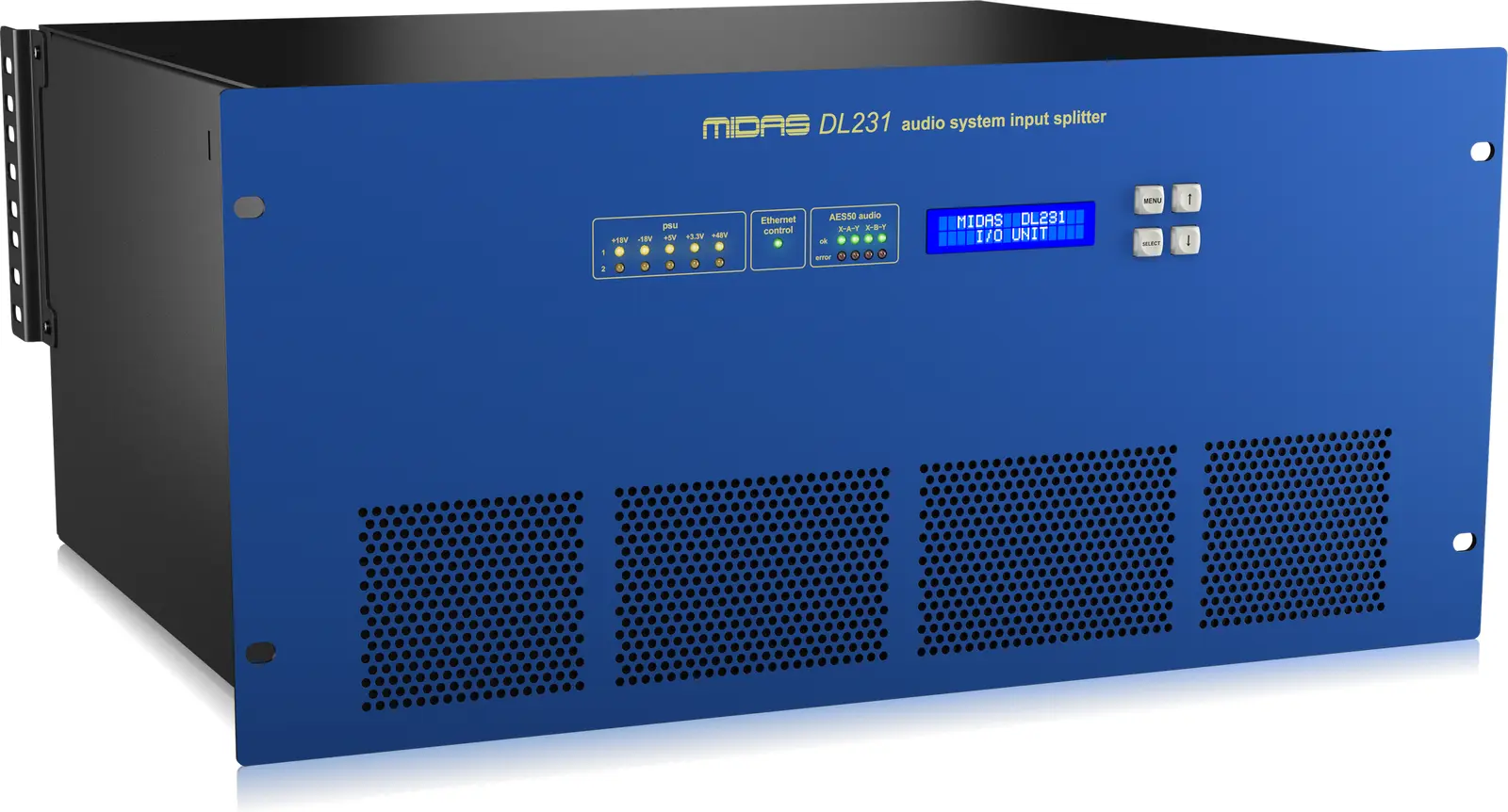

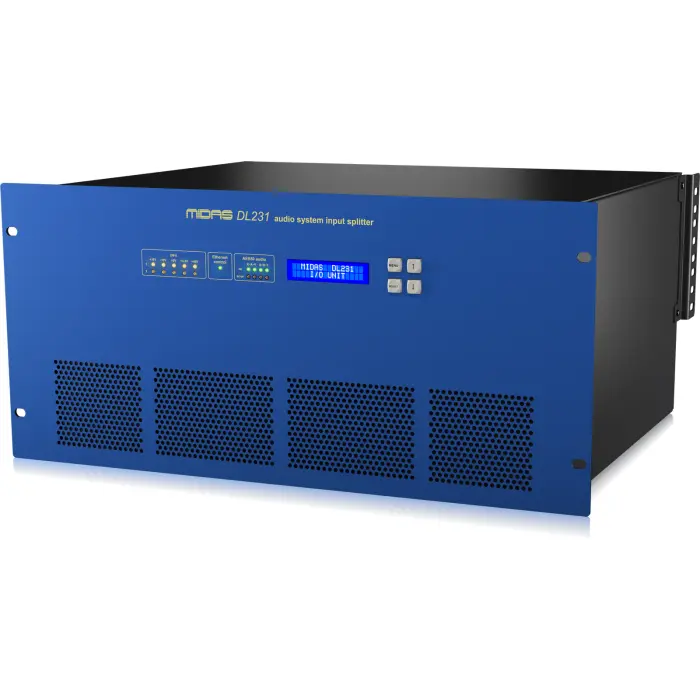

Built for versatile applications, the DL231 includes a Mute All Outputs button for easy onstage re-patching and is housed in a robust 5U rack-mountable chassis suitable for transport and storage in standard flight cases. The device operates on a dual-redundant power supply and features convenient front-panel controls for configuration and status monitoring.

Features

Two Midas microphone preamplifiers per input with switchable +48 V phantom power
Dual redundant AES50 network ports with independent phase-locked loop synchronization
24 electronically balanced output channels sourced from mic preamps or AES50 ports
Remote operation up to 100 meters via CAT5/5e cable
Selectable 96 kHz or 48 kHz sampling rate
Program all settings from front panel controls or console

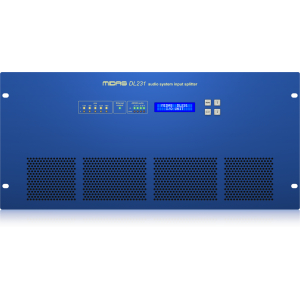

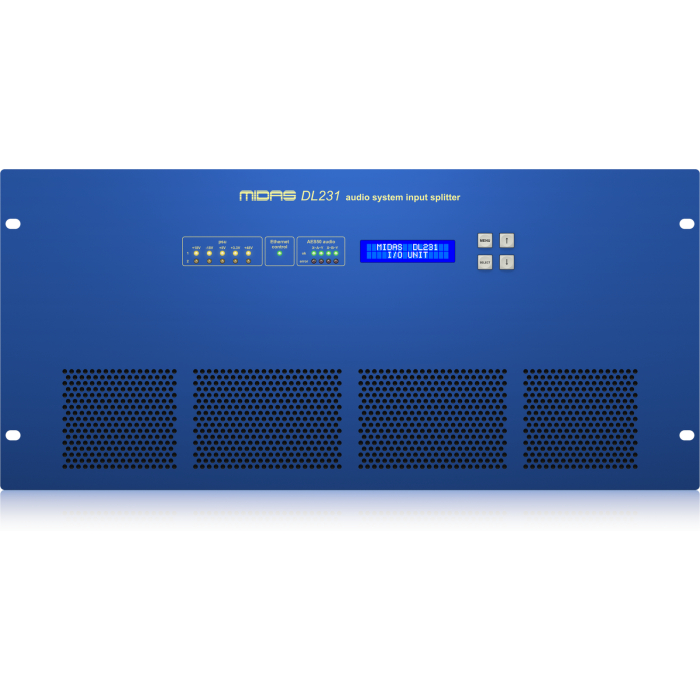

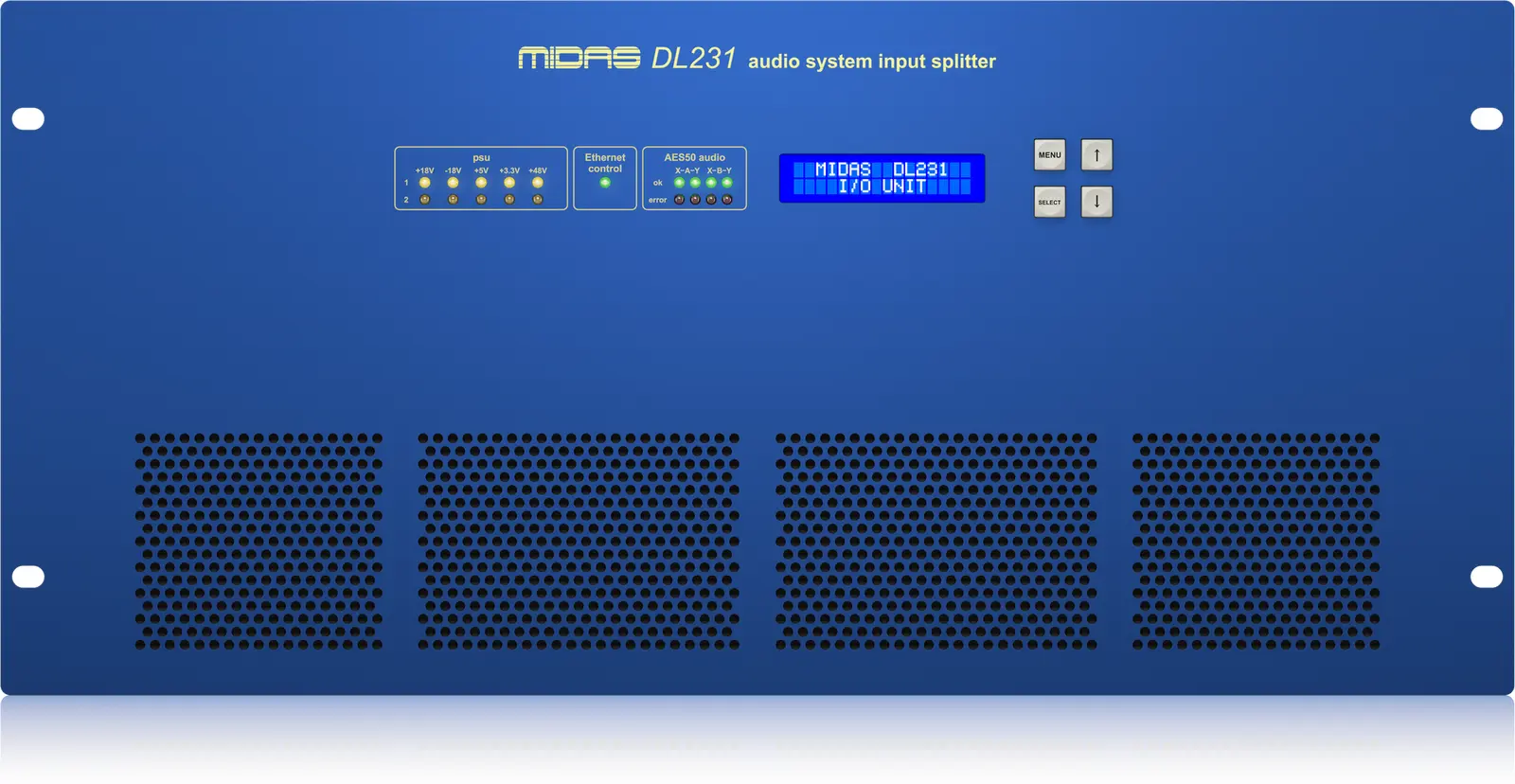

PSU status indicator LEDs and LCD display on front panel
MIDI In, Out, and Thru connectors
Includes Neutrik etherCON AES50 network ports
Durable 5U rackmount chassis
Dual redundant auto-ranging universal switch-mode power supplies

Specifications

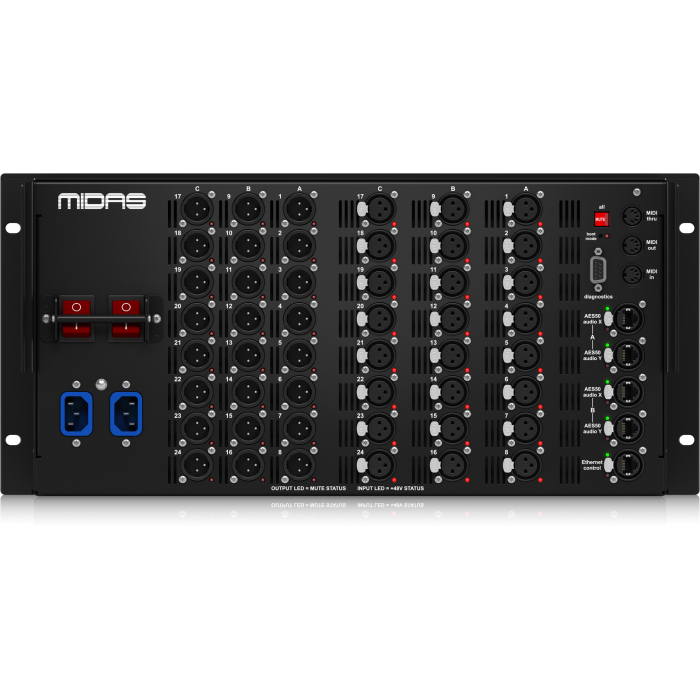

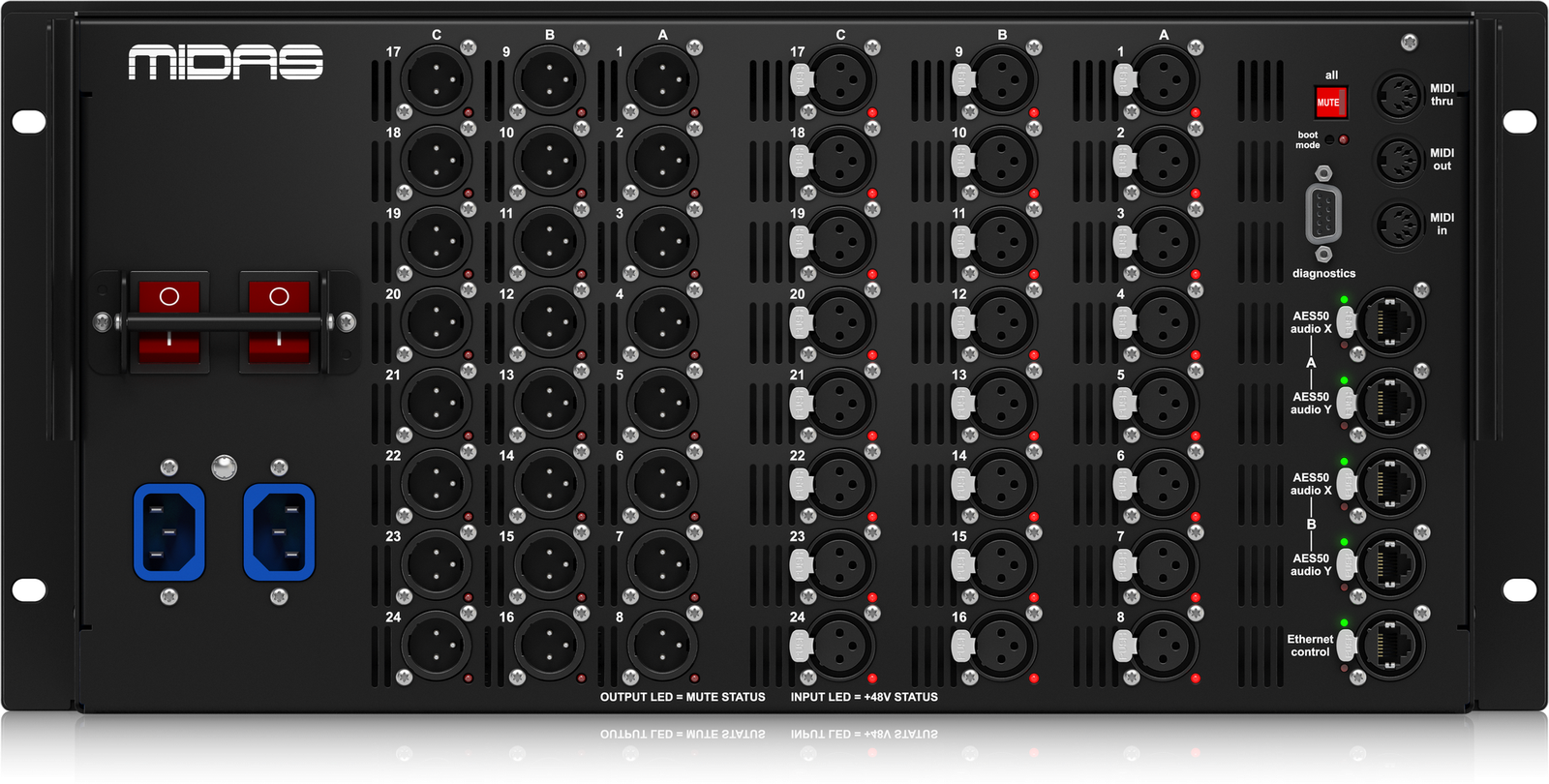

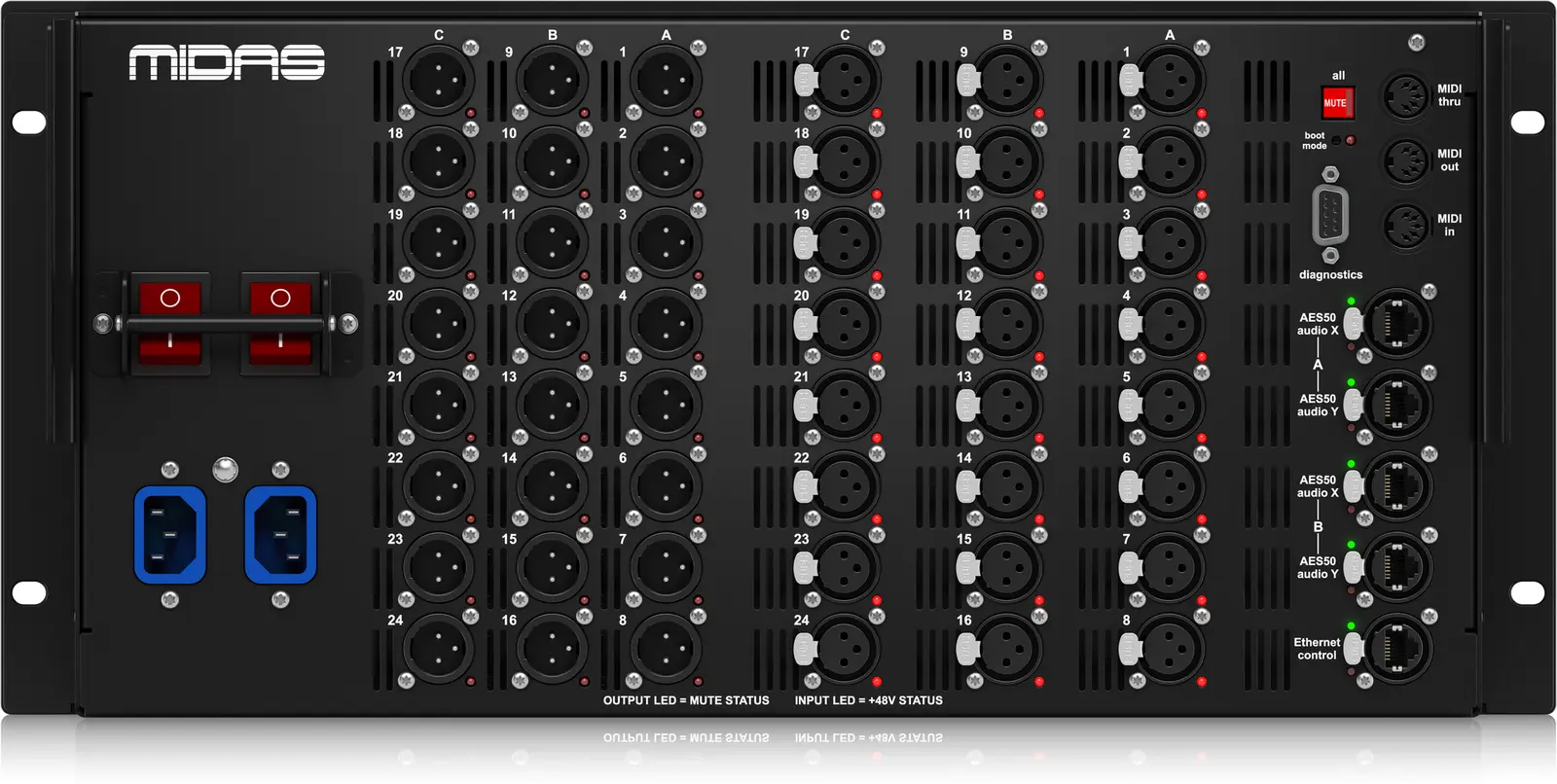

Connectors	24 x 3-pin XLR male (output), 24 x 3-pin XLR female (input), 1 x MIDI input, 1 x MIDI output, 1 x MIDI thru, 1 x 9-pin Sub-D female (diagnostics), 4 x RJ45 Neutrik etherCON (AES50), 1 x RJ45 Neutrik etherCON (Ethernet), 2 x IEC power ports
Indicators	LCD display (front), 10 x LED PSU power (front), LED Ethernet status (front), 8 x LED AES50 audio status (front), 24 x mute status (rear), 24 x 48V phantom power status (rear)
Controls	4 x programming buttons (front), 1 x mute button (rear), 1 x boot button (rear), 2 x power on/off switches (rear)
Remote Operation	Up to 100 meters via CAT5/5e cable
Sampling Frequencies	48 kHz, 96 kHz
Bit Rate	24
Frequency Response	20 Hz – 20 kHz (+0 dB to -1 dB)
Maximum Gain	45 dB
Input CMRR	70 dB (0 dB Gain), 90 dB (45 dB Gain)
Distortion (THD)	0.01% (0 dBu, 0 dB Gain), 0.03% (0 dBu, 45 dB Gain), 0.01% (+20 dBu, 0 dB Gain), 0.03% (+20 dBu, 45 dB Gain)
Output Noise	-86 dBu (0 dB Gain), -81 dBu (45 dB Gain)
EIN	-86 dBu (0 dB Gain), -126 dBu (45 dB Gain)
Dynamic Range	107 dB (22 Hz to 22 kHz, Unity Gain), 102 dB (22 Hz to 22 kHz, 45 dB Gain)
Crosstalk	-90 dB at 1 kHz, -90 dB at 10 kHz (physically adjacent input channels)
Supply Voltage	100-240 VAC, 50/60 Hz
Power Consumption	Up to 150 W
Operating Temperature	41 to 104°F / 5 to 40°C
Storage Temperature	-4 to 140°F / -20 to 60°C
Rack Space	5 RU
Dimensions	16.26 x 8.70 x 19.02″ / 41.3 x 22.1 x 48.3 cm
Weight	32.6 lb / 14.8 kg
