Microphone Preamp

Midas DL154 Stage Box 8 Input 16 Output with 8 Microphone Preamplifiers

Midas

AED 7315.35 inc VAT.

The DL154 is a 2U 19″ fixed-configuration rack I/O unit featuring 8 mic/line level inputs, 16 line level outputs, and renowned Midas sound quality. It includes award-winning Midas microphone preamplifiers with 2.5 dB analogue gain steps, dual redundancy via two AES50 network ports, and is compatible with Midas PRO and M32 Series digital consoles.

In stock
Request Quote
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: DL154 Categories: , , Brand:

Description

The DL154 is an efficient and high-quality fixed-configuration rack I/O unit designed to meet professional audio needs. This 2U 19″ unit integrates 8 mic/line level inputs and 16 line level outputs, delivering the renowned Midas sound quality built on trusted technologies. Equipped with Midas microphone preamplifiers offering 2.5 dB analogue gain steps, the DL154 ensures superior audio clarity and reliability. Dual AES50 network ports provide redundant connectivity, making it an ideal companion for Midas PRO and M32 Series digital consoles, facilitating seamless digital snake connections from the front of house to the stage.

Features

  • 8 Midas microphone preamplifiers with switchable +48 V phantom power
  • 16 electronically balanced low impedance line level outputs
  • Remote operation up to 100 m via CAT5/5e cable
  • Selectable 96 kHz or 48 kHz sample rate operation
  • Settings programmable from front panel controls or console

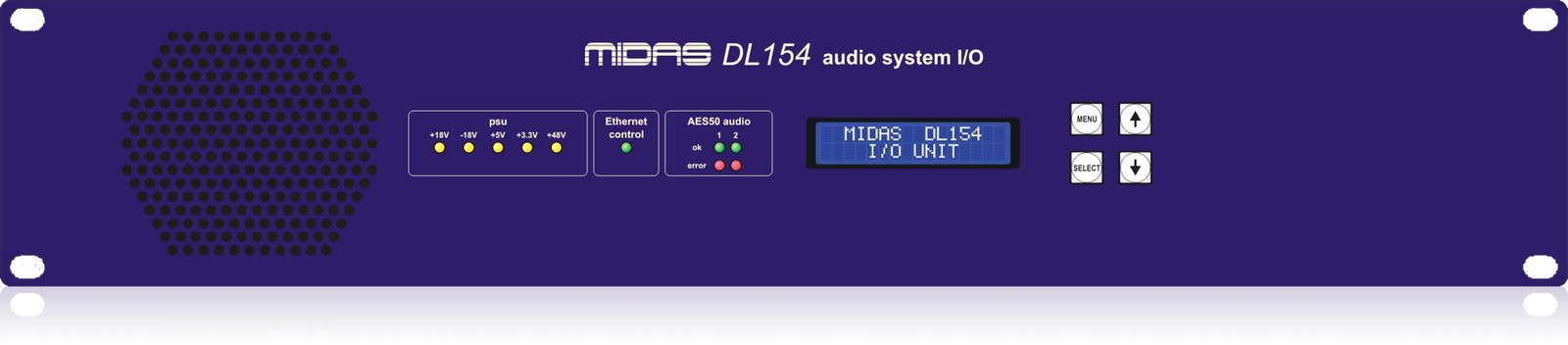

  • PSU status indicator LEDs and configuration LCD display on the front panel
  • Supports dual redundant AES50 networks
  • Features Neutrik etherCON AES50 network ports
  • Durable 2U rackmount chassis for portable applications
  • Auto-ranging universal switch-mode power supply

Specifications

Specification Details
Sample Rate 48 kHz, 96 kHz
Dynamic Range >107 dB unweighted (20 Hz – 20 kHz)
Mic EIN (40 dB Gain) -126 dBu
Maximum Output Level +21 dBu into 600 Ω
Output Noise (Unity Gain) -86 dBu
Frequency Response ±0.5 dB (20 Hz – 20 kHz, relative to 1 kHz)
THD+N (Unity Gain) <0.01%
Crosstalk @ 1 kHz <-90 dB
Analogue Inputs 8
Type Mic/Line Level
Connector 3-pin XLR Balanced
Input Impedance 10k Ω
A/D Conversion 24 bit, 96 kHz with 128 times oversampling
Phantom Power +48V, individually switchable per channel
Analogue Outputs 16
Type Line Level
Connector 3-pin XLR Balanced
Output Impedance 50 Ω
D/A Conversion 24 bit, 96 kHz with 128 times oversampling
Network Connections 2
Connector Neutrik etherCON with status LEDs
Redundancy Dual cable redundancy
Network Interface Conforms to AES50-2011
Ethernet Control Port 1
Connector Neutrik etherCON with status LEDs
Power 1
Connector IEC mains inlet
Mains Input Voltage 100 to 240 VAC, 50-60 Hz
Power Consumption <150 W
Dimensions 483 x 416 x 88 mm (19.0 x 16.4 x 3.5″)
Net Weight 6.7 kg (14.7 lbs)
Operating Temperature Range +5°C to +45°C
Storage Temperature Range -20°C to +60°C
