Midas DL153 Stage Box 16 Input 8 Output with 16 Microphone Preamplifiers

AED 8135.40 inc VAT.

The DL153 is a 2U 19″ rack I/O unit featuring 16 mic/line level inputs, 8 line level outputs, and delivers renowned Midas sound quality. It includes Midas microphone preamplifiers with 2.5 dB analogue gain steps and dual redundancy via two AES50 network ports, making it an ideal companion for Midas PRO and M32 Series digital consoles for seamless digital snake connections.

In stock

Request Quote

Estimated Delivery: 2–3 business days across the UAE
Free Shipping & Returns : On all orders over AED 1000

Guaranteed Safe And Secure Checkout

Description

DL153 Rack I/O Unit

Experience superior audio quality with the DL153, a 2U 19″ fixed-configuration rack I/O unit designed for professional use. Featuring 16 mic/line level inputs and 8 line level outputs, the DL153 ensures outstanding performance with legendary Midas sound quality. This unit is ideal for creating a seamless digital snake connection from Front of House to stage, working perfectly with Midas PRO and M32 Series digital consoles.

Key Features

16 award-winning Midas microphone preamplifiers with switchable +48 V phantom power
8 electronically balanced low impedance line level outputs
Remote operation up to 100 m via CAT5/5e cable
Selectable 96 kHz or 48 kHz sample rate operation
All settings programmable from front panel controls or console

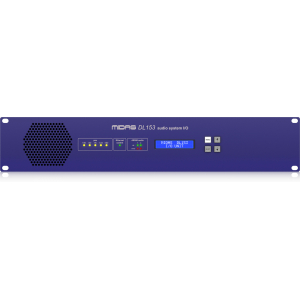

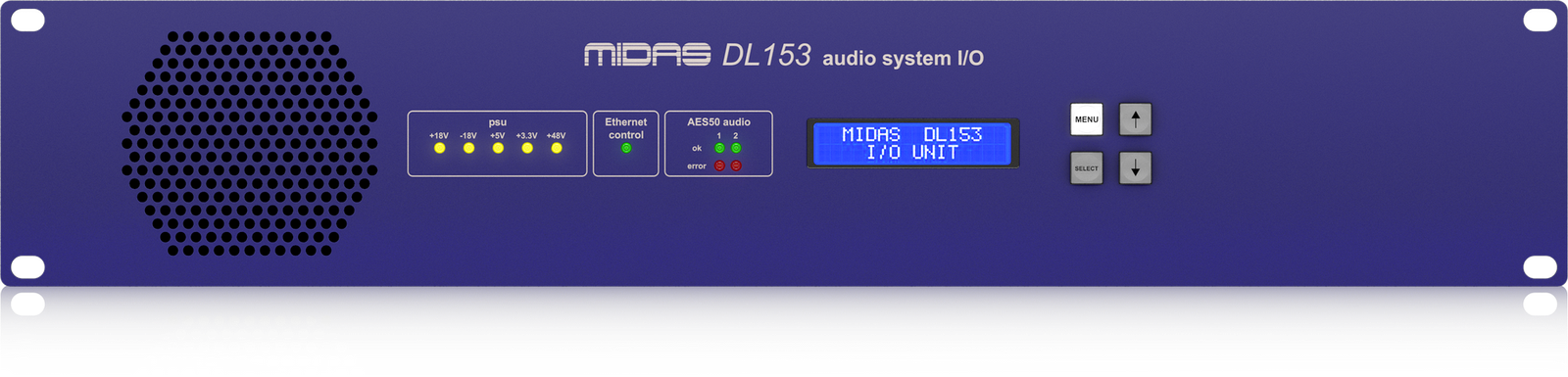

PSU status indicator LEDs and configuration LCD display on front panel
Supports dual redundant AES50 networks
Features Neutrik etherCON AES50 network ports
Rugged 2U rackmount chassis for durability in portable applications
Auto-ranging universal switch-mode power supply

Specifications

Specification	Details
Sample rate	48 kHz, 96 kHz
Dynamic range	>107 dB unweighted (20 Hz – 20 kHz)
Mic EIN (40 dB Gain)	-126 dBu
Maximum Output Level	+21 dBu into 600 Ω
Output Noise (Unity Gain)	-86 dBu
Frequency Response	±0.5 dB (20 Hz – 20 kHz, relative to 1 kHz)
THD+N (Unity Gain)	<0.01%
Crosstalk @ 1 kHz	<-90 dB
Analogue Inputs	16
Type	Mic/Line Level
Connector	3-pin XLR Balanced
Input Impedance	10k Ω
A/D Conversion	24 bit, 96 kHz with 128 times oversampling
Phantom Power	+48V, individually switchable per channel
Analogue Outputs	8
Type	Line Level
Connector	3-pin XLR Balanced
Output Impedance	50 Ω
D/A Conversion	24 bit, 96 kHz with 128 times oversampling
Network Connections	2
Connector	Neutrik etherCON with status LEDs
Redundancy	Dual cable redundancy
Network Interface	Conforms to AES50-2011
Ethernet Control Port	1
Connector	Neutrik etherCON with status LEDs
Power	1
Connector	IEC mains inlet
Mains Input Voltage	100 to 240 VAC, 50-60 Hz
Power Consumption	<150 W
Dimensions	483 x 416 x 88 mm (19.0 x 16.4 x 3.5″)
Net Weight	6.7 kg (14.7 lbs)
Operating Temperature Range	+5°C to +45°C
Storage Temperature Range	-20°C to +60°C
