Midas DL152 24-Output Stage Box

AED 7315.35 inc VAT.

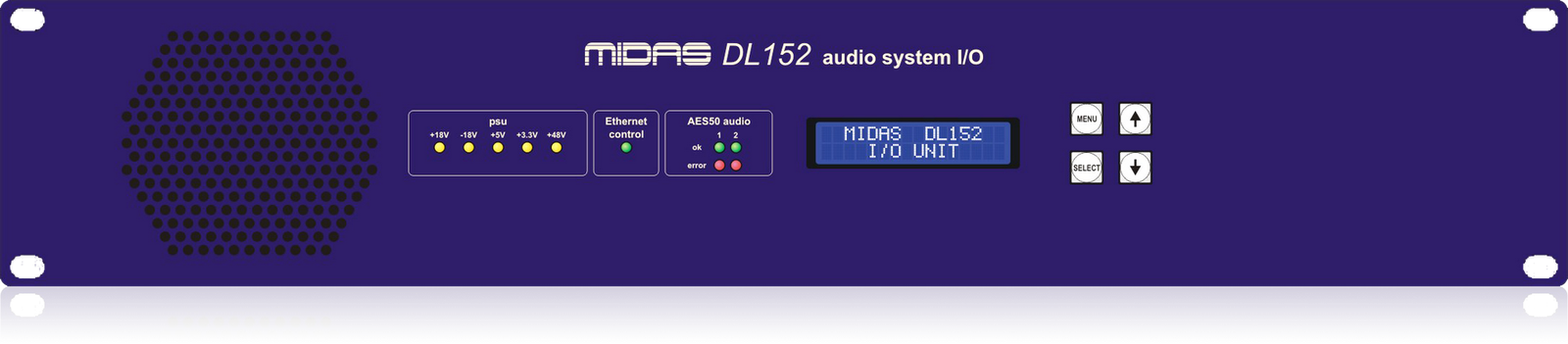

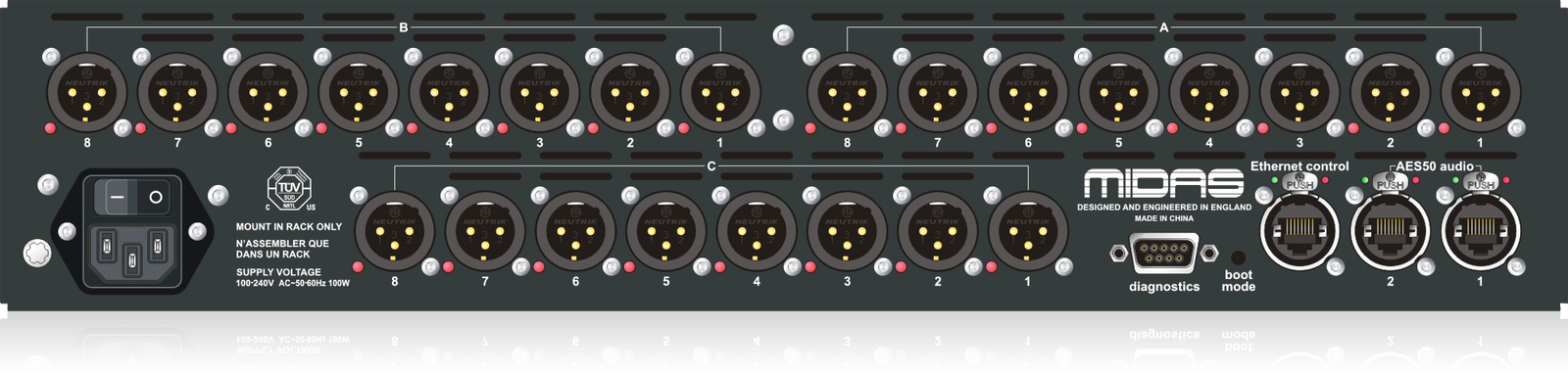

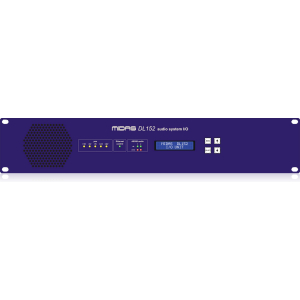

The DL152 is a 2U 19″ rack I/O unit with 24 line level outputs, featuring dual-redundant AES50 network ports. It ensures the renowned Midas sound quality and is compatible with Midas PRO and M32 Series digital consoles, making it perfect for reliable digital snake connections.

In stock

Request Quote

Estimated Delivery: 2–3 business days across the UAE
Free Shipping & Returns : On all orders over AED 1000

Guaranteed Safe And Secure Checkout

Description

Midas DL152 Digital Audio Interface

The DL152 is a robust 2U 19″ rack I/O unit featuring 24 line level outputs, designed to deliver exceptional Midas sound quality using our proven technologies. Equipped with two AES50 network ports for dual redundancy, it seamlessly integrates with Midas PRO and M32 Series digital consoles, facilitating a reliable digital snake connection from front of house to stage.

Features

24 electronically balanced low impedance line level outputs
Remote operation up to 100 m via CAT5/5e cable
Selectable 96 kHz or 48 kHz sample rate operation
Fully programmable from front panel controls or console
PSU status indicator LEDs and configuration LCD display on front panel
Supports dual redundant AES50 networks
Features Neutrik etherCON AES50 network ports
Rugged 2U rackmount chassis for portable applications
Auto-ranging universal switch-mode power supply

Specifications

Parameter	Details
Sample Rate	48 kHz, 96 kHz
Dynamic Range	>107 dB unweighted (20 Hz – 20 kHz)
Maximum Output Level	+21 dBu into 600 Ω
Output Noise (Unity Gain)	-86 dBu
Frequency Response	±0.5 dB (20 Hz – 20 kHz, relative to 1 kHz)
THD+N (Unity Gain)	<0.01%
Crosstalk @ 1 kHz	<-90 dB
Analogue Outputs	24
Type	Line Level
Connector	3-pin XLR Balanced
Output Impedance	50 Ω
D/A Conversion	24 bit, 96 kHz with 128 times oversampling
Network Connections	2
Connector	Neutrik etherCON with status LEDs
Redundancy	Dual cable redundancy
Network Interface	Conforms to AES50-2011
Ethernet Control Port	1
Connector	Neutrik etherCON with status LEDs
Power	1
Connector	IEC mains inlet
Mains Input Voltage	100 to 240 VAC, 50-60 Hz
Power Consumption	<150 W
Dimensions	483 x 416 x 88 mm (19.0 x 16.4 x 3.5″)
Net Weight	6.9 kg (15.2 lbs)
Operating Temperature Range	+5°C to +45°C
Storage Temperature Range	-20°C to +60°C
