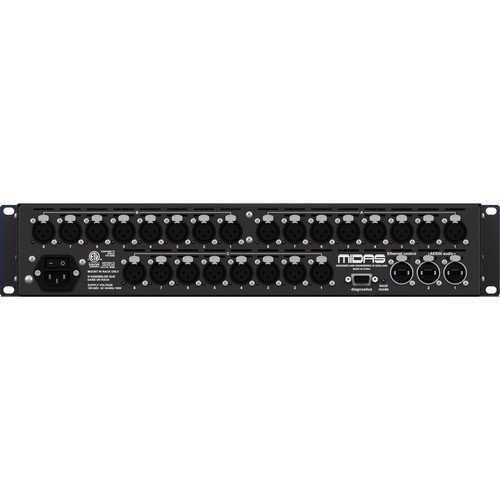

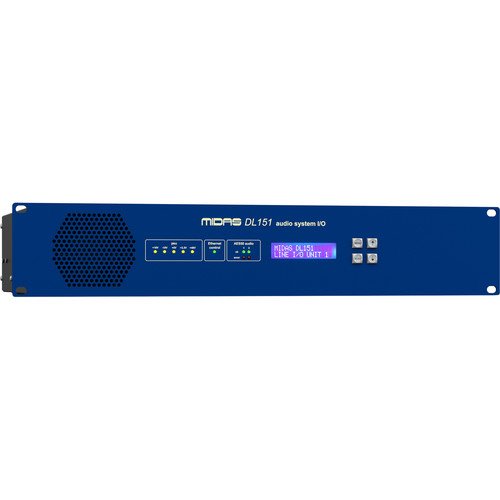

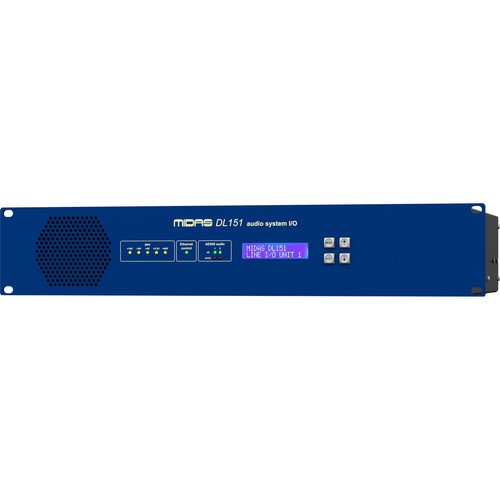

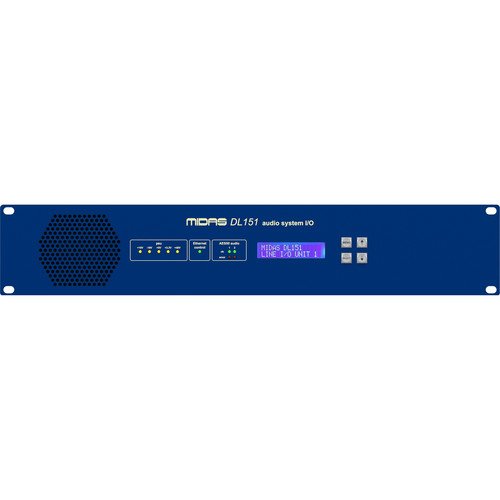

Midas DL151 24-Input Stage Box with 24 Microphone Preamplifiers

AED 8135.40 inc VAT.

The DL151 is a 2U 19″ fixed-configuration rack I/O unit featuring 24 mic/line level inputs that deliver high-quality Midas sound using established technologies. It includes Midas microphone preamplifiers with 2.5 dB analogue gain steps and dual-redundant AES50 network ports, making it an ideal companion for Midas PRO and M32 Series digital consoles, enabling seamless digital snake connections from Front of House to stage.

In stock

Request Quote

Estimated Delivery: 2–3 business days across the UAE
Free Shipping & Returns : On all orders over AED 1000

Guaranteed Safe And Secure Checkout

Description

Midas DL151 24-Input I/O Unit

The Midas DL151 is a 2U 19″ fixed-configuration rack I/O unit designed for high-quality audio input. With 24 mic/line level inputs featuring renowned Midas sound quality, this unit leverages advanced technologies and is ideal for Midas PRO and M32 Series digital consoles. It supports dual redundant AES50 networks, allowing seamless and reliable digital connections from the Front of House to the stage.

Key Features

24 Midas microphone preamplifiers with +48 V phantom power
Remote operation over CAT5/5e cable up to 100 meters
Selectable 96 kHz or 48 kHz sample rates
Programmable settings from front panel or console
PSU status LEDs and configuration LCD display
Supports dual redundant AES50 networks
Durable Neutrik etherCON AES50 network ports
Rugged 2U rackmount chassis for portable use
Auto-ranging universal switch-mode power supply

Specifications

Specification	Details
Sample Rates	48 or 96 kHz
Analog Inputs	24 x XLR 3-pin male Microphone
Analog Outputs	None
Other Connectors	1 x RJ45 Ethernet, 2 x Neutrik etherCON ports, 1 x 9-pin D-Sub (diagnostics)
Power Requirements	100~240VAC, 50/60 Hz
Dimensions	19″ 2U rackmount
