MHA200 Vacuum Tube Headphone Amplifier x LCD-5 Flagship Open-back Headphones

AED 28875 inc VAT.

In stock
Enquiry On Whatsapp
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: MHA200-x-LCD-5 Categories: , Brand:

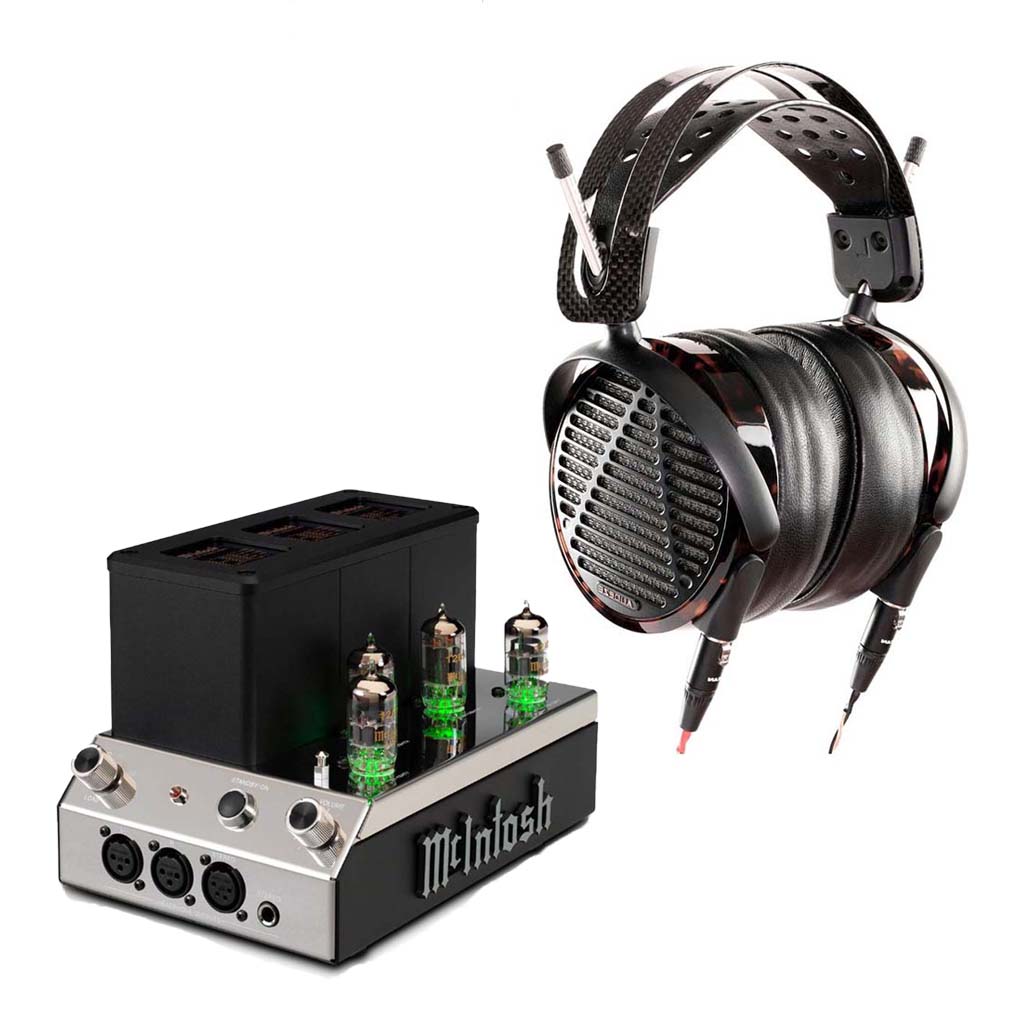

A high-end bundle pairing McIntosh’s compact MHA200 vacuum-tube headphone amplifier with Audeze’s flagship LCD-5 planar magnetic headphones — delivering tube warmth, McIntosh Unity Coupled output transformers, multiple balanced outputs and wide impedance support, matched to the LCD-5’s reference-class planar drivers for an immersive, studio-grade personal listening experience.

Description

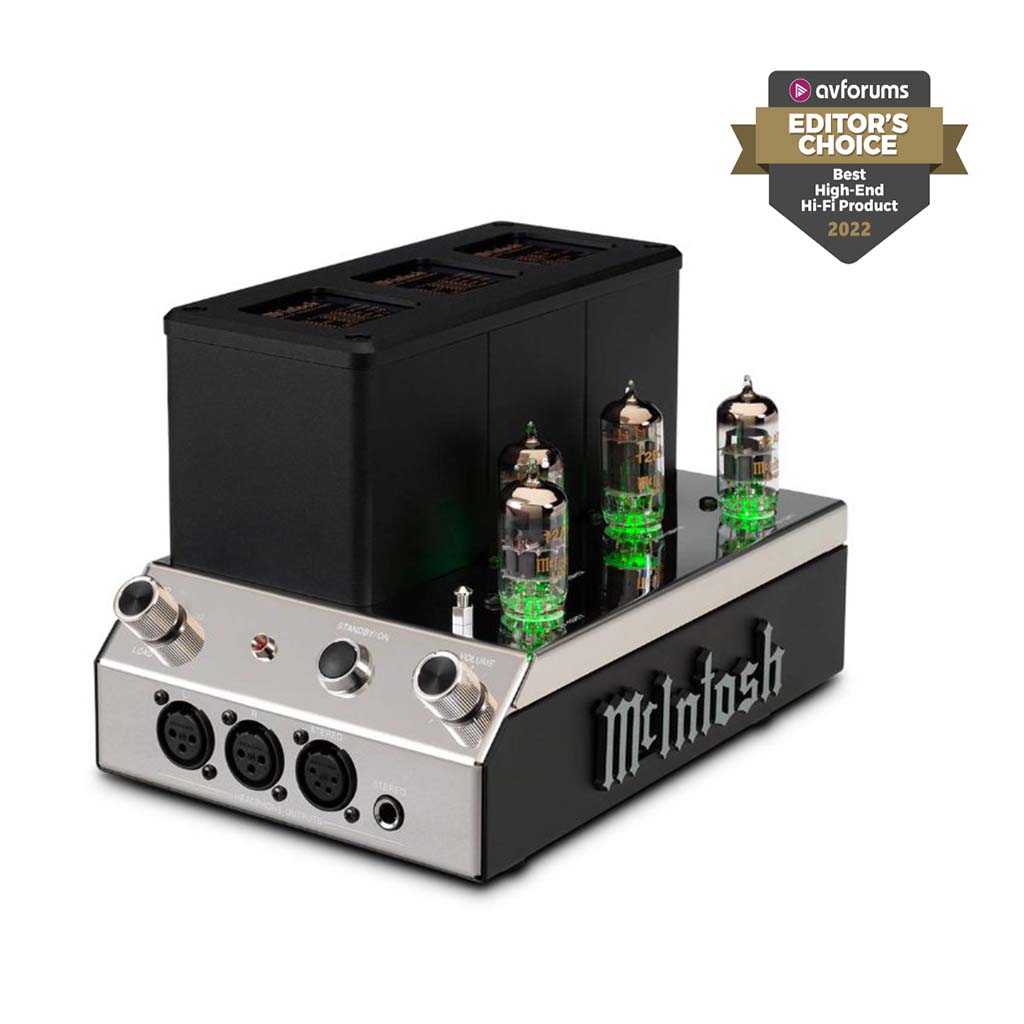

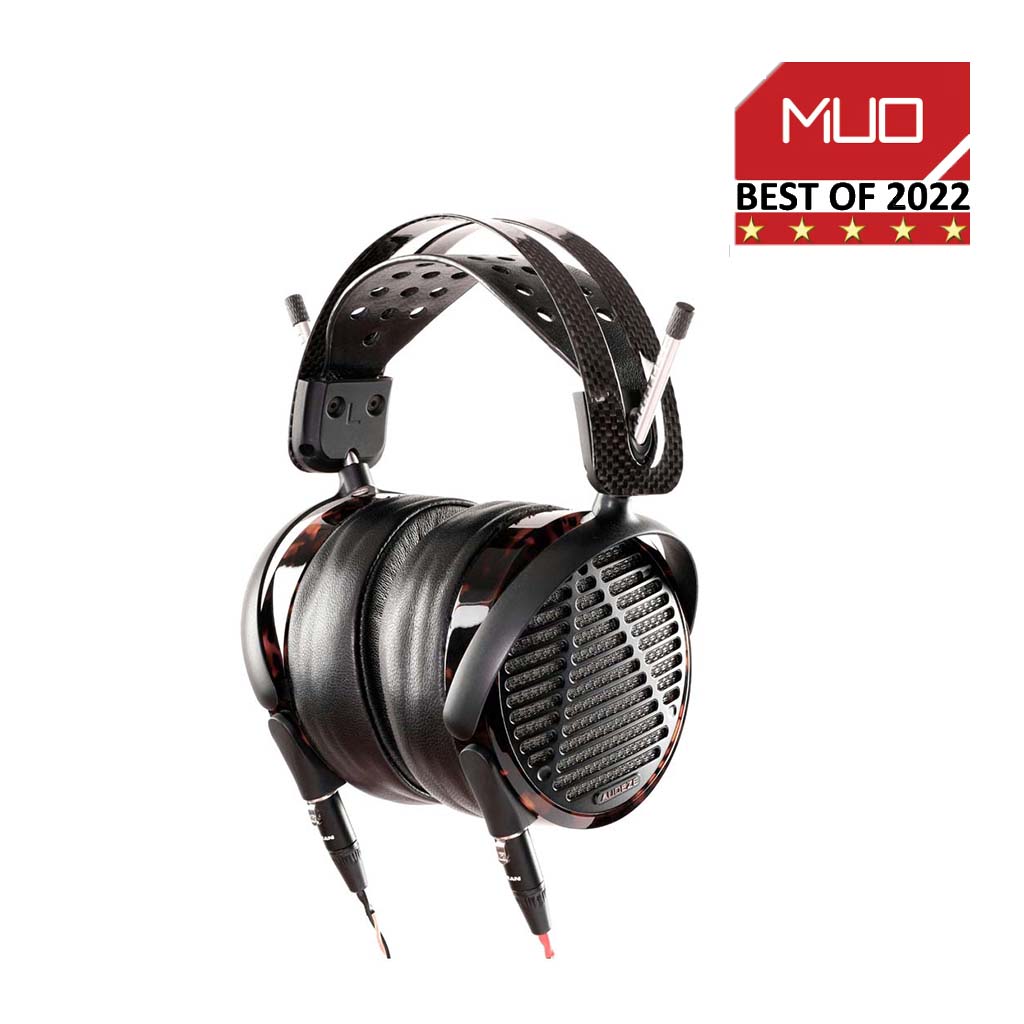

The MHA200 + LCD-5 bundle combines McIntosh’s elegantly compact, tube-powered MHA200 headphone amplifier with Audeze’s latest LCD-5 flagship open-back planar magnetic headphones. The MHA200 uses a pair of 12AT7 and 12BH7A dual-triode vacuum tubes and McIntosh Unity Coupled Circuit output transformers to provide up to 500 mW of headphone power across four selectable impedance ranges (32–1,000 Ω). It offers balanced and unbalanced analog inputs, dedicated left/right balanced outputs, a 4-pin stereo balanced XLR output and a conventional 1/4″ jack so virtually any high-end headphone can be driven optimally. The LCD-5 brings Audeze’s refined planar driver design and improved frame/comfort features, delivering exceptional detail, dynamics and comfort for extended listening sessions.

Headphone Output Specifications
Headphone Power Output 500 mW
Headphone Output Impedance (selectable ranges) 32–100 Ω • 100–250 Ω • 250–600 Ω • 600–1,000 Ω
Electronic Specifications
Power Output per Channel N/A
Speaker Impedance N/A
Rated Power Band 20 Hz – 20 kHz
Total Harmonic Distortion 0.5% maximum (250 mW to rated power, 20 Hz–20 kHz); <0.20% at 1 W, 20 Hz–20 kHz
Intermodulation Distortion 0.04% typical • 0.4% maximum
Dynamic Headroom 1.5 dB
Frequency Response +0, -0.5 dB (20 Hz – 20,000 Hz)
Sensitivity (Unbalanced) 1.0 Vrms
Sensitivity (Balanced) 2.0 Vrms
Maximum Input Signal (Unbalanced) 8 V
Maximum Input Signal (Balanced) 16 V
Signal to Noise Ratio 94 dB
Input Impedance (Balanced / Unbalanced) 20 kΩ / 10 kΩ
Damping Factor >150
Voltage Gain 12 dB at 32 Ω • 17 dB at 100 Ω • 21 dB at 250 Ω • 25 dB at 600 Ω
Power Guard No
Connectivity
Headphone Outputs Pair of 3-pin balanced XLR (dedicated L & R), one 4-pin balanced XLR (balanced stereo), one 1/4″ stereo jack
Balanced Input 1
Unbalanced Input 1
Digital Inputs None (AES/EBU, Coaxial, Optical, MCT, USB: 0)
Preamplifier Output 0
Digital Audio Specifications
Digital Input Sample Rates N/A (no digital inputs)
Control
Tone Controls No
Power Control Input 1
Power Control Output 1
General Specifications
Vacuum Tube or Solid State Vacuum Tube (12AT7 and 12BH7A)
Power Requirement 120 V, 50/60 Hz, 1.5 A
Standby Power Requirement <0.5 W
Output Type Unity Coupled Output Transformer
Weights & Dimensions
Unit Dimensions (W × H × D) 6-1/8″ (15.6 cm) × 5-3/4″ (14.6 cm) × 9-1/8″ (23.2 cm)
Unit Weight 10.5 lbs (4.8 kg)
Shipping Weight 12 lbs (5.5 kg)
