Digital Signal Processors (DSPs)

Lexicon PCM96 Surround Reverb Processor with Analog and Digital I/O

Lexicon

AED 16378 inc VAT.

The PCM96 Surround enhances the acclaimed PCM96 with additional presets, configuration options, and expanded I/O capabilities. It offers industry-standard reverbs and effects with exceptional flexibility. Available in two versions: one with 6 XLR Stereo AES I/Os or another with 2 DB25 6-channel analog I/O and 1 DB25 6-channel digital I/O. Both versions include MIDI and Wordclock features.

In stock
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: PCM96 Categories: , , Brand:

Description

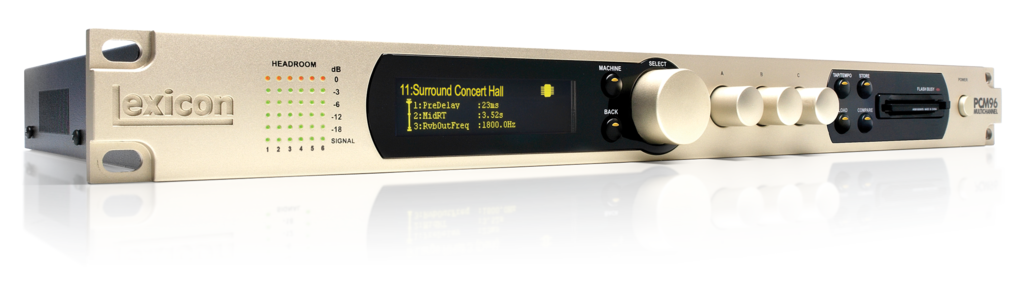

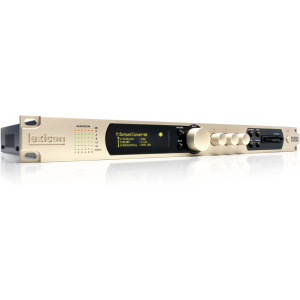

Lexicon PCM96 Surround Reverb and Effects Processor

The Lexicon PCM96 Surround builds upon the legacy of its predecessor with enhanced presets, expanded configuration options, and increased I/O flexibility. This powerhouse delivers industry-standard reverb and effects, tailored for both music production and post-production workflows.

Available in two versions, the PCM96 Surround can be fitted with either 6 XLR Stereo AES I/Os or a combination of 2 DB25 6-channel analog I/Os and 1 DB25 6-channel digital I/O. Both models come with MIDI capabilities and a Wordclock interface.

Main Features

  • 2 DB25 6-channel analog I/O and 1 DB25 6-channel digital I/O
  • New Parallel Stereo and Surround configurations
  • 50 legendary Lexicon reverbs, delays, and modulation effects
  • Surround Room algorithm for diverse room effects
  • New Pitch algorithms
  • Over 2200 factory presets
  • 32-bit floating point processing
  • Sample rates up to 96kHz
  • External BNC Wordclock
  • MIDI in, out, and thru
  • 768 user presets
  • Compact Flash for additional storage

Technical Specifications

Specification Details
Effects Type Reverb
Channels 6
Effect Variations Stereo and Surround: Room, Hall, Chamber, Random Delay, Classic (Random Hall), Plate, Dual Delay, Ambience, Resonant Chords, Chorus/Flange, Concert Hall, Signal Generator, Pitch
Presets 2200+
User Memory 768 internal, 2048 on optional memory card

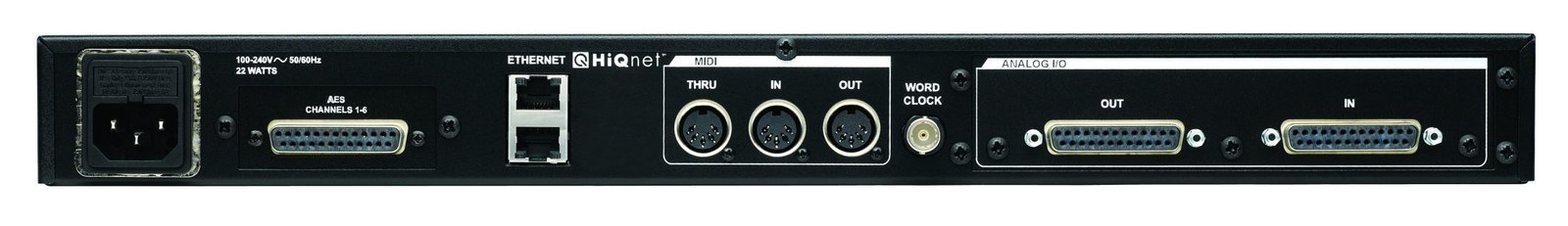

Analog Input 1 x 25-pin D-Sub
Analog Output 1 x 25-pin D-Sub
Digital Input 1 x 25-pin D-Sub (shared with output)
Digital Output 1 x 25-pin D-Sub (shared with output)
Other Connectors 2 x FireWire, 2 x RJ-45, 1 x BNC Wordclock input
AD/DA Conversion 24-bit
MIDI In/Out/Thru
External Storage Type I Compact Flash

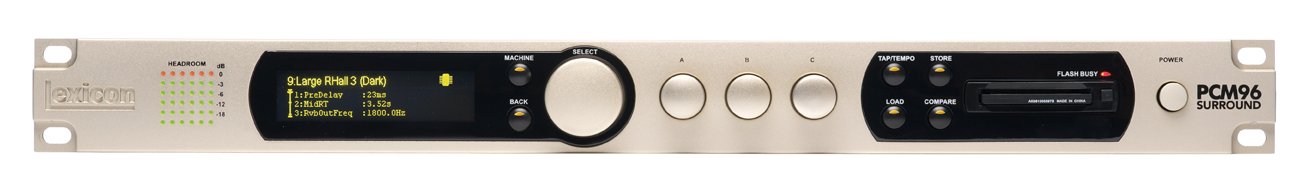

Display High-resolution, high-contrast OLED
Frequency Response 20Hz to 46kHz, +0/-0.5dB @ 96kHz
Dynamic Range 112dB unweighted, 115dB A-weighted
Noise THD: <0.002% 20Hz to 20kHz @ +4dBu
Power Requirements 100/120~220/240VAC, 50/60Hz
Dimensions 19 x 12.5 x 1.75″ (483 x 318 x 45mm)
Weight 14.25 lbs (6.5 kg)
Specialties Seamless automation and control via Ethernet or FireWire
Package Weight 16.3 lb
Box Dimensions (LxWxH) 24 x 19 x 4.5″
