Description

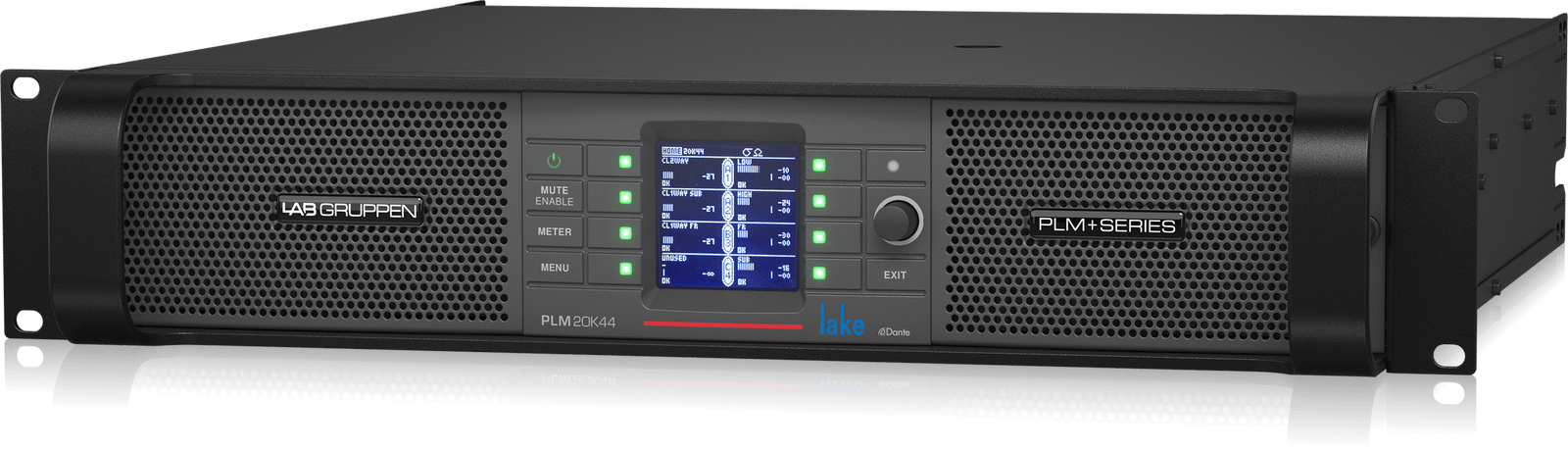

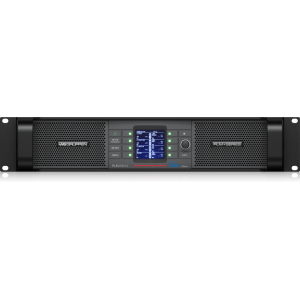

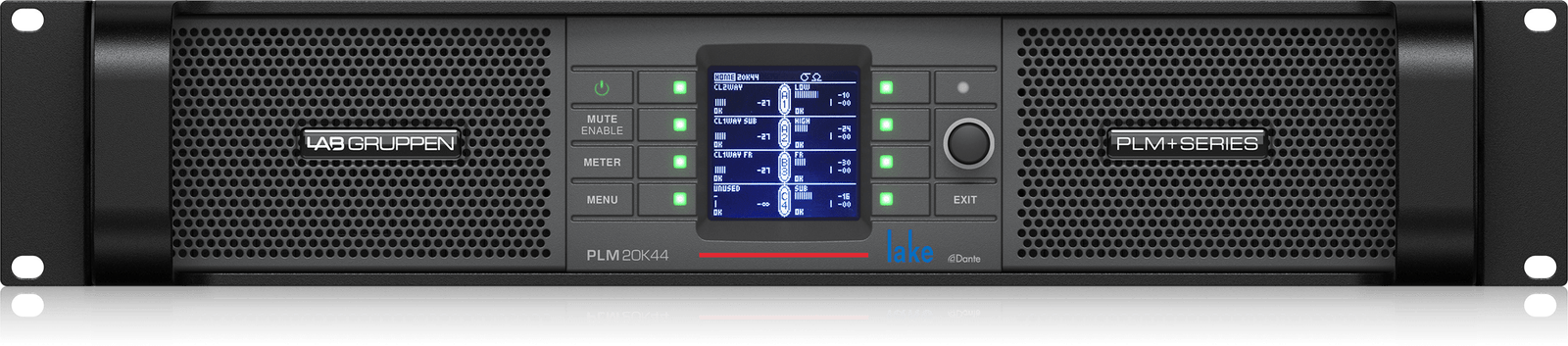

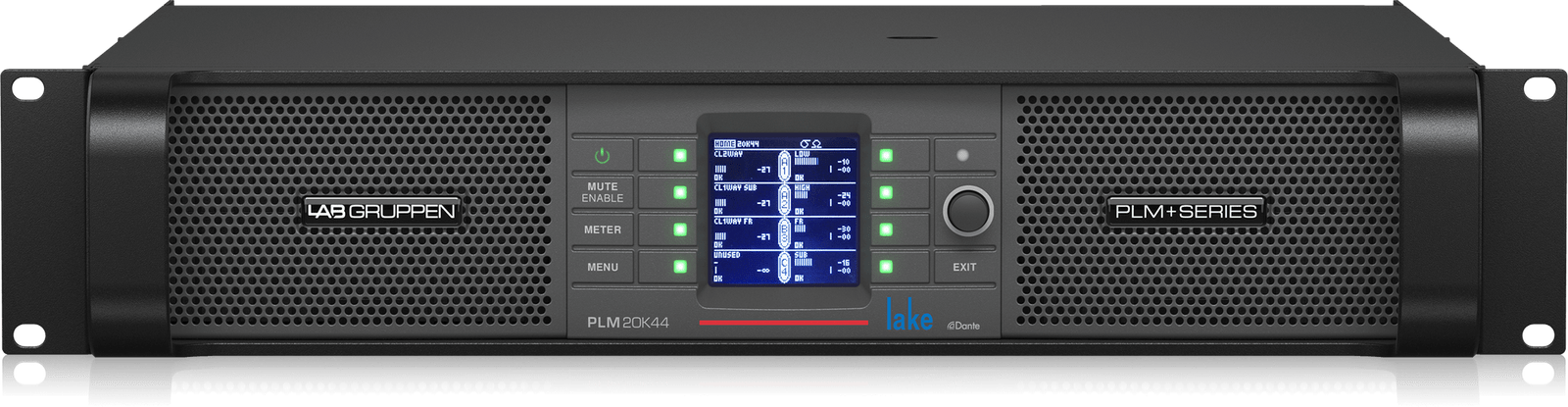

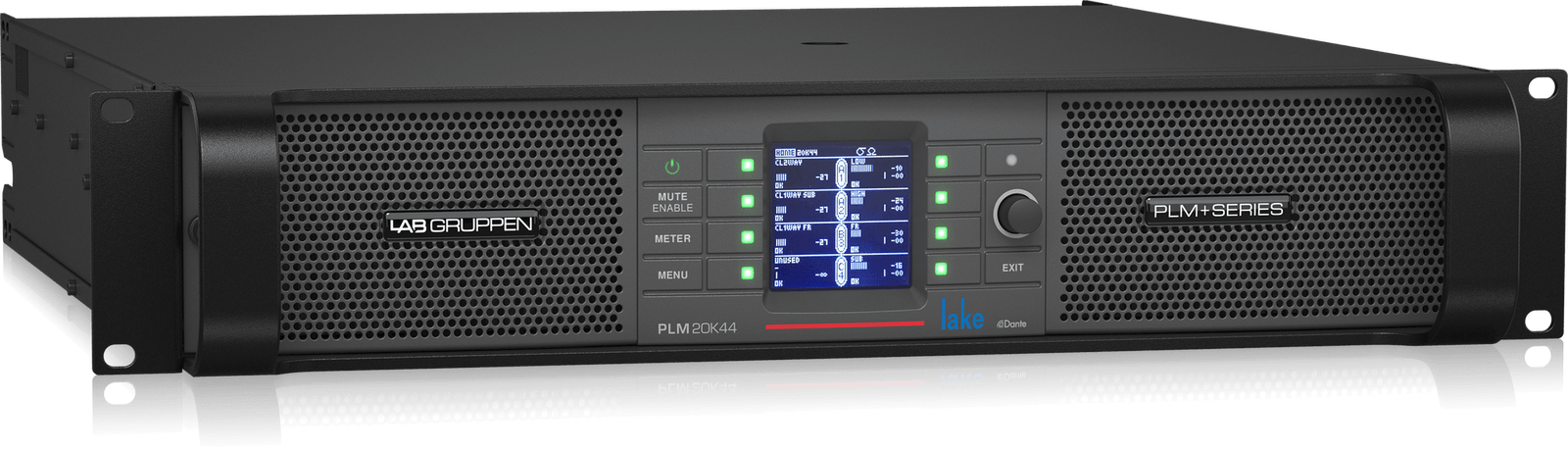

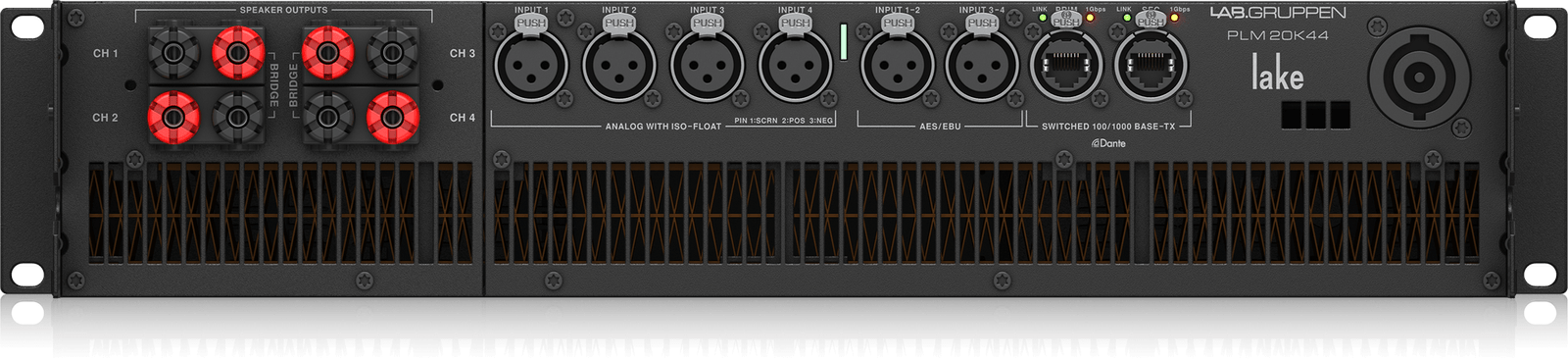

PLM 20K44 Powered Loudspeaker Management System
The PLM 20K44 combines four channels of powerful amplification, advanced signal processing, and robust audio management. Perfectly integrating networking, audio I/O, amplifiers, and power supply, this system provides comprehensive control and monitoring capabilities with industry-standard Dante® networking.
With its roots in the legendary PLM 20000Q, the PLM 20K44 adds a 4-in/4-out configuration and doubles the processing power, ensuring unparalleled performance and reliability in touring applications.
Features
- 20,000 Watt amplifier with 4 flexible output channels
- Integrated dual redundant Dante digital audio networking
- Lake signal processing for superior loudspeaker management
- Four channels of powerful amplification with efficient cooling
- Comprehensive protection features and monitoring capabilities
- 100 user presets for quick and easy setup
Specifications
| Specification |
Details |
| Processing / Network |
Lake / Dante |
| Number of amplifier channels |
4 |
| Total burst power all channels |
20000 W |
Max Output Power (All Channels Driven)
| Impedance |
Power |
| 2 ohms |
4,400 W |
| 2.67 ohms |
5,000 W |
| 4 ohms |
4,400 W |
| 8 ohms |
2,300 W |
| 16 ohms |
1,150 W |
| Hi-Z 70 V |
3,300 W |
| Hi-Z 100 V |
4,700 W |
Audio Performance
| Parameter |
Value |
| THD + N 20 Hz – 20 kHz for 1 W |
< 0.05 % |
| Dynamic range |
> 114 dB |
| Channel separation (at 1 kHz) |
> 70 dB |
Dimensions
| Parameter |
Value |
| Rack rail to rear panel |
W: 483 mm, H: 88 mm, D: 424 mm |
| Overall depth |
498 mm |
| Weight |
17 kg |
