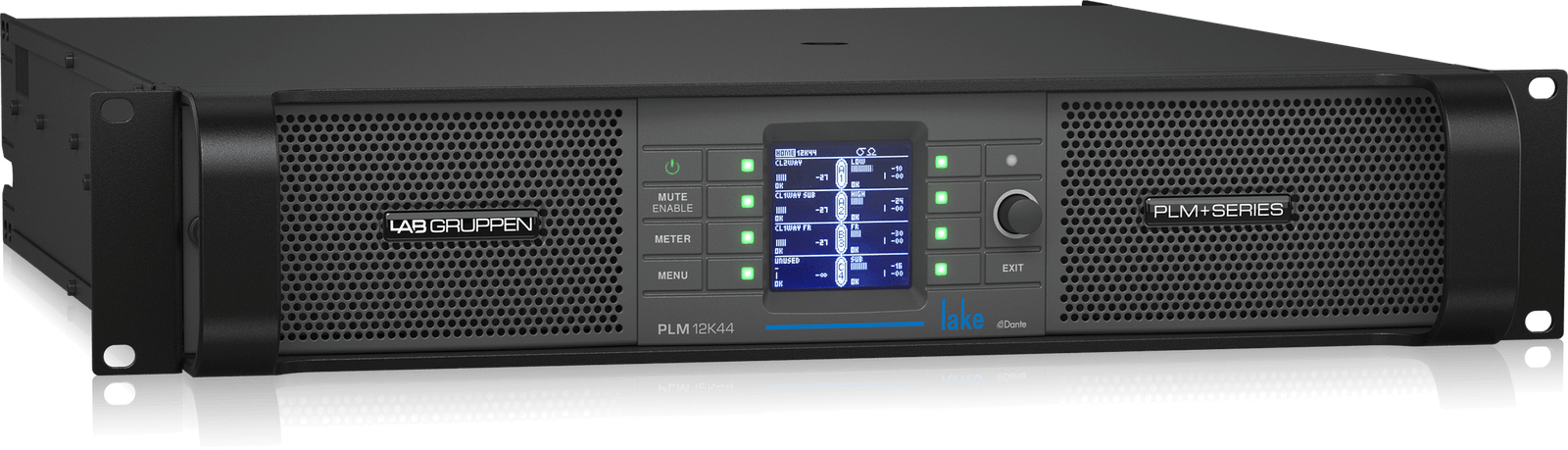

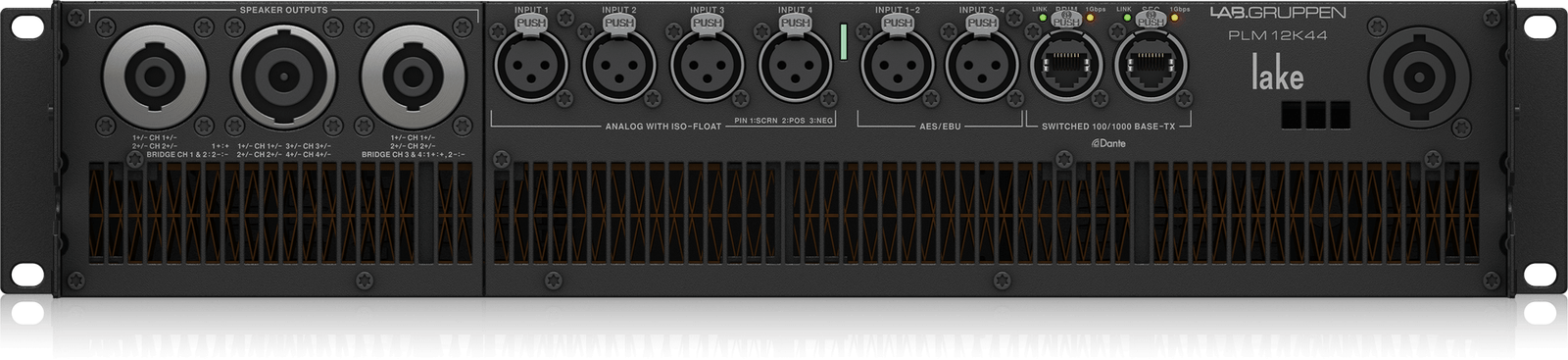

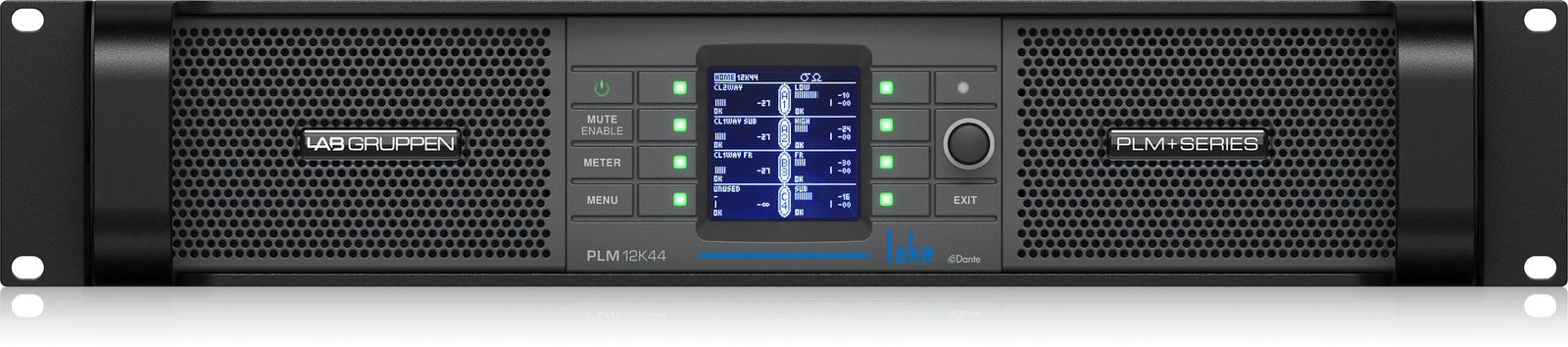

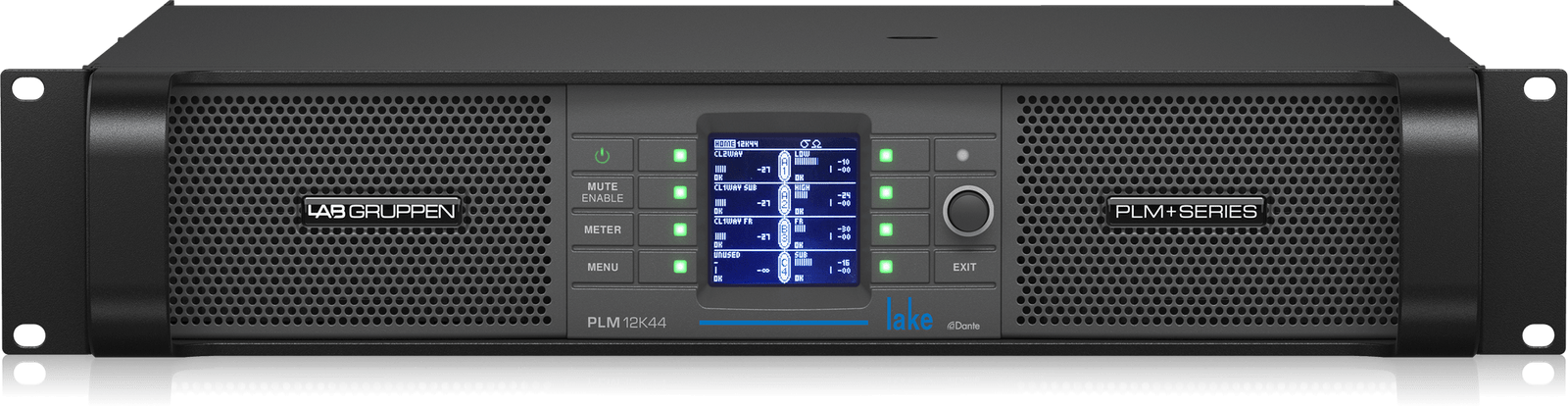

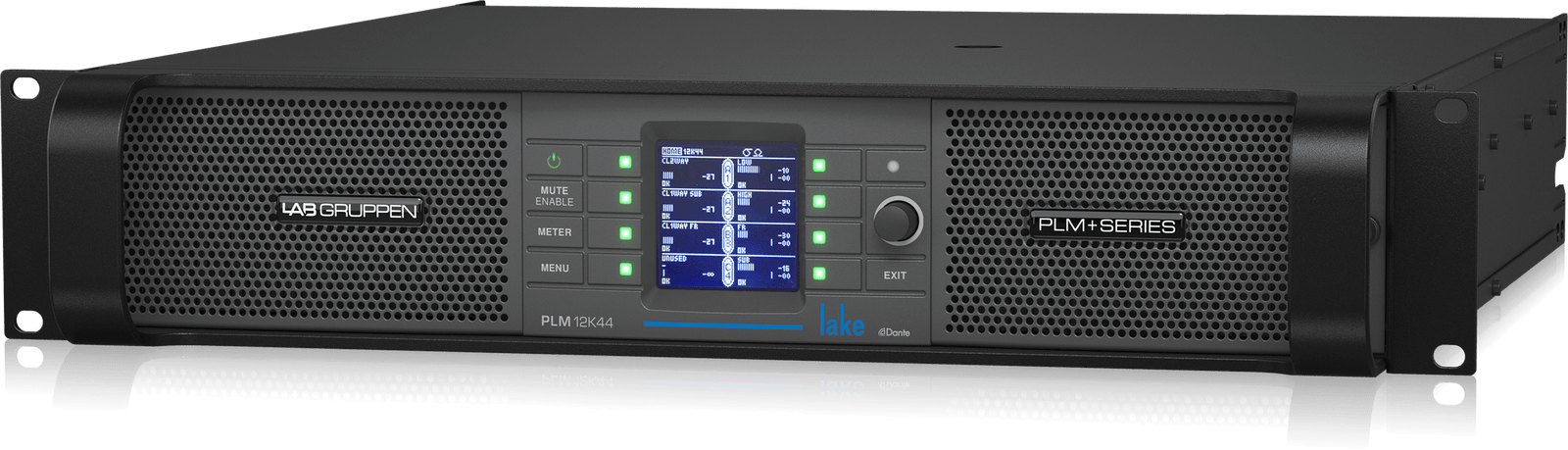

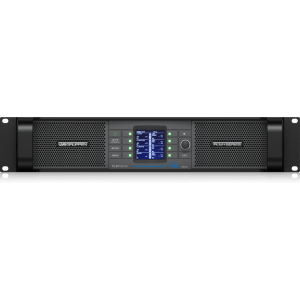

Lab Gruppen PLM 12K44 Powered Loudspeaker Management System
The PLM 12K44 combines a 4-in, 4-out configuration with industry-standard Dante Networking, setting the benchmark for powered loudspeaker management systems. The PLM 12K44 is the successor of the proven and trusted Lab Gruppen touring foundation exemplified by the iconic PLM series, now with an added powerful feature set for optimized performance. With twice the processing power via the latest Lake Controller, plus industry-standard Dante® networking, the PLM 12K44 is at the forefront of Powered Loudspeaker Management Systems.
Features
- 12,000 Watt amplifier with up to 5,900 Watts channel output for touring applications
- Lake digital signal processing for comprehensive loudspeaker management
- 8×8 channels of dual redundant Dante digital audio networking with AES67 support
- Flexible power allocation with Rational Power Management (RPM)
- Best-in-class Power Factor Correction (PFC) for reduced running costs
- On-board surveillance and load monitoring for system security
Specifications
| Specification |
Details |
| Processing / Network |
Lake / Dante |
| Number of amplifier channels |
4 |
| Total burst power |
12,000 W |
| Max output power per channel |
Up to 5,900 W |
| Frequency response |
+/- 0.05 dB (20 Hz – 20 kHz) |
| Dynamic range |
114 dB |
| Inputs |
4 analog, 4 AES/EBU |
| Latency |
0.25 to 5 ms |
Power and Connectivity
| Power |
Details |
| Nominal voltage |
100 – 240 V AC, 45 – 66 Hz |
| Operating voltage |
70 – 265 V AC |
| Power supply |
Regulated switch mode with PFC |
| Cooling |
Temperature controlled fans, front to rear airflow |
