Lab Gruppen LUCIA 240/1-70 Compact Mono 240W Amplifier for 70V High Impedance Installation

Lab Gruppen

AED 2586.15 inc VAT.

The LUCIA 240/1-70 is a decentralized, compact 240 W amplifier that is Energy Star compliant, featuring ease of installation, superior audio performance, and extraordinary flexibility for AV systems. It integrates power, processing, control, and I/O to deliver outstanding performance and cost-efficiency, eliminating the need for centralized equipment rooms. With a firmware-controlled digital front end and durable output stage, it guarantees reliable, high-quality sound.

In stock
Request Quote
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: LUCIA 240/1-70 Categories: , Brand:

Description

The LUCIA 240/1-70 combines ease of installation with 240 W of decentralized power in a compact, Energy Star compliant amplifier. Lab Gruppen’s innovative LUCIA (Localized Utility Compact Intelligent Amplification) provides superior audio performance and extraordinary flexibility for a decentralized approach in AV systems design. With power, processing, control, and I/O conveniently placed exactly where needed, LUCIA amplifiers are perfect for many AV applications requiring consistently outstanding performance. This amplificator offers a logical, cost-efficient, and scalable solution that can eliminate the need for a centralized equipment room.

Key Features

  • 240 W mono amplifier for high impedance speakers on 70 V distribution lines
  • Comprehensive on-board DSP with loudspeaker processing
  • Configuration software wizard available for Windows and Mac
  • Energy Star certified for ultra-low running costs
  • Automatic Dynamic Loudness Contouring for optimized performance
  • Per-channel presets for high-pass filter, parametric EQ, compressor, and limiter
  • Enhanced Bass Profile for extended LF response
  • Efficient Class-D amplifier with low distortion
  • Compact half-rack, 1U chassis with on-wall mounting bracket
  • Configurable GPIO port for remote control capabilities
  • Circuit protection includes short circuit, thermal, and under-voltage protection
  • Supports 100 – 240 V AC at 50 or 60 Hz with universal power supply
  • Quiet operation with intelligent fan control

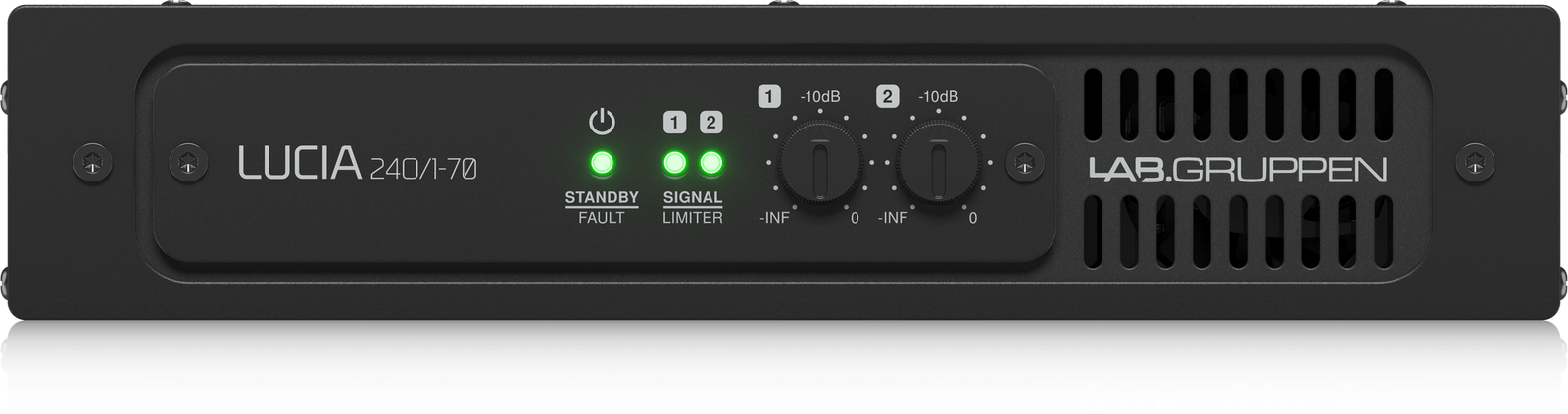

  • Front panel power, fault indications, and per-channel signal LED
  • Balanced high-quality analog inputs and outputs
  • Parallel analog input on unbalanced RCA connectors
  • Rackmount, pole-mount, and wall panel kits available

Specifications

Category Specification Details
General Number of Amplifier Channels 1
Max Total Output 240 W
Max Output Voltage 100 Vpeak
Max Output Current 7 Arms
Performance 70 V 240 W
100 V 120 W
16 ohms 240 W
Signal to Noise Ratio >100 dBA
Gain, Sensitivity and Limiters VPL 100 Vpeak
Sensitivity, Balanced Input 4 dBu / 1.23 Vrms
Sensitivity, RCA Input -2 dBu / 0.62 Vrms
Input Headroom for Clip, Balanced 12 dBu / 3.09 Vrms
Input Headroom for Clip, RCA 6 dBu / 1.55 Vrms

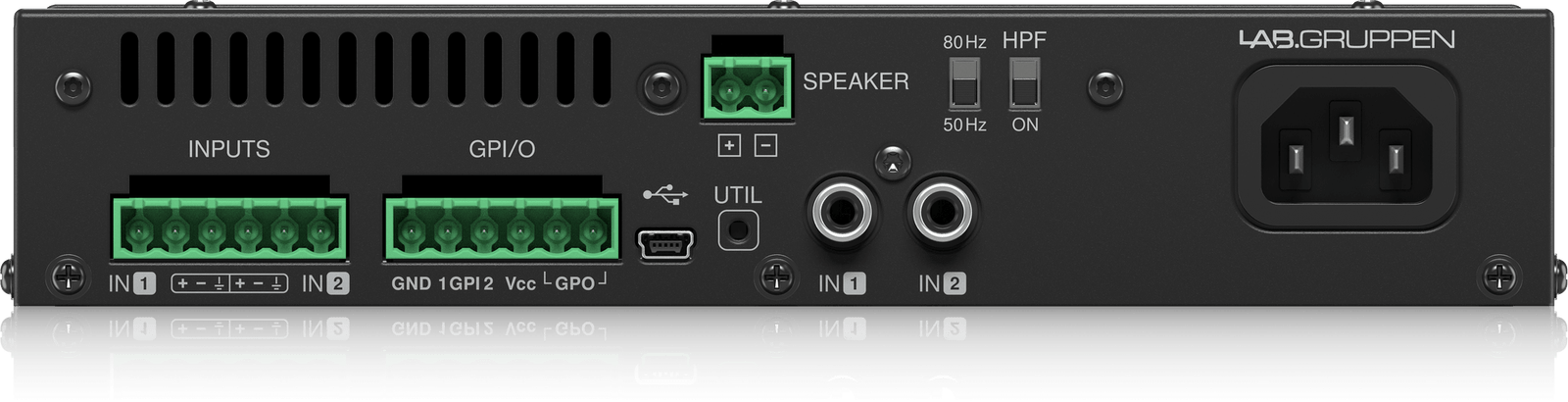

Connectors and Buttons Input Connectors (per ch.) 3 – pin detachable screw terminals, electronically balanced
Input Connectors (ch. 1 & 2) Unbalanced RCA type
Output Connector 2 – pin detachable screw terminal
GPI 2 channels of voltage sense type. 4 pins in a detachable screw terminal
GPO (Power State Output) Contact closure type, 2 pins in a detachable screw terminal
USB For firmware update and configuration
High Pass Filter Controlled by switches on the back (OFF / 50 Hz / 80 Hz)
Level Adjustment (per input) Front panel potentiometer
RS232 Controllable and monitored via RS232
Processing Features Input Processing Block 4 EQ sections per input
Mix Matrix Routing Block 2 in – 1 out mix-matrix
Output Processing Block 4 EQ sections per output, adjustable output limiter
Latency 9.15 to 137 ms
Power Nominal Voltage 100 – 240 VAC
Operating Voltage 85 – 265 VAC
Standby Consumption <1 W
Mains Connector IEC inlet
Cooling Temperature controlled fan, front to rear airflow
Auto Mode Power state controlled by audio signal
Dimensions Width 216 mm (8.5”)
Height 44 mm (1 U)
Depth 280 mm (11”)
Weight 1.9 kg (4.2 lbs)
Finish Black aluminum front, black steel chassis
Approvals CE, CSA, CCC, PSE, FCC, Energy Star
