Lab Gruppen FP 14000 2-Channel 14,000W Amplifier with NomadLink Network Monitoring and Touring Control

Name: Lab Gruppen FP 14000 2-Channel 14,000W Amplifier with NomadLink Network Monitoring and Touring Control
Brand: Lab Gruppen
SKU: FP 14000
Price: 24664.50 AED
Availability: InStock

AED 24664.50 inc VAT.

The FP 14000, the flagship model of the FP+ Series, enhances power output to manage extreme low-frequency loads effortlessly with its updated Regulated Switch Mode Power Supply (R.SMPS). This ensures sustained high power during extended low-frequency bursts and stable rail voltages despite external fluctuations. Its high-current output stage uses LAB GRUPPEN’s patented Class TD topology, combining Class D efficiency with Class B sonic purity, resulting in unmatched power density and optimized interaction for superior performance.

In stock

Request Quote

Estimated Delivery: 2–3 business days across the UAE
Free Shipping & Returns : On all orders over AED 1000

Guaranteed Safe And Secure Checkout

SKU: FP 14000 Categories: Amplifiers, Electronics Audio, Powered Amplifiers Brand: Lab Gruppen

Description
Additional information

Description

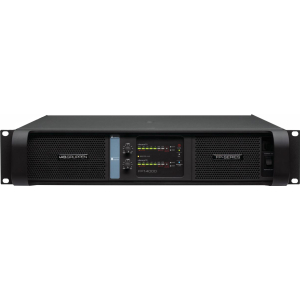

LAB GRUPPEN FP 14000 Amplifier

The FP 14000 is the latest pinnacle in LAB GRUPPEN’s renowned FP+ Series, designed to deliver unmatched power and reliability for audio amplification. This high-performance amplifier effortlessly manages intense low-frequency loads with its advanced Regulated Switch Mode Power Supply (R.SMPS) which ensures consistent power even during substantial voltage fluctuations. The amplifier is engineered with the patented Class TD technology, providing the efficiency of Class D amplifiers while maintaining the audio fidelity of Class B designs.

Features

14,000 Watt, 2-channel amplifier with up to 7,000 Watts output per channel and NomadLink network for monitoring and control
Selectable gain plus scalable Voltage Peak Limiter (VPL) and bridge-mode operation allow custom configuration for any application
2 x 7,000 Watts into 2 Ohms, 2 x 4,400 Watts into 4 Ohms, 2 x 2,350 Watts into 8 Ohms, 2 x 1,200 Watts into 16 Ohms
Proven and reliable Class-TD output stage delivers Class-A/B audio quality with Class-D efficiency
Regulated Switch Mode Power Supply (R.SMPS) ensures constant power output at all times
Intuitive DeviceControl software monitors and controls key functions via the NomadLink network
Comprehensive protection scheme including current, voltage, DC, temperature, short circuit and open load warnings
Efficient Intercooler copper cooling system dissipates more heat for extended peak output
2 x balanced analog audio inputs and 2 x link outputs on Neutrik XLR connectors
Binding post output connectors
Removable dust filter grilles for increased air circulation
Rugged 2U rackmount chassis for durability in touring applications

Specifications

General

Number of amplifier channels	2
Peak total output all channels driven	14000 W
Peak output voltage per channel	195 V
Max output current per channel	90 A peak

Max output power (all channels driven)

2 ohms	7000 W
4 ohms	4400 W
8 ohms	2350 W
16 ohms	1200 W

Max output power bridged

2 ohms	Not recommended
4 ohms	14000 W
8 ohms	8800 W
16 ohms	4700 W

Performance

THD 20 Hz – 20 kHz at 1 W	<0.1%
THD at 1 kHz and 1 dB below clipping	<0.05%
Signal to Noise Ratio	>112 dBA
Channel separation (Crosstalk) at 1 kHz	>70 dB
Input impedance	20 kOhm
Output impedance @ 100 Hz	19 mOhm

Gain, Sensitivity and Limiters

VPL, selectable per ch	195, 170, 140, 116, 100, 80, 66, 54 V
VPL, when bridged	390, 340, 280, 232, 200, 160, 132, 108 V
Voltage Peak Limiter mode (per ch.)	Hard / Soft
Amplifier gain selectable (all channels)	23, 26, 29, 32, 35, 38, 41, 44 dB
Default gain	38 dB
Level adjustment (per channel)	Front-panel potentiometer, 31 position detented from -inf to

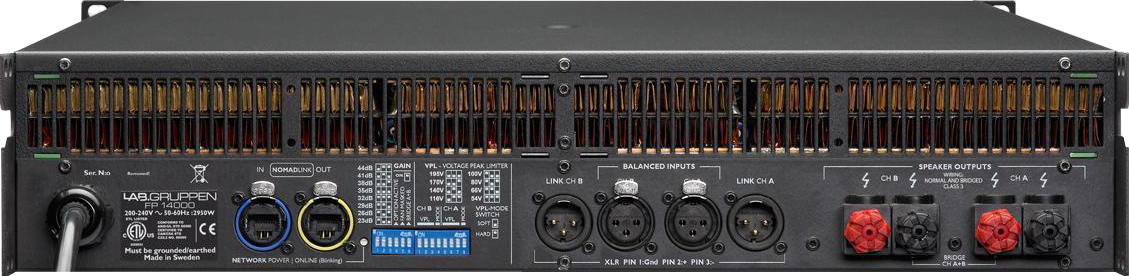

Connectors and Buttons

Input connectors (per ch.)	3-pin XLR, electronically balanced
Output connectors (per ch.)	Binding post
Output bridge mode	A+B – Ch. A is signal input source. A+B, C+D – Ch.’s A and C are input source
NomadLink network	On board, 2 x RJ45 connectors IN and OUT
Intelligent fans (on/off)	Yes, depending on presence of output signal
Power on/off and Remote enable on/off	Individual switches on front-panel
Cooling	Dual fan, front to rear airflow, no filter required, temperature controlled speed

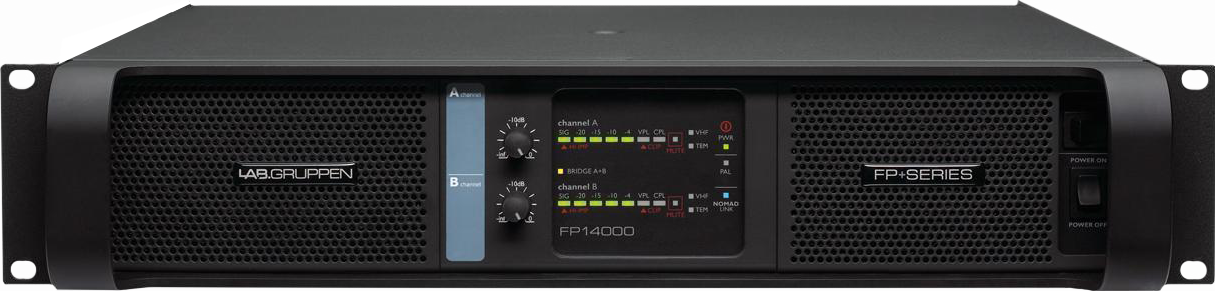

Front-panel user interface

Common	NomadLink Network; Power Average Limiter (PAL); Power on
Per channel	Signal present / High-impedance; -10 dB and -4 dB output signal; Voltage Peak Limiter (VPL); Current Peak Limiter (CPL): Very High Frequency (VHF); High temperature; Fault; Mute

Power

Operating voltage, 230 V / 115 V nominal	130-265 V / 65 -135 V
Minimum power-up voltage, 230 V / 115 V	171 V / 85 V
Power Average Limiter (PAL)	Yes
Soft-start / Inrush Current Draw	Yes / max. 5 A
Mains connector	230 V CE: 16 A, CEE7; 115 V ETL: 30 A Twist lock
