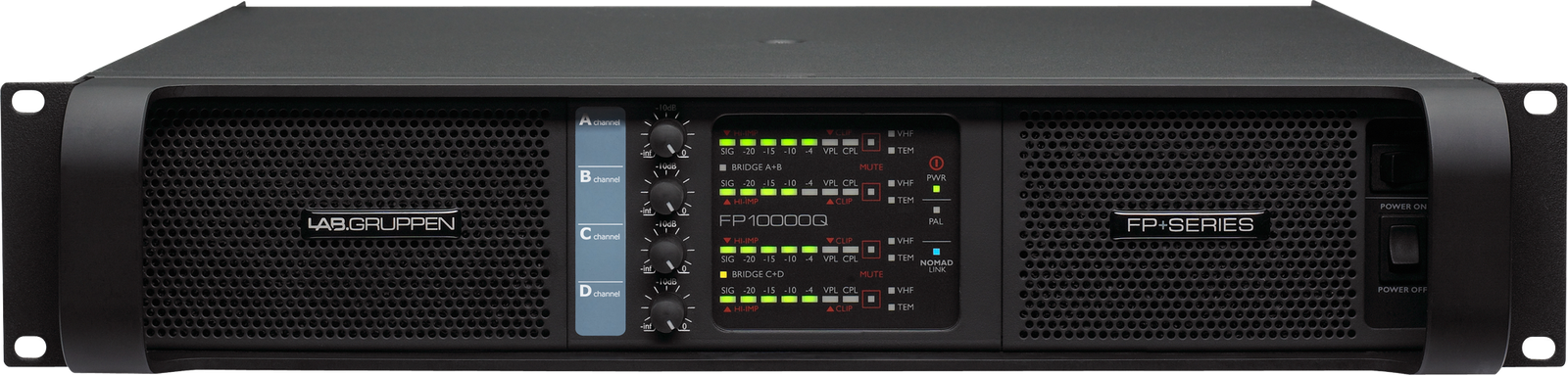

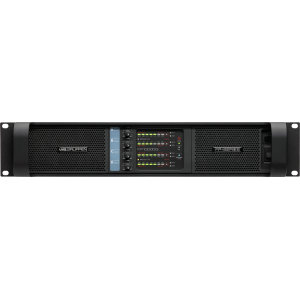

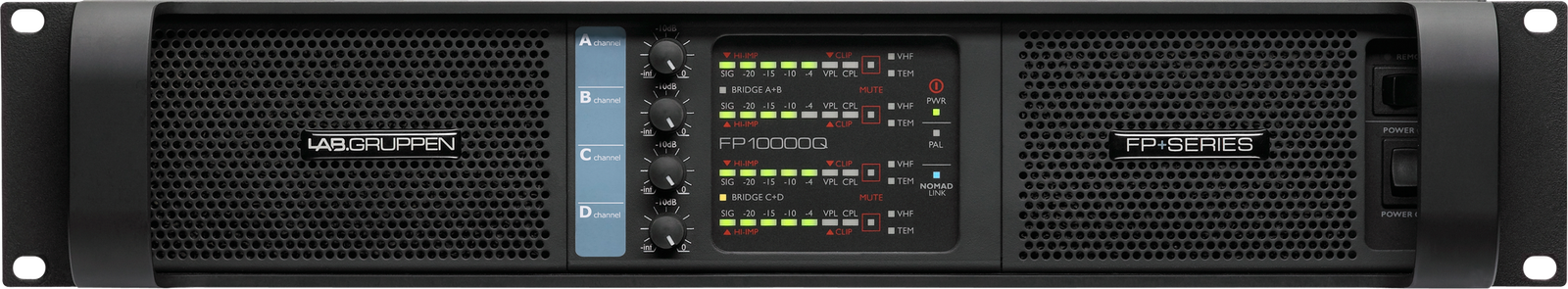

Lab Gruppen FP 10000Q 4-Channel Amplifier 10000W with NomadLink Monitoring

Lab Gruppen

AED 18,581.85 inc VAT.

In stock
Enquiry On Whatsapp
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: FP 10000Q Categories: , Brand:

The FP 10000Q is LAB GRUPPEN’s leading four-channel amplifier, integrating the patented Class TD® output stage for outstanding efficiency akin to Class D while maintaining the audio integrity of Class B designs. Enhanced by a Regulated Switch Mode Power Supply (R.SMPS™), it ensures stable output despite voltage variations, resulting in high power density.

Description

LAB GRUPPEN FP 10000Q Four-Channel Amplifier

The FP 10000Q is the premier model in the FP+ Series by LAB GRUPPEN, designed to deliver unparalleled audio performance with advanced technologies. It incorporates the patented Class TD® output stage, maximizing efficiency while maintaining superior audio quality. The Regulated Switch Mode Power Supply (R.SMPS™) enhances the power stability, even under fluctuating mains voltage conditions. This highly efficient combination makes the FP 10000Q an exceptional choice for professional audio setups.

Key Features

  • 10,000 Watt, four-channel amplifier with each channel delivering up to 2,500 Watts.
  • Selectable gain and scalable Voltage Peak Limiter (VPL) for custom configurations.
  • Compatibility with various loads: 2 Ohms (2500 W), 4 Ohms (2100 W), 8 Ohms (1300 W), 16 Ohms (660 W).
  • Class-TD output stage for Class A/B audio quality with Class D efficiency.
  • Reliable R.SMPS for consistent power output.
  • Integrated NomadLink network for monitoring and control.
  • Comprehensive protection against current, voltage, DC, temperature, and more.
  • Efficient cooling with Intercooler copper system.
  • Durable and robust 2U rackmount chassis.

Specifications

Specification Details
Number of amplifier channels 4
Peak total output (all channels driven) 10,000 W
Output power per channel (2 Ohms) 2,500 W
Output power per channel (4 Ohms) 2,100 W
Output power per channel (8 Ohms) 1,300 W
Output power per channel (16 Ohms) 660 W
THD (20 Hz – 20 kHz at 1 W) <0.1%
Signal-to-Noise Ratio >112 dBA
Common Mode Rejection (CMR) >54 dB, 20 Hz – 20 kHz
Dimensions W: 483 mm, H: 88 mm, D: 396 mm
Weight 12 kg (26.4 lbs)
Finish Black painted steel chassis with black painted steel/aluminum front
Approvals CE, ANSI/UL 60065 (ETL), CSA C22.2 NO. 60065, FCC
