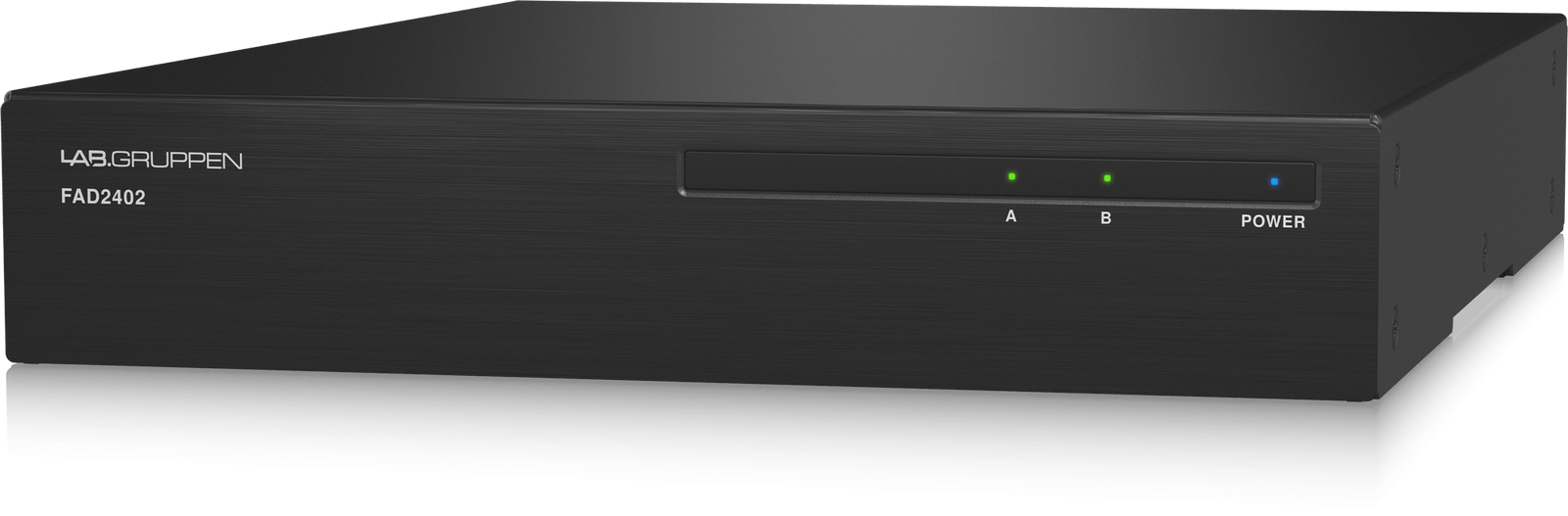

Lab Gruppen FAD2402 2x240W Commercial Amplifier with Dante Networking and Energy Star Certification

Lab Gruppen

AED 3035.55 inc VAT.

The FAD2402 is a 2 x 240 Watt dual-channel amplifier designed for commercial and industrial use, delivering high-quality audio over Low-Z (4/8 Ohm) and High-Z (70/100 V) loudspeaker setups. This amplifier is ideal for venues such as bars, restaurants, retail spaces, hotels, and educational institutions, offering a user-friendly installation and operation experience for non-technical users.

In stock
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout

Description

The FAD2402 model introduces a high-performance solution for distributed audio systems in commercial and industrial environments. This dual-channel amplifier, capable of delivering 240 watts per channel, provides exceptional sound quality and flexible operation across both Low-Z (4/8 Ohm) and High-Z (70/100 V) speaker configurations, making it an ideal choice for a wide variety of venues, including bars, restaurants, retail spaces, hotels, and educational institutions.

Features

  • 2 x 240 Watt dual-channel amplifier for versatile applications
  • Operates with both Low-Z (4/8 Ohm) and High-Z (70/100 V) speakers
  • Direct drive technology ensures reliable audio performance
  • Dante audio connectivity for creating extensive audio networks
  • Energy Star certified for reduced operational costs
  • Remote volume control via RJ-45 connector
  • Auto Ramp circuitry for efficient power management
  • Tamperproof gain controls located on the rear panel

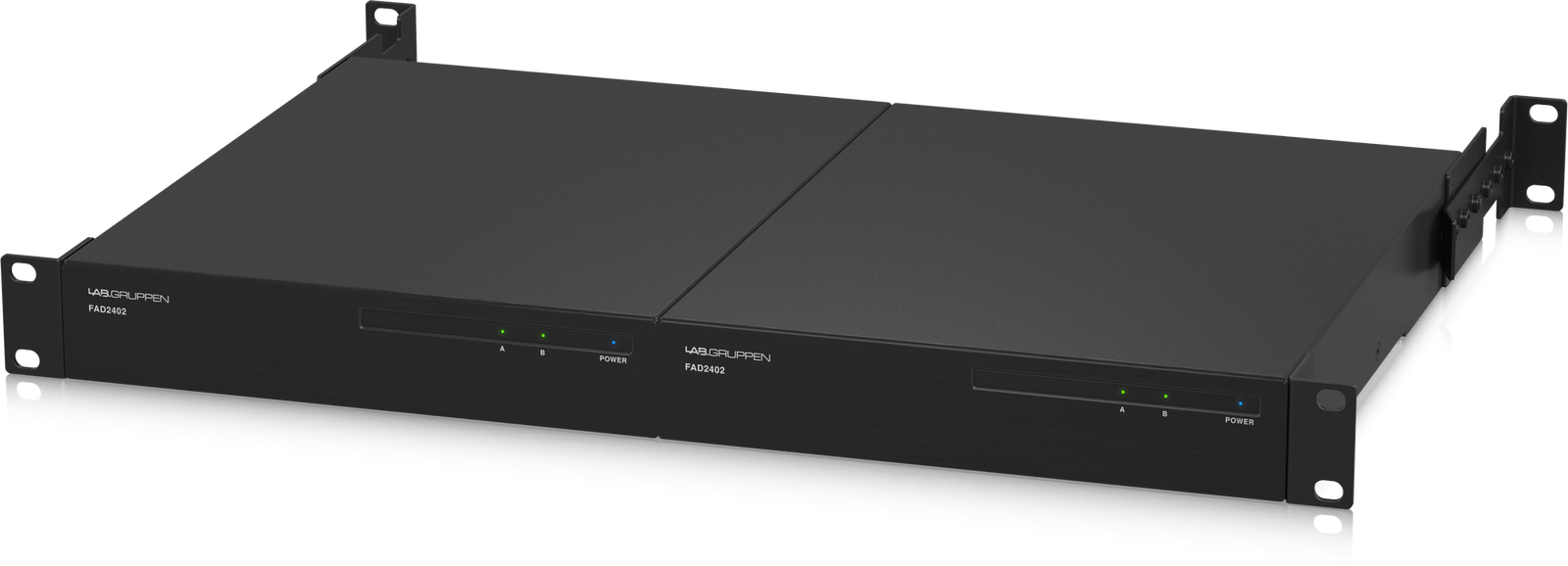

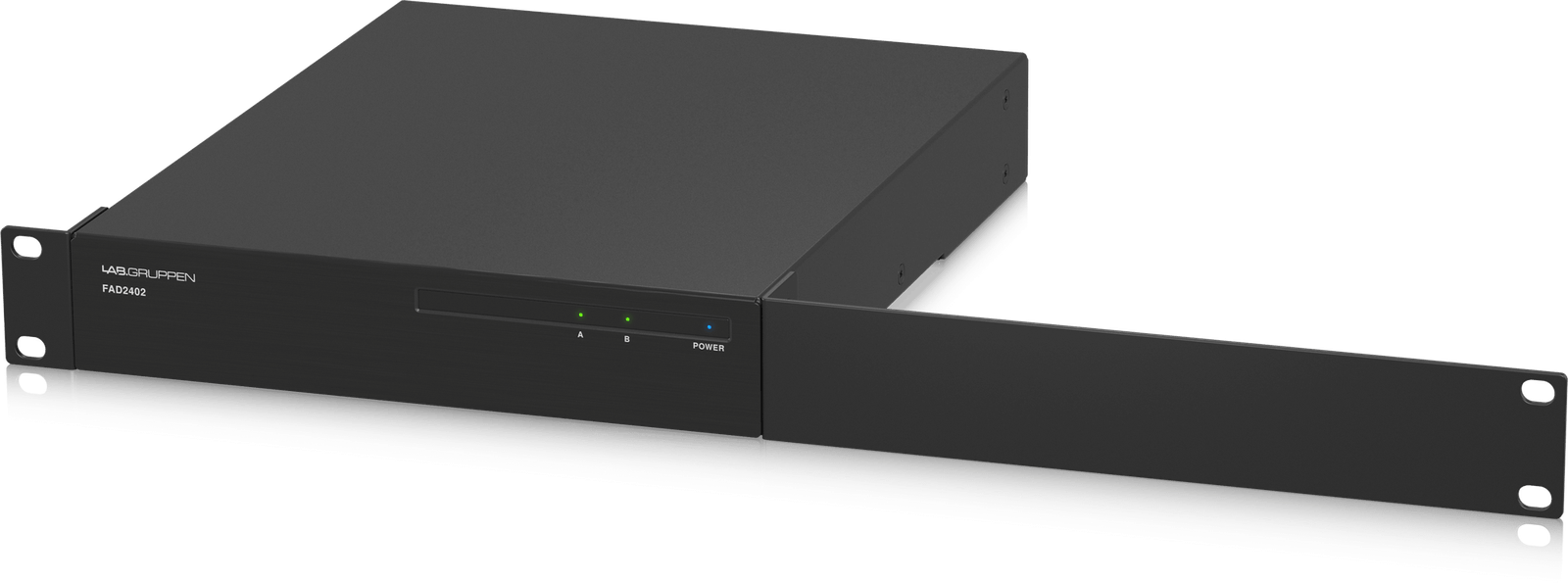

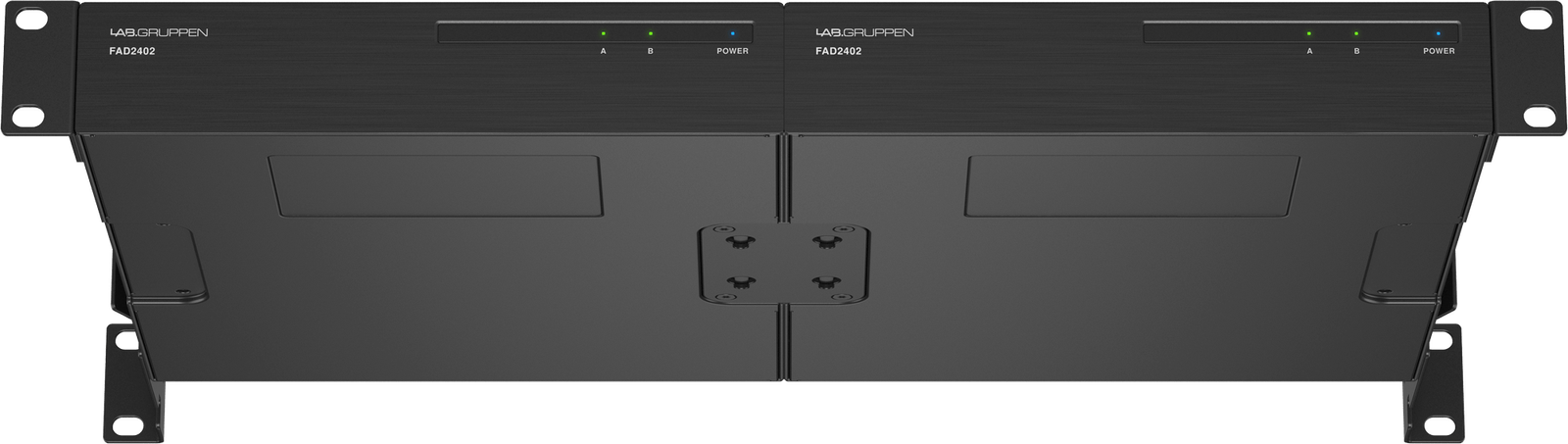

  • Compact, rack-mountable design
  • Euroblock output connectors
  • Convection-cooled fanless design for low noise
  • Advanced circuit protection for reliable operation

Key Specifications

Specification Details
Maximum Output Power 240 W per channel at 4 or 8 Ohms
Number of Output Channels 2
Minimum Load Impedance 4 Ohm mode: 4 Ohms, 8 Ohm mode: 8 Ohms, 70 V mode: 41 Ohms, 100 V mode: 82 Ohms

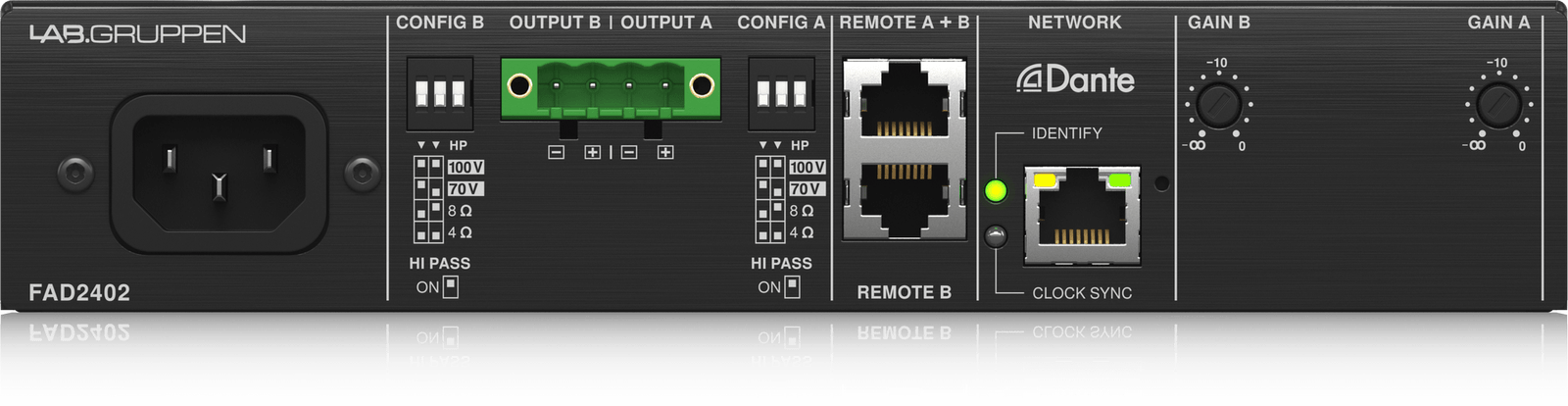

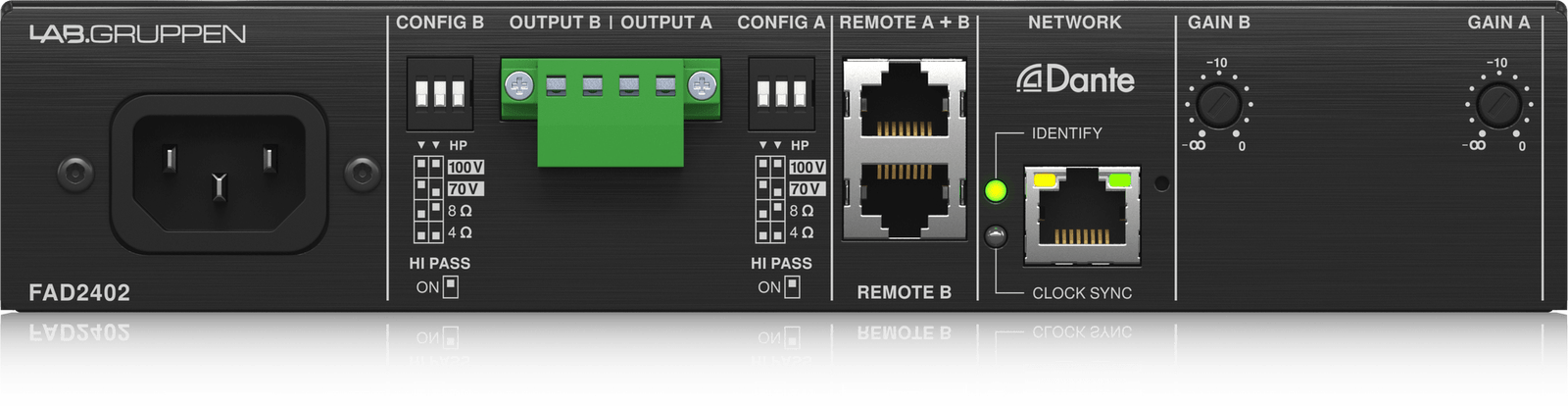

Controls Front: N/A; Rear: Gain control, load configuration, high-pass filter switch, reset button
Indicators

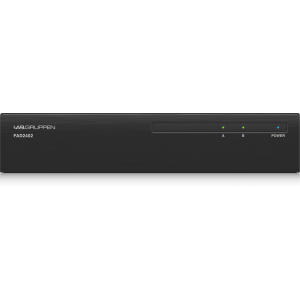

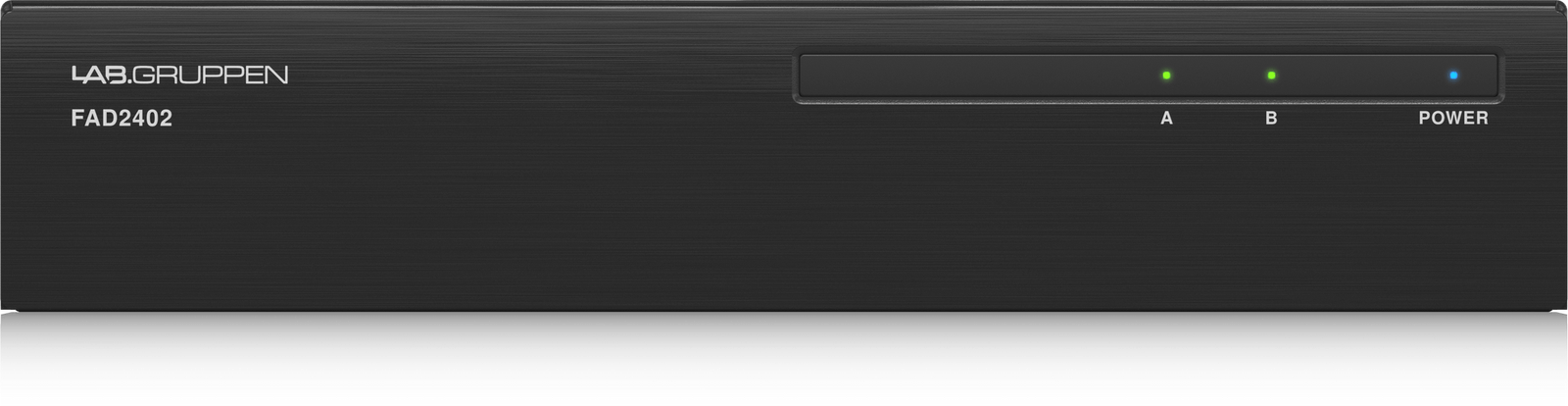

  • Front: Power (blue/yellow), Limit (red LED), Signal (green LED), Fault (red LED)
  • Rear: Dante (yellow/white)
System
  • Dante 2-channel Rx, RJ45 Ethernet, Class D circuit, Euroblock output
  • Remote: 2 x RJ45 Connector
Performance
  • Distortion: <0.1%
  • Frequency Response: 20 Hz – 20 kHz, +0/-1.5 dB
  • Crosstalk: >72 dB
  • Signal-to-Noise: >101 dBA
  • High-pass Filter: 80 Hz HPF
Circuit Protection
  • Cooling: Convection-cooled, fanless
  • Protection: Thermal, over current, DC, high frequency
  • Load Protection: Controlled start/shutdown, DC-fault protection
Power Supply
  • Voltage: 100-240 V~, 50/60 Hz with active power factor correction
  • Consumption: 120 W at 1/8 rated power @ 4 Ohms
  • Connector: Standard IEC
Dimensions
  • Size: 44 x 218 x 280 mm
  • Weight: 2.6 kg
  • Finish: Brushed black anodized aluminum with black painted steel bottom
  • Approvals: CE, WEEE, cTUVus, PSE, RCM, RoHS, FCC part 15 Class B, Energy Star 3.0
