Description

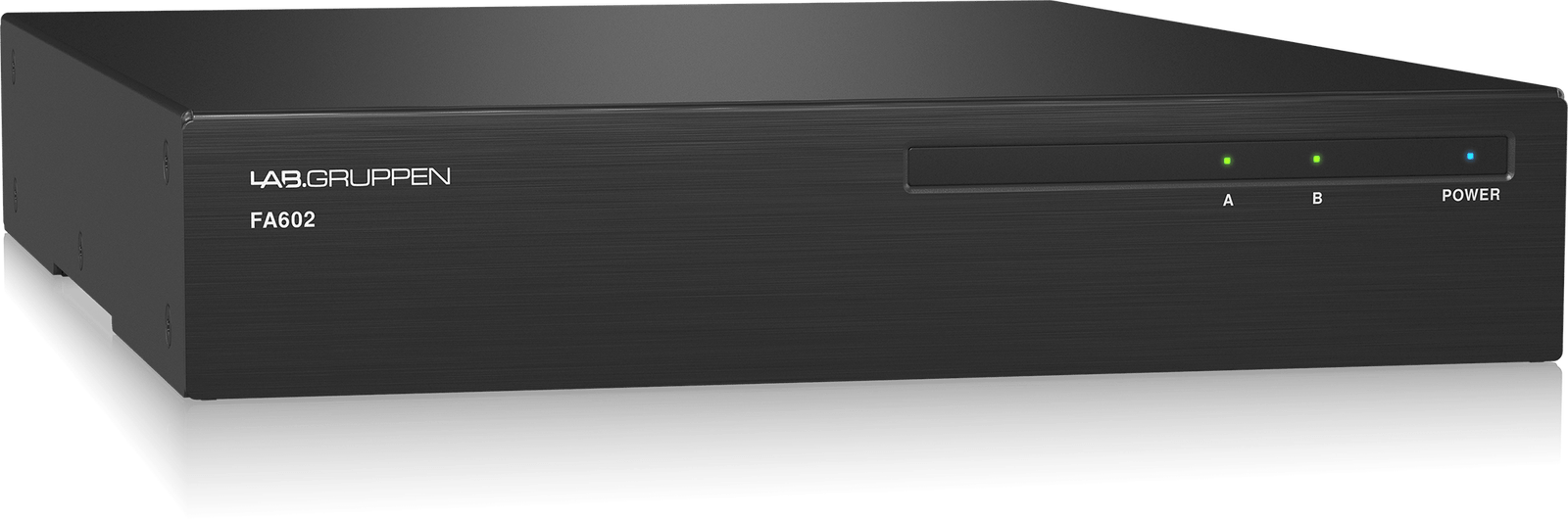

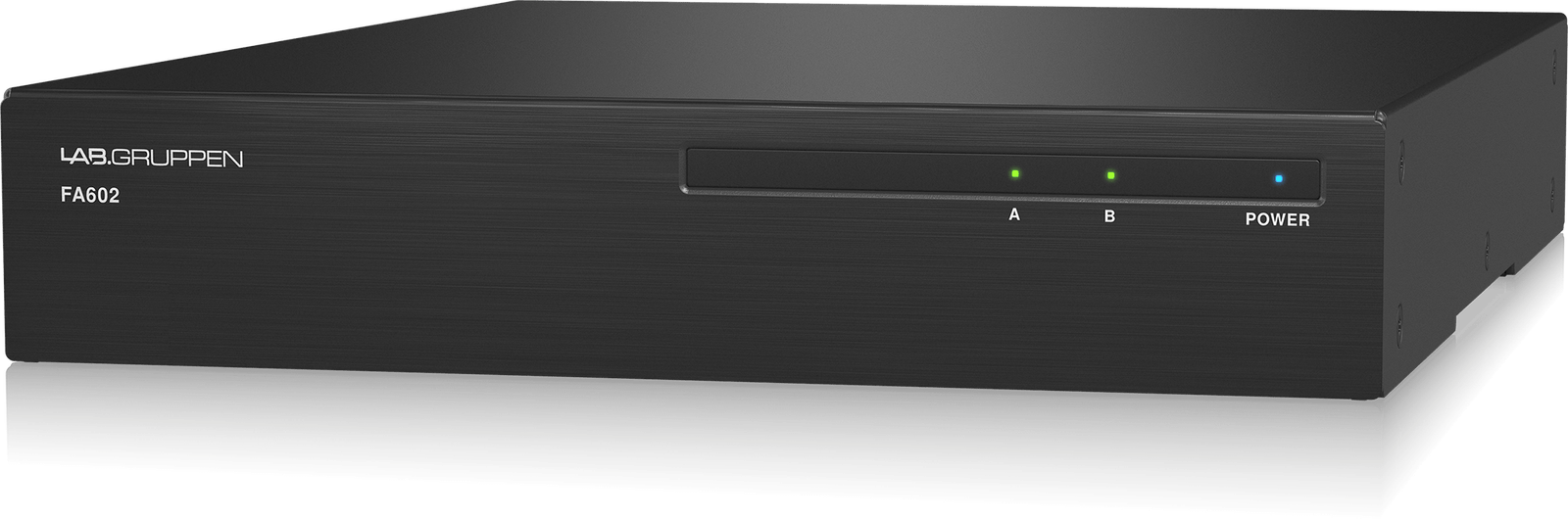

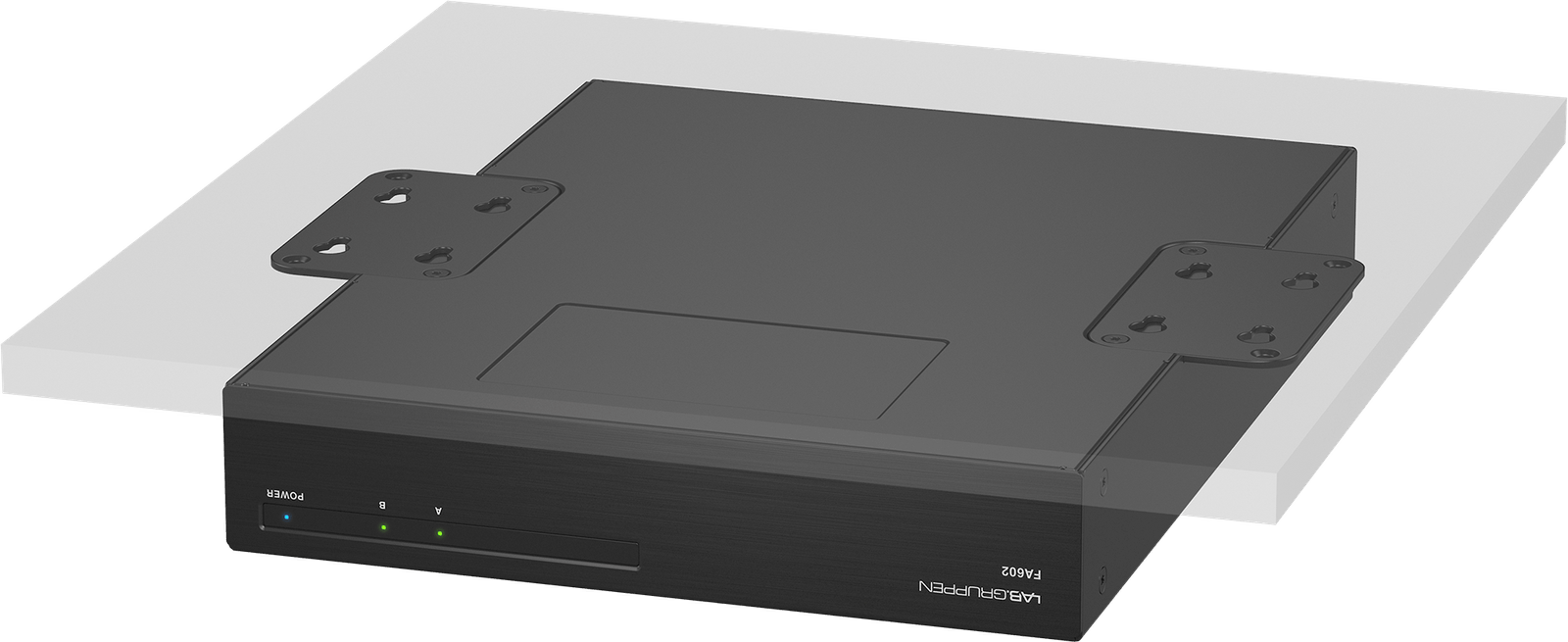

FA602 Commercial & Industrial Dual-Channel Amplifier
The FA602 2 x 60 Watt dual-channel amplifier is designed to meet the demanding requirements of commercial and industrial audio applications. Whether you need clear and powerful sound for a bar, restaurant, retail space, hotel, corporate office, educational institution, or any other venue, this amplifier delivers exceptional performance. Featuring dual-mode operation for both Low-Z (4/8 Ohm) and High-Z (70/100 V) loudspeaker configurations, the FA602 offers unparalleled flexibility and reliability.
Features
- 60 Watt amplifier for commercial and industrial use
- Operates in both Low-Z and High-Z configurations
- Energy Star certified for energy conservation
- Constant power technology ensures high audio performance
- Remote volume control via standard RJ-45 connector
- Auto Ramp circuitry for efficient power management
- Tamperproof rear panel gain controls

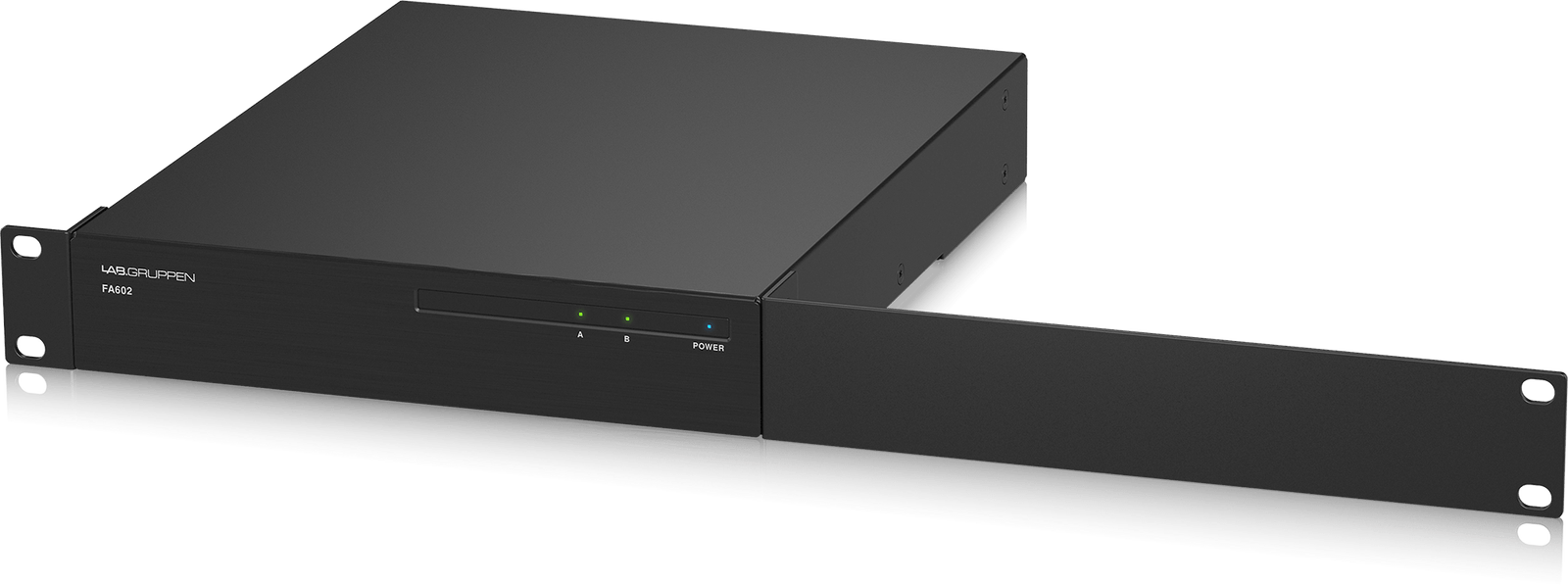

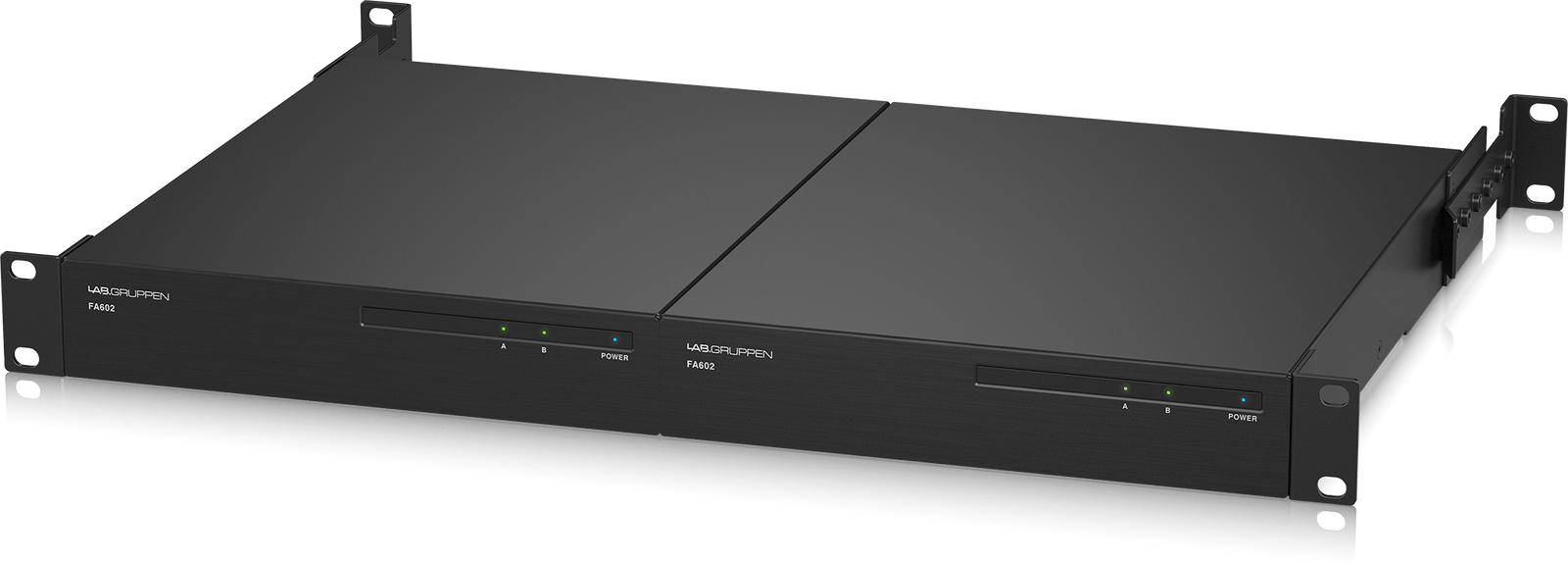

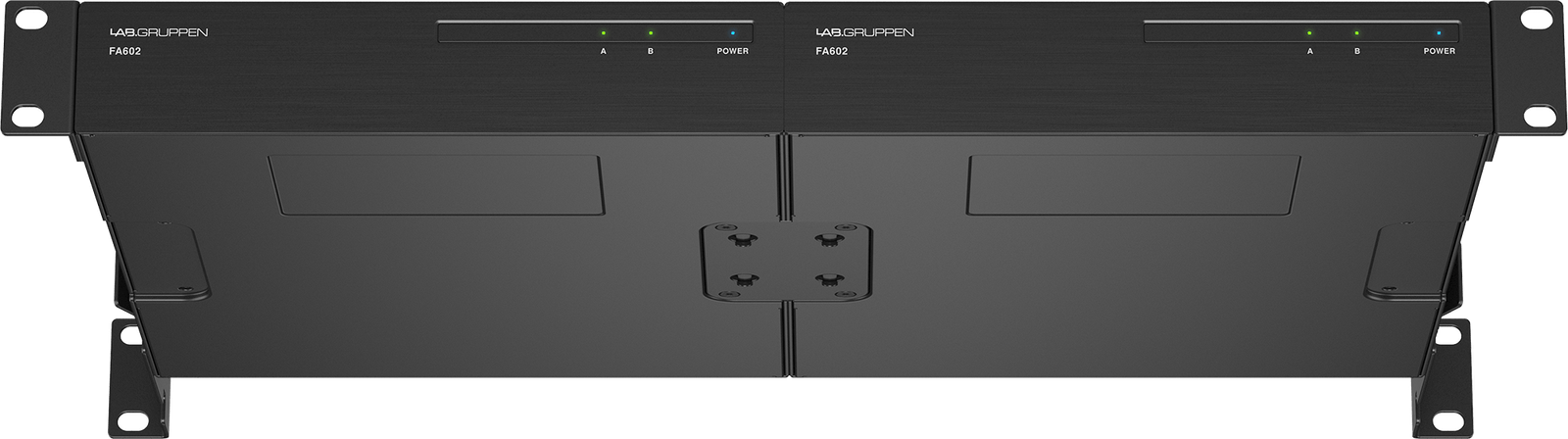

- Compact, rack-mountable design
- Convection-cooled, fan-less technology for quiet operation
- Comprehensive circuit protection for uninterrupted operation
Specifications
| Specification |
Details |
| Maximum Output Power |
60 W @ 4/8 Ω per channel |
| Number of Output Channels |
2 |
| Minimum Load Impedance |
| 4 Ω mode |
4 Ω |
| 8 Ω mode |
8 Ω |
| 70 V output mode |
82 Ω |
| 100 V output mode |
166 Ω |
|

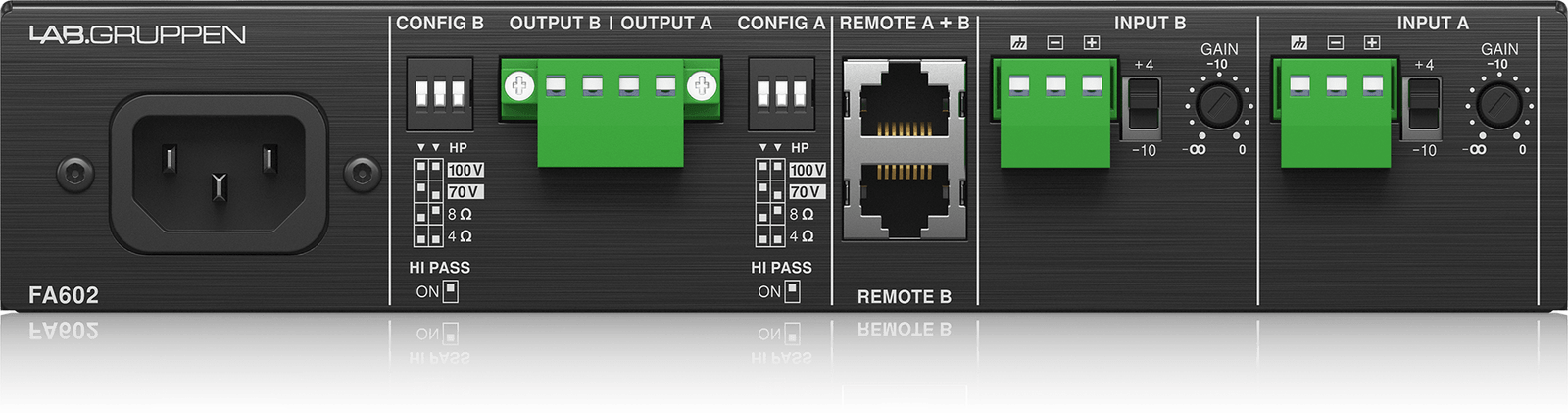

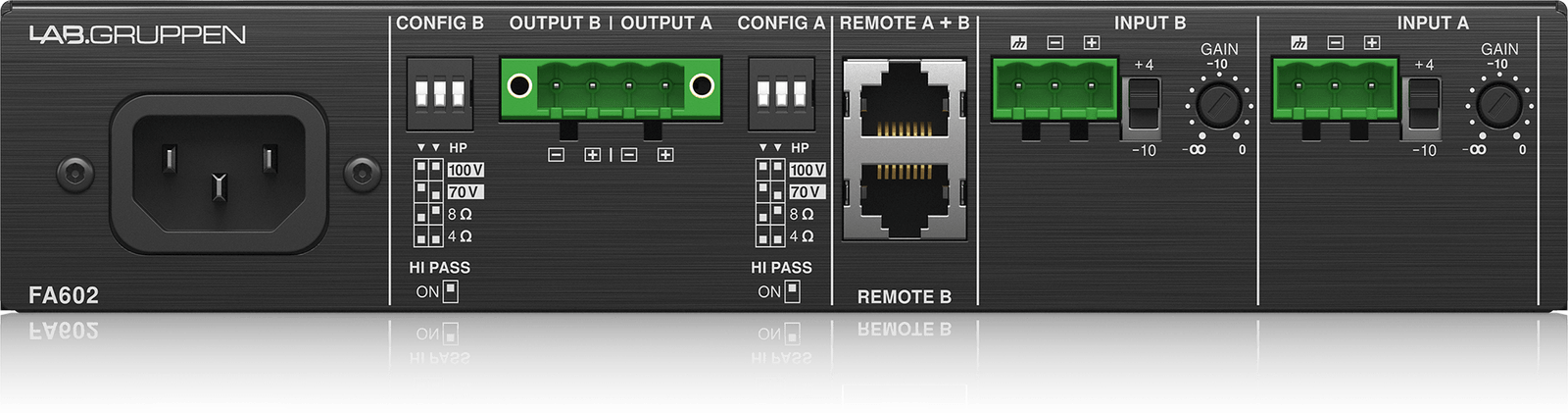

| Controls |
| Front |
N/A |
| Rear |
Gain control, input sensitivity select, load config, switchable 80 Hz high-pass filter |
|

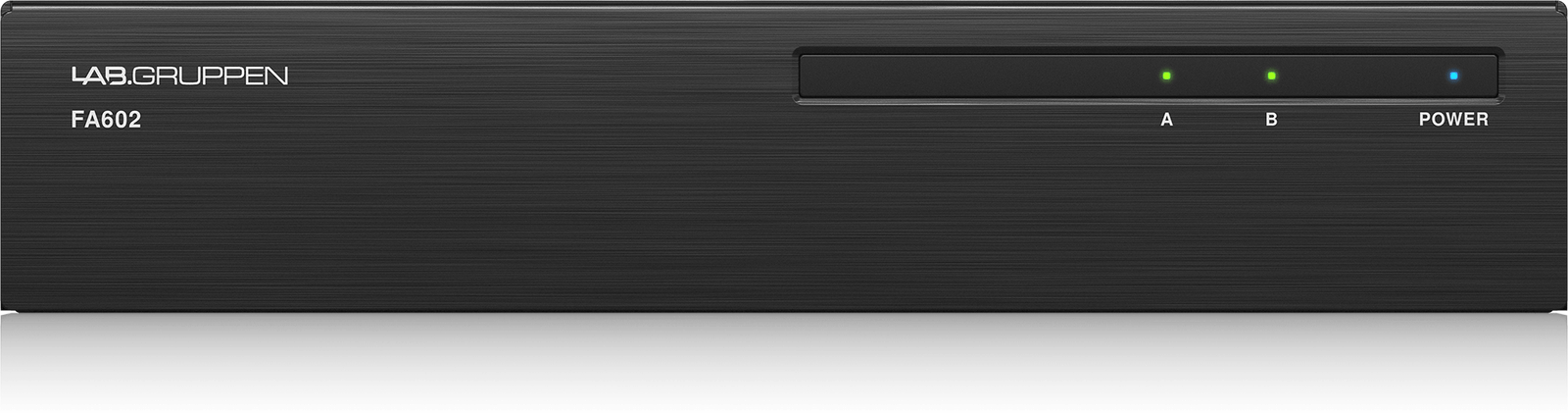

| Indicators |
| Power |
On (blue), standby (yellow) |
| Limit (red LED) |
Input clip, output limit |
| Signal (green LED) |
>1.23 mV (-56 dBu) |
| Fault (red LED) |
Overheat, DC fault, over current |
|
| System |
| Inputs |
2 x 3-pin 5.08 mm Euroblock |
| Input Impedance |
Balanced: 1.23 V (+4 dBu) or 316 mV (-10 dBV) |
| Maximum Input Level |
9.75 V (+22 dBu) |
| Outputs |
1 x 4-pin 5.08 mm Euroblock |
| Output Circuit Type |
Class D |
| Remote Connector |
2 x RJ45 Ethernet |
|
| Performance |
| Distortion |
<0.5% |
| Frequency Response |
20 Hz to 20 kHz, +0.5 / -1 dB |
| Crosstalk |
>65 dB |
| Signal-to-Noise |
>100 dBA |
| High-Pass Filter |
80 Hz HPF |
|
| Circuit Protection |
| Cooling |
Convection-cooled, fanless |
| Amplifier Protection |
Thermal, over current, DC, high frequency |
| Load Protection |
Controlled start/shutdown, DC-fault protection |
|
| Power Supply |
| Main Voltage |
100-240 V~, 50/60 Hz with active power factor correction |
| Power Consumption |
50 W at 1/8th rated power @ 4 Ω |
| Mains Connector |
Standard IEC |
|
| Dimensions / Weight |
| Dimensions (H x W x D) |
44 x 218 x 280 mm (1.7 x 8.6 x 11.0″) |
| Weight |
2.6 kg (5.7 lbs) |
| Finish |
Brushed black anodized aluminum chassis, black painted steel bottom |
| Approvals |
CE, WEEE, CCC, cTUVus, PSE, RCM, RoHS, FCC part 15 Class B, Energy Star 3.0 |
|
