Lab Gruppen FA2402 2 x 240W Commercial Amplifier with Direct Drive Technology and Energy Star Certified

Lab Gruppen

AED 2383.50 inc VAT.

The FA2402 is a dual-channel 2 x 240 Watt amplifier designed for commercial and industrial settings. It provides high-quality audio output for both Low-Z (4/8 Ohm) and High-Z (70/100 V) loudspeaker configurations, ensuring versatile sound distribution. Ideal for venues such as bars, restaurants, hotels, retail locations, and educational institutions, this amplifier focuses on power efficiency and is user-friendly even for non-technical staff, making it a practical choice for background music and public address systems.

In stock
Request Quote
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: FA2402 Categories: , , Brand:

Description

FA2402 Dual-Channel Amplifier

The FA2402 amplifier is an excellent solution for commercial and industrial venues needing top-notch sound distribution and efficient power use. Featuring 2×240 Watt dual-channel output, it supports both Low-Z (4/8 Ohm) and High-Z (70/100 V) loudspeaker configurations, offering remarkable flexibility. Ideal for bars, restaurants, hotels, corporate settings, and educational institutions, the FA2402 ensures high-quality audio coupled with substantial energy conservation.

Features

  • 2 x 240 Watt output for a wide range of applications
  • Supports Low-Z (4/8 Ohm) and High-Z (70/100 V) configurations on each channel
  • Energy Star certified for optimal power efficiency
  • Direct drive technology for high performance and reliability
  • GPI remote volume control via RJ-45 connector and Ethernet cable
  • Auto Ramp circuitry for seamless power transitions

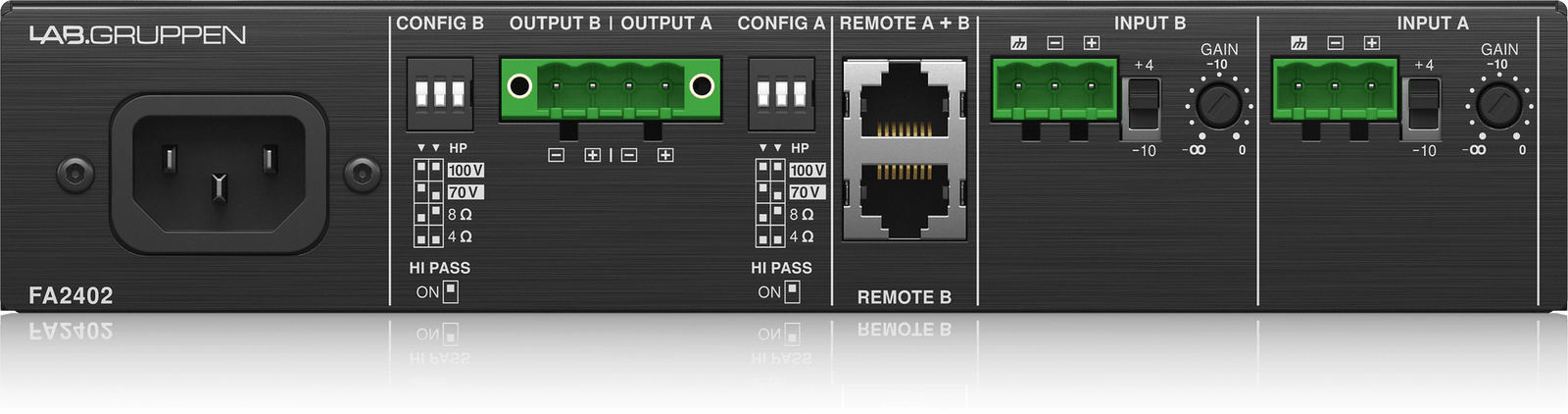

  • Tamperproof gain controls located at the rear

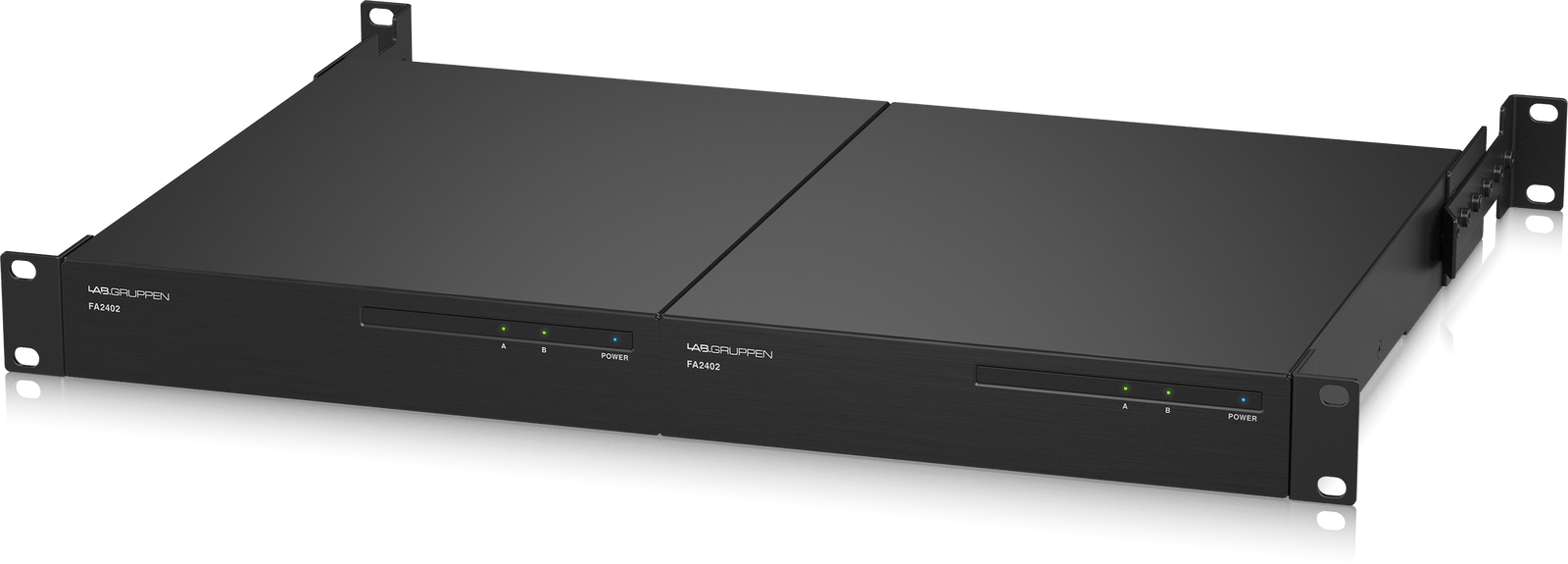

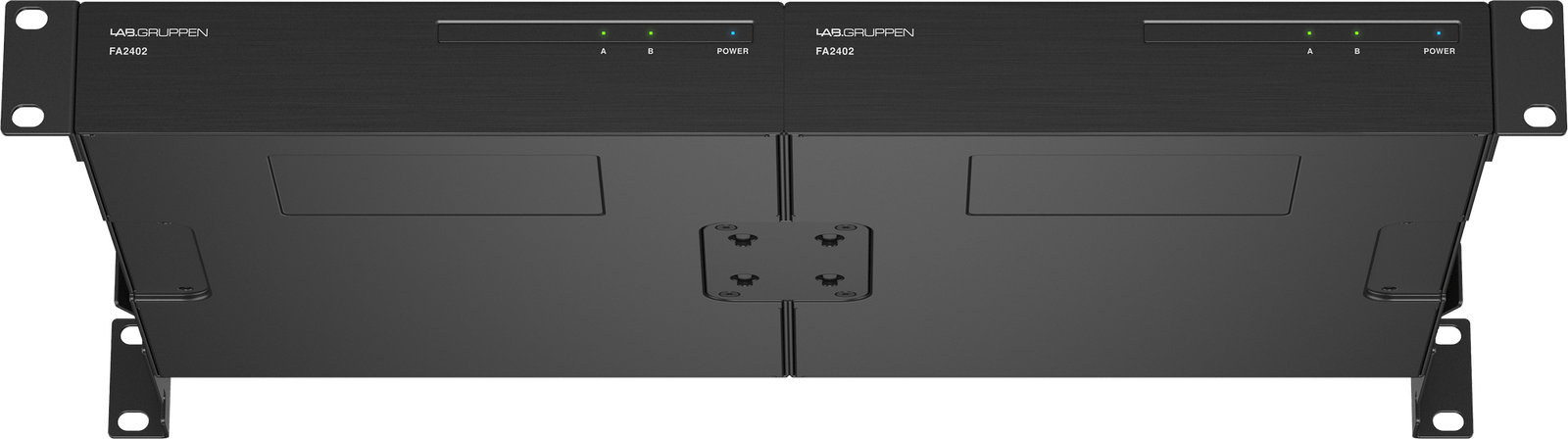

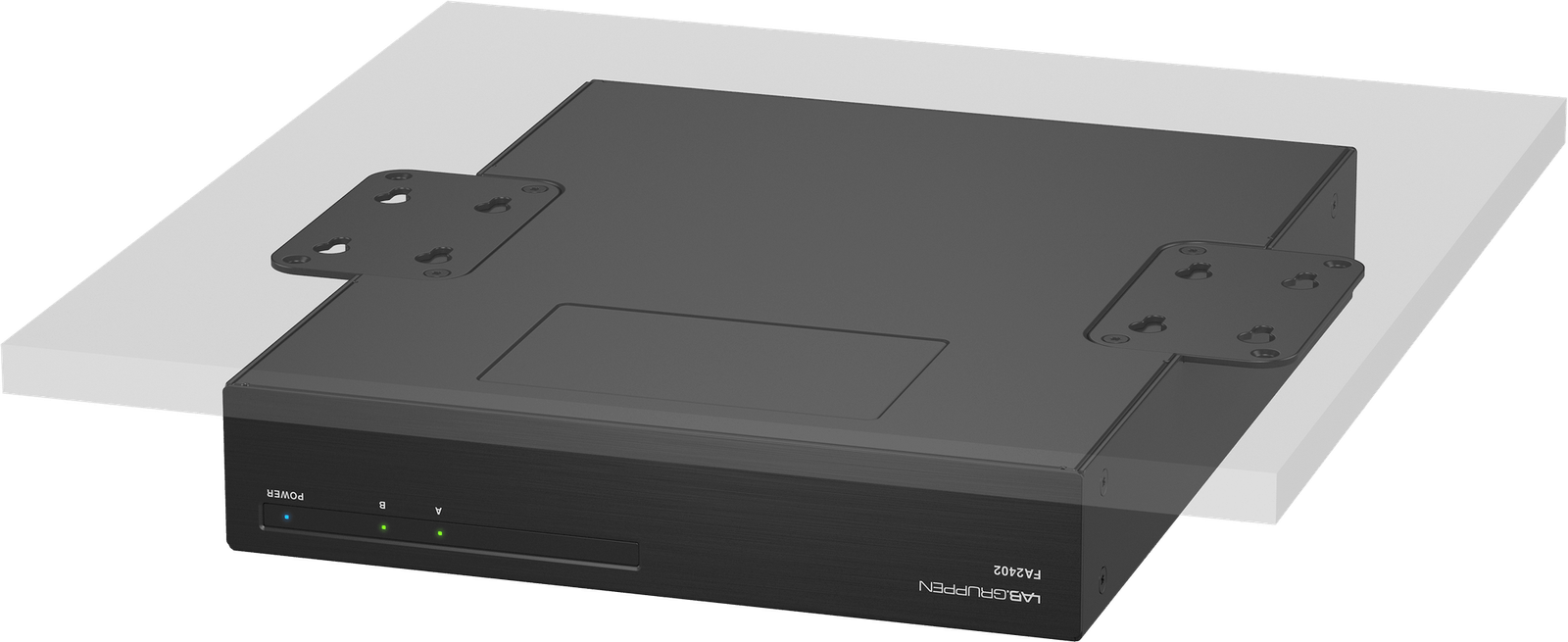

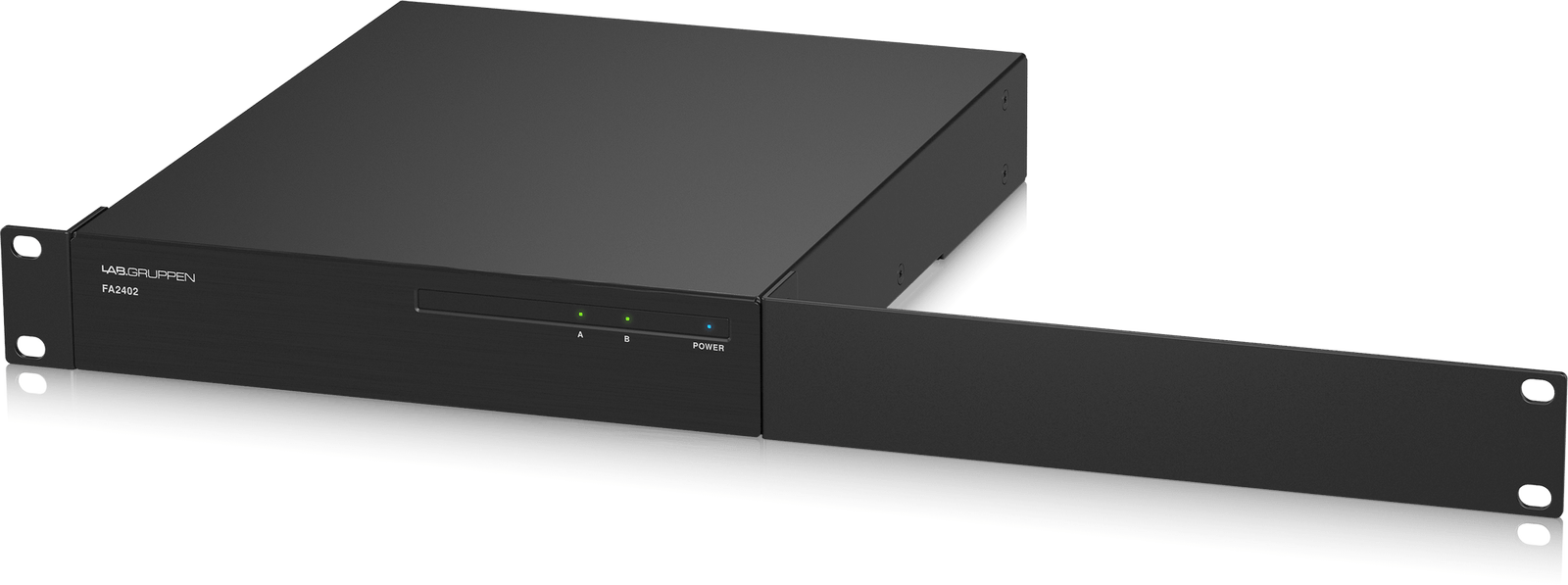

  • Rack-mountable 1U, half-rack width design with multiple mounting options

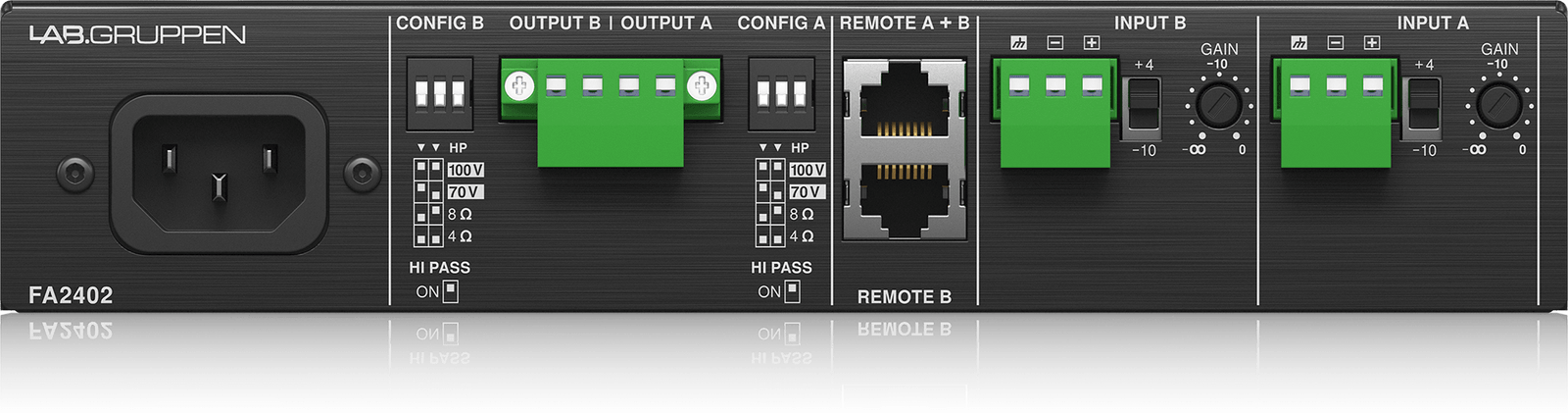

  • Euroblock amplifier input and output connectors
  • Convection-cooled, fan-less design for silent operation
  • Robust fail-safe circuit protection

Specifications

Specification Details
Maximum Output Power (4 or 8 Ω per channel) 240 W
Number of Output Channels 2
Minimum Load Impedance 4 Ω (4 Ω mode), 8 Ω (8 Ω mode), 20 Ω (70 V mode), 41 Ω (100 V mode)
Controls Gain control, input sensitivity select, load configuration, switchable 80 Hz high-pass filter

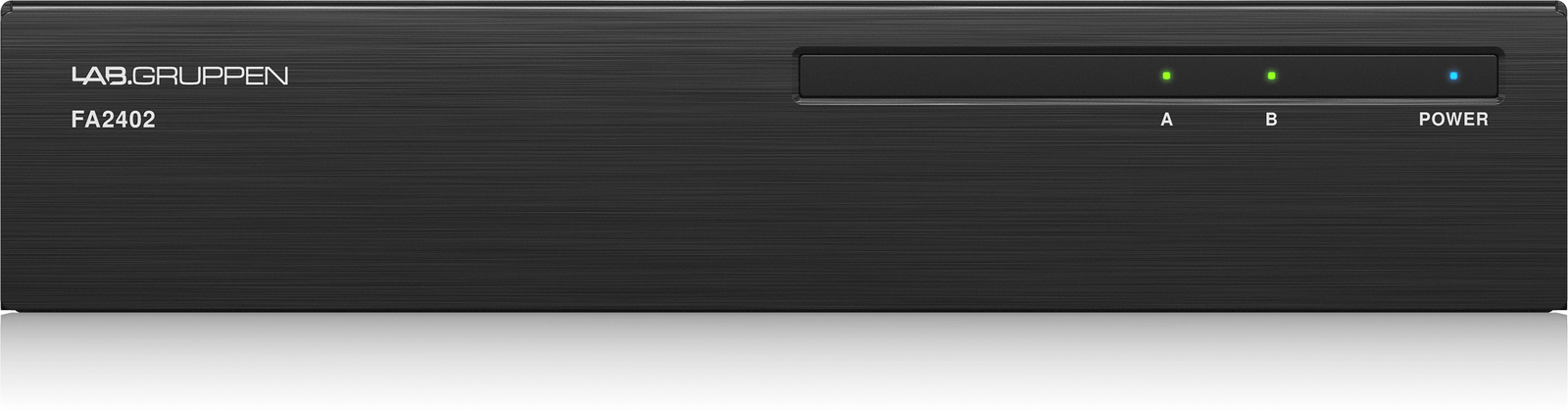

Indicators Power (On: blue, Standby: yellow), Limit (red LED), Signal (green LED), Fault (red LED)
Inputs 2 x 3-pin 5.08 mm Euroblock connector
Input Impedance 10 kΩ unbalanced, 20 kΩ balanced
Input Sensitivity Balanced: 1.23 V (+4 dBu) or 316 mV (-10 dBV)
Maximum Input Level 9.75 V (+22 dBu)
Outputs 1 x 4-pin 5.08 mm Euroblock connector
Output Circuit Type Class D
Remote Connector 2 x RJ45 Ethernet connector
Distortion (1/8 rated power) <0.5%
Frequency Response 20 Hz to 20 kHz, +0.5 / -1 dB
Crosstalk >65 dB
Signal-to-Noise >100 dBA
High-pass Filter 80 Hz HPF
Cooling Convection-cooled, fanless
Amplifier Protection Thermal, over current, DC, high frequency protection
Load Protection Controlled start/shutdown, DC fault protection
Power Supply, Voltage 100-240 V~, 50/60 Hz with active power factor correction
Power Consumption (1/8th rated power @ 4 Ω) 120 W
Mains Connector Standard IEC connector
Dimensions (H x W x D) 44 x 218 x 280 mm (1.7 x 8.6 x 11.0")
Weight 2.6 kg (5.7 lbs)
Finish Brushed black anodized aluminum with black painted steel bottom
Approvals CE, WEEE, CCC, cTUVus, PSE, RCM, RoHS, FCC part 15 Class B, Energy Star 3.0
