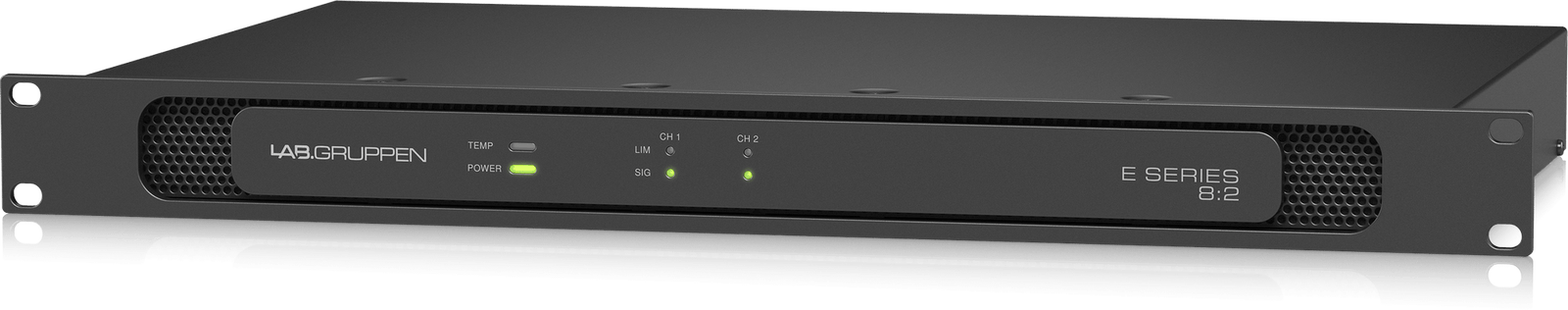

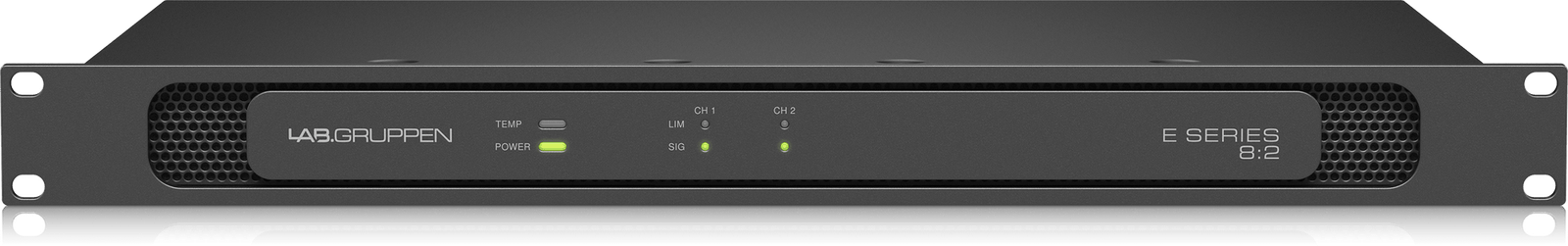

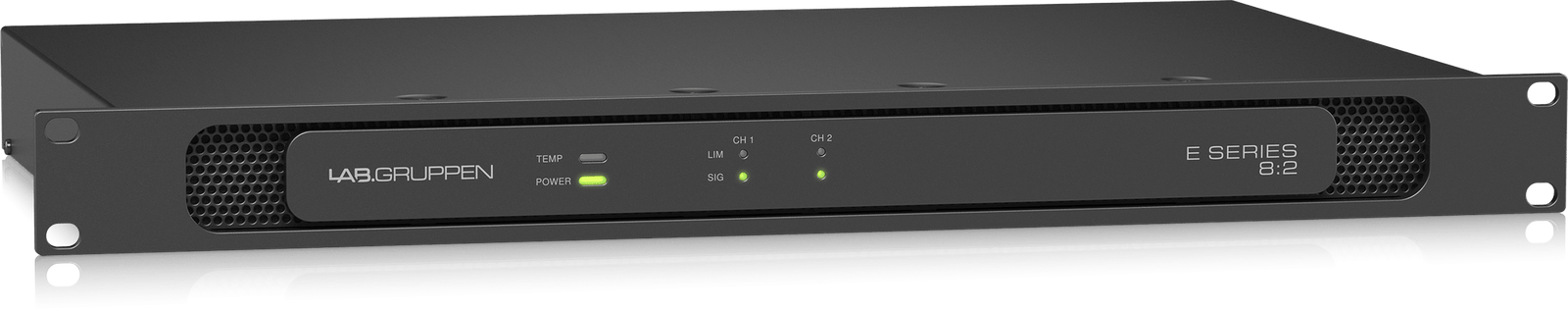

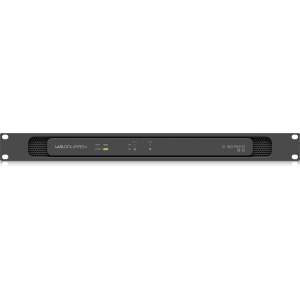

Lab Gruppen E 8:2 Audio Amplifier

The E 8:2 is engineered with smart green credentials to deliver a low lifetime cost of ownership. It not only maintains very low current draw during high output cycles but also reduces power consumption during non-operational phases. As an Energy Star qualified product, it combines impeccable Lab Gruppen sonic performance and robust power output, meeting stringent Energy Star certification standards.

Features

• 800 W amplifier with 2 flexible output channels in a 1-rack unit form factor saves space and cuts system costs
• Energy efficient with Energy Star* certification for green credentials and low running costs
• Versatile output channels support both 70 V constant voltage and low impedance (2, 4, 8 Ohms) loads
• Asymmetric channel loading allows combining loads with different impedances to maximize system efficiency
• Proprietary Class-D amplifier technology ensures superior performance and minimized heat generation
• State-of-the-art circuit protection for continued operation under diverse conditions
• Auto-standby and auto-power-on reduce power consumption to below 1 W when idle
• Rail Sense Limiter (RSL) minimizes signal clipping and simplifies configuration
• Built-in 50 Hz high pass filter, selectable per channel
• Temperature-controlled fan with front-to-back airflow for efficient cooling

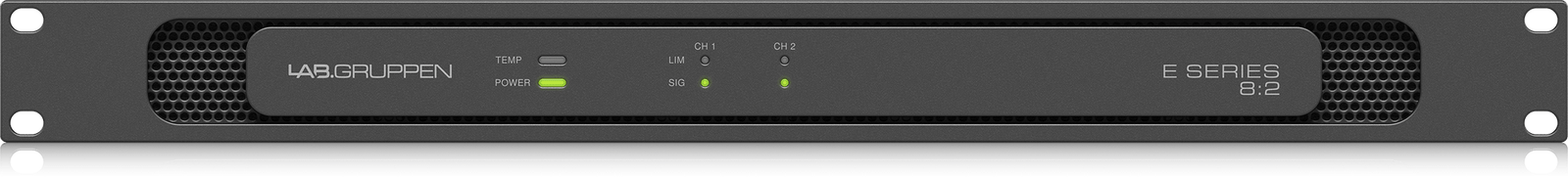

• Aluminum front panel with power and temperature LEDs and per-channel signal and limit LEDs
• GPIO connector with power control and indication for system integration

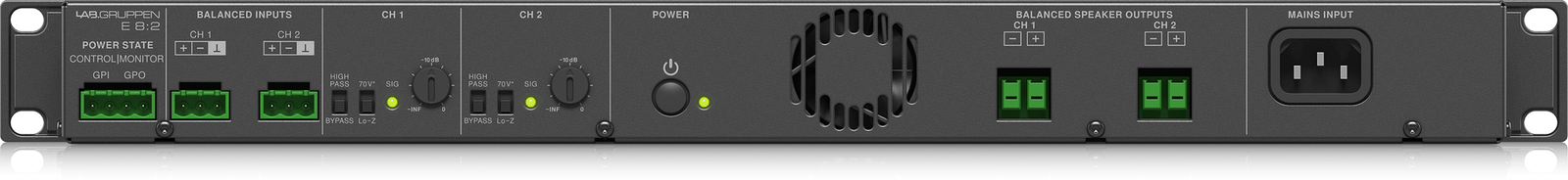

• High-quality balanced analog inputs and amplifier outputs on detachable screw terminals
