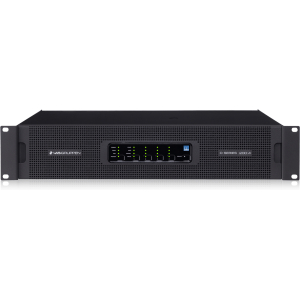

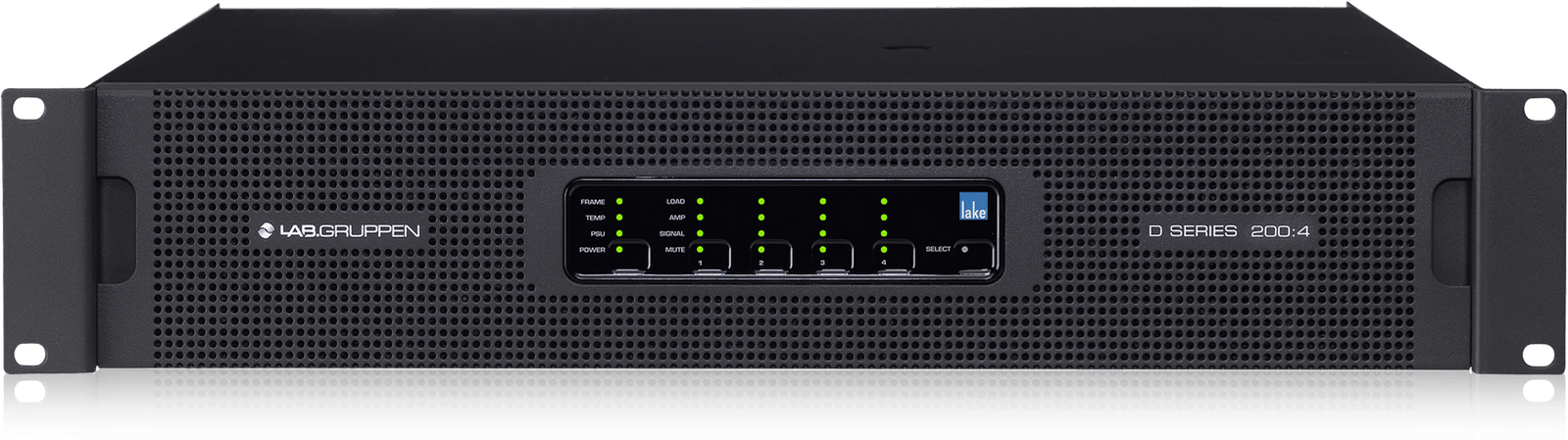

Lab Gruppen D 200:4L 20000W 4-Channel Amplifier with Lake DSP and Digital Audio Networking for Installations

D 200:4L Amplifier with Lake DSP and Dante Networking

The D 200:4L combines 20,000 W of flexible power with the latest Lake DSP, DANTE digital audio networking, and advanced system integrity monitoring. Designed for reliability and superior sound quality, this amplifier leverages the same robust technology foundation as the renowned PLM Series. Whether for demanding concert tours or extensive installations, the D 200:4L is built for top-tier performance.

Key Features

• 20,000 Watt amplifier with 4 flexible output channels and up to 5,900 Watts per channel output.
• Lake digital signal processing for unparalleled loudspeaker management and system control.
• Integrated 8×8 channels of dual redundant Dante digital audio networking with AES67 support.
• Proven Class-TD output stage with proprietary Intercooler high-efficiency cooling system.
• Rational Power Management (RPM) for total flexibility in power distribution across all output channels.
• Best-in-class Power Factor Correction (PFC) minimizes running costs and environmental impact.
• Under-Voltage Limiting (UVL) ensures continued operation during voltage drops.
• Comprehensive system integration with 3rd-party matrix systems via dedicated software.

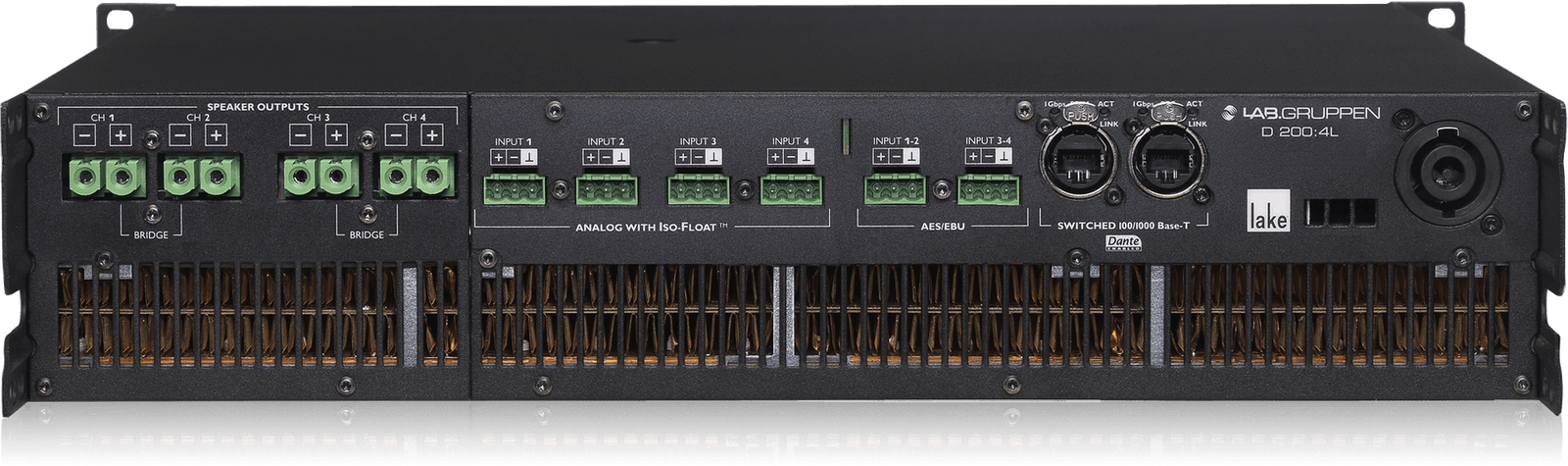

• Detachable Neutrik powerCON cable with various wall plug options.
• Rugged 2U rackmount chassis with rear support brackets for ease of installation.

Specifications
