Lab Gruppen D 10:4L 1000W 4-Channel Amplifier with Lake DSP and Digital Audio Networking

D 10:4L Professional Audio Amplifier

The D 10:4L combines 1000 W of flexible power with the latest LAKE DSP, DANTE digital audio networking, and advanced system integrity monitoring. Based on the renowned PLM Series amplifier platform, it delivers robust, high-power performance for demanding concert tours and large-scale installations.

Features

• 1,000 Watt amplifier with 4 flexible output channels delivering up to 1,000 Watts per channel.
• Lake digital signal processing for advanced loudspeaker management and system control.
• Integrated 8×8 channels of dual redundant Dante digital audio networking with AES67 support.
• Multiple output configurations ranging from low impedance to high impedance (Hi-Z) settings.
• Proven IDEEA Class D Output Stage with direct drive constant voltage systems.
• Rational Power Management (RPM) for efficient use of system power across all channels.
• Power Factor Correction (PFC) and switch mode power supply for reduced running costs.
• Breaker Emulation Limiter (BEL) for safeguarding mains breakers from tripping.
• Auto Power Down and Adaptive Rail Control for energy savings.
• Under-Voltage Limiting (UVL) for continued operation during severe mains voltage drops.
• Dedicated on-board surveillance and load monitoring for mass notification applications.
• Redundant audio inputs and on-board system surveillance for voice alarm systems.
• CAFE software for design, system planning, equipment planning, installation, and commissioning.
• Integration with 3rd-party matrix systems via dedicated interfacing software.

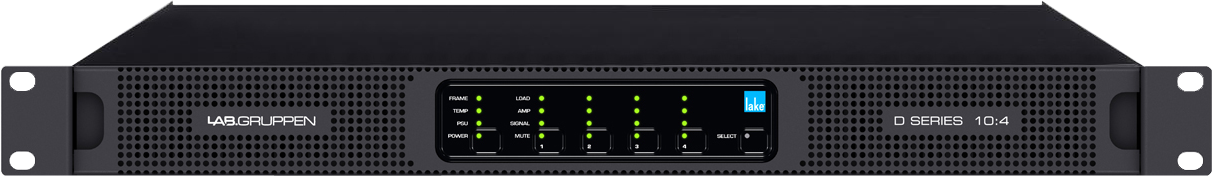

• Dedicated front-panel mute buttons with bi-color LED indication for each amplifier channel.
• 4 analog input channels with Iso-Float ground isolation for reliable audio distribution.
• 4 AES/EBU digital audio input channels supporting up to 192 kHz with 24-bit resolution.
• Dual redundant Dante interfaces with remote configuration via Lake Controller and Dante Controller software.

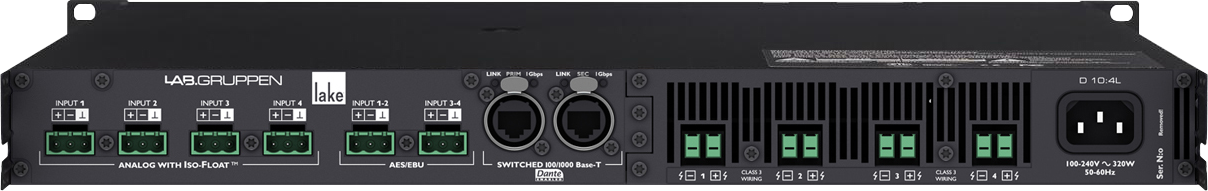

• Balanced analog and digital audio inputs and outputs on plug-in Phoenix connectors.
• Detachable and locking IEC mains cable with a variety of wall plugs.
• Maintains air circulation with a removable dust filter grille.
• Rugged slimline 1U rackmount chassis for ease of installation.
