Commercial Amplifiers

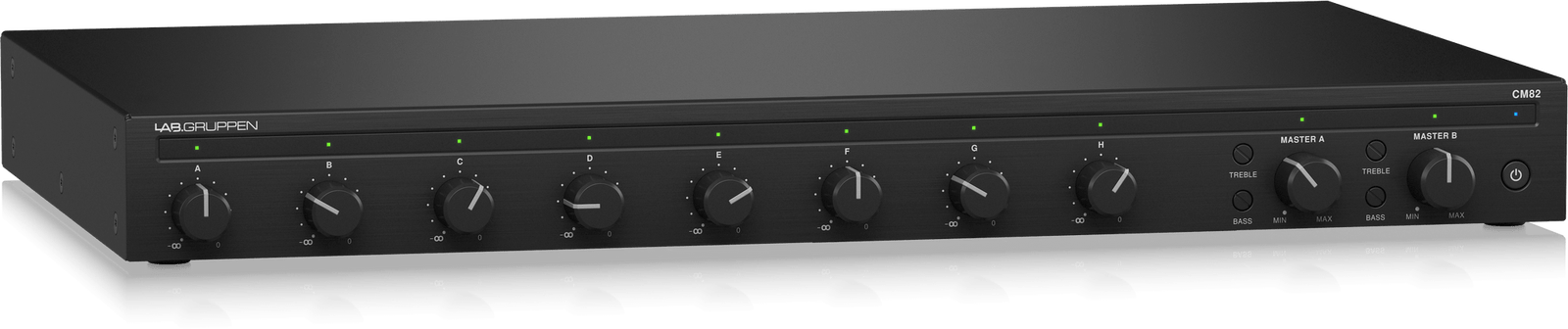

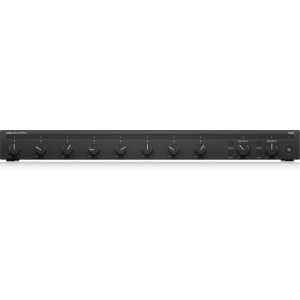

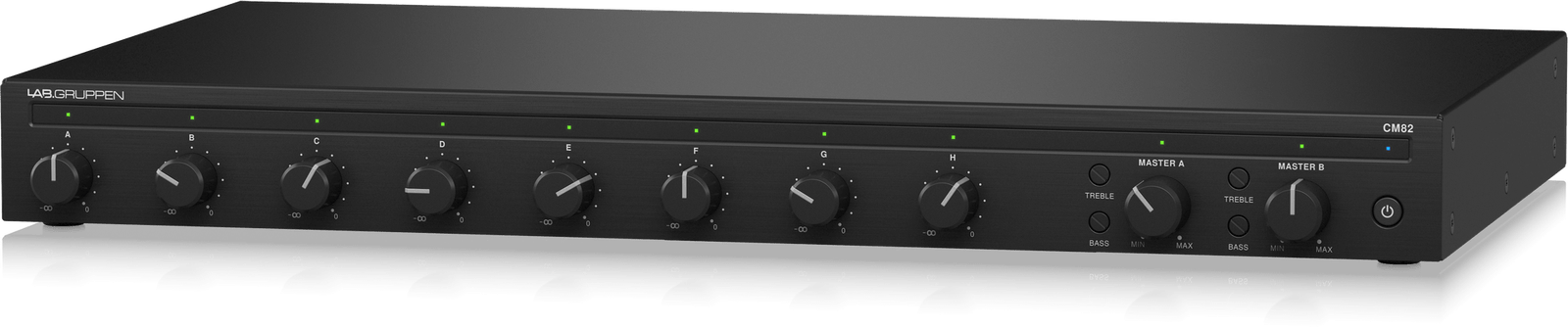

Lab Gruppen CM82 8-Input 2-Output Commercial Mixer

Lab Gruppen

AED 2106.30 inc VAT.

The Commercial Mixer CM82 offers a reliable solution for distributing high-quality audio in various commercial and industrial settings, such as bars, restaurants, retail spaces, hotels, corporate offices, and educational facilities. Designed for easy installation and operation by non-technical users, it is perfect for background music and public address systems.

In stock
Request Quote
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: CM82 Categories: , , Brand:

Description

The Commercial Mixer CM82 is the ultimate solution for venues that require a reliable and high-quality distributed audio system. It is perfect for commercial and industrial applications, making it ideal for bars, restaurants, retail stores, hotels, corporate offices, educational institutions, and any other venue needing background music or a public address system. With an intuitive design that is easy to install and operate, even for non-technical personnel, the CM82 stands out in the market.

Features

  • 8 input / 2 output mixer for versatile audio distribution.
  • 8 mic/line inputs with individual volume controls and output routing for customized sound management.
  • Master volume and bass/treble controls for each output from the front panel.
  • Configurable priority muting for background music override.
  • Remote volume control using a standard RJ-45 connector and Ethernet cable.
  • Front panel power button for immediate access and control.
  • Aux output for seamless integration with additional amplifiers.

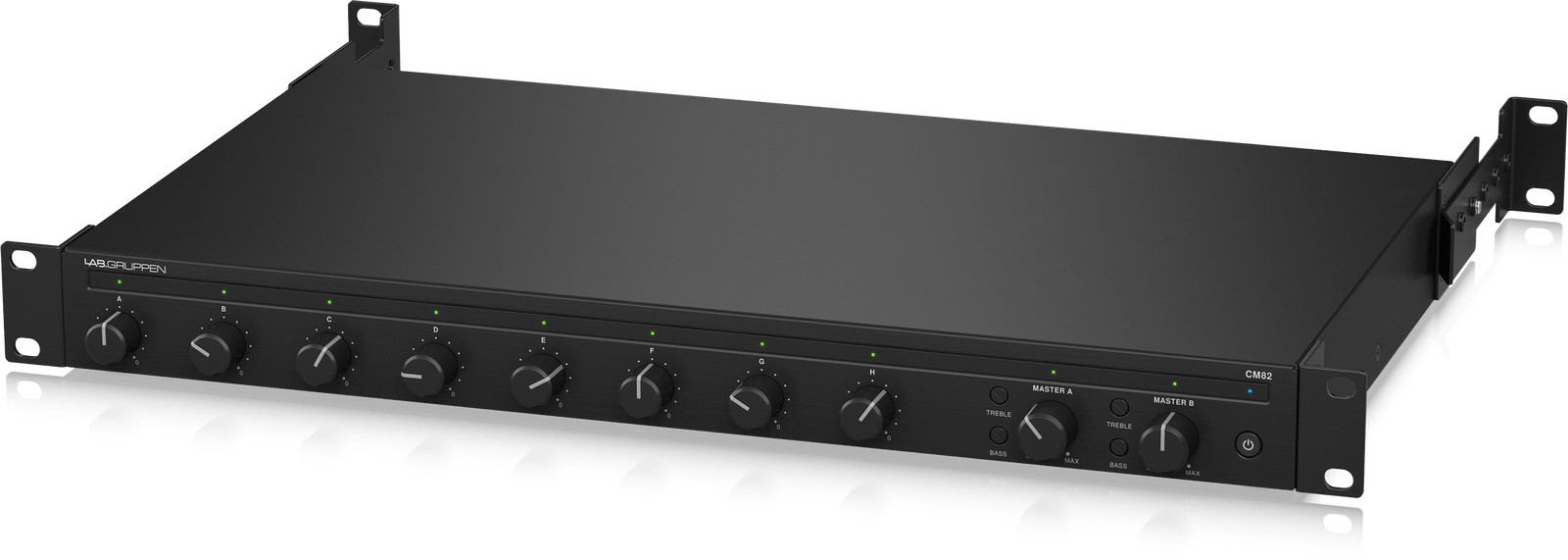

  • Rack-mountable 1U, 19″ enclosure with inclusive mounting brackets.
  • Euroblock type mic/line input and output connectors for robust connections.

Specifications

Specification Details
Mixing capability 8 inputs with configurable routing – 2 outputs
Mic/Line Inputs with priority 2 x 5-pin Euroblock connector (channel A, E)
Mic/Line Inputs with RCA 6 x 3-pin Euroblock, 6 x stereo RCA (channels B, C, D, F, G, H)
Impedance Balanced mic/line: 20 kΩ; Unbalanced line and RCA: 10 kΩ
Maximum input level 4.88 V (+16 dBu)
Microphone phantom power 48 V
Output 2 x 3-pin Euroblock connector
Gain range -∞ to +10 dB
Output max level 9.6 V (+22 dBu)

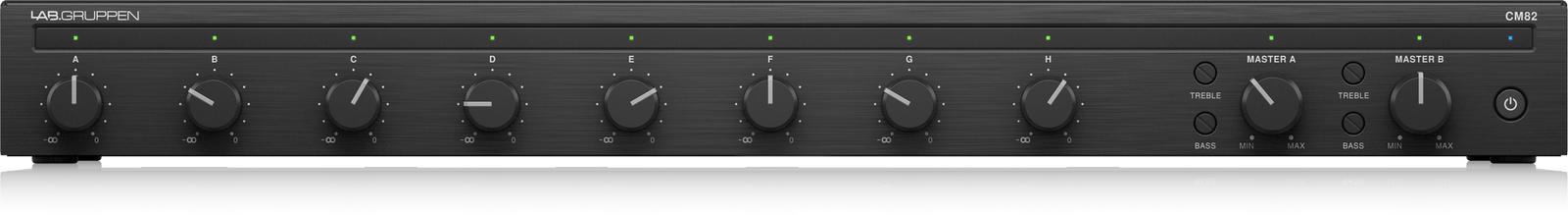

Front controls Power standby button, input and output gain control, bass and treble tone controls

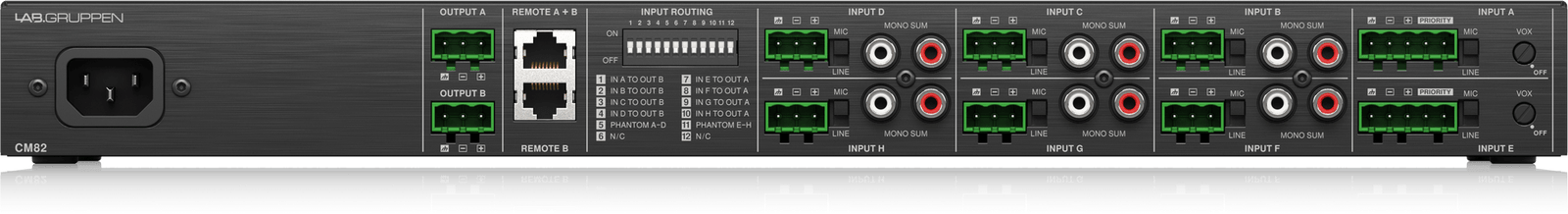

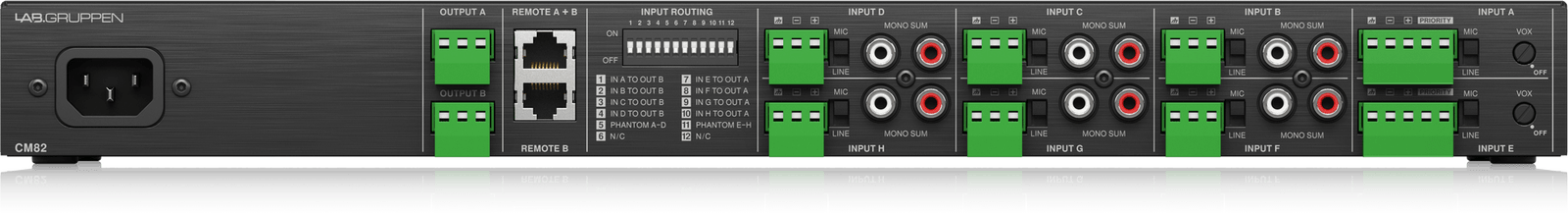

Rear controls mic/line switch, VOX/ducking threshold control, phantom power, input routing (2-channel models only)
Tone control Bass: ±10 dB @ 100 Hz; Treble: ±10 dB @ 10 kHz
Power indicators On: blue; Standby: yellow; Force standby: red
Input signal indicators Signal: >12.3 mV (-36 dBu) green LED; Clip: 4.88 V (+16 dBu) red LED
Master signal indicators Signal: >-50 dBu green LED; Limit: 3 V (+12 dBu) red LED
Remote connector 2 x RJ45 Ethernet connector
Distortion <0.05%
Frequency response 20 Hz to 20 kHz, +0.5 / -1 dB
Crosstalk >70 dB
Signal-to-noise ratio >97 dBA
Main voltage Universal 100-240 V~, 50/60 Hz
Fuse T 3.15 A H 250 V
Power consumption 20 W
Dimensions (H x W x D) 44 x 437 x 248 mm (1.7 x 17.2 x 9.8 inches)
Weight 2.4 kg (5.3 lbs)
Finish Brushed black anodized aluminum chassis with black painted steel bottom
Compliance CE, WEEE, CCC, cTUVus, PSE, RCM, RoHS, FCC part 15 Class B
