Description

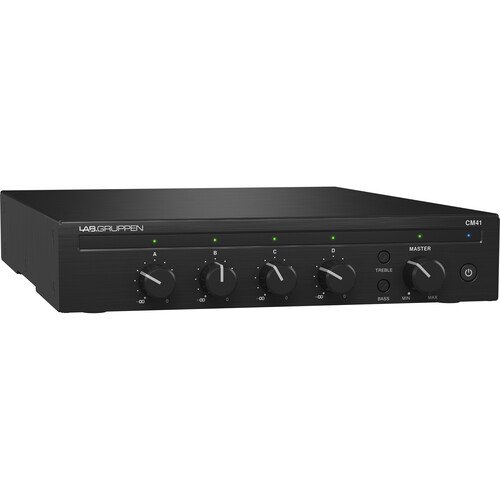

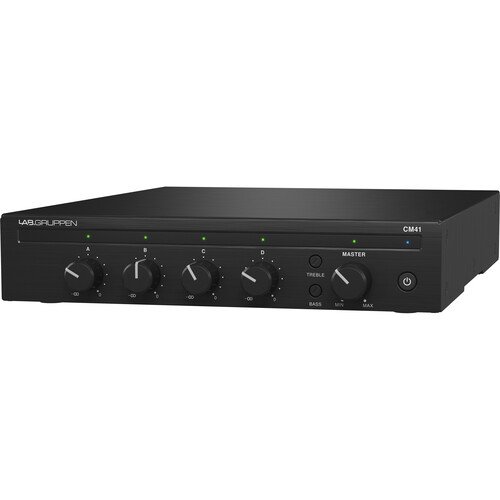

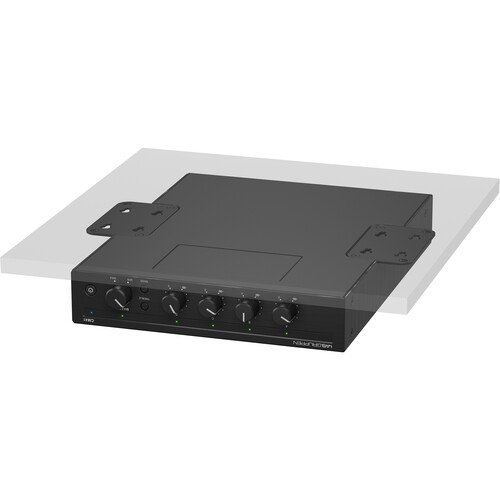

Lab.Gruppen CM41 Commercial Mixer
The Lab.Gruppen CM41 is a four-input, one-output commercial mixer well suited for distributed audio in bars, restaurants, retail destinations, hotels, corporate, education, or other venues needing background music and/or a public-address system. The mixer offers a configurable priority muting function for background music override, great for making announcements.

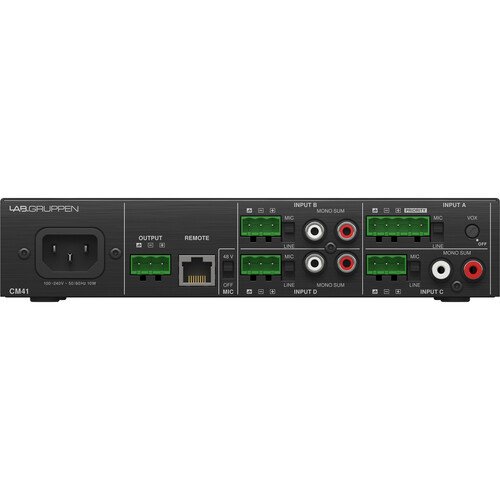

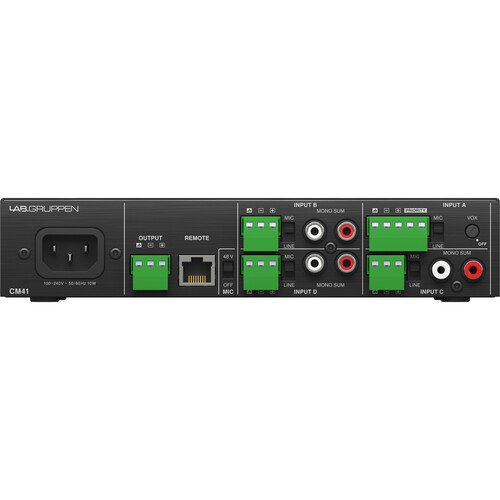

The rear panel offers four mic/line input channels that sum to mono. Channel A features a 3-pin Euroblock input with two additional pins that activate the priority function when shorted together. Channels B, C, and D offer balanced 3-pin Euroblock connectors and a pair of unbalanced RCA connectors (summed to mono) for connecting stereo sources such as players, phones, computers, and more. A 3-pin Euroblock output is provided for connecting to additional devices. The RJ45 port allows the mixer to be controlled via Ethernet from a broad range of remote-control options, such as the CRC-V Series of wall-mount controllers and the stylish tabletop controller, the LAB.Level (sold separately).
Key Features
- 4 input / 1 output mixer for commercial and industrial applications
- 4 mic/line inputs with individual volume controls

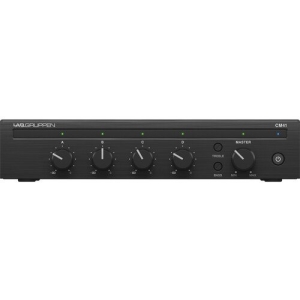

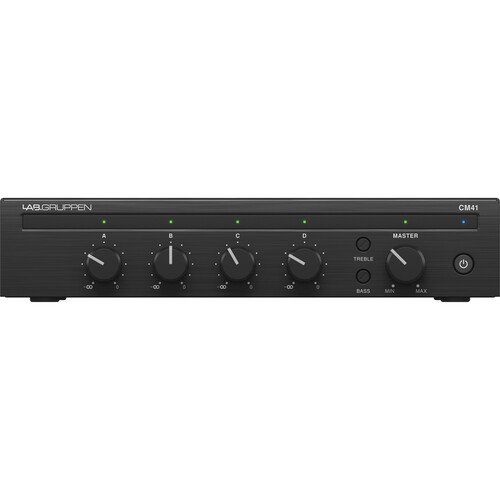

- Individual front panel master volume and bass/treble controls
- Configurable priority muting function for background music override
- GPI remote volume control using standard RJ-45 connector and Ethernet cable
- Front panel power control button for direct access
- Aux output for expansion to connect with amplifiers

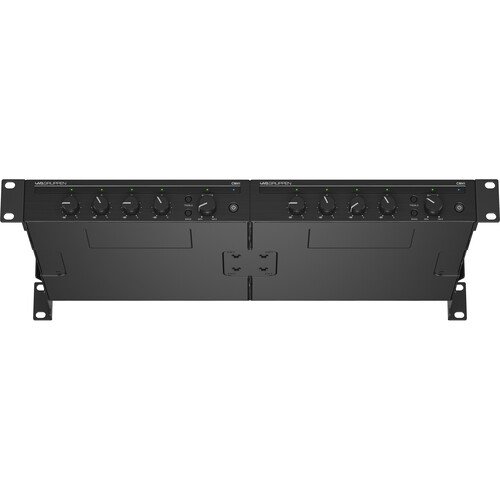

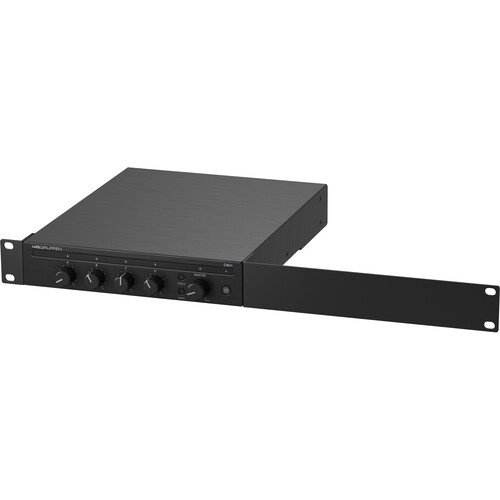

- Rack-mountable 1U, half-rack width enclosure with joining brackets for rack, table and wall mounting
- Euroblock type mic/line input and output connectors
Specifications
Mixer
| Mixing capability |
4 inputs – 1 output |
Audio Inputs
| Mic/Line with priority/ducking input |
1 x 5-pin Euroblock connector (channel A) |
| Mic/Line with summed RCA |
3 x 3-pin Euroblock connector, 3 x stereo RCA (channel B, C, D) |
| Impedance |
Balanced mic/line: 20 kΩ
Unbalanced line and RCA: 10 kΩ |
| Maximum input level |
4.88 V (+16 dBu) |
| Microphone phantom power |
48 V |
Audio Outputs
| Output |
3-pin Euroblock connector |
| Gain range |
— infinity sign – +10 dB |
| Output max level |
9.6 V (+22 dBu) |
Controls
| Front |
Power standby button, input and output gain control, tone controls – bass and treble |
| Rear |
mic/line switch, vox/ducking threshold control, phantom power, input routing (2-channel models only) |
Tone Controls
| Bass |
±10 dB @ 100 Hz |
| Treble |
±10 dB @ 10 kHz |
Indicators
| Power |
On (blue), force standby (red), standby (yellow) |
| Inputs |
| Signal (green LED) |
>12.3 mV (-36 dBu) |
| Clip (red LED) |
4.88 V (+16 dBu) |
| Master |
| Signal (green LED) |
>-50 dBu |
| Limit (red LED) |
3 V (+12 dBu) |
System
| Remote connector |
1 x RJ45 Ethernet connector |
Performance
| Distortion |
<0.05% |
| Frequency response |
20 Hz to 20 kHz, +0.5 / -1 dB |
| Crosstalk (2 channel models) |
>70 dB |
| Signal-to-noise |
>97 dBA |
Power Supply, Voltage (Fuse)
| Power Supply, Voltage (Fuse) Main voltage |
Universal 100-240 V~, 50/60 Hz |
| Fuse |
T 3.15 A L 250 V |
| Power consumption |
10 W |
| Mains connector |
Standard IEC connector |
Dimensions / Weight
| Dimensions (H x W x D) |
44 x 218 x 299 mm (1.8 x 8.6 x 11.8″) |
| Weight |
2.1 kg (4.6 lbs) |
| Finish |
Brushed black anodized aluminum chassis with black painted steel bottom |
| Approvals |
CE, WEEE, CCC, cTUVus, PSE, RCM, RoHS, FCC part 15 Class B |
