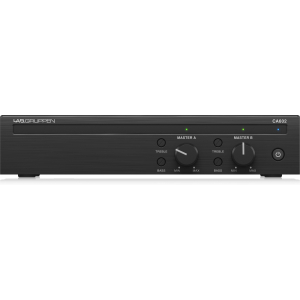

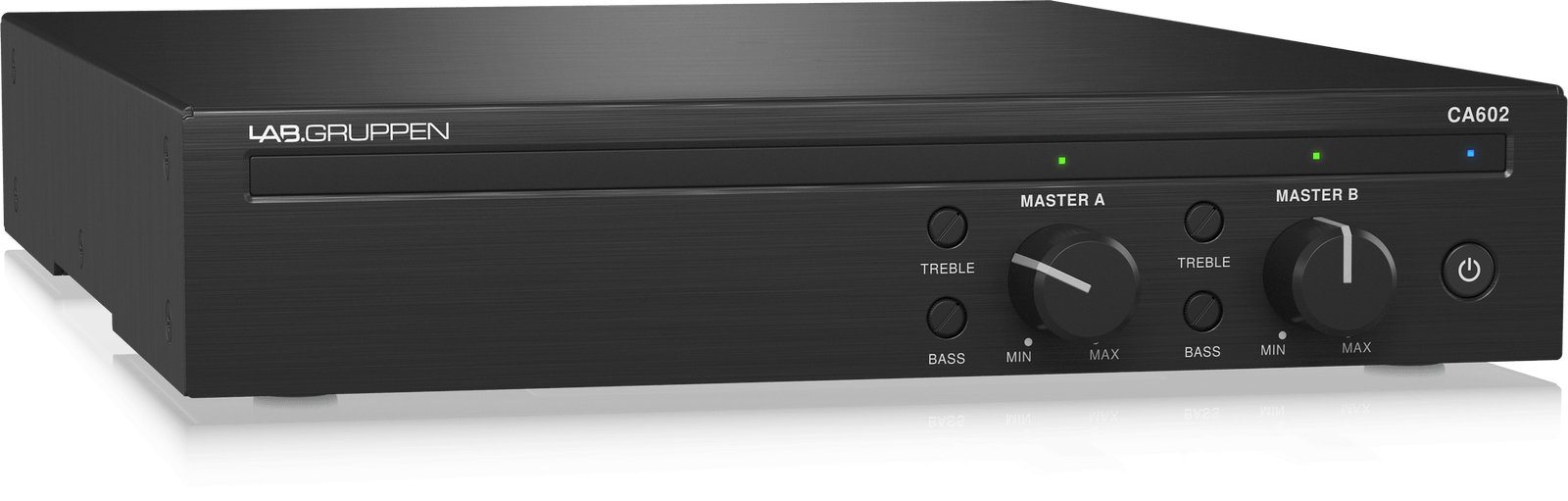

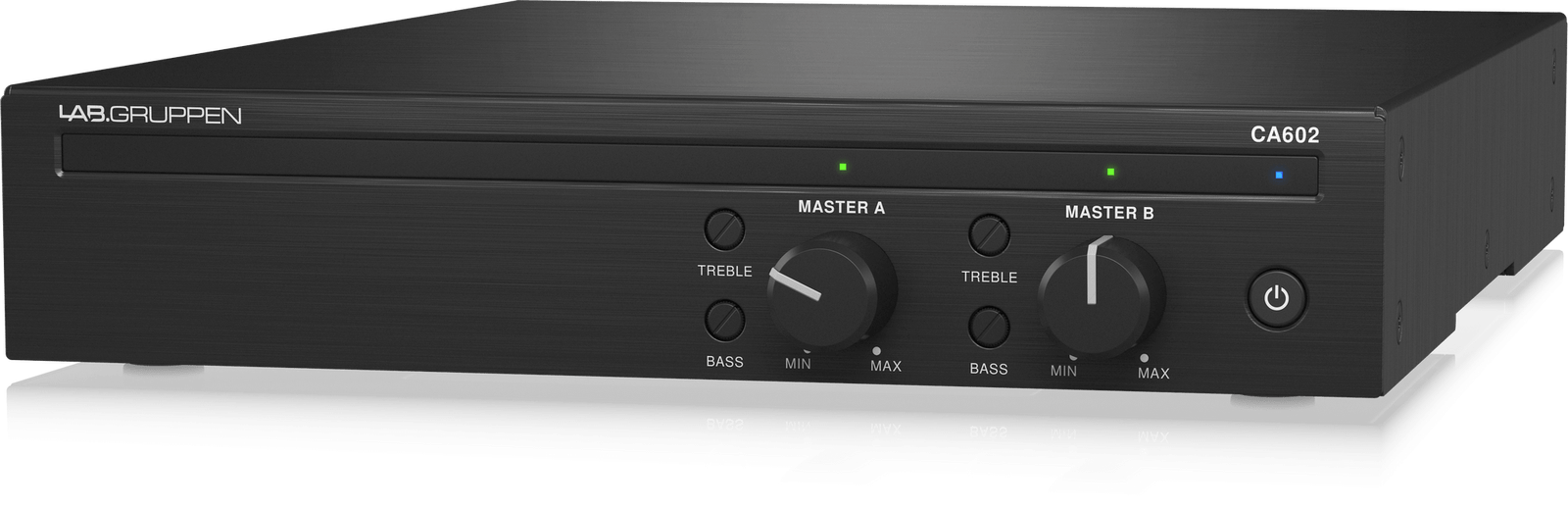

Lab Gruppen CA602 2x60W Commercial Amplifier Energy Star Certified

AED 1446.90 inc VAT.

The CA602 2 x 60-Watt Commercial Amplifier offers an efficient solution for commercial audio needs with its 2 independent channels, supporting both Low-Z (4/8 Ohm) and High-Z (70/100 V) configurations. Ideal for venues such as bars, restaurants, hotels, and educational institutions, it delivers high-quality sound with ease of installation and operation.

In stock

Request Quote

Estimated Delivery: 2–3 business days across the UAE
Free Shipping & Returns : On all orders over AED 1000

Guaranteed Safe And Secure Checkout

Description

CA602 2 x 60-Watt Commercial Amplifier

Discover the CA602, the ideal amplifier designed for commercial and industrial environments. With its exceptional audio quality and energy-saving features, this amplifier is perfect for various applications, including restaurants, hotels, and educational institutions. The CA602 is straightforward to install and operate, offering robust performance and versatility.

Key Features

2 x 60 Watt power output
Compatible with both Low-Z (4/8 Ohm) and High-Z (70/100 V) loudspeaker configurations
Energy Star certified for reduced operational cost
Direct drive technology for enhanced audio performance
Remote volume control via GPI using a standard RJ-45 connector

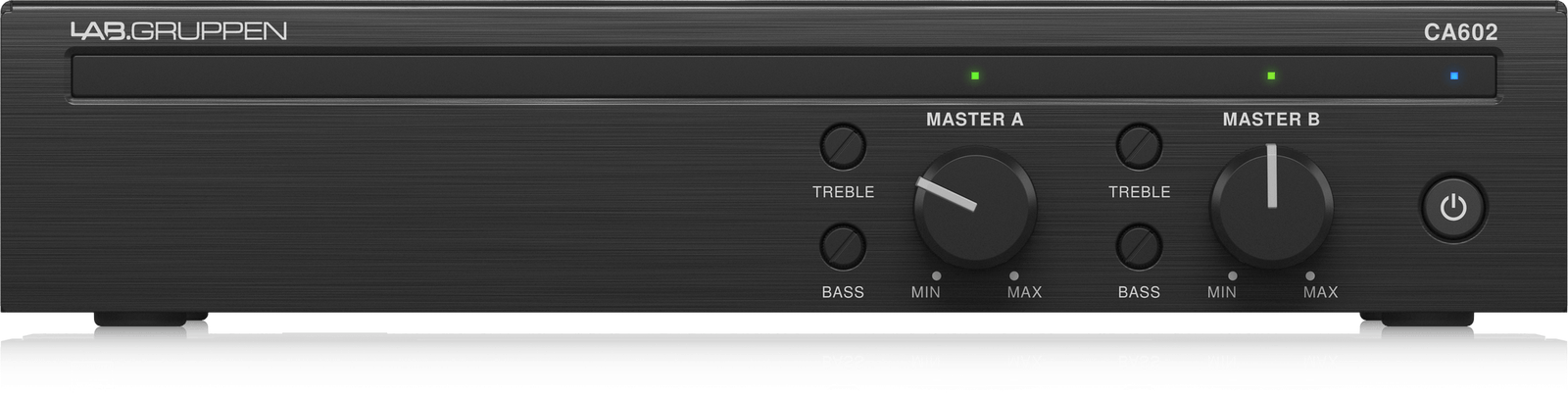

Front panel master volume and bass/treble controls
Auto Ramp circuitry for efficient power management
Convection-cooled with fan-less design for low noise

Specifications

Category	Specification	Details
Amplifier	Number of Channels	2
Amplifier	Power Rating	2 x 60 W Peak
Amplifier	Amplifier Class	Class-D
Amplifier	Load Impedance / Voltage	4/8 Ohms and 70/100 V per Channel
Performance	Protections	DC Fault, Overcurrent, Thermal, Ultrasonic
Performance	Frequency Response	20 Hz to 20 kHz +0.5/-1 dB
Performance	Input Sensitivity	Euroblock Line: 1.23 V, RCA Line: 0.62 V
Performance	Input Impedance	20 Kilohms (Balanced), 10 Kilohms (Unbalanced)
Performance	Max Input Level	+22 dBu / 9.75 V
Performance	SNR	> 97 dBA
Performance	Distortion	< 0.05%
Performance	Crosstalk	> 85 dB
Signal Processing	Crossover	Yes
Signal Processing	EQ	2-Band Shelving EQ per Channel
Signal Processing	Filters	1 x High-Pass at 80 Hz
Signal Processing	Ducking/Muting	No
Signal Processing	Limiting	Output

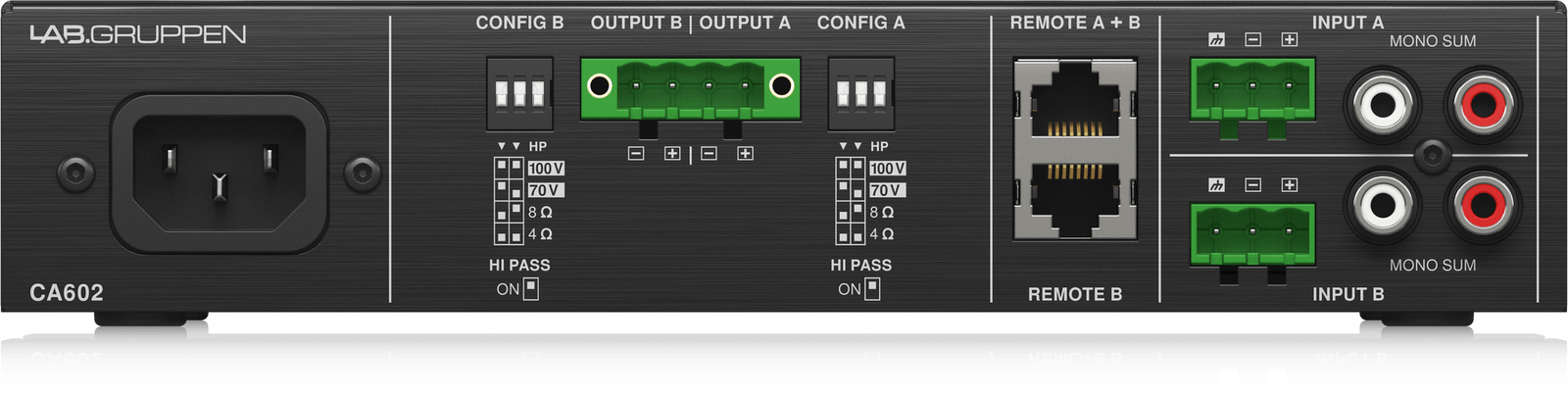

Connectivity	I/O	2 x Block 3-Pin Female Balanced Line Input, 2 x 2RCA TS Female Unbalanced Line Input
Connectivity	Digital I/O	None
Connectivity	USB	None
Power	AC Input Power	Universal: 100-240 VAC, 50/60 Hz
Power	AC Power Connector	1 x IEC 15 A / NEMA 5-15
Power	Power Consumption	60 W (1/8 Power at 4 Ohms)

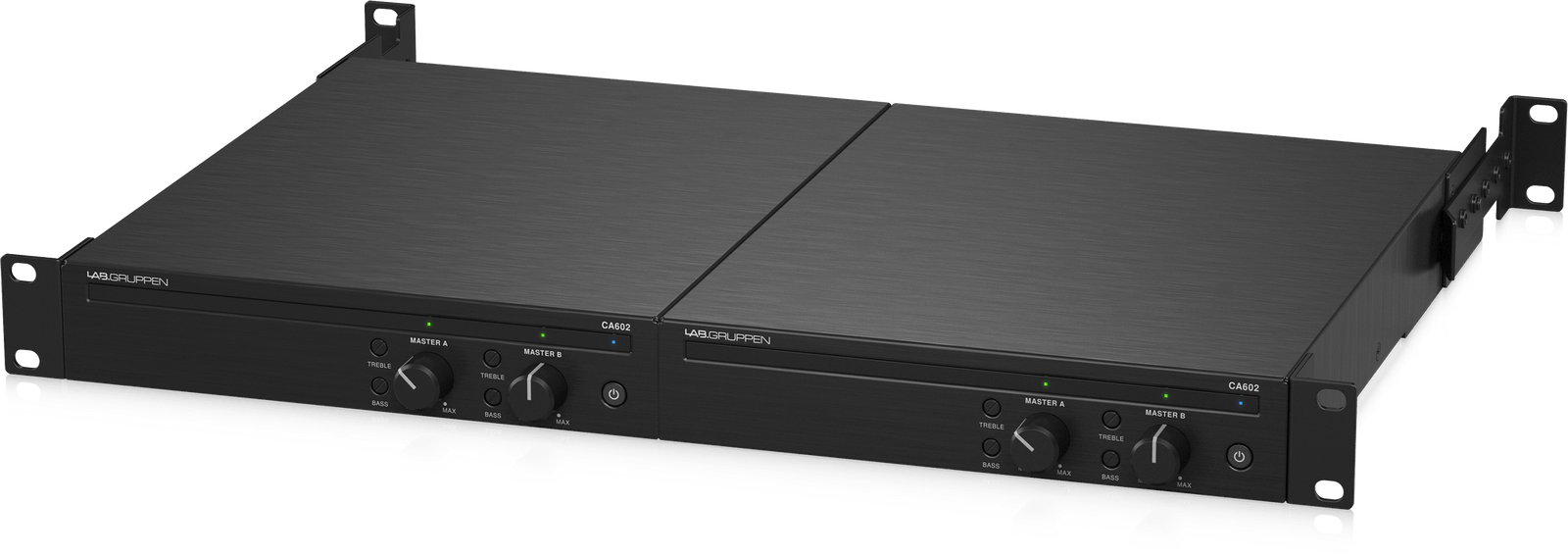

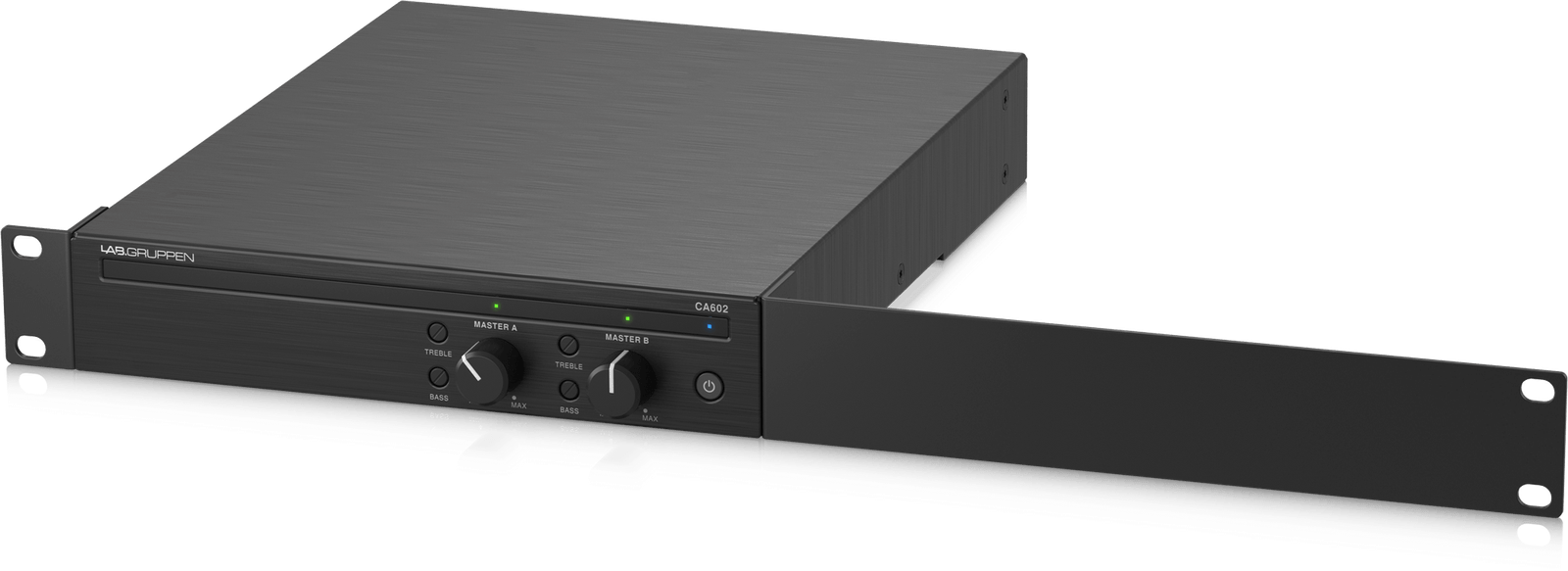

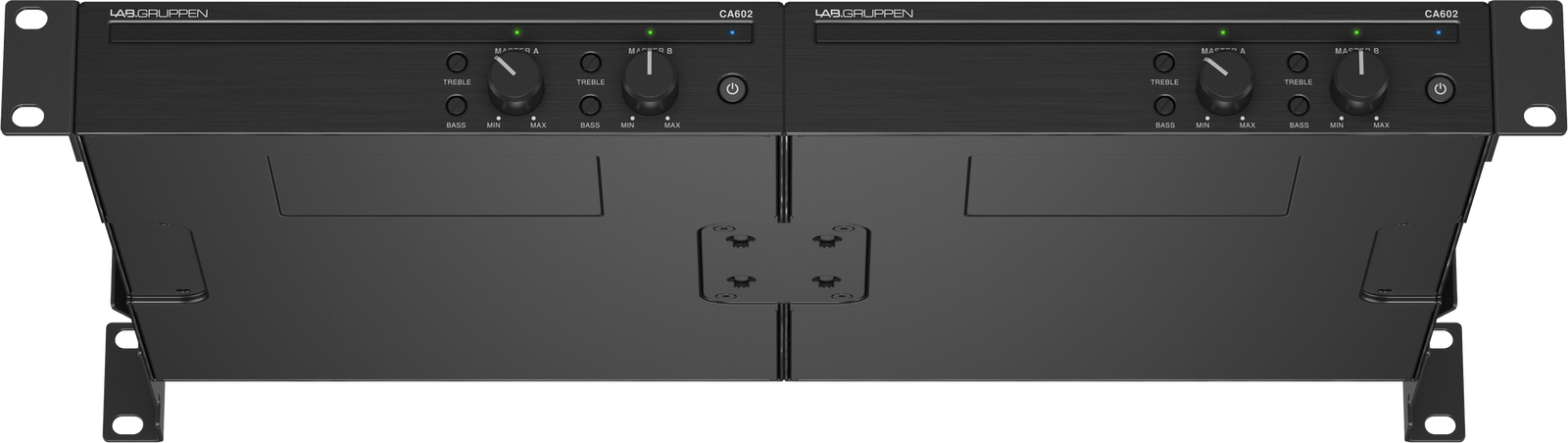

Physical	Rackmount Size	1 RU (with Included Hardware)
Physical	Cooling	Convection
Physical	Certifications	CCC, CE, ENERGY STAR, PSE, RoHS, cTUVus
Physical	Dimensions	8.6 x 1.7 x 11.8″ / 218.4 x 43.2 x 299.7 mm
Physical	Weight	4.9 lb / 2.2 kg
Packaging Info	Package Weight	6.56 lb
Packaging Info	Box Dimensions (LxWxH)	15.6 x 11.4 x 4.5″
