Lab Gruppen CA601 60W Commercial Amplifier Energy Star Certified

Lab Gruppen

AED 1446.90 inc VAT.

The CA601 60-Watt Commercial Amplifier delivers high-quality sound for diverse applications, supporting both Low-Z (4/8 Ohm) and High-Z (70/100 V) speaker setups. This versatile amplifier is easy to install and user-friendly, making it perfect for bars, restaurants, retail spaces, hotels, corporate environments, and educational institutions that require reliable distributed audio for background music or public address systems.

In stock
Request Quote
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: CA601 Categories: , , Brand:

Description

CA601 60-Watt Commercial Amplifier

The CA601 60-Watt Commercial Amplifier is a versatile audio solution designed for commercial and industrial settings. It excels in delivering exceptional audio clarity over both Low-Z (4/8 Ohm) and High-Z (70/100 V) speaker configurations, offering unparalleled flexibility on every channel. The CA601 is particularly suitable for environments like bars, restaurants, retail spaces, hotels, corporate offices, and educational institutions, where background music or public address systems are required. Its user-friendly design ensures easy installation and operation for non-technical staff.

Features

  • 60 Watt amplifier for commercial and industrial applications
  • Operates with Low-Z (4/8 Ohm) and High-Z (70/100 V) loudspeakers
  • Energy Star certified for reduced energy consumption
  • Direct drive technology for consistent audio performance
  • GPI remote volume control with RJ-45 connector

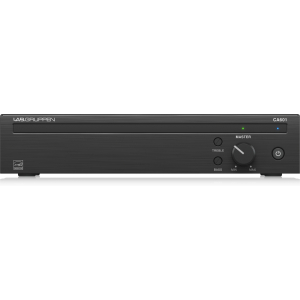

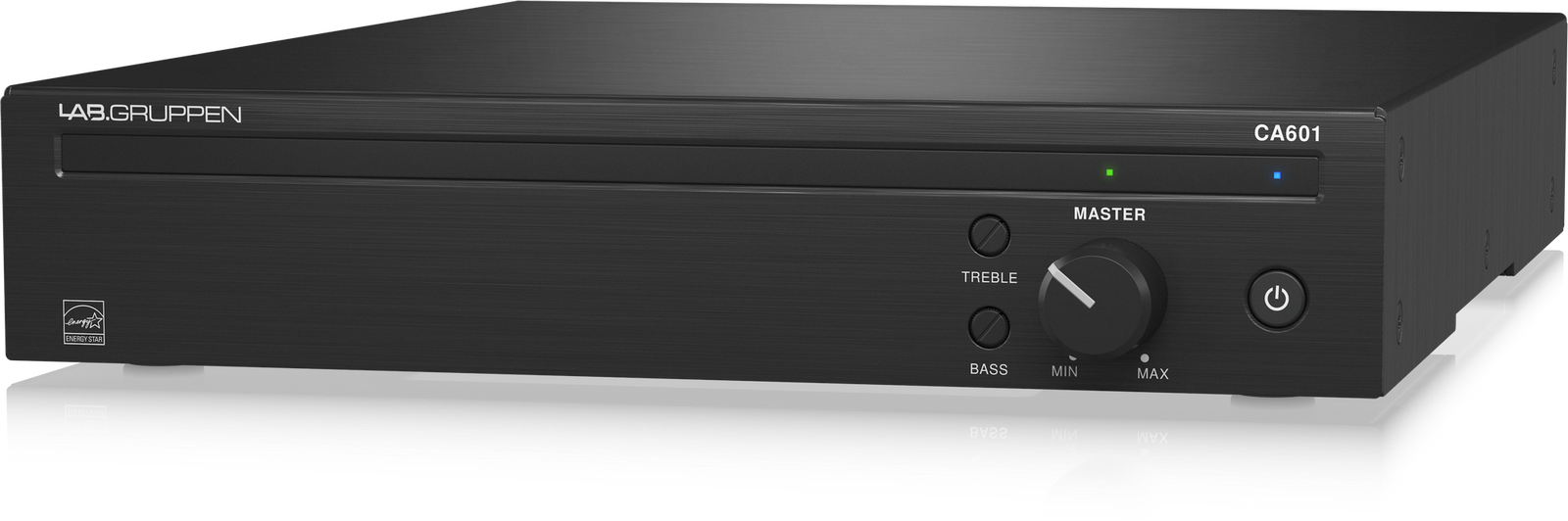

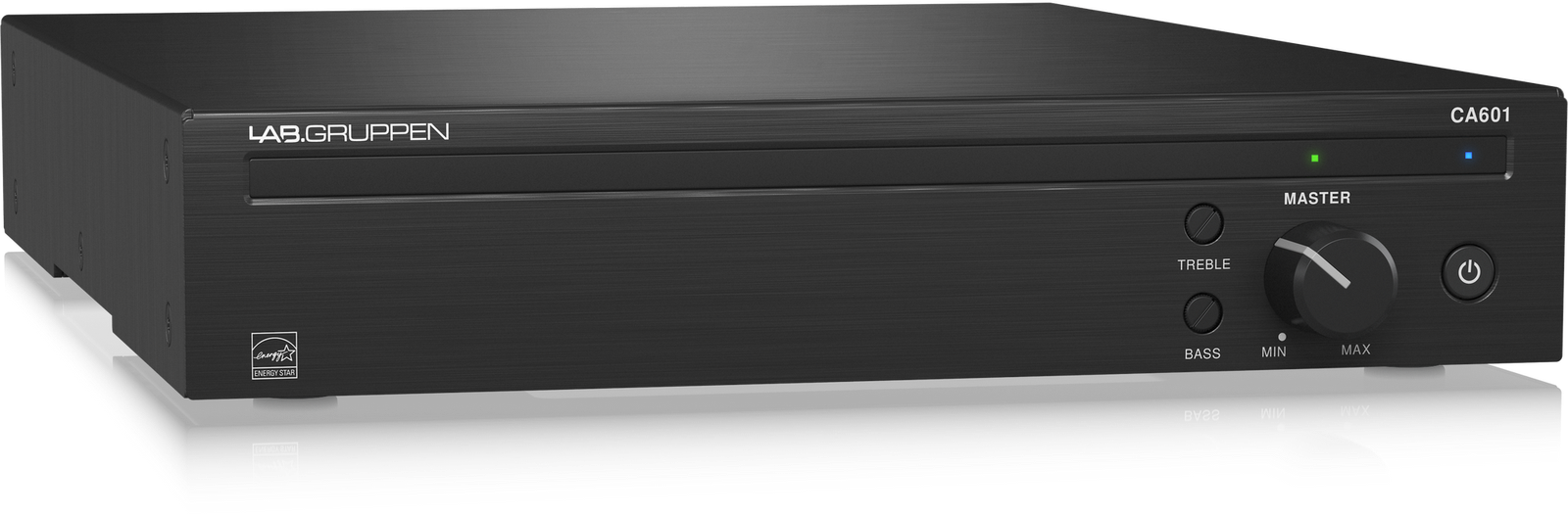

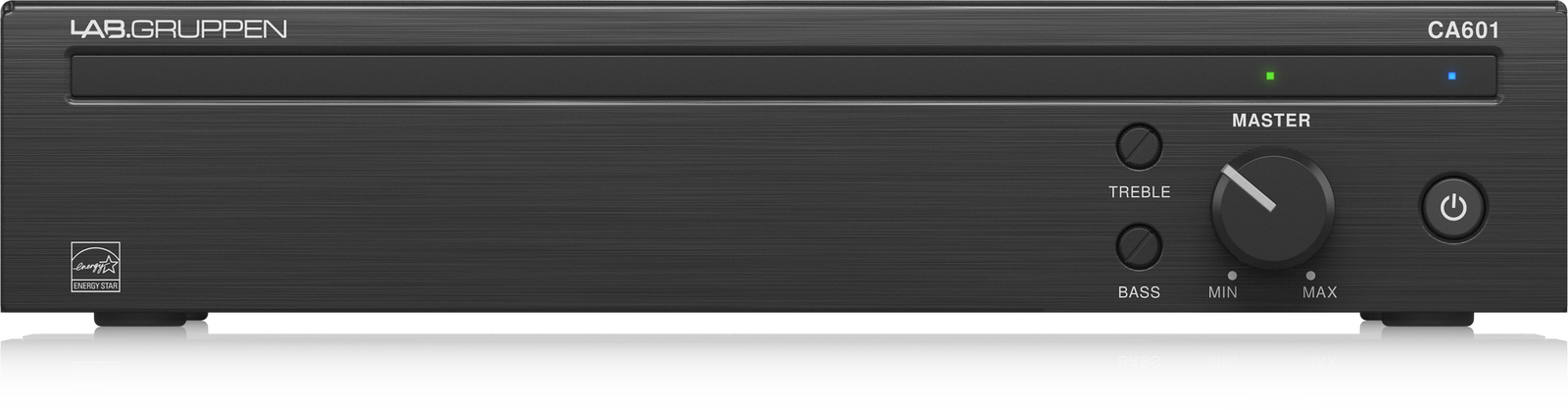

  • Front panel controls for master volume, bass, and treble
  • Auto Ramp for energy-efficient power up/down
  • Convenient front panel power button

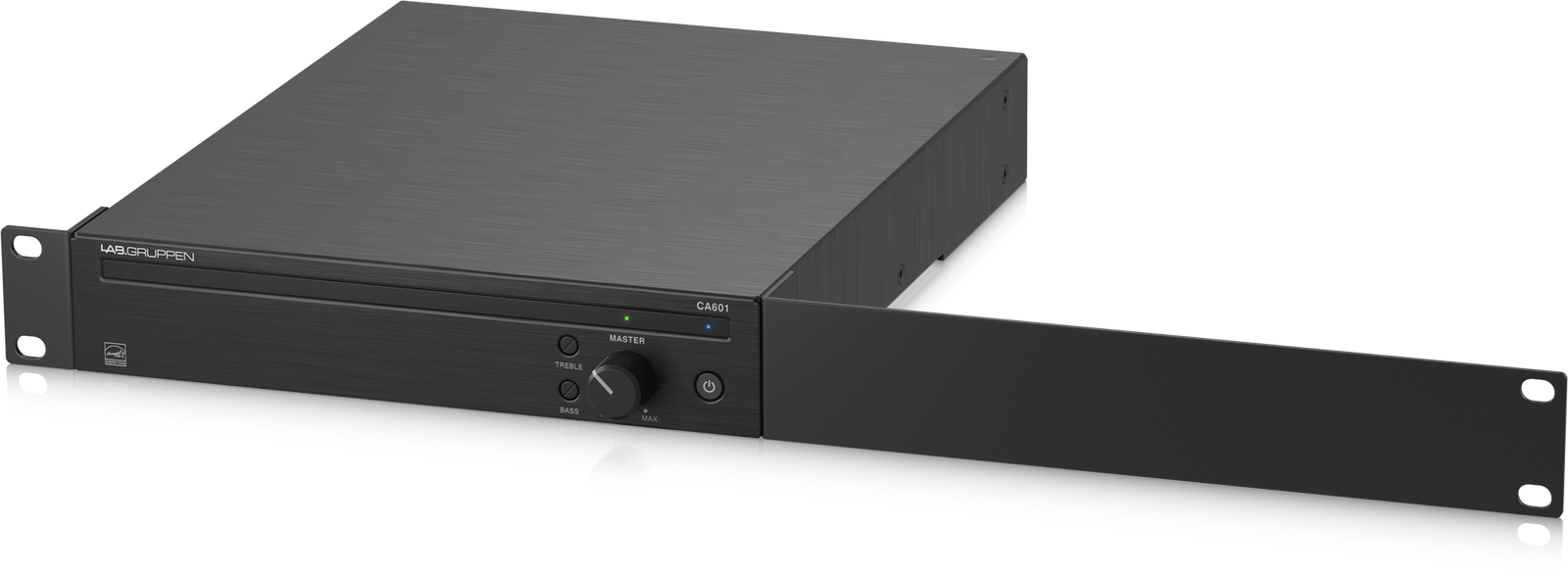

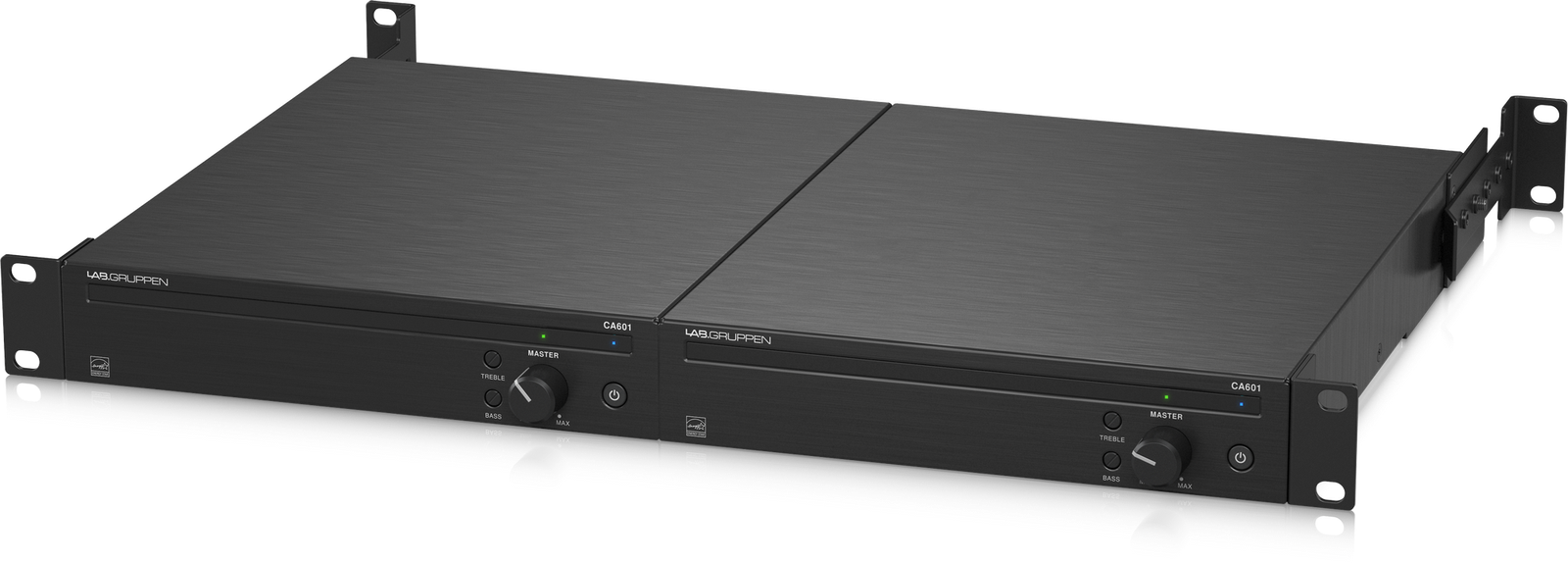

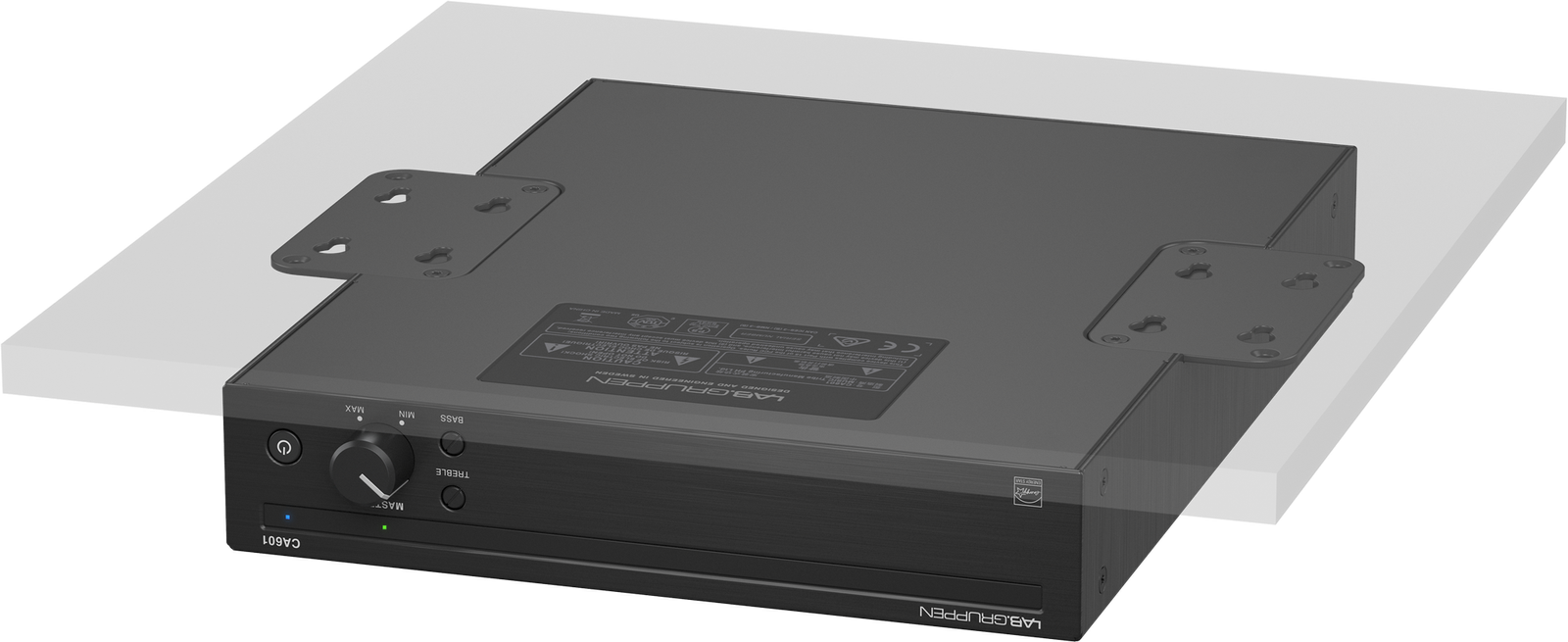

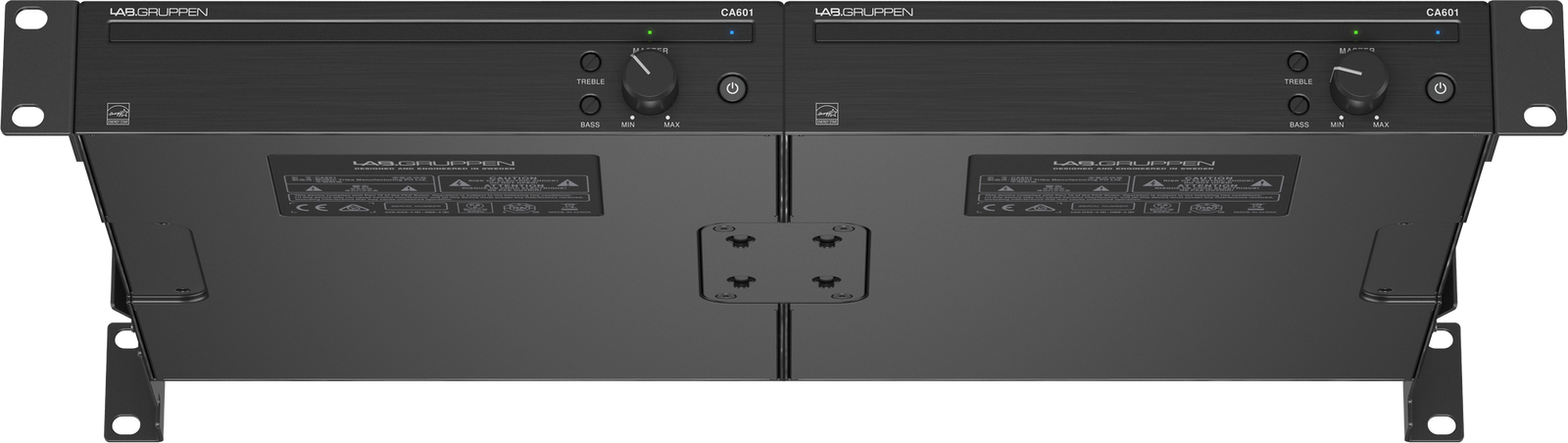

  • Fits 1U rack-mountable enclosures, with hardware for multiple mounting options
  • Convection-cooled for quiet operation without fans

Specifications

Category Details
Number of Channels 1
Power Rating 1 x 60 W Peak (4/8 Ohms, 70/100 V)
Amplifier Class Class-D
Load Impedance / Voltage 4 / 8 Ohms, 70 / 100 V (Mono)
Protections DC Fault, Overcurrent, Thermal, Ultrasonic
Frequency Response 20 Hz to 20 kHz +0.5/-1 dB
Input Sensitivity Euroblock Line: 1.23 V, RCA Line: 0.62 V
Input Impedance 20 kOhms (Balanced), 10 kOhms (Unbalanced)
Max Input Level +22 dBu / 9.75 V
SNR > 97 dBA
Distortion < 0.05%
Crossover Yes
EQ 2-Band Shelving EQ per Channel
Filters 1 x High-Pass: 80 Hz
Ducking/Muting No
Limiting Output
I/O 1 x Block 3-Pin Female Balanced Line Input, 1 x 2RCA TS Female Unbalanced Line Input
Digital I/O None
USB None
AC Input Power 100 to 240 VAC, 50/60 Hz
AC Power Connector 1 x IEC 15 A / NEMA 5-15
Power Consumption 40 W (4 Ohms, 1/8 Power)
Rackmount Size 1 RU with included hardware
Cooling Convection
Certifications CCC, CE, ENERGY STAR, PSE, RoHS, cTUVus
Dimensions 8.6 x 1.7 x 11.8″ / 218.4 x 43.2 x 299.7 mm
Weight 5.3 lb / 2.4 kg
Package Weight 6.25 lb
Box Dimensions (LxWxH) 15.6 x 11.4 x 4.5″
