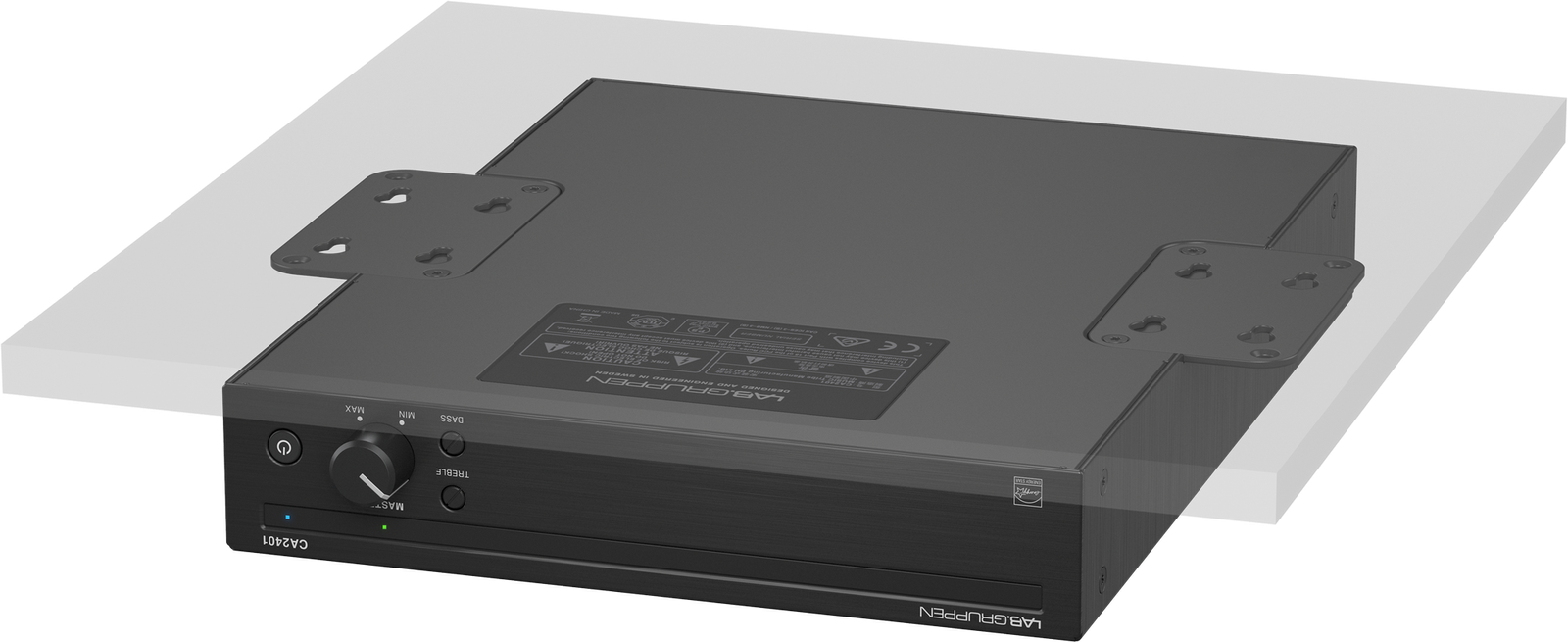

Lab Gruppen CA2401 240W Commercial Amplifier Energy Star Certified

Lab Gruppen

AED 1894.20 inc VAT.

The CA2401 is a 240 Watt Commercial Amplifier designed for dependable, high-quality sound output in both Low-Z (4/8 Ohm) and High-Z (70/100 V) configurations, making it versatile for diverse commercial and industrial environments. Perfect for installations in bars, restaurants, retail locations, hotels, corporate offices, and educational institutions, the CA2401 ensures effortless operation and efficient power consumption, making it suitable for both background music and public address systems.

In stock
Request Quote
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: CA2401 Categories: , , Brand:

Description

CA2401: 240 Watt Commercial Amplifier

The CA2401 is a 240 Watt Commercial Amplifier engineered to meet the needs of various commercial and industrial applications. It ensures exceptional audio distribution while maintaining power efficiency and reducing operational costs. Whether handling Low-Z (4/8 Ohm) or High-Z (70/100 V) loudspeaker configurations, the CA2401 offers superior versatility and ease of installation, making it suitable for non-technical users.

Perfect for Versatile Venues

Ideal for bars, restaurants, retail environments, hotels, corporate settings, educational institutions, or any venue requiring background music or a public address system, the CA2401 is designed to deliver outstanding sound quality and reliable performance.

Key Features

  • 240 Watt amplifier for both commercial and industrial applications.
  • Supports Low-Z (4/8 Ohm) and High-Z (70/100 V) loudspeaker configurations.
  • Energy Star certified for energy conservation and cost efficiency.
  • Direct drive, constant power technology ensures high audio quality and reliability.
  • GPI remote volume control with standard RJ-45 connector and Ethernet cable.

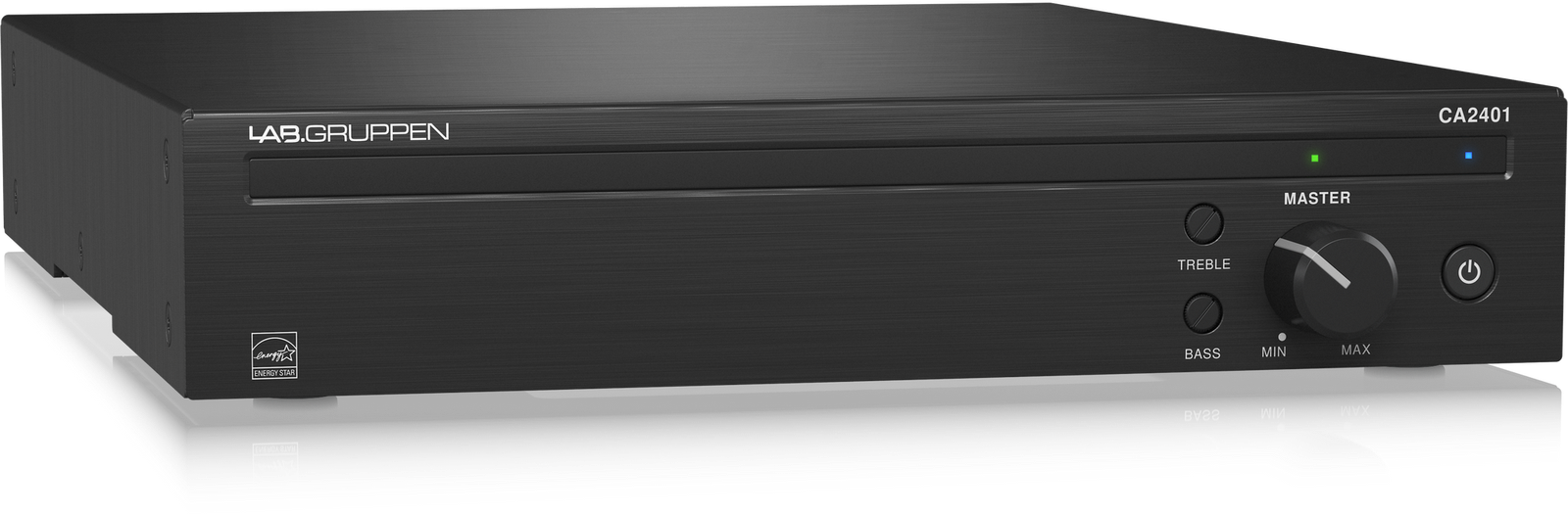

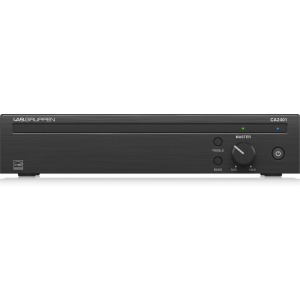

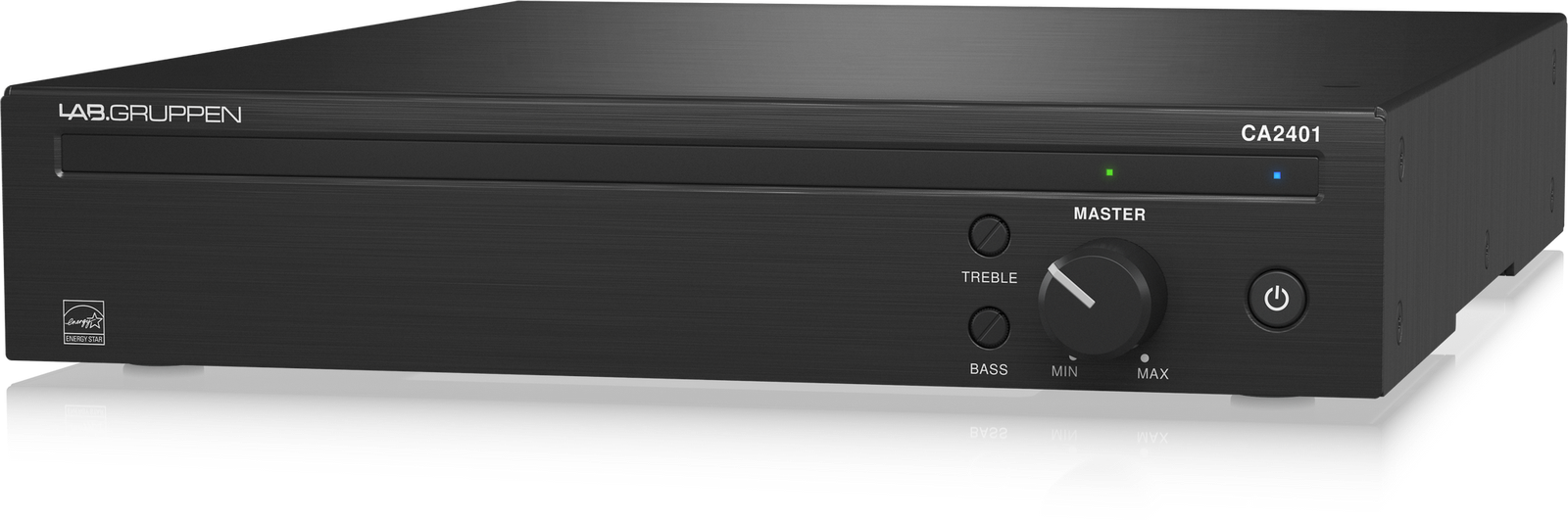

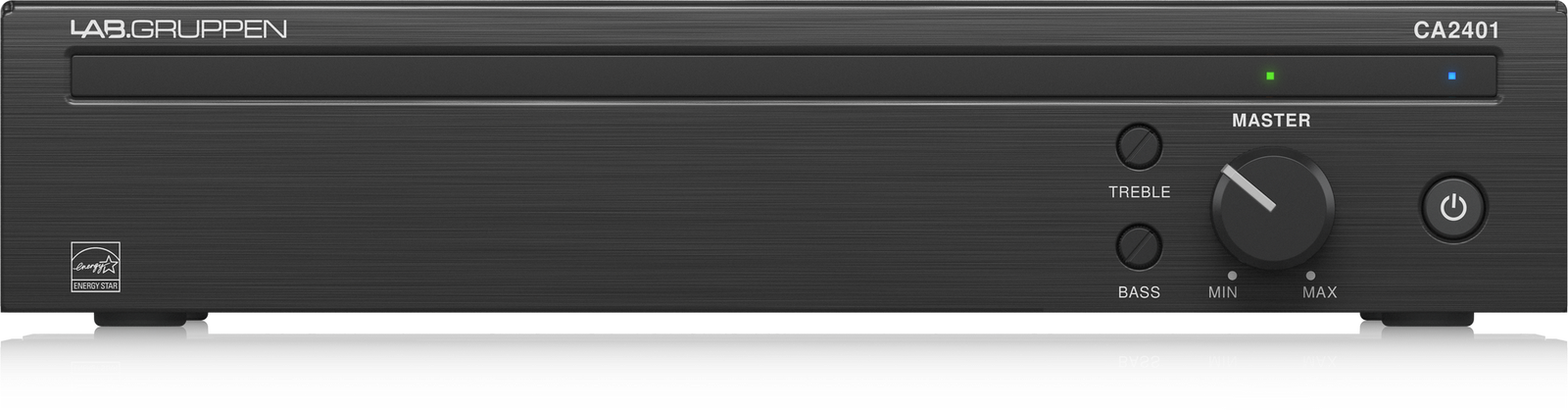

  • Individual front panel controls for master volume, bass, and treble.
  • Auto Ramp circuitry for quiet and efficient power management.
  • Front panel power control button for easy access.

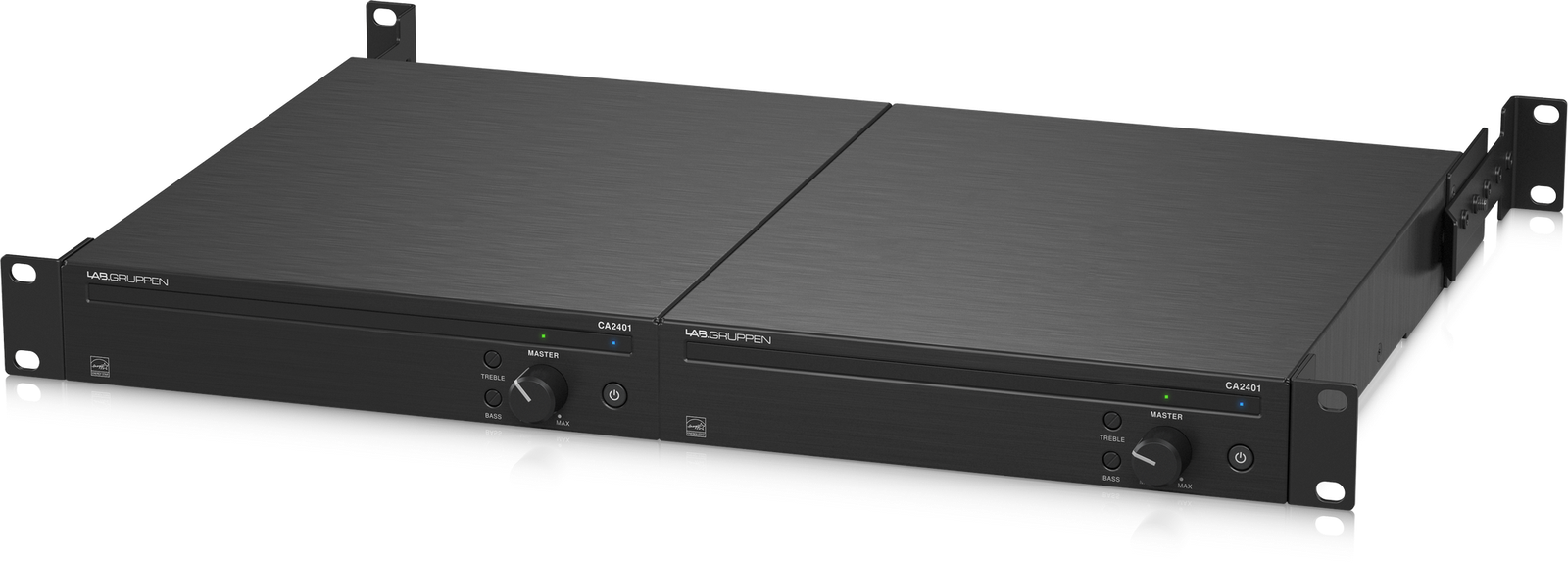

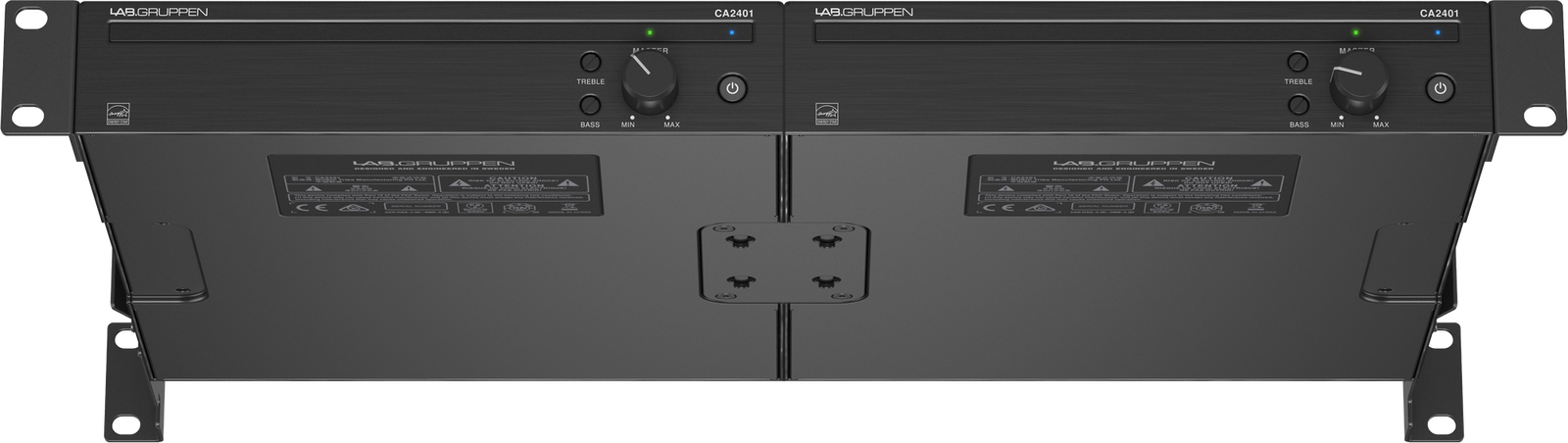

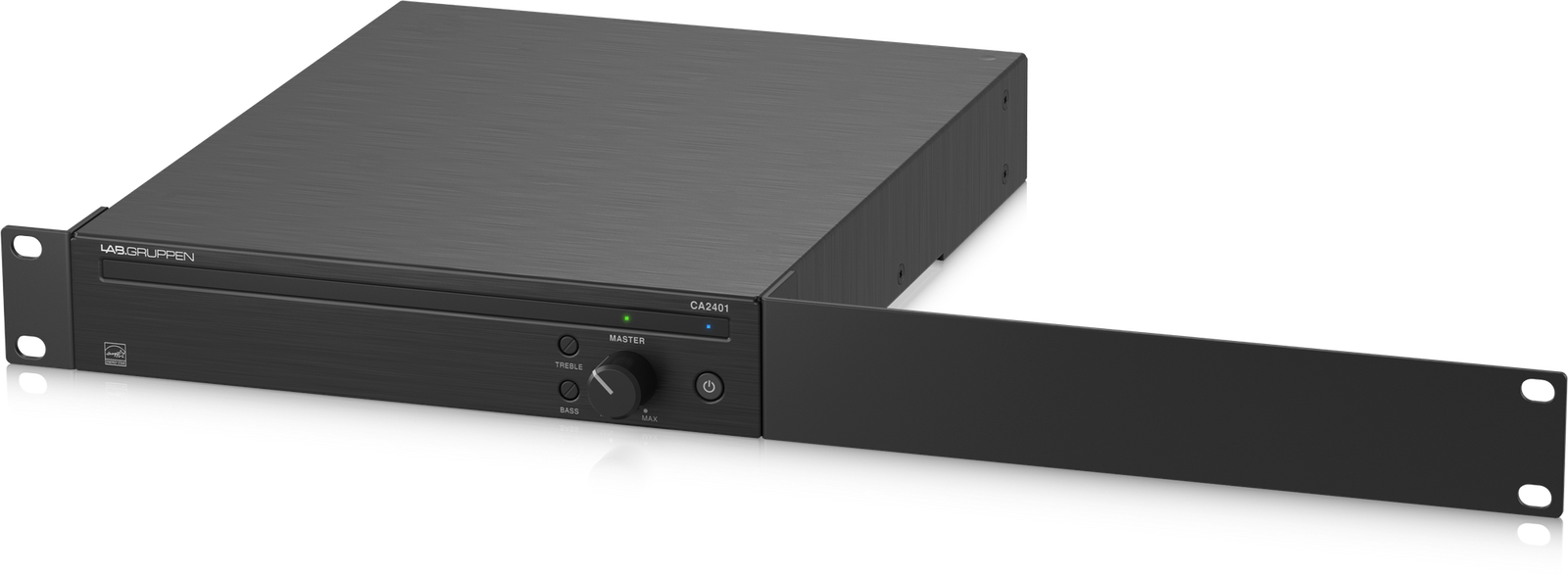

  • Rack-mountable design with a 1U, half-rack width enclosure.
  • Euroblock connectors for input and output.
  • Convection-cooled and fan-less for minimal noise.

Specifications

Specification Details
Maximum Output Power 4 or 8 Ω per channel
Number of Output Channels 1
Load Impedance 4 Ω Mode: 4 Ω, 8 Ω Mode: 8 Ω, 70 V Mode: 20 Ω, 100 V Mode: 41 Ω
Controls Front: Power standby button, gain control, tone controls – bass, and treble. Rear: Load config, switchable 80 Hz high-pass filter
Indicators Power: On (blue), force standby (red), sleep (yellow). Master: Signal (green LED), Limit (red LED), Fault (Red LED)

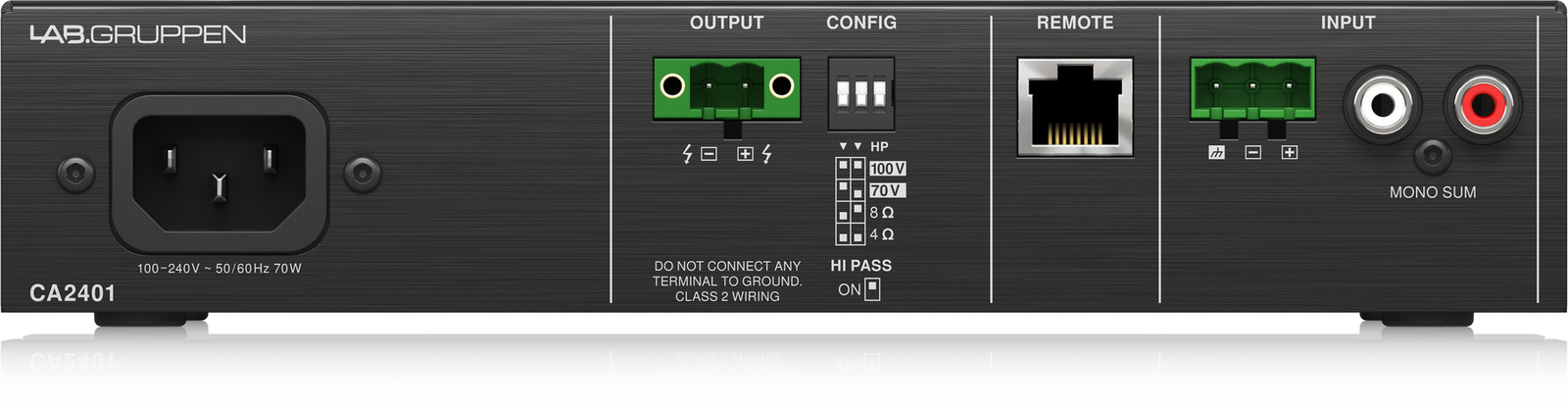

System Inputs 1 x 3-pin, 5.08 mm Euroblock connector, 1 x RCA stereo summed
Input Impedance 10 kΩ unbalanced and RCA, 20 kΩ balanced
Maximum Input Level 9.75V (+22 dBu)
Outputs 1 x 2-pin, 5.08 mm Euroblock connector
Output Circuit Type Class D
Remote Connector 1 x RJ45 connector
Performance Distortion: 85 dB, Signal-to-Noise: >97 dBa
Circuit Protection Amplifier protection: thermal, over current, DC, high frequency. Load protection: controlled start and shutdown, DC-fault
Power Supply Voltage: 100-240 V~, 50/60 Hz, Fuse: T 6.3 A L 2450 V, Power Consumption: 70 W at 1/8th rated power @ 4 Ω
Dimensions (H x W x D) 44 x 218 x 299 mm (1.7 x 8.6 x 11.8 inches)
Weight 2.4 kg (5.3 lbs)
Finish Brushed black anodized aluminum chassis, black painted steel bottom
