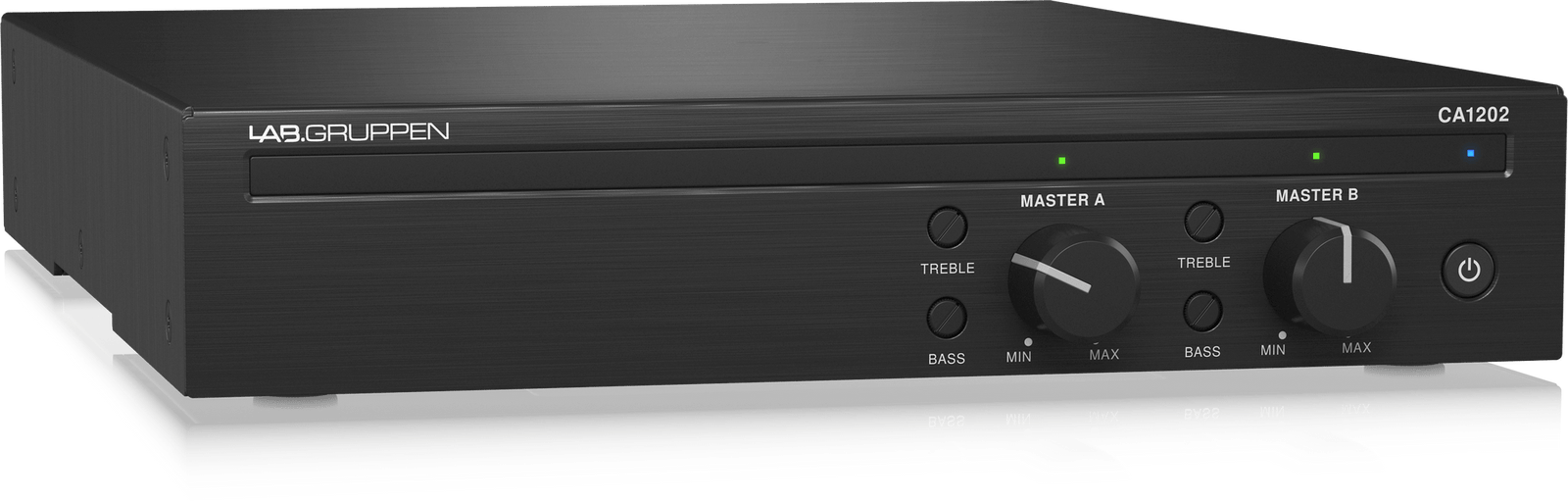

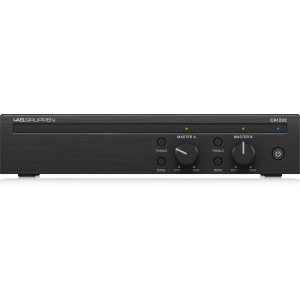

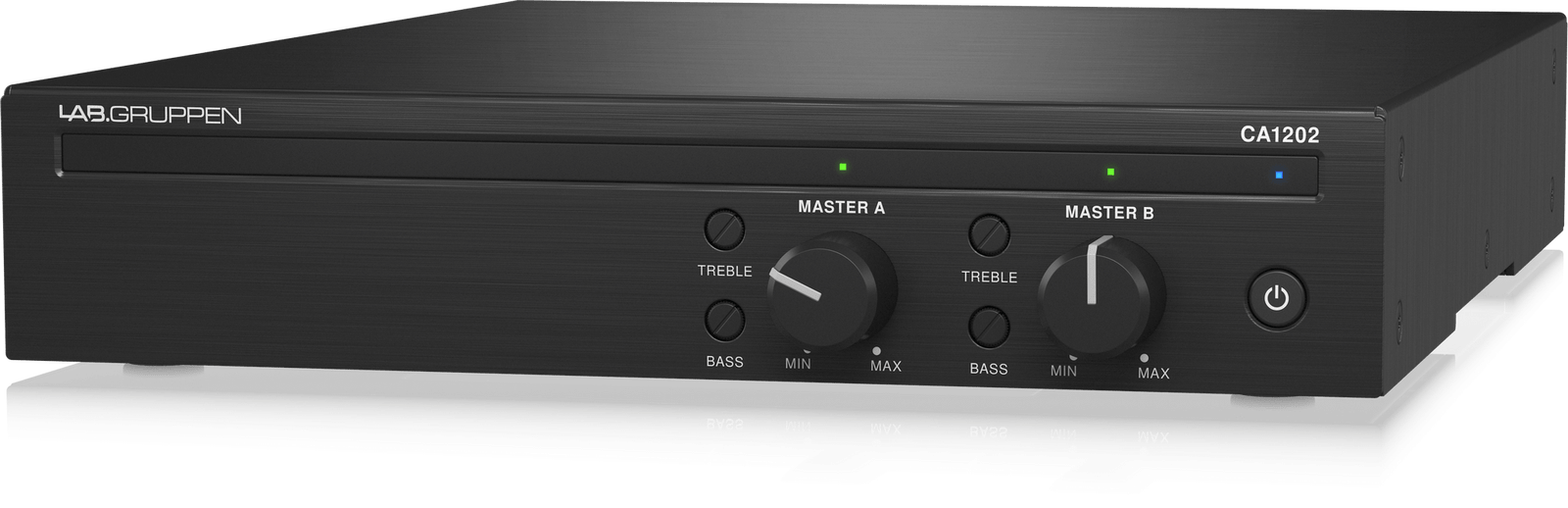

Lab Gruppen CA1202 2 x 120W Commercial Amplifier Energy Star Certified

Lab Gruppen

AED 1894.20 inc VAT.

The CA1202 is a 2 x 120 Watt dual-channel commercial amplifier designed for excellent distributed audio performance in both Low-Z (4/8 Ohm) and High-Z (70/100 V) loudspeaker configurations, making it ideal for environments such as bars, restaurants, retail spaces, hotels, and educational or corporate venues. Its user-friendly installation and operation ensure accessibility for non-technical users, balancing high-quality sound with power efficiency and reduced operating costs.

In stock
Request Quote
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: CA1202 Categories: , , Brand:

Description

CA1202 Dual-Channel Commercial Amplifier

The CA1202 is a versatile dual-channel amplifier designed for commercial and industrial applications, delivering high-quality sound with energy efficiency. This amplifier supports both Low-Z (4/8 Ohm) and High-Z (70/100 V) configurations, making it a flexible choice for diverse audio environments such as bars, restaurants, hotels, and corporate settings.

Key Features

  • 120 Watts per channel for powerful audio output
  • Supports Low-Z and High-Z configurations for versatile setups
  • Energy Star certified for reduced operational costs
  • Remote volume control via RJ-45 connector

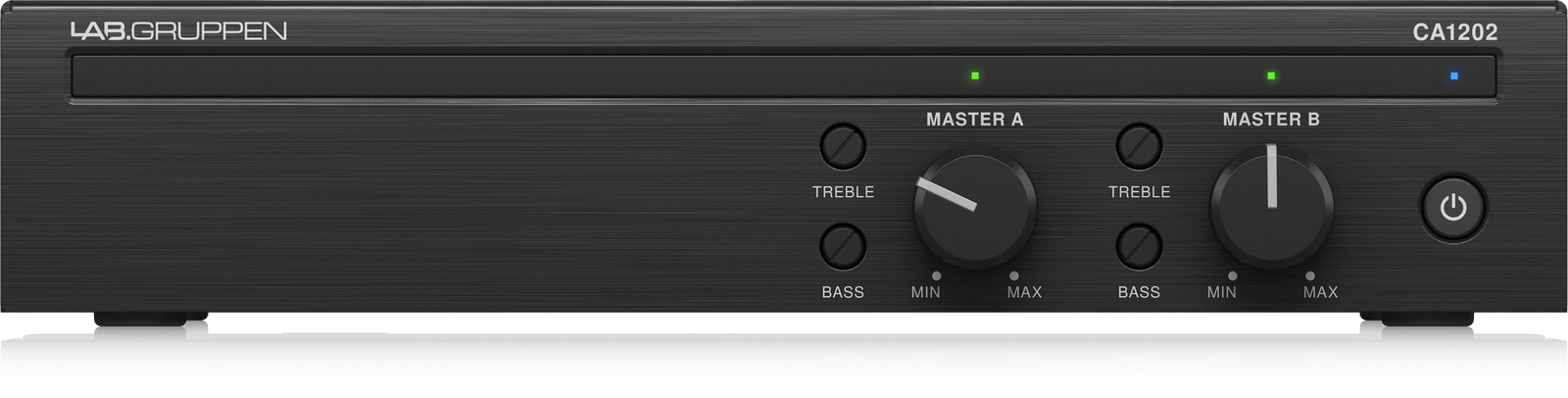

  • Front panel controls for master volume and bass/treble adjustments
  • Convection-cooled, fan-less design for silent operation

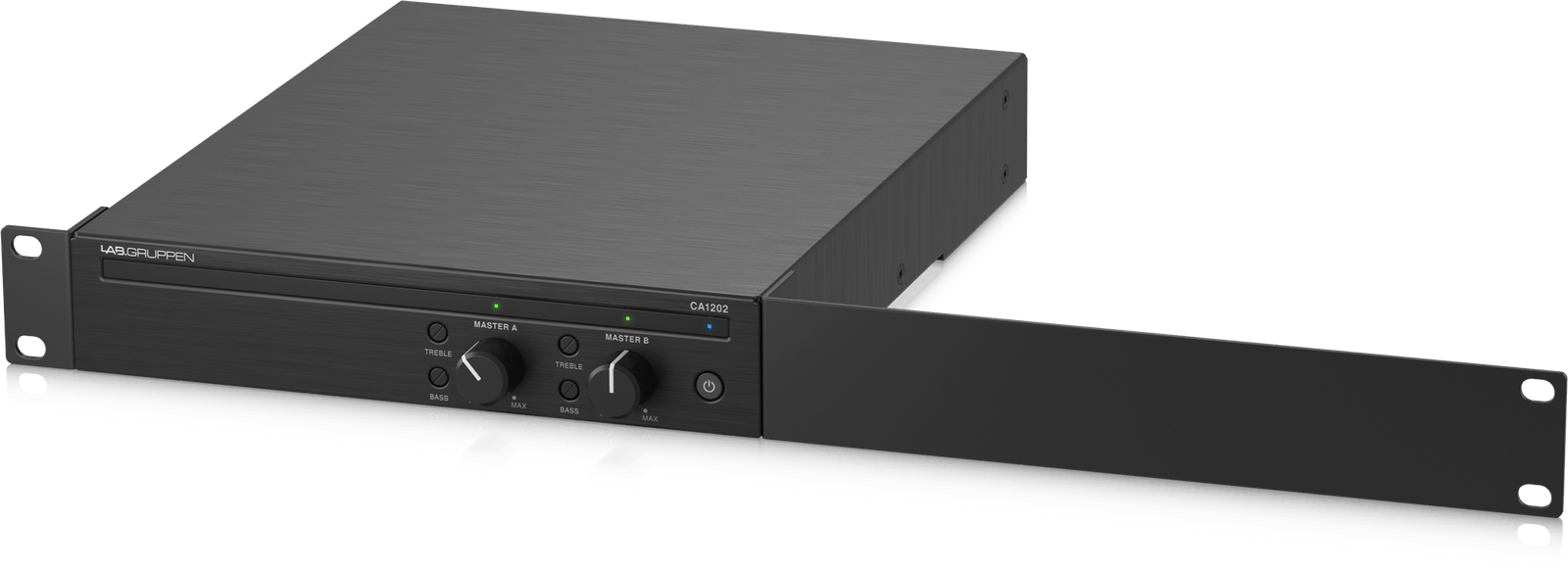

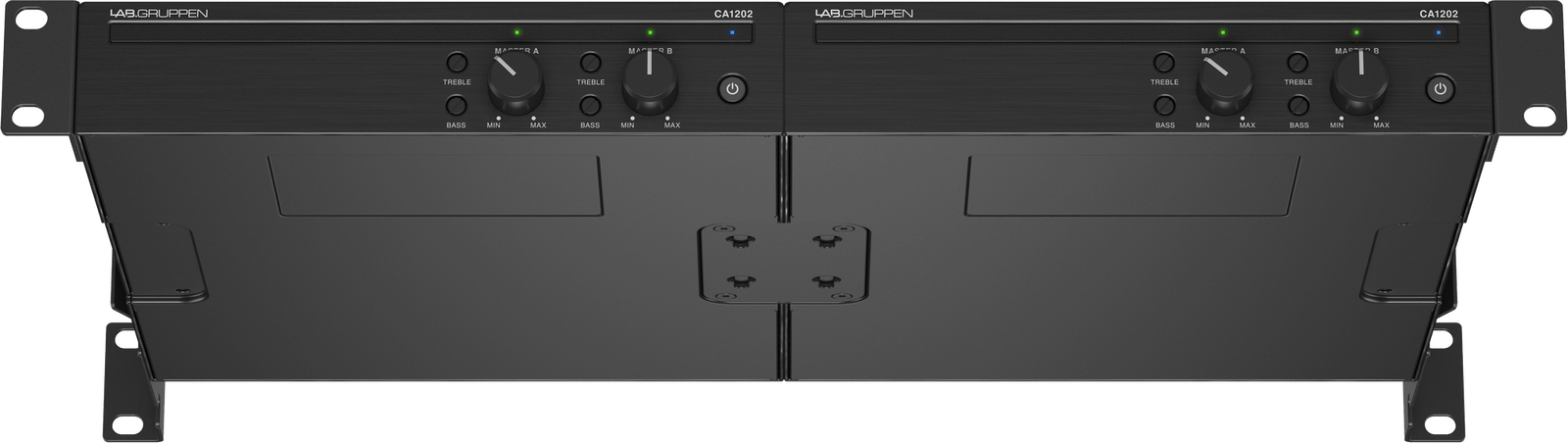

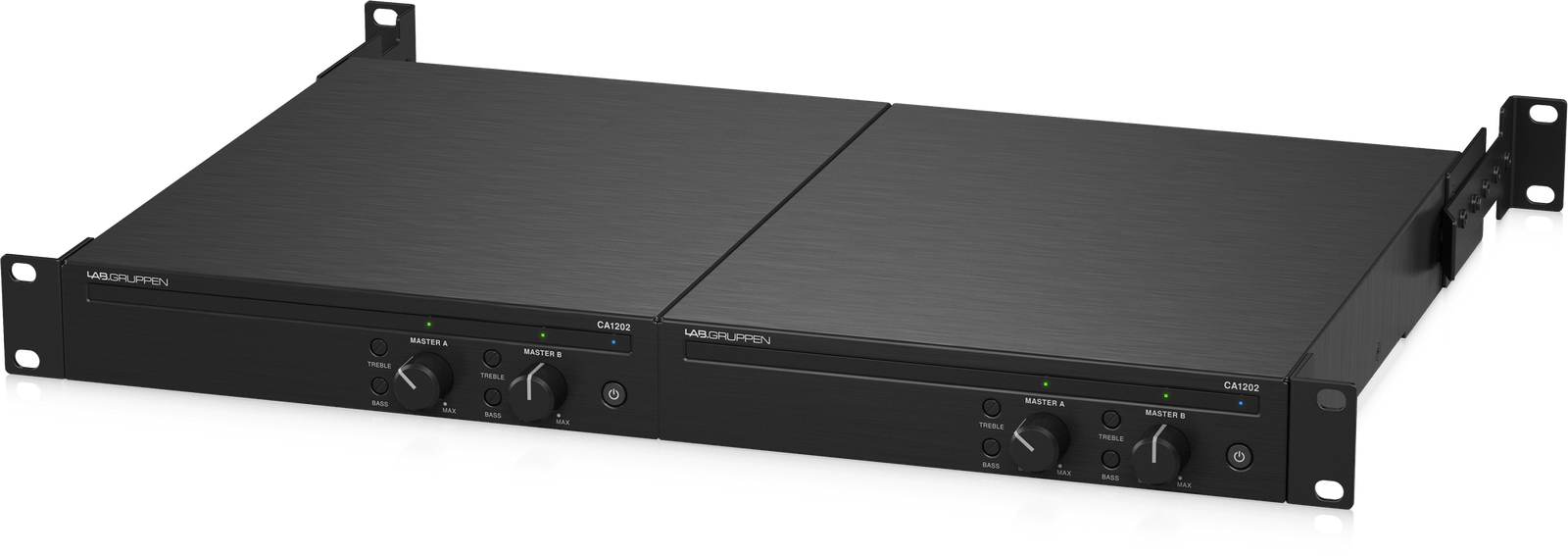

  • 1U rack-mountable, half-rack width for easy installation

Specifications

Category Specification Details
Amplifier Number of Channels 2
Power Rating 2 x 120 W Peak
Amplifier Class Class-D
Load Impedance / Voltage 4/8 Ohms, 70/100 V
Performance Protections DC Fault, Overcurrent, Thermal, Ultrasonic
Frequency Response 20 Hz to 20 kHz +0.5/-1 dB
Input Sensitivity Euroblock Line: 1.23 V; RCA Line: 0.62 V
Input Impedance 20k Ohms (Balanced), 10k Ohms (Unbalanced)
Max Input Level +22 dBu / 9.75 V
SNR > 97 dBA
Distortion < 0.05%
Crosstalk > 85 dB
Signal Processing Crossover Yes
EQ 2-Band Shelving EQ per Channel
Filters 1 x High-Pass: 80 Hz
Ducking/Muting No
Limiting Output

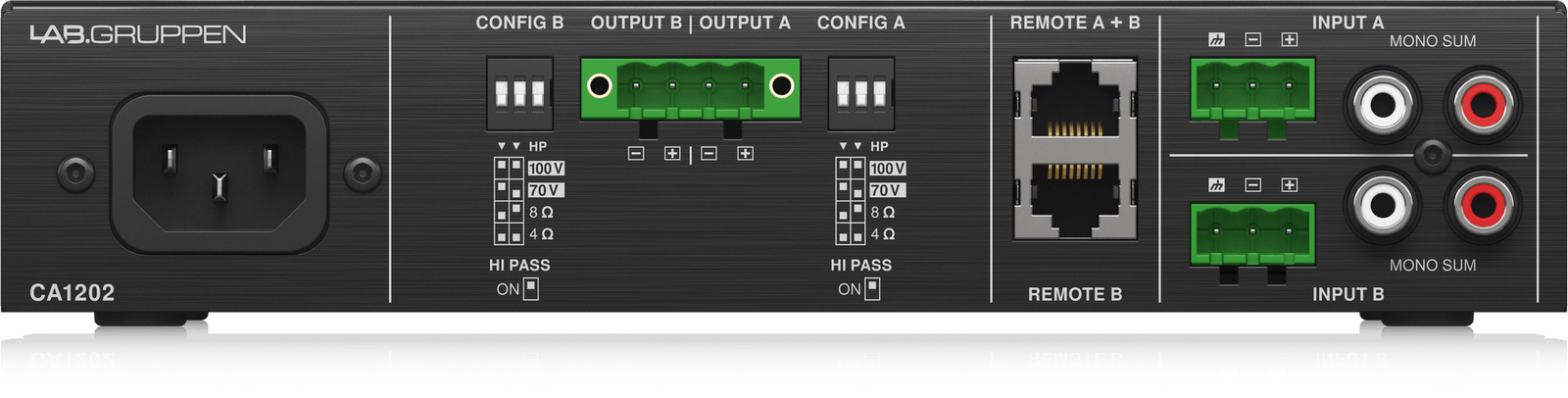

Connectivity I/O 2 x 3-Pin Euroblock Line Input, 2 x 2RCA TS Female Line Input
Digital I/O None
USB None
Power AC Input Power 100 to 240 VAC, 50 / 60 Hz
AC Power Connector 1 x IEC 15 A / NEMA 5-15
Power Consumption 70 W (1/8 Power)
Physical Dimensions 8.6 x 1.7 x 11.8″
Weight 5.8 lb
Rackmount Size 1 RU
Cooling Convection
Certifications CCC, CE, ENERGY STAR, PSE, RoHS, cTUVus
Packaging Info Package Weight 7.065 lb
Box Dimensions (LxWxH) 15.5 x 11.5 x 4.6″
