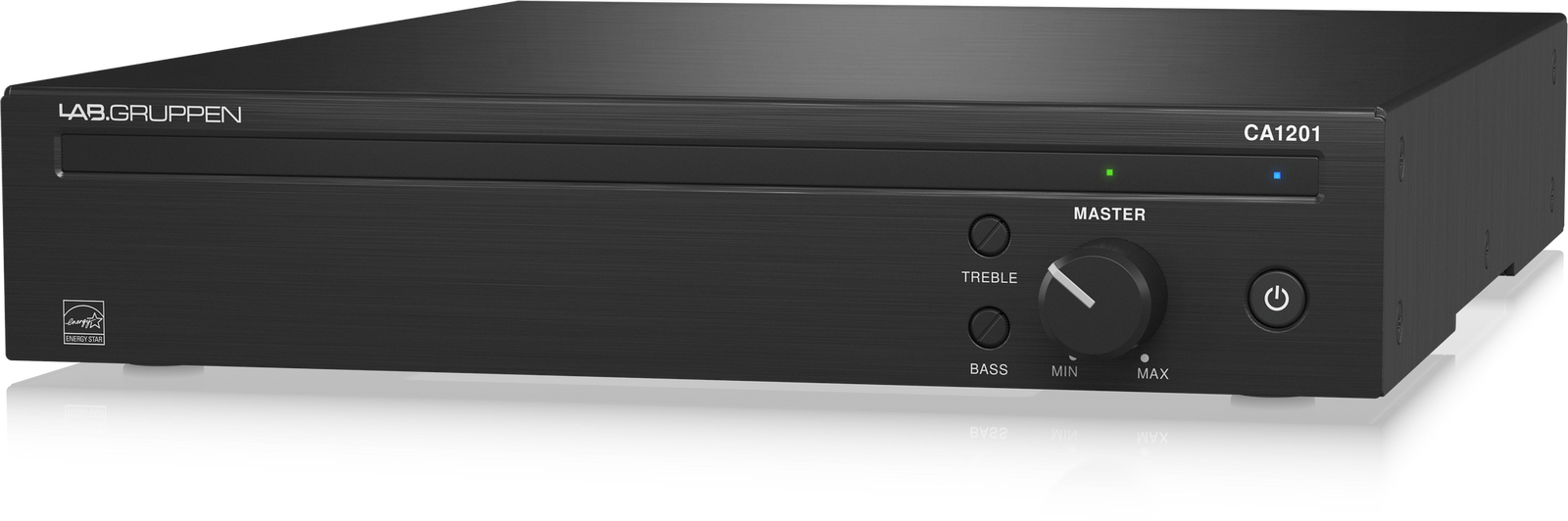

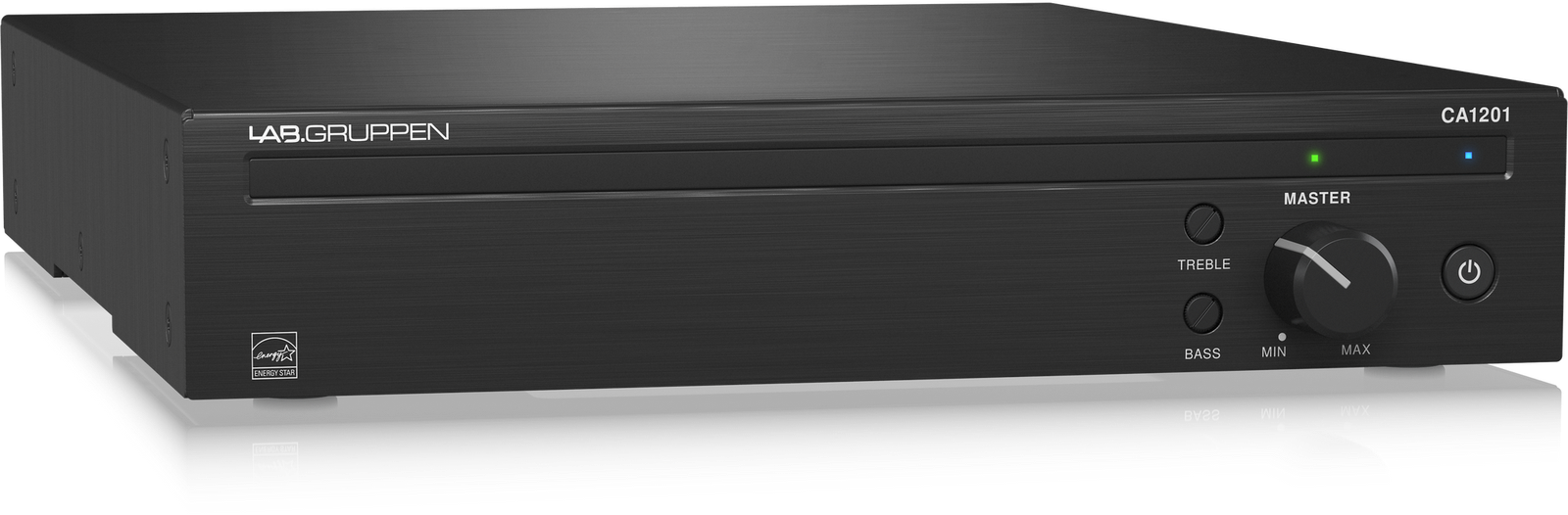

Lab Gruppen CA1201 120W Commercial Amplifier Energy Star Certified

Lab Gruppen

AED 1650.60 inc VAT.

The CA1201 120-Watt Commercial Amplifier is designed for versatile audio distribution in various commercial settings, delivering high-quality sound over both Low-Z (4/8 Ohm) and High-Z (70/100 V) configurations. Its ease of installation and operation make it suitable for non-technical users, ideal for venues such as bars, restaurants, retail spaces, and educational institutions where background music or public address systems are needed.

In stock
Request Quote
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: CA1201 Categories: , , Brand:

Description

The CA1201 120-Watt Commercial Amplifier provides the perfect solution for commercial and industrial applications requiring great sounding distributed audio coupled with power conservation and reduced operating expense. Capable of delivering high-quality sound over both Low-Z (4/8 Ohm) and High-Z (70/100 V) loudspeaker configurations offering extreme flexibility on every channel. The CA1201 is easy to install and operate – even for non-technical personnel. Simply put, the CA1201 is ideal-suited for bars & restaurants, retail destinations, hotels, corporate, education or other venues needing background music and/or a public address system.

Key Features

  • 120 Watt amplifier for commercial and industrial applications
  • Low-Z (4/8 Ohm) and High-Z (70/100 V) operation with switchable high-pass filter
  • Energy Star* certified design conserves energy and drastically reduces operational cost
  • Direct drive, constant power technology for superior audio performance and reliability
  • GPI remote volume control using standard RJ-45 connector and Ethernet cable

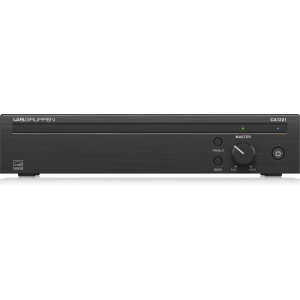

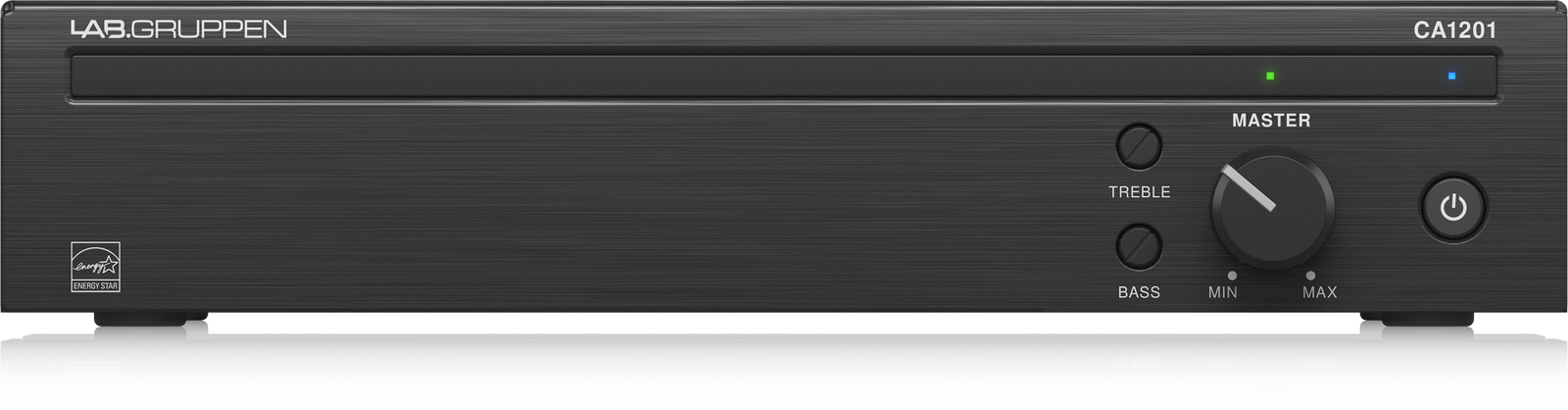

  • Individual front panel master volume and bass/treble controls
  • Auto Ramp circuitry for quiet and fast power up/down enables real-world energy savings
  • Front panel power control button for direct access

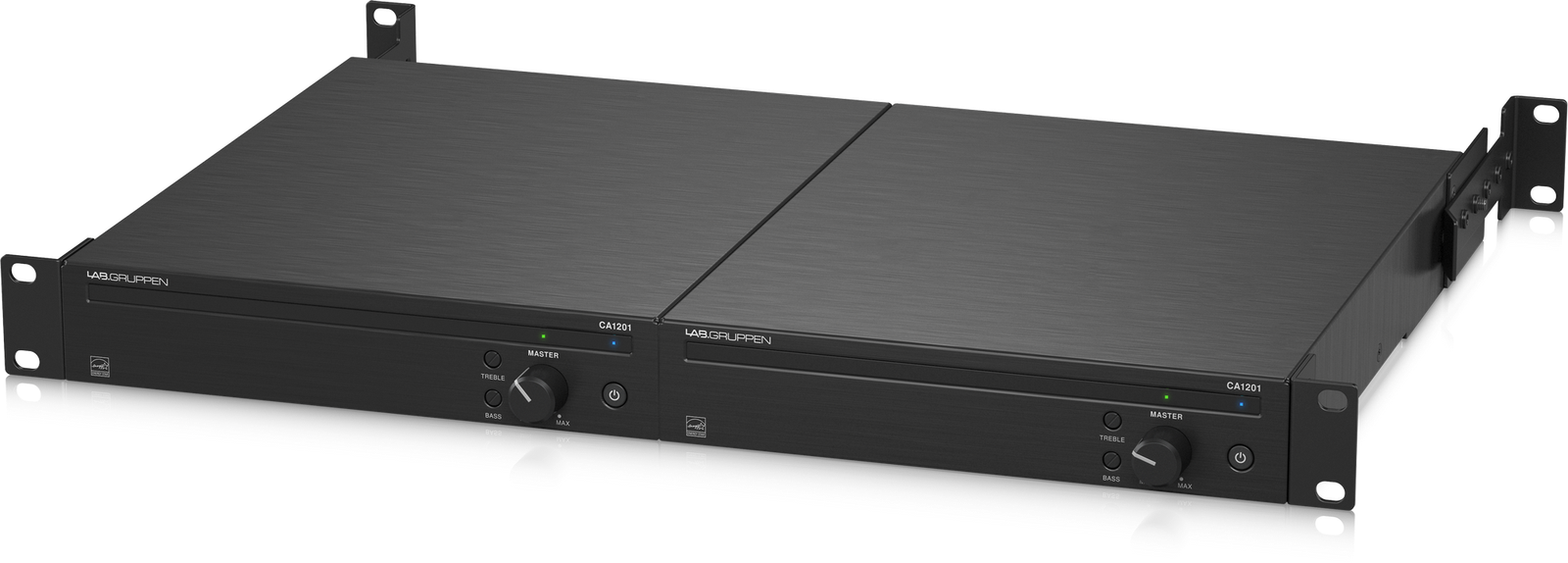

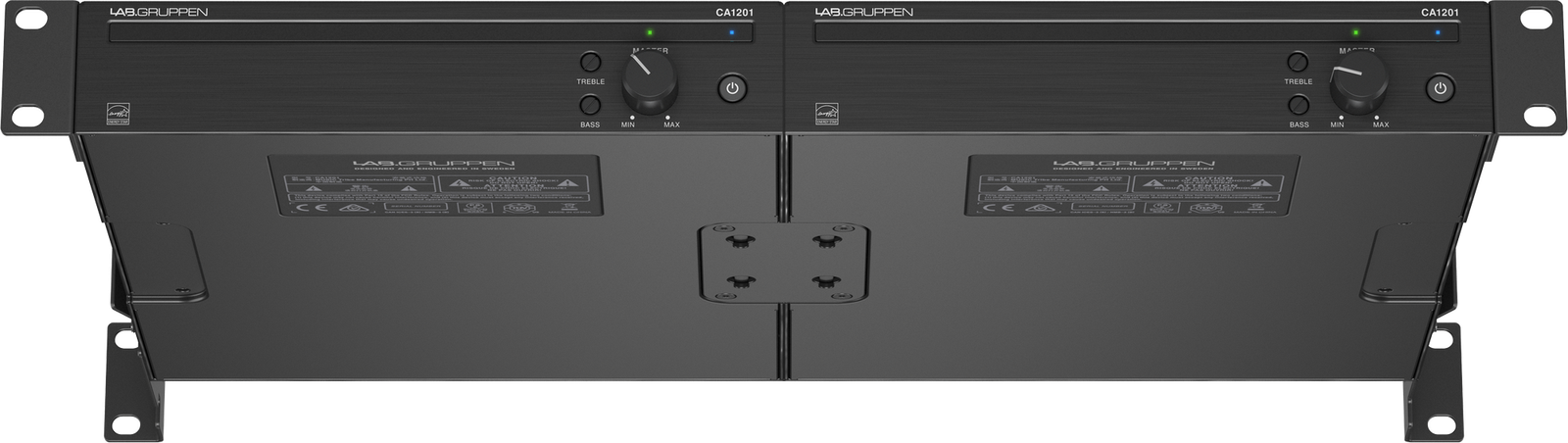

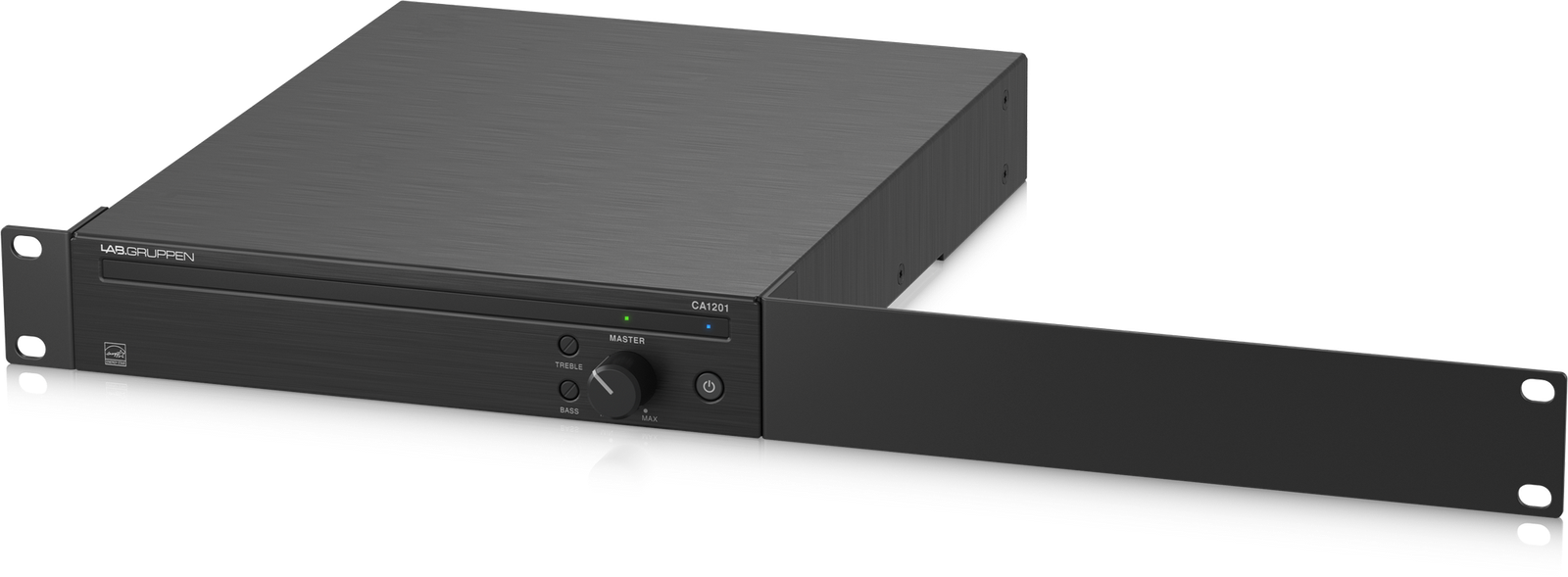

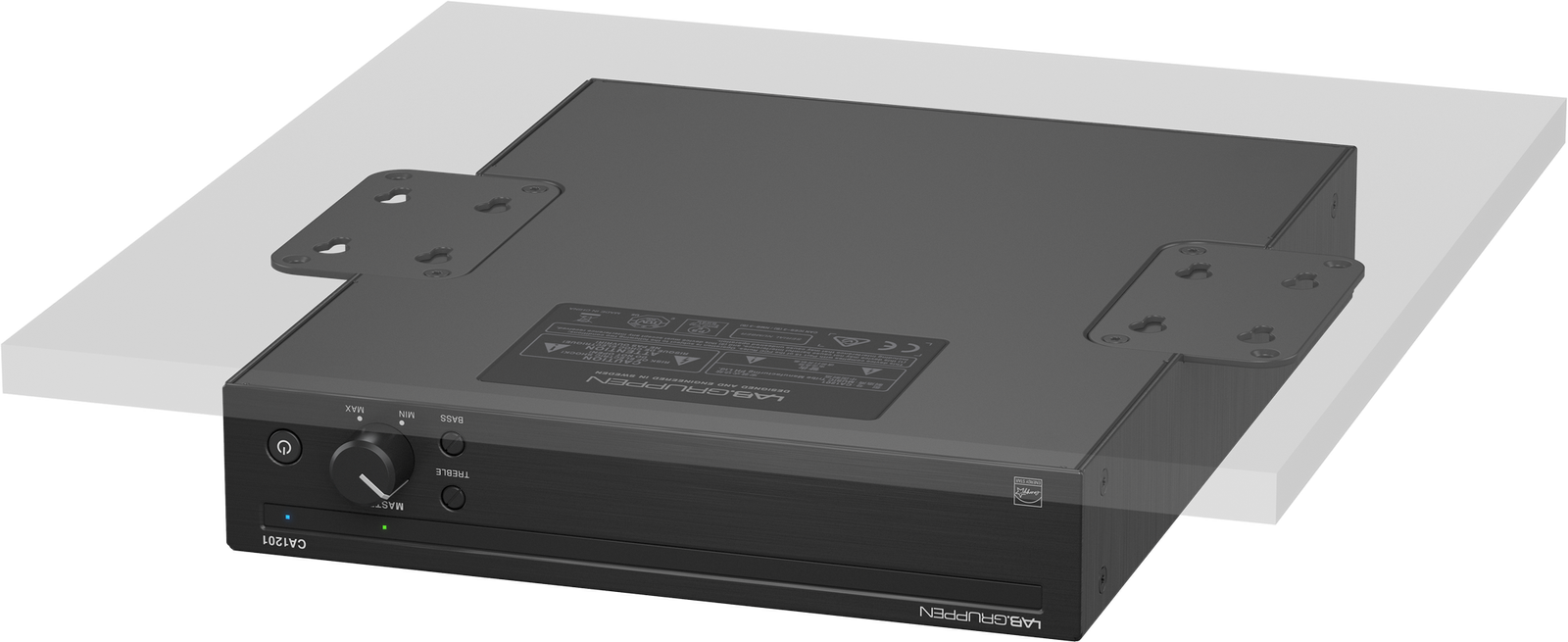

  • Rack-mountable 1U, half-rack width enclosure with joining brackets for rack, table and wall mounting
  • Euroblock type amplifier input and output connectors
  • Convection-cooled, fan-less amplifier technology for low noise

Specifications

Specification Details
Number of Channels 1
Power Rating 4 Ohms / 8 Ohms / 70 V / 100 V:
1 x 120 W Peak
Amplifier Class Class-D
Load Impedance / Voltage Mono:
4 / 8 Ohms (Minimum)
Mono:
70 / 100 V (Minimum)
Protections DC Fault, Overcurrent, Thermal, Ultrasonic
Frequency Response 20 Hz to 20 kHz +0.5/-1 dB
Input Sensitivity Euroblock Line:
1.23 V
RCA Line:
0.62 V
Input Impedance Euroblock Line:
20 Kilohms (Balanced)
Euroblock, RCA Line:
10 Kilohms (Unbalanced)
Max Input Level +22 dBu / 9.75 V
SNR > 97 dBA
Distortion < 0.05%
Crossover Yes
EQ 2-Band Shelving EQ per Channel
Filters 1 x High-Pass:
80 Hz
Ducking/Muting No
Limiting Output

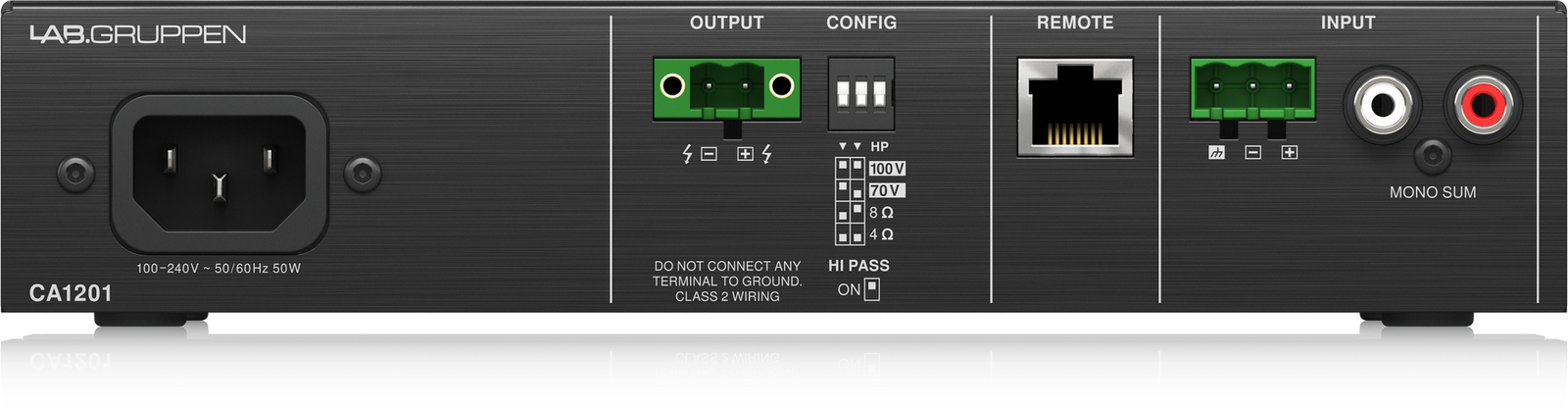

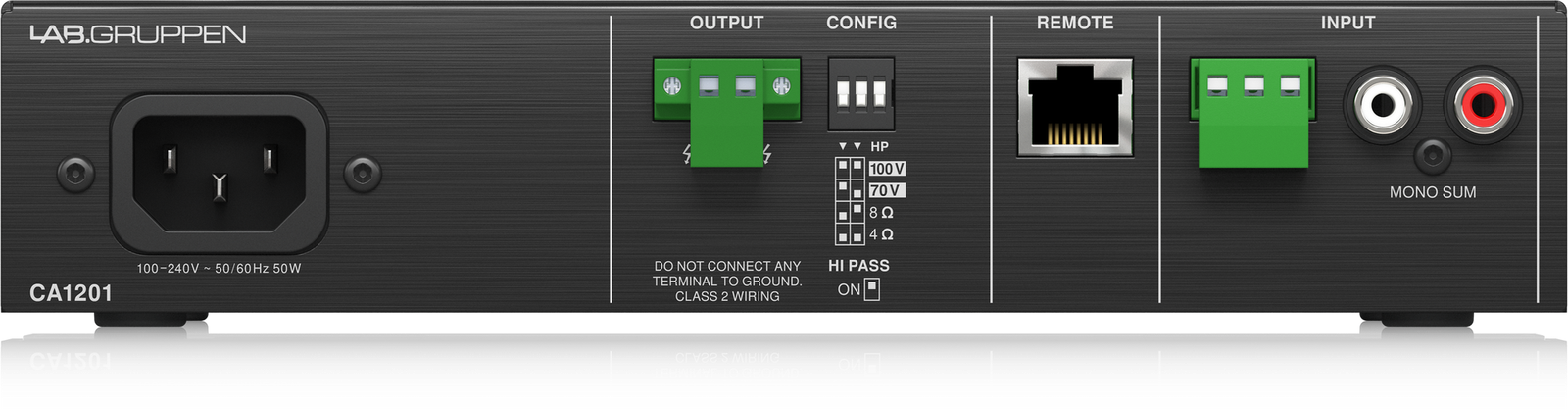

I/O 1 x Block 3-Pin Female Balanced Line Input
1 x 2RCA TS Female Unbalanced Line Input
Digital I/O None
USB None
AC Input Power Universal:
100 to 240 VAC, 50 / 60 Hz (T 3.15 A L 250 V)
AC Power Connector 1 x IEC 15 A / NEMA 5-15
Power Consumption 4 Ohms:
50 W (1/8 Power)
Rackmount Size 1 RU (with Included Hardware)
Cooling Convection
Certifications CCC, CE, ENERGY STAR, PSE, RoHS, cTUVus, as per Manufacturer
Dimensions 8.6 x 1.7 x 11.8″ / 218.4 x 43.2 x 299.7 mm
Weight 5.1 lb / 2.3 kg
Package Weight 6.16 lb
Box Dimensions (LxWxH) 15.5 x 11.4 x 4.5″
