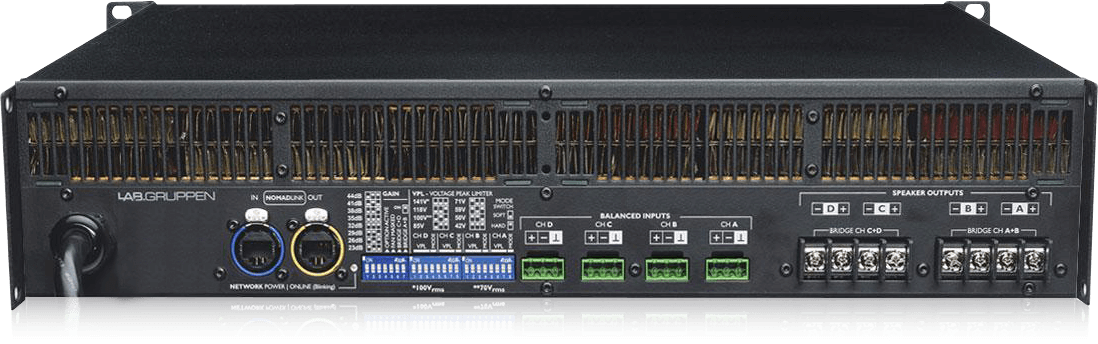

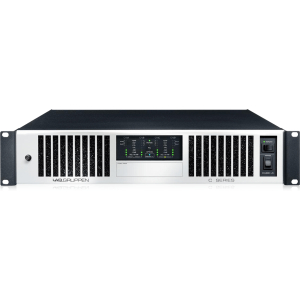

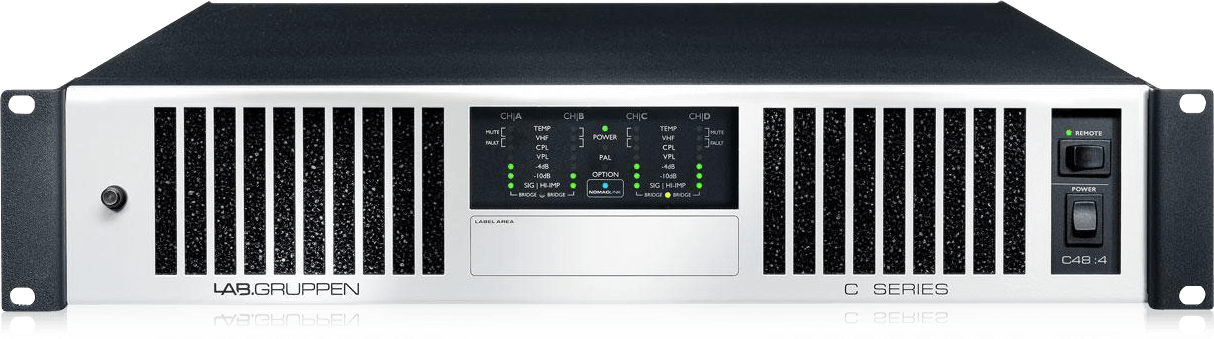

Lab Gruppen C 48:4 4800W 4-Channel Amplifier with NomadLink Network Monitoring for Install Applications

Lab Gruppen

AED 17196.90 inc VAT.

The C 48:4, part of the C Series family, delivers 4 × 1200 W at 4 ohms, making it the third largest amplifier in the series. It combines high power output with extensive protection and monitoring features in a compact 2U chassis.

In stock
Request Quote
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: C 48:4 Categories: , Brand:

Description

The C 48:4 is the Third Largest Amplifier in the C Series Family, Delivering an Impressive 4 × 1200 W at 4 OHMS. The C 48:4 is the third largest amplifier in the C Series family, delivering an impressive 4 × 1200 W at 4 ohms. The exceptional power output plus a long list of protection and monitoring features are all packed into a 2U chassis.

Key Features

  • 4800 Watt, 4-channel amplifier with up to 1200 Watts output per channel and NomadLink network for monitoring and control
  • Selectable gain plus scalable Voltage Peak Limiter (VPL) and bridge-mode operation allow custom configuration for any application
  • Class-TD output stage delivers Class-A/B audio quality with Class-D efficiency
  • Regulated Switch Mode Power Supply (R.SMPS) ensures constant power output at all times
  • Intuitive DeviceControl software monitors and controls key functions via the NomadLink network

Specifications

General
Specification Details
Number of amplifier channels 4
Peak total output all channels driven 4800 W
Peak output voltage per channel 141 V
Max output current per channel 17.5 Arms
Max Output Power (all channels driven)
Impedance Power
16 ohms 625 W
8 ohms 1000 W
4 ohms 1200 W
2 ohms 600 W
Performance
Specification Details
THD 20 Hz – 20 kHz at 1 W <0.1%
THD at 1 kHz and 1 dB below clipping <0.05%
Signal to Noise Ratio >112 dBA
Channel separation (Crosstalk) at 1 kHz >70 dB
Frequency response (1 W into 8 ohms) + 0 / -3 dB 6.8 Hz – 34 kHz
Dimensions
Dimensions W: 483 mm (19”), H: 88 mm (2 U), D: 343 mm (13.5”)
Weight 12 kg (26.4 lbs)
Finish
Finish Black painted steel chassis with gray painted steel front
Approvals
Approvals CE, ANSI/UL 60065 (ETL), CSA C22.2 NO. 60065, FCC
