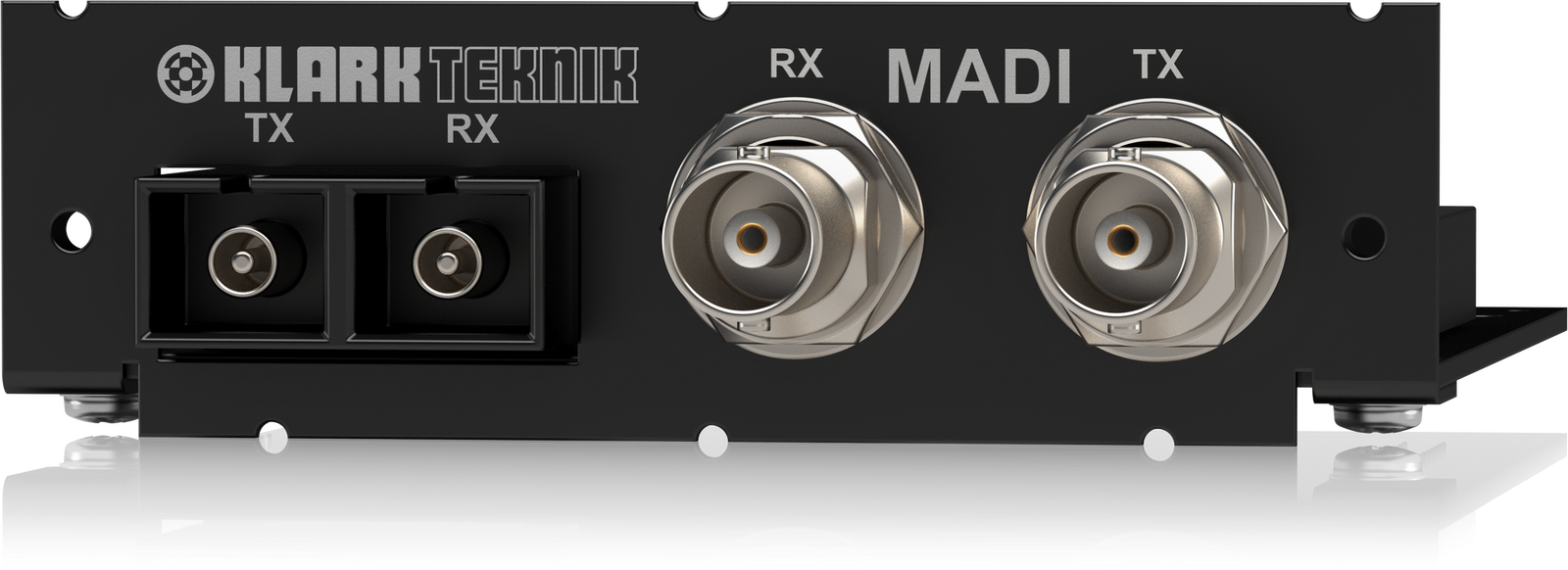

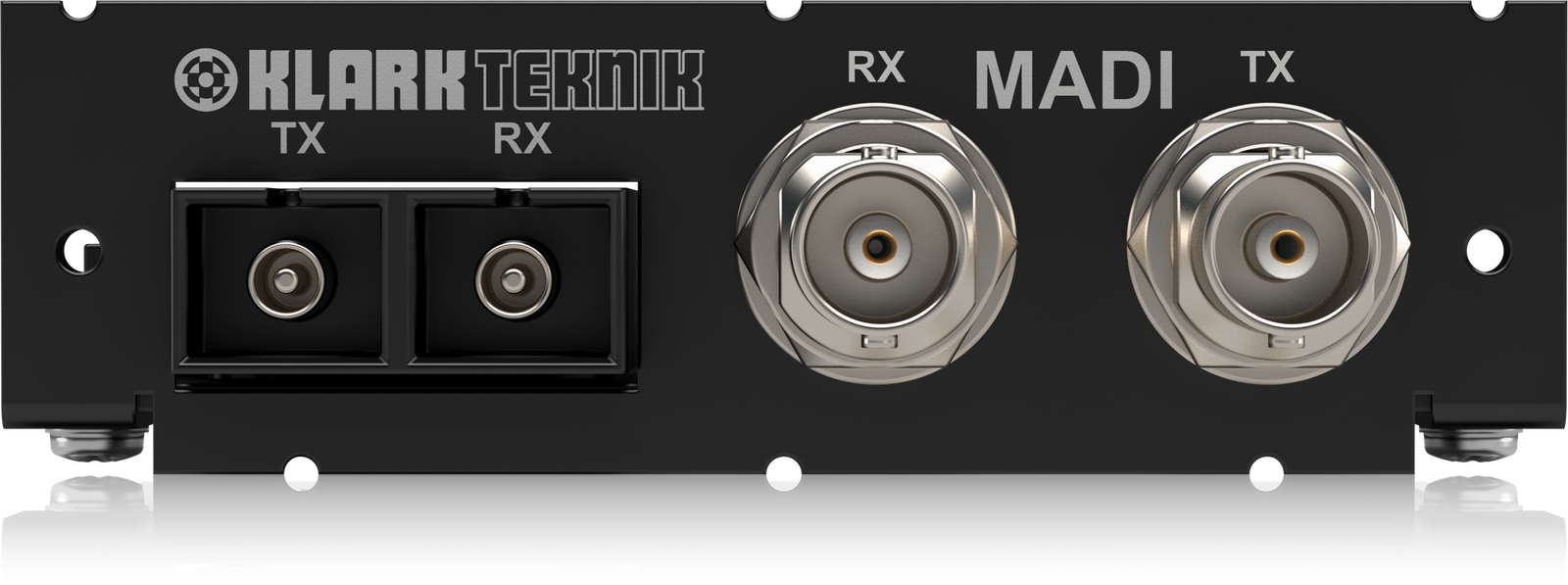

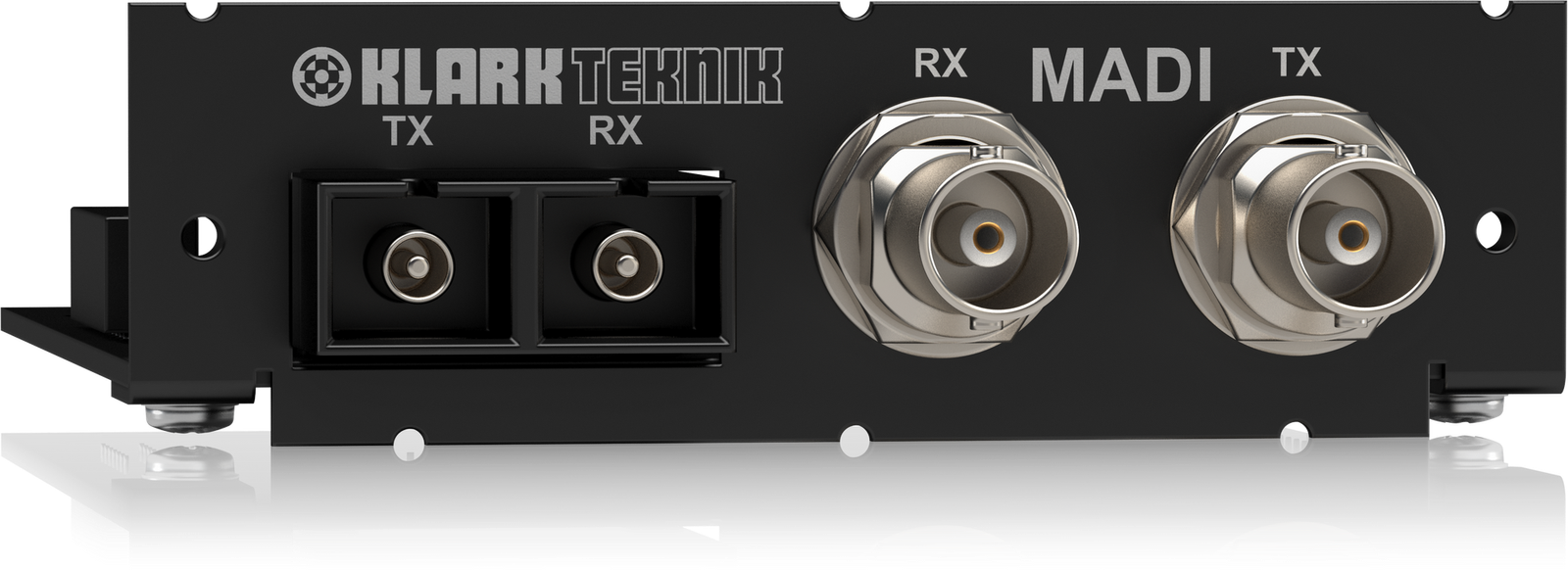

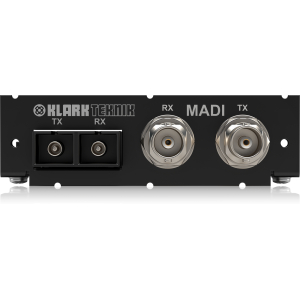

Klark Teknik KT-MADI MADI Network Module, 64 Bidirectional Channels

The KT-MADI network module provides MADI compatibility for the Klark Teknik DN9650 and DN9652 Network Bridges, and offers high performance point-to-point links over industry standard optical fibre and coaxial copper connections. It features up to 64 or 32 bidirectional channels at 48 kHz or 96 kHz respectively, and is ideally suited for interfacing with third-party recording and playback equipment. The KT-MADI ensures reliable operation with its dual redundant operation, automatically switching to coaxial copper in case of an optical fibre failure.

The module can function as a MADI clock master, MADI clock slave, or sync to external clock sources available in the host units DN9650 or DN9652. The KT-MADI is compatible with the Cirrus CM-1 standard, making it a versatile choice in various setups.

Features

• MADI (AES10-compliant) network module supporting up to 64 bidirectional channels at 48 kHz and 32 bidirectional channels at 96 kHz
• Compatible with Klark Teknik DN9650 and DN9652 network bridges and Midas NEUTRON-NB expansion module
• Operates up to 500 m over optical fibre link and 200 m over coaxial copper link
• Optical transmission via SC-Duplex connectors
• Copper transmission via 75-ohm coaxial BNC connectors
• Dual-redundant operation with automatic failover
• Operational as MADI clock master, slave, or external clock through host unit

Specifications
