Description

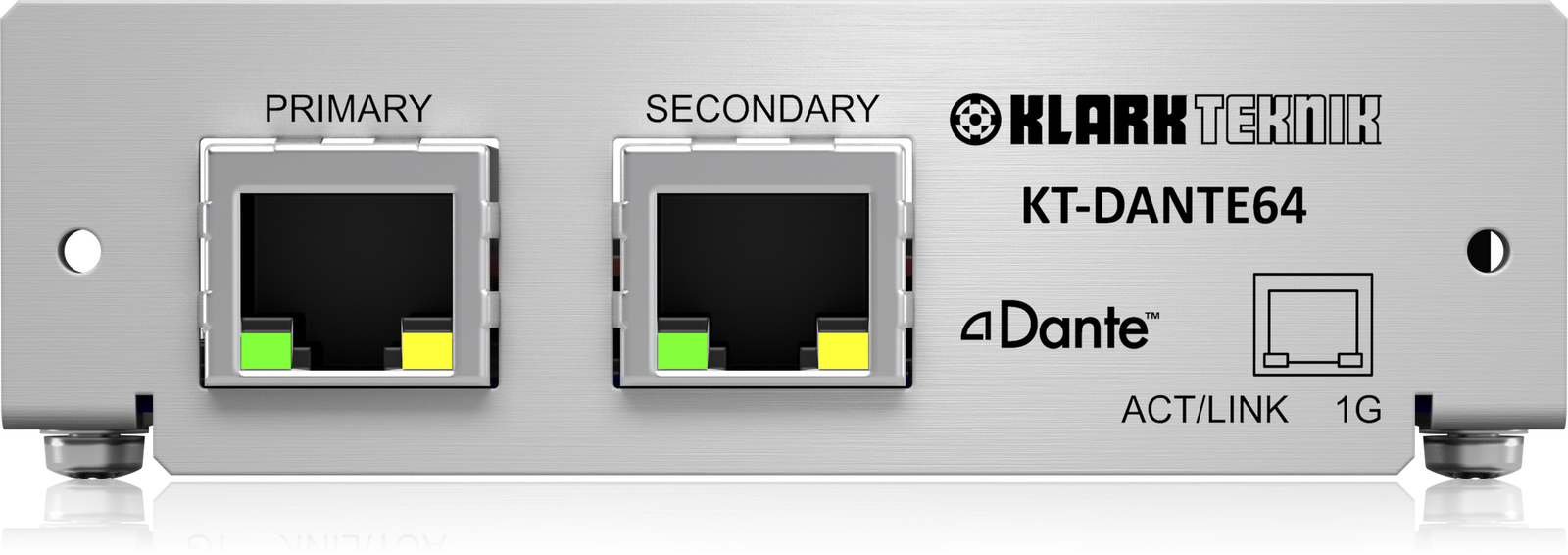

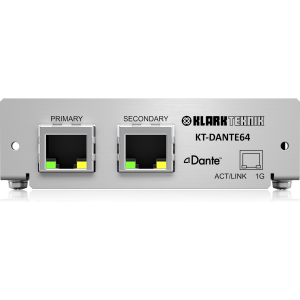

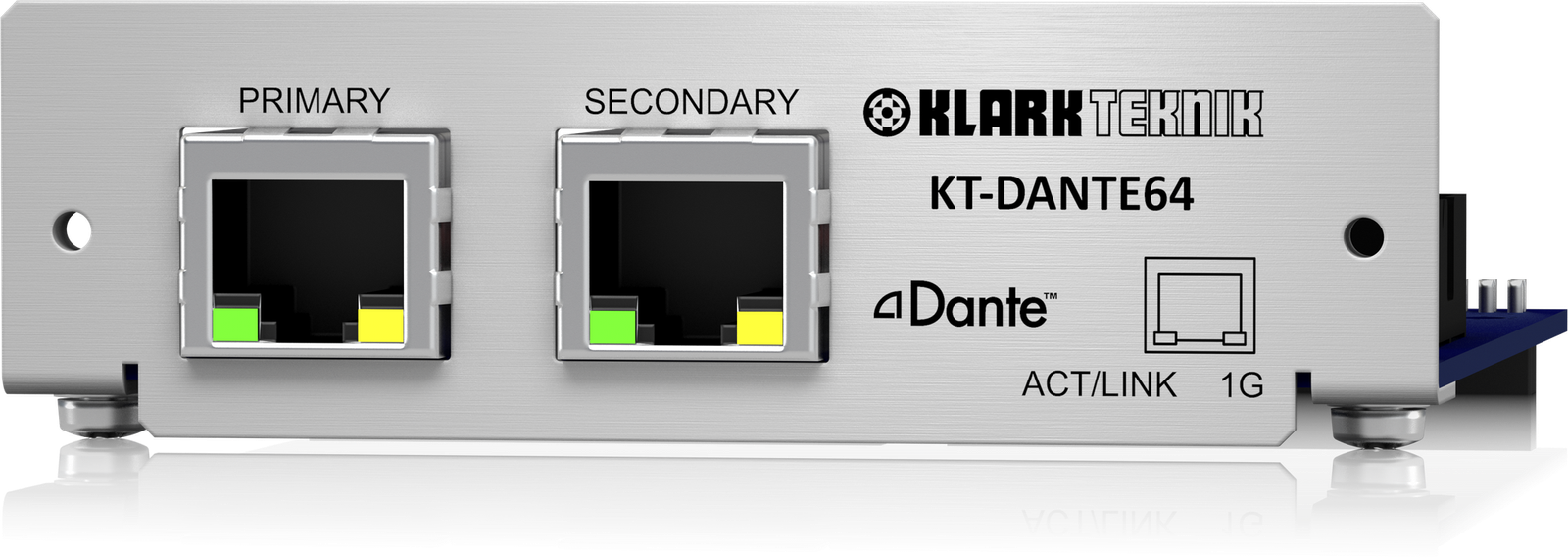

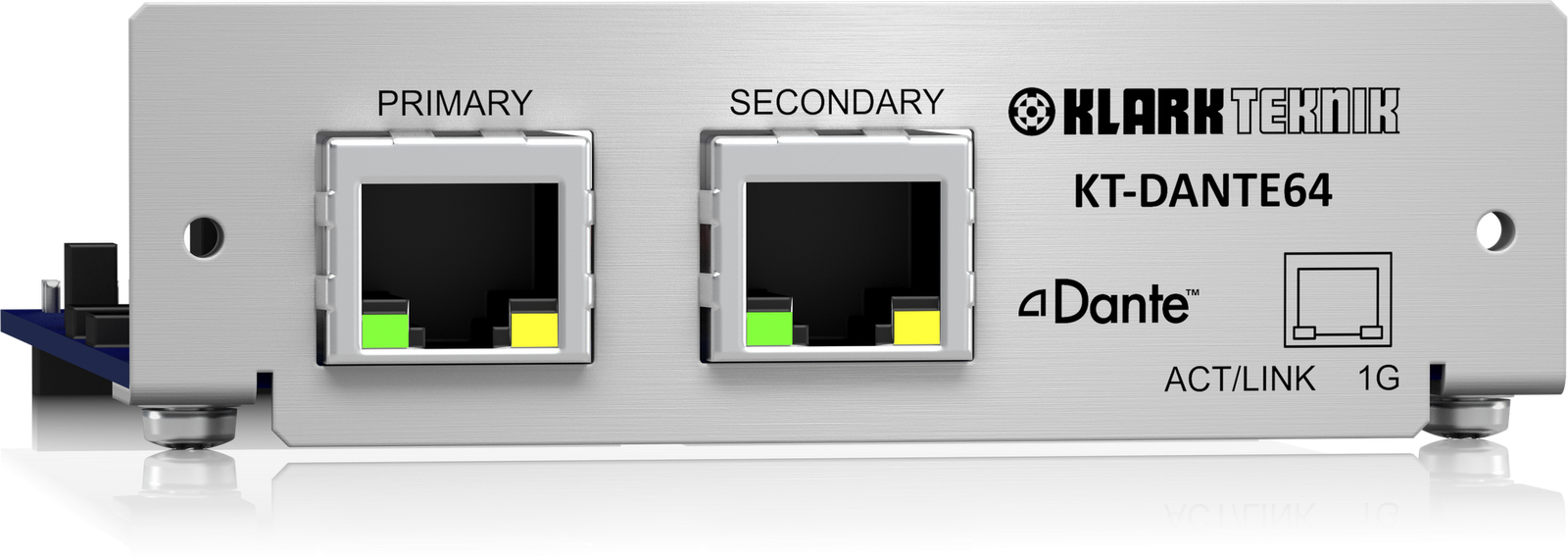

The KT-DANTE64 network module offers exceptional Audinate Dante compatibility for Klark Teknik DN9650 and DN9652 Network Bridges. It features up to 64 bidirectional channels at 48 kHz, or 32 channels at 96 kHz. With its high-performance direct-to-computer audio recording capabilities, flexible routing options, and true Plug and Play technology, it ensures low latency, minimal jitter, and sub-microsecond synchronization. Additionally, being Internet Protocol (IP) compliant allows it to operate over standard Ethernet networks, utilizing off-the-shelf computer hardware without needing a dedicated network infrastructure.
Features
- Audinate Dante network module compatibility with Klark Teknik DN9650 and DN9652 network bridges, and Midas NEUTRON-NB expansion module
- Support for Dante Virtual Soundcard for multichannel recording and playback on PC or Mac computers
- Dual-redundant Dante networking with primary and secondary Ethernet interfaces
- Operates using either the internal Dante network PTP clock or external clock via the host unit
- Remote configuration possible using optional Dante Controller software for PC or Mac
- LED indicators for monitoring network activity and speed
Specifications
| Specification |
Details |
| Compatibility |
Klark Teknik DN9650 and DN9652 Network Bridges, Midas NEUTRON-NB Expansion Module |
| Module Type |
Cirrus CM-1 Compatible |
| Ports |
2 x RJ45 |
| Channels |
64 (Bidirectional) at 48 kHz, 32 (Bidirectional) at 96 kHz |
| Sample Rates |
44.1, 48, 88.2, and 96 kHz |
| Bit Depth |
16-Bit, 24-Bit, and 32-Bit |
| Audio Buffering |
Up to 2000 Samples per Channel |
| Clock Sources |
PTP (Precision Time Protocol) or External Clock via Host Unit |
| Dimensions |
1.2 x 4.3 x 3.5″ / 3.1 x 11 x 8.9 cm |
| Weight |
Not Specified by Manufacturer |
Packaging Info
| Package Weight |
0.395 lb |
| Box Dimensions (LxWxH) |
6.4 x 5.3 x 2.25″ |
