Description

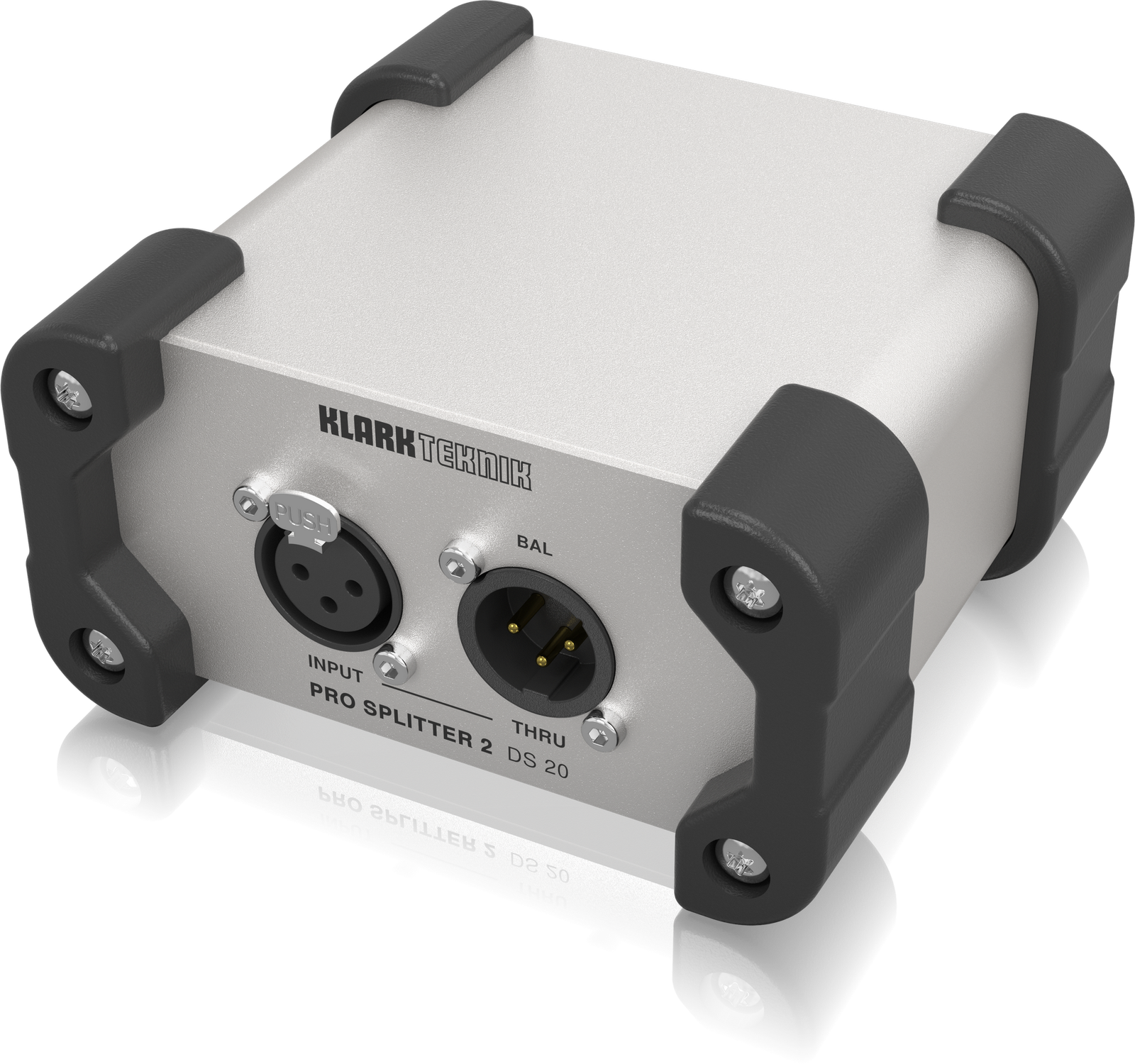

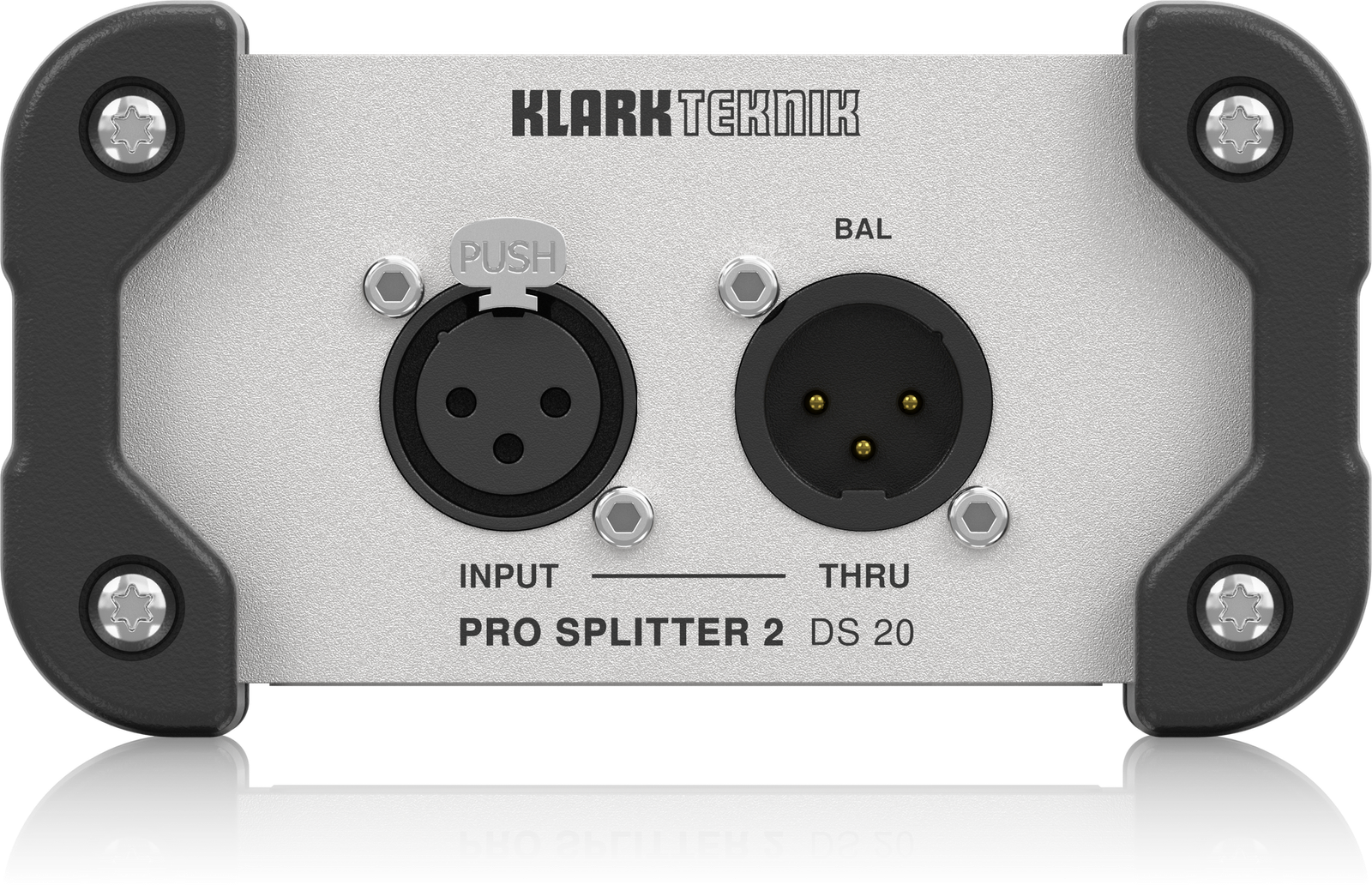

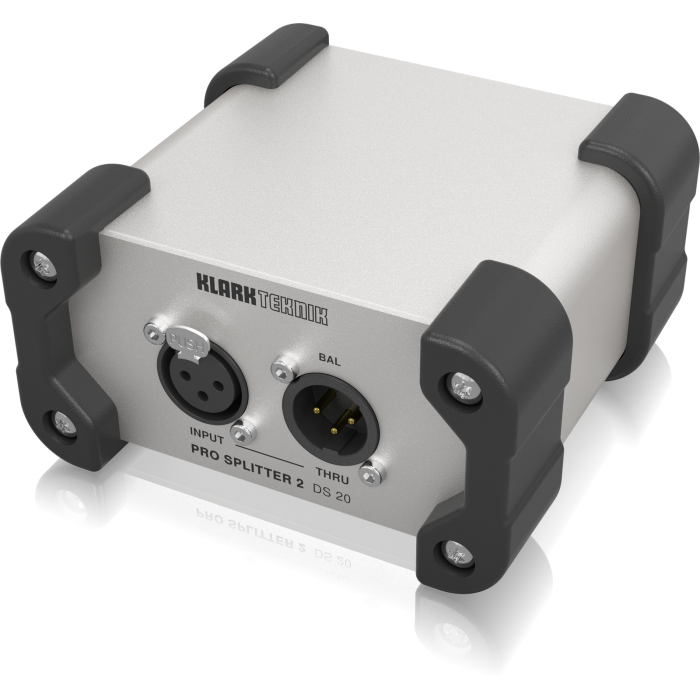

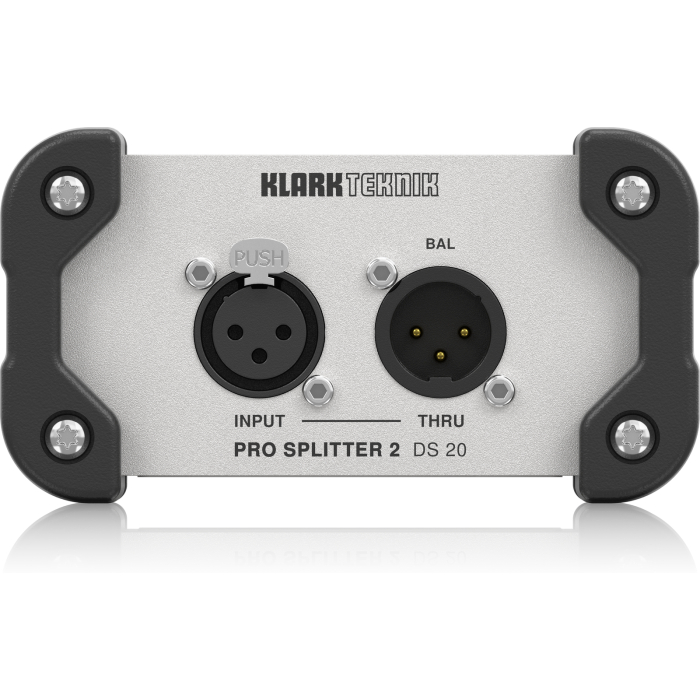

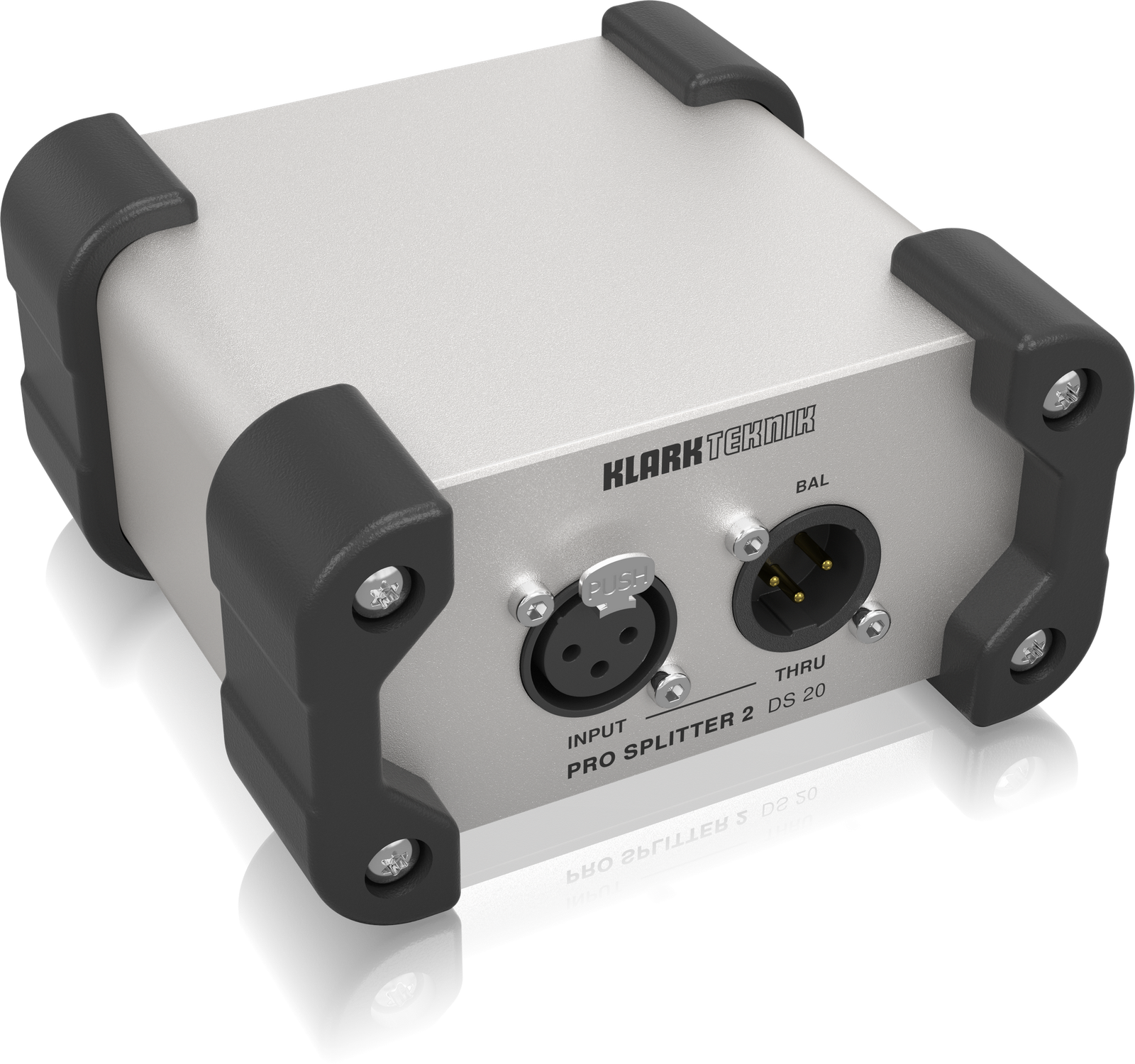

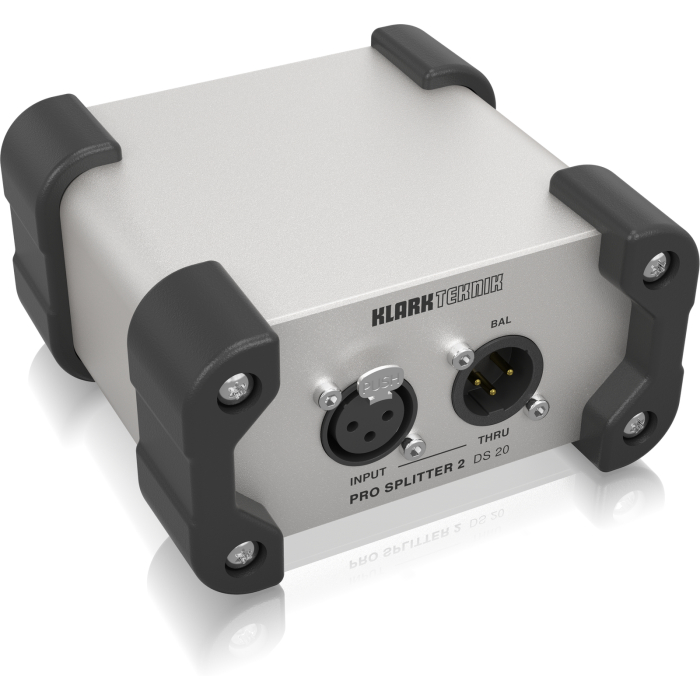

KLARK TEKNIK DS 20 PRO SPLITTER 2
Building on KLARK TEKNIK’s storied legacy of highest-quality signal processing devices, the DS 20 PRO SPLITTER 2 offers the exceptional headroom, dynamic response, and sonic clarity that professionals expect. Ideal for routing balanced XLR signals to multiple discrete destinations, including FOH and monitor consoles, active monitor loudspeakers, broadcast mixers, and more. A passive device, the DS 20 operates without the need for external power. Equipped with a custom-built MIDAS transformer, the DS 20 is the perfect solution for a wide range of professional audio and multimedia applications.
Features
- Line level splitter sends single input signal to 2 outputs
- Custom-built Midas transformer for highest signal integrity
- High headroom design offers superior sound quality
- Passive design does not require any power supply
- High quality Neutrik XLR connectors

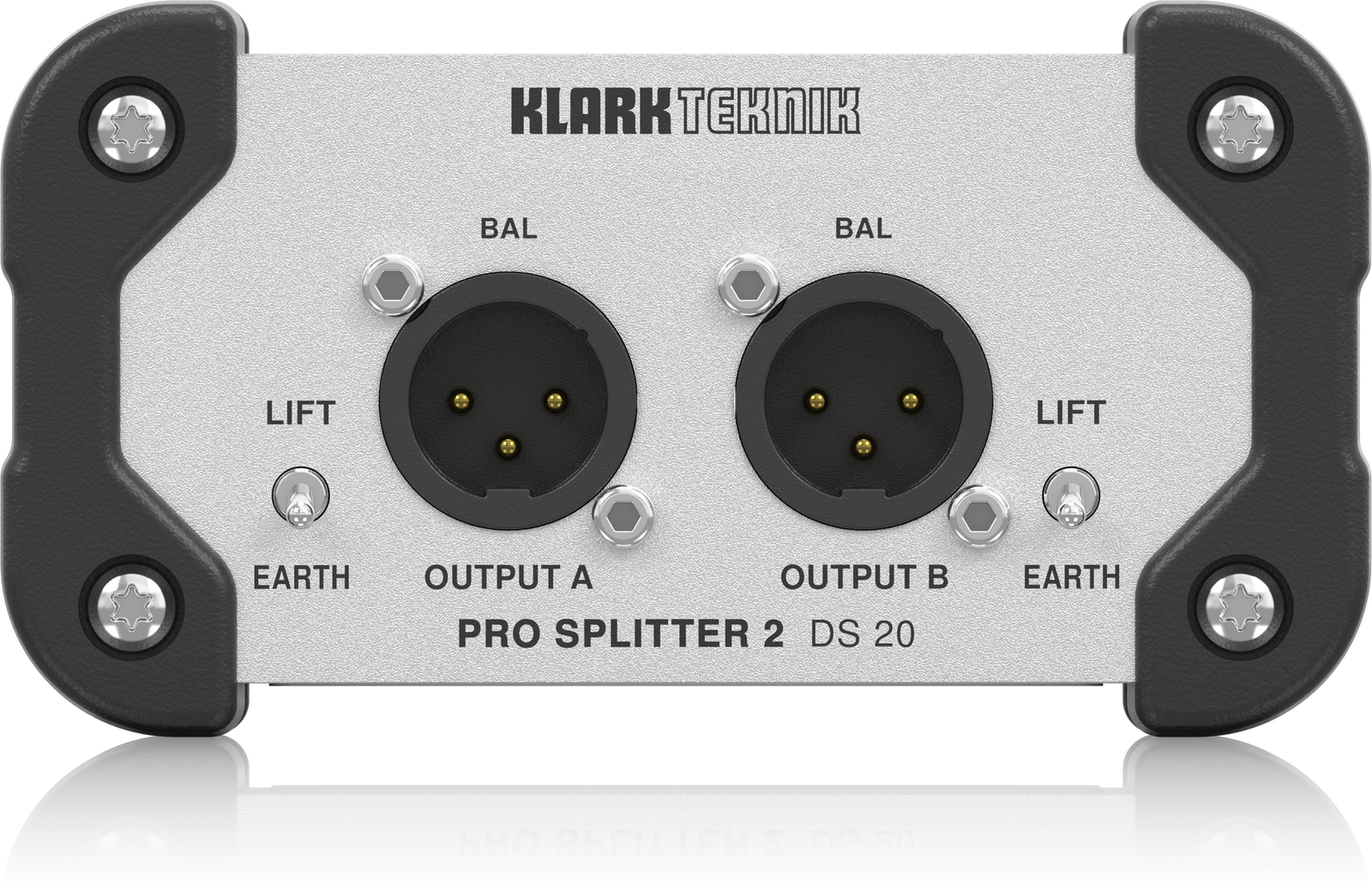

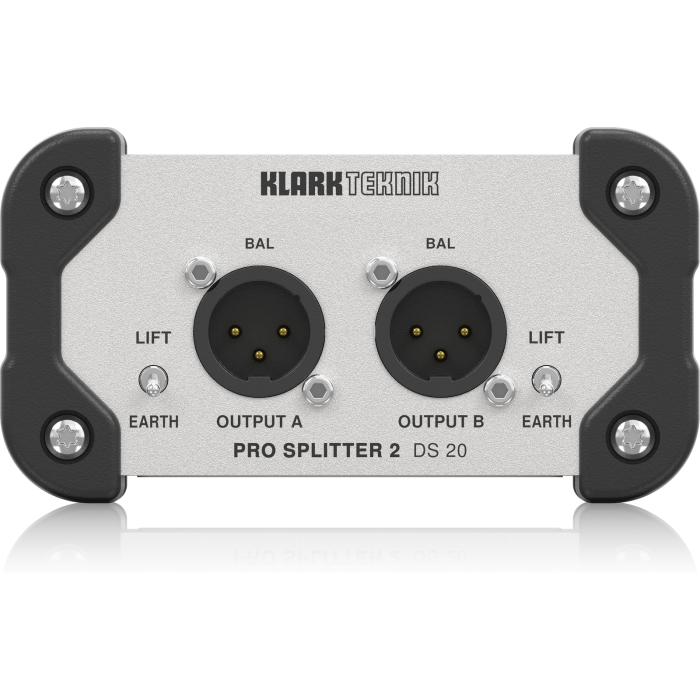

- Earth Lift switches for each output eliminates ground loop problems
- Fully transformer-isolated design ensures electrical separation
- Ultra-low noise and ultra-linear system for highest signal integrity
- Aluminium extrusion casing with protective rubber corners
- Compact and rugged design
Specifications
Audio Connections
Input |
1 x XLR, balanced |
Input impedance |
1.9 kΩ, balanced |
Thru |
1 x XLR, balanced |
Output A/B |
2 x XLR, balanced |
System
Frequency response |
30 Hz to 45 kHz, ±3 dB |
Dynamic range |
+124 dB |
THD+N |
< 0.03 % @ 1 kHz, +4 dBu |
S ratio |
> 100 dB @ +4 dBu |
Dimensions / Weight
Dimensions (W x D x H) |
118 x 120 x 64 mm (4.6 x 4.7 x 2.5″) |
Weight |
0.6 kg (1.3 lbs) |
