Klark Teknik DN9680-MM Multi-Mode Optical Fibre Module, 500m Range, 192 Channels
In stock
- Estimated Delivery: 2–3 business days across the UAE
- Free Shipping & Returns : On all orders over AED 1000
The DN9680-MM kit upgrades KLARK TEKNIK DN9680 units for multi-mode fibre, supporting 192 channels of 24-bit digital audio at 96 kHz over 500 meters using dual fibre cable, allowing bidirectional optical communication.
Description
DN9680-MM Multi-Mode Optical Fibre Transceiver Module Kit

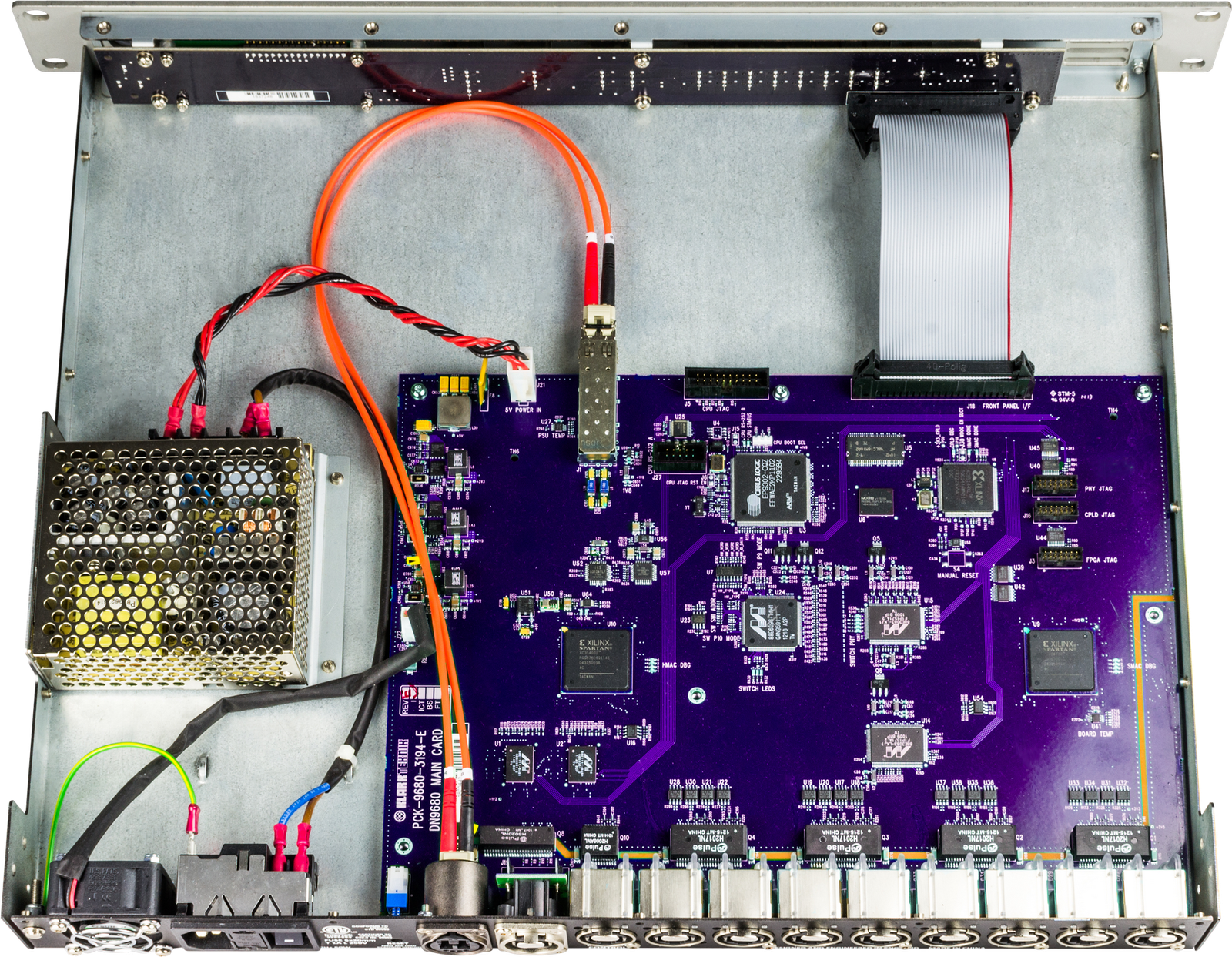

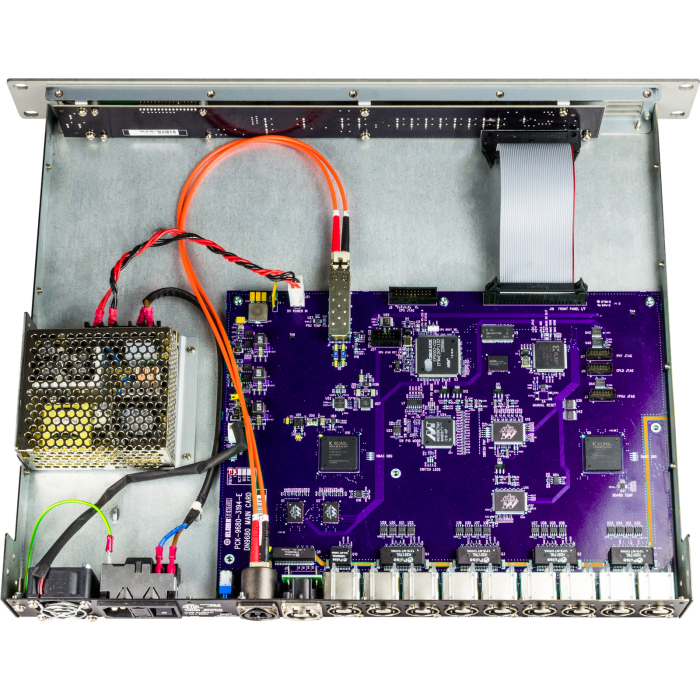

The DN9680-MM multi-mode optical fibre transceiver module kit is a retrofit replacement designed to convert two KLARK TEKNIK DN9680 8 Port AES50 Extender and Multiplexer units from single mode fibre to multi-mode fibre operation. A pair of DN9680 units fitted with DN9680-MM modules enables a bidirectional optical link on one multi-mode dual fibre cable and supports the transmission of 192 bidirectional channels of 24-bit digital audio at a 96 kHz sample rate over a 500-metre range.
Features
- Multi-mode optical fibre module with a 500 metre range
- Converts DN9680 from single mode fibre to multi-mode fibre operation

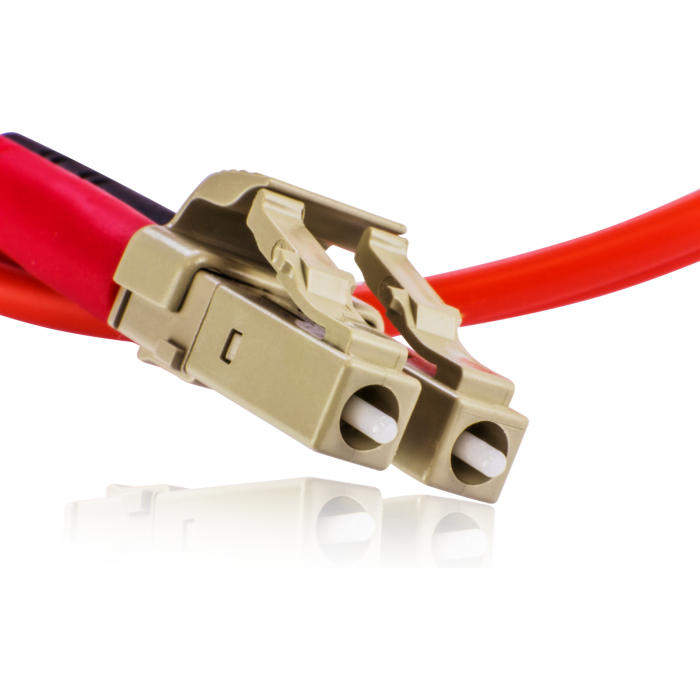

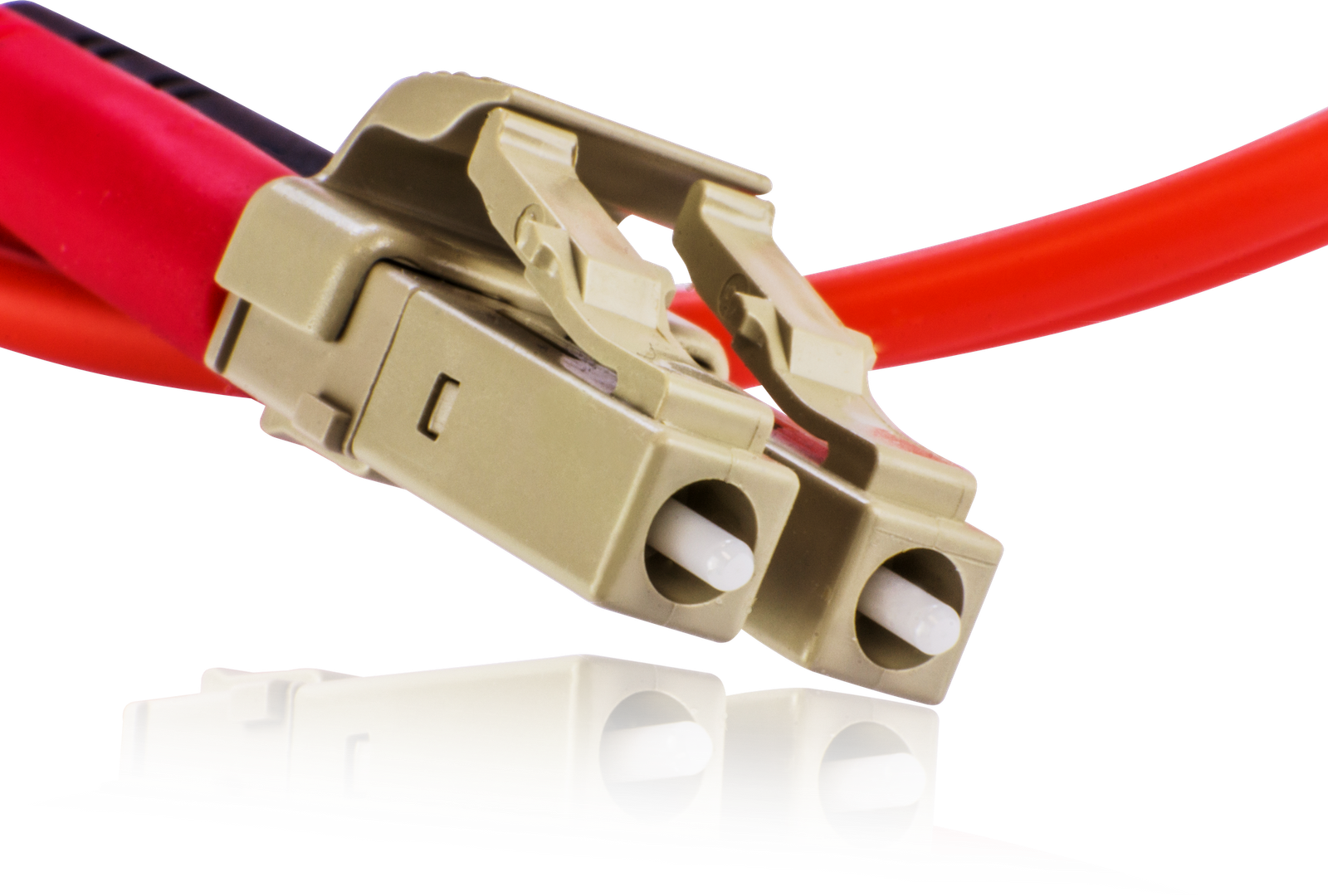

- Dual-fibre Neutrik opticalCON DUO connector used for optical fibre snake connection
Specifications
| Specification | Details |
|---|---|
| Intended Use | Retrofit replacement in the KLARK TEKNIK DN9680 8 Port AES50 Extender and Multiplexer |
| Bidirectional Operation | Enabled with one dual multi-mode optical fibre cable over a 500 metre range |
| Channel Capacity | 192 bidirectional channels |
| Audio Quality | 24-bit digital audio at 96 kHz sample rate |

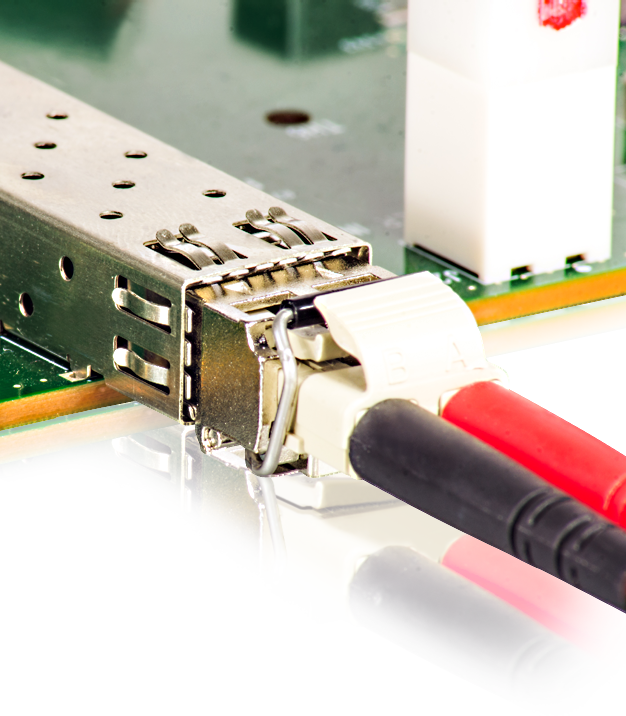

| Internal Cable | 0.5 m internal dual multi-mode optical fibre cable terminating in LC-Duplex connectors |
| Manufacturer | Finisar (Part number: FTLF8519P3BNL) or approved equivalent |

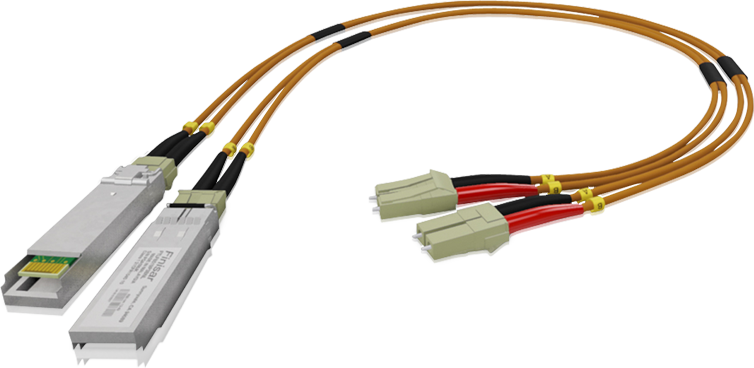

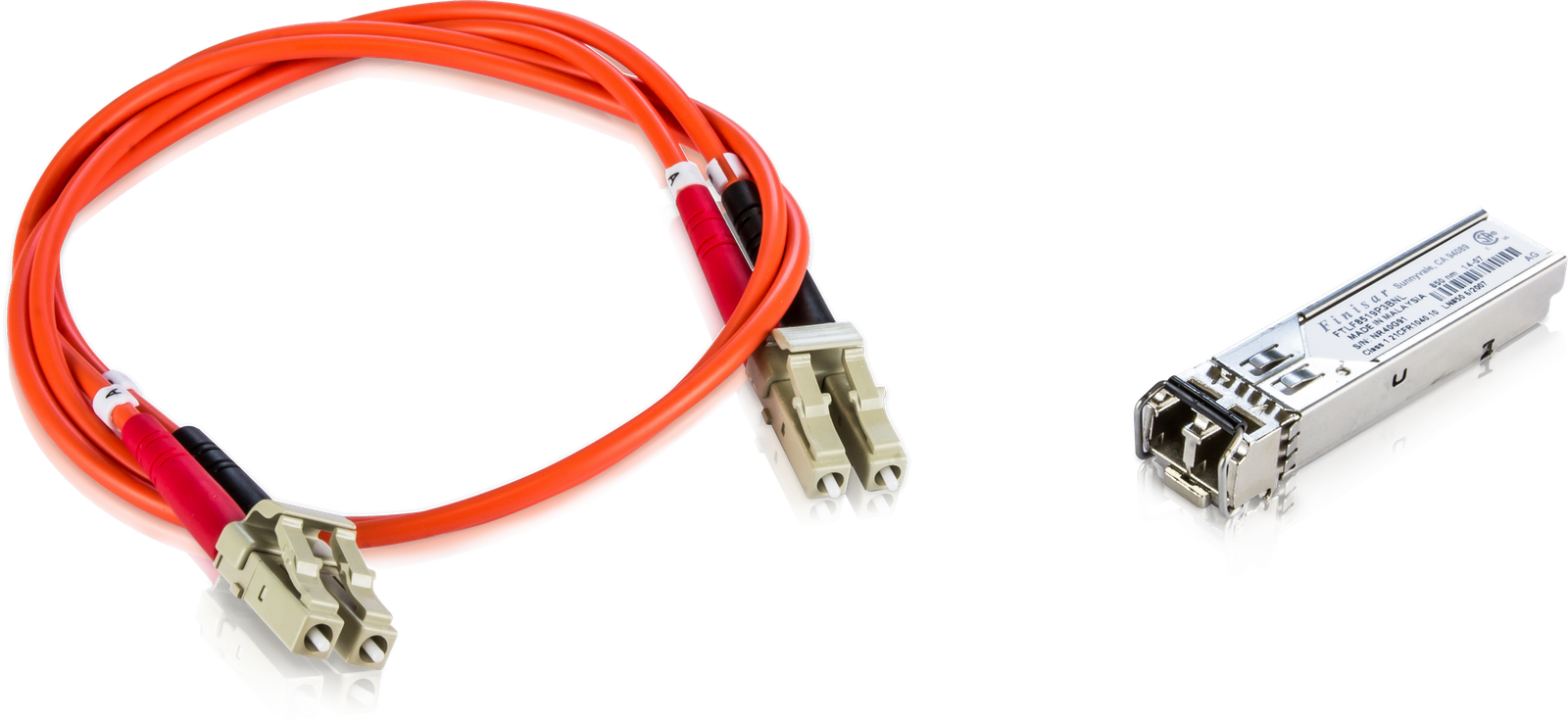

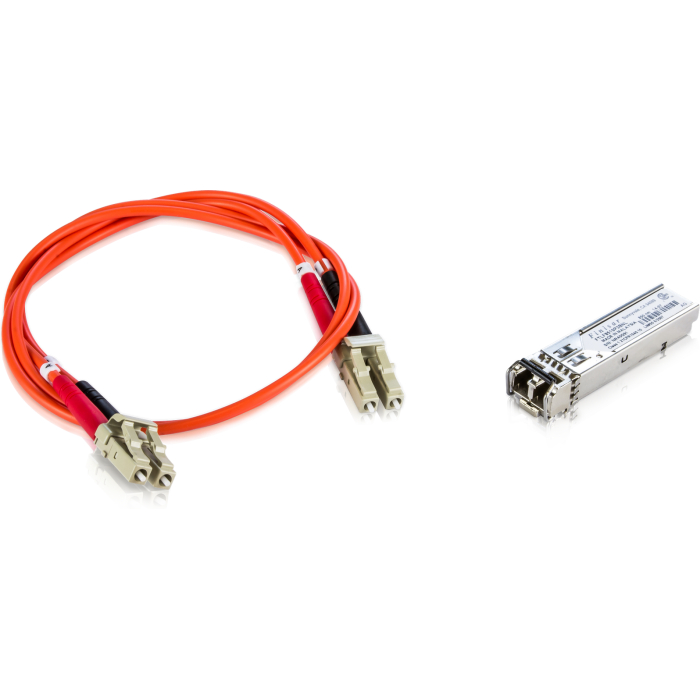

| Kit Contents | Two optical fibre modules and two 0.5 m internal dual multi-mode optical fibre cables |
| Model | KLARK TEKNIK DN9680-MM |
Additional information
| Brand |
|---|
