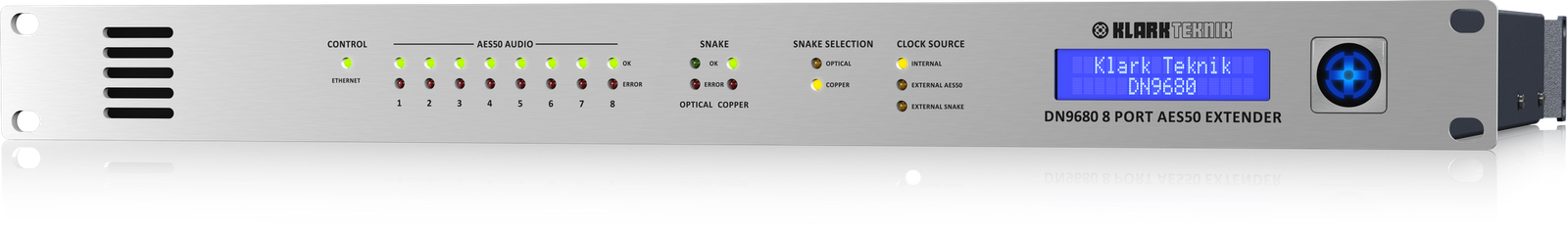

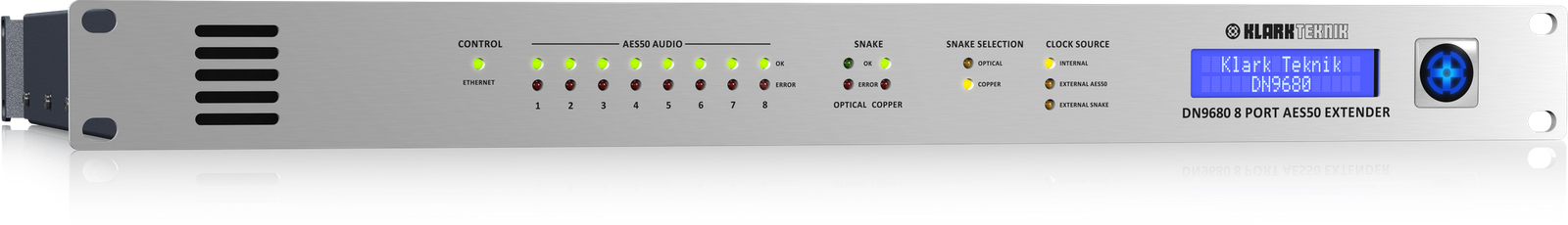

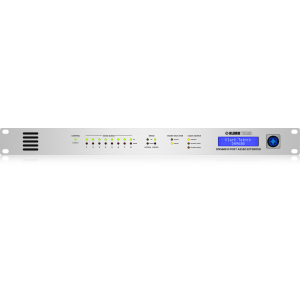

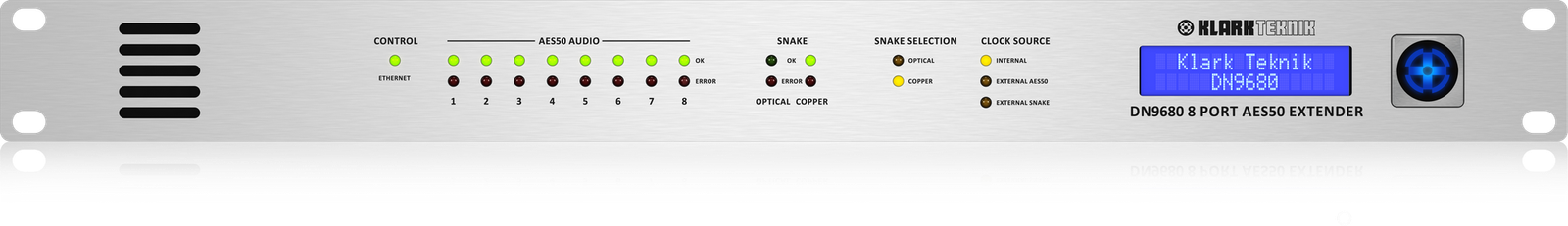

Klark Teknik DN9680 8-Port AES50 Extender and Multiplexer (1000m Range)

Klark Teknik

AED 14708.40 inc VAT.

The DN9680 extends AES50 network connections beyond the standard 100-metre Ethernet/CAT5 limitation, enabling up to eight AES50 connections (192 bidirectional channels) to span 1,000 metres via single mode optical fibre or 100 metres with CAT5 copper cable, using a single bidirectional snake cable for simplified long-distance setups.

In stock
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: DN9680 Categories: , Brand:

Description

The DN9680 provides a high channel count solution to the 100 metre limitation that Ethernet and CAT5 cabling imposes on the physical size of AES50 networks. A pair of DN9680 units allows up to eight AES50 connections (192 bidirectional channels) to be extended by up to 1,000 metres via single-mode optical fibre or 100 metres via CAT5 copper cable, greatly simplifying long haul cable connections due to the use of a single bidirectional snake cable.

Key Features

  • Multiplexes up to 8 AES50 connections into one optical fibre cable or CAT5 cable
  • Extends AES50 connections up to 1,000 m with optical fibre or 100 m with CAT5 cable
  • High channel capacity with 192 bidirectional channels @ 96 kHz
  • Internal “AES Grade 1” temperature-compensated word clock (1 ppm)
  • Neutrik etherCON connectors used for AES50 ports and copper snake connection
  • Dual-fibre Neutrik opticalCON DUO connector used for optical fibre snake connection
  • Internal web server allows browser-based configuration via Ethernet control port
  • Rugged 1U rackmount chassis for durability in portable applications
  • Auto-ranging universal switch-mode power supply

Specifications

Specification Details

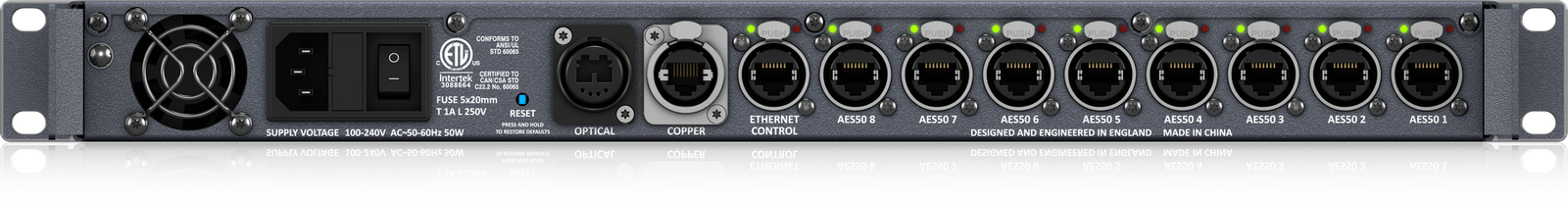

AES50 Ports Neutrik etherCON with LED status indication
Sample Rate 96 kHz or 48 kHz
Ethernet Control Port Neutrik etherCON with LED status indication
Copper Snake Port Neutrik etherCON
Optical Snake Port Neutrik opticalCON DUO
Optical Fibre Single-mode dual fibre / Multimode dual fibre (DN9680-MM required for Multimode)
Onboard Clock Temperature-controlled crystal oscillator (TCXO) with 1 part-per-million (1 ppm) stability
Clock Source Internal clock, External AES50 clock, External snake clock
Power 3-pin IEC
Voltage 100 to 240 VAC, 50 to 60 Hz
Power Consumption <50 W
Width 483 mm (19.0″)
Depth 412 mm (16.2″)
Height 44 mm (1.7″) (1U High)
Net Weight 5.1 kg (11.2 lbs)
Options DN9680-MM: Multi-mode optical fibre module for DN9680 with 500 metre range
