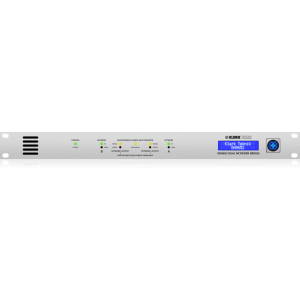

Klark Teknik DN9652 Dual Network Bridge and Format Converter with 64 Bidirectional Channels and ASRC

Klark Teknik

AED 7735.35 inc VAT.

DN9652 features a multichannel interface connecting two third-party digital audio networks and point-to-point interfaces using Klark Teknik technology. With bidirectional asynchronous sample rate conversion, it supports up to 64 bidirectional channels across separate clock domains and different sample rates. Currently, it integrates MADI and Audinate Dante through the Klark Teknik KT-MADI and KT-DANTE64 modules. The device also supports future protocols via an industry-standard expansion slot compatible with the Cirrus CM-1 format, making it adaptable in the evolving digital audio networking landscape.

In stock
Request Quote
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: DN9652 Categories: , Brand:

Description

Product Overview

The DN9652 by Klark Teknik boasts an advanced multichannel interface between third-party digital audio networks and point-to-point interfaces. Featuring a bidirectional asynchronous sample rate converter (ASRC), this innovative device supports the integration of up to 64 bidirectional channels across independently clocked domains at varying sample rates.

Features

  • Supports up to 64 bidirectional channels
  • Compatible with KT-AES50, KT-DANTE64, KT-MADI, and KT-USB modules
  • Bidirectional ASRC on each channel with bypass option
  • Redundant network systems with audio clock inhibit feature
  • Operates at 24-bit with 96 kHz and 48 kHz sample rates
  • Video synchronization for standard and high definition
  • Temperature-compensated word clock (1 ppm)
  • Web server for browser-based configuration via Ethernet

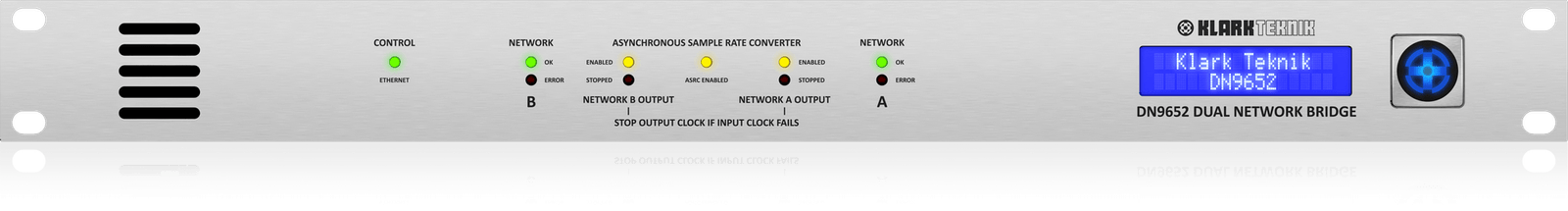

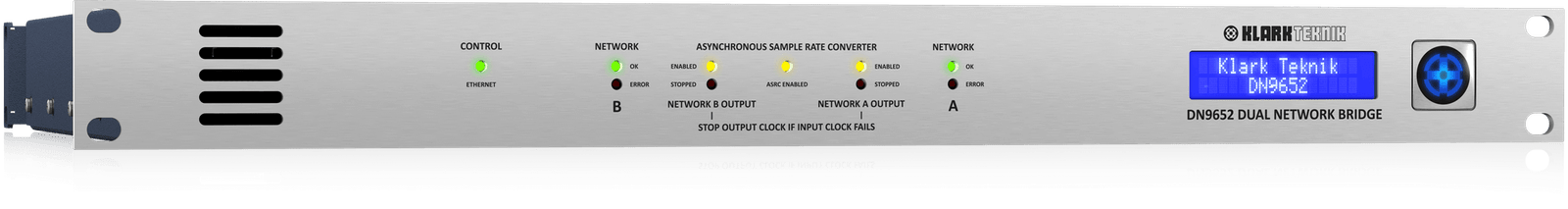

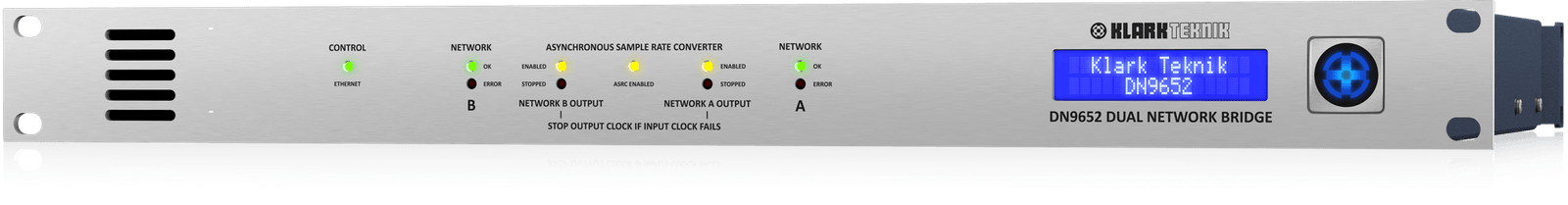

  • Status LEDs and LCD display on the front panel
  • Neutrik etherCON network ports
  • Durable 1U rackmount chassis
  • Auto-ranging universal power supply

Specifications

Specification Detail
Control Port 1
Word Clock Input 1
Word Clock Output 1
Black Burst Input 1
Module Expansion Slots 2
Bidirectional Channels 64
Clock Stability 1 ppm (Temperature-compensated crystal oscillator)
Network Clock Source Options External network clock, onboard oscillator, video black burst input
Word Clock Output Options Either network clock domain, word clock input
Power Requirement 100-240 VAC, 50-60 Hz
Power Consumption <50W
Dimensions (H x W x D) 44 mm x 483 mm x 411 mm
Net Weight 5.0 kg

Module Options

Module Description
KT-MADI MADI Network Module with up to 64 bidirectional channels
KT-DANTE64 Audinate Dante Network Module with up to 64 bidirectional channels
