Klark Teknik DN9650 Digital Audio Network Bridge

Klark Teknik

AED 8555.40 inc VAT.

The Klark Teknik DN9650 Digital Audio Network Bridge offers a versatile solution for integrating AES50 networks with third-party digital audio systems, capable of managing up to 64 bidirectional channels with independent clock domains through its advanced asynchronous sample rate converter. Equipped with an expansion slot for future protocol upgrades, it supports various modules including KT-AES50, KT-DANTE64, KT-MADI, and KT-USB, making it compatible with Midas Pro Series consoles and other 96 kHz AES50 devices.

In stock
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: DN9650 Categories: , Brand:

Description

Klark Teknik DN9650 Digital Audio Network Bridge

The Klark Teknik DN9650 is a high-performance digital audio network bridge, aligning AES50 networks with third-party digital audio networks and point-to-point interfaces. Equipped with an advanced bidirectional asynchronous sample rate converter (ASRC), this product efficiently manages up to 64 bidirectional channels across independent clock domains, even if they operate at different sample rates.

The DN9650 is designed to support future protocols via its Cirrus CM-1 format compatible expansion slot, ensuring seamless integration with Klark Teknik KT-AES50, KT-DANTE64, KT-MADI, and KT-USB network modules. This functionality makes it an excellent match for all Midas Pro Series digital consoles, Midas digital I/O hardware, and other 96 kHz-enabled AES50 devices with Dante, MADI, and USB 2.0 connections.

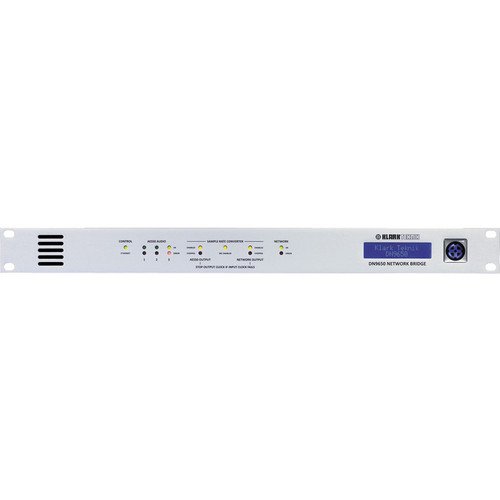

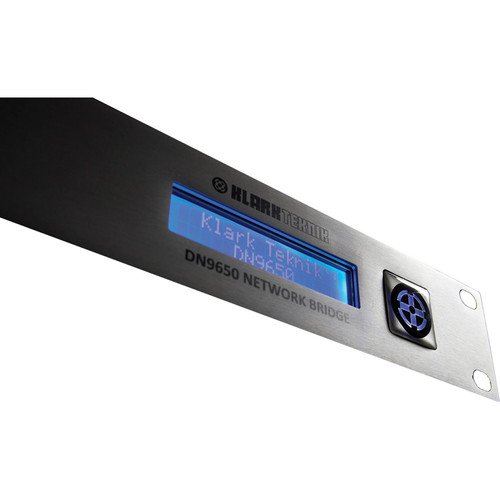

The front panel of the DN9650 features status LED indicators for AES50 and network synchronization, Ethernet control port activity, and ASRC bypass and clock inhibit functions, providing clear status information at a glance. The rear panel is equipped with Neutrik etherCON connectors for AES50 ports and the Ethernet control port, alongside Neutrik BNC connectors for word clock inputs, outputs, and video black burst sync.

Key Features

  • 64 bidirectional channel network bridge for AES50 networks
  • Compatibility with Klark Teknik KT-AES50, KT-DANTE64, KT-MADI, and KT-USB modules
  • Bidirectional asynchronous sample rate conversion with bypass facility
  • 24-bit audio operation with support for 96 and 48 kHz sample rates
  • Internal “AES Grade 1” temperature-compensated word clock (1 ppm)
  • Browser-based configuration via internal web server and Ethernet control port
  • Rugged 1 RU chassis for reliable performance
  • Auto-ranging universal switch-mode power supply

Technical Specifications

AES50 Ports 3 x Neutrik etherCON with LED status indication, 48/96 kHz
Ethernet Control 1 x Neutrik etherCON with LED status indication
External Sync Word Clock Input: 1 x Neutrik BNC with 75-Ohm termination, 48/96 kHz
Word Clock Output: 1 x Neutrik BNC (no termination), 48/96 kHz
Video Black Burst Input: 1 x Neutrik BNC with 75-Ohm termination

  • Standard Definition: PAL, SECAM, NTSC
  • High Definition: 720P, 1080P, 1080i
Module Slot 1 x Cirrus CM-1 format compatible
Sample Rate Converter 64 bidirectional channels with bypass and output clock inhibit features
Clock Onboard Clock: Temperature-controlled crystal oscillator (1 ppm)

  • AES50 Domain: External/AES50 internal/Word/Video black burst
  • Network Domain: External/External with word clock sync/Internal/AES50/Network module clock/Word/Video black burst

Word Clock Output: AES50/Network/Word clock domains

Power 3-pin IEC, 100-240 VAC, 50/60 Hz, <50 W
Dimensions 19.0 x 16.2 x 1.7″ (483 x 411 x 44 mm)
Weight 11.2 lb (5.1 kg)

Packaging Info

Package Weight 15.35 lb
Box Dimensions (LxWxH) 22.047 x 19.843 x 6.772″
