Klark Teknik DN9630 AES50 to USB 2.0 Converter, 48 Channel Bi-Directional

AED 1673.70 inc VAT.

The DN9630 is a versatile interface that connects computers to AES50 audio networks, enabling simultaneous multi-channel audio recording and playback. It is designed for use with MIDAS digital consoles and other AES50 devices, featuring a USB 2.0 interface compatible with Windows and Mac. This device supports up to 48 bidirectional channels at 48 kHz and 24 bidirectional channels at 96 kHz.

In stock

Request Quote

Estimated Delivery: 2–3 business days across the UAE
Free Shipping & Returns : On all orders over AED 1000

Guaranteed Safe And Secure Checkout

Description

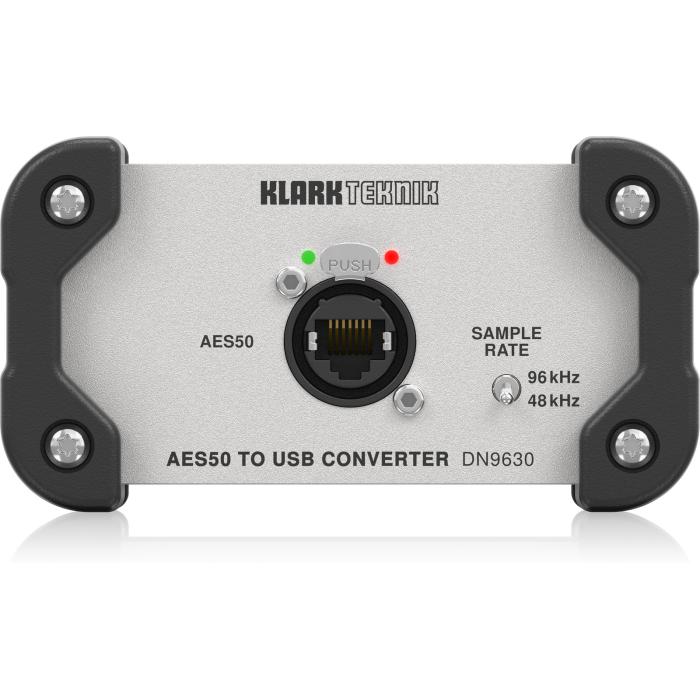

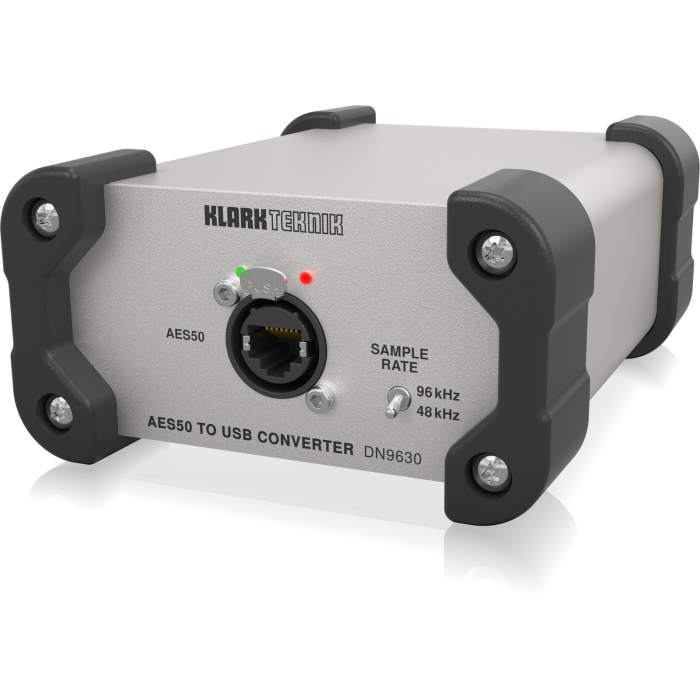

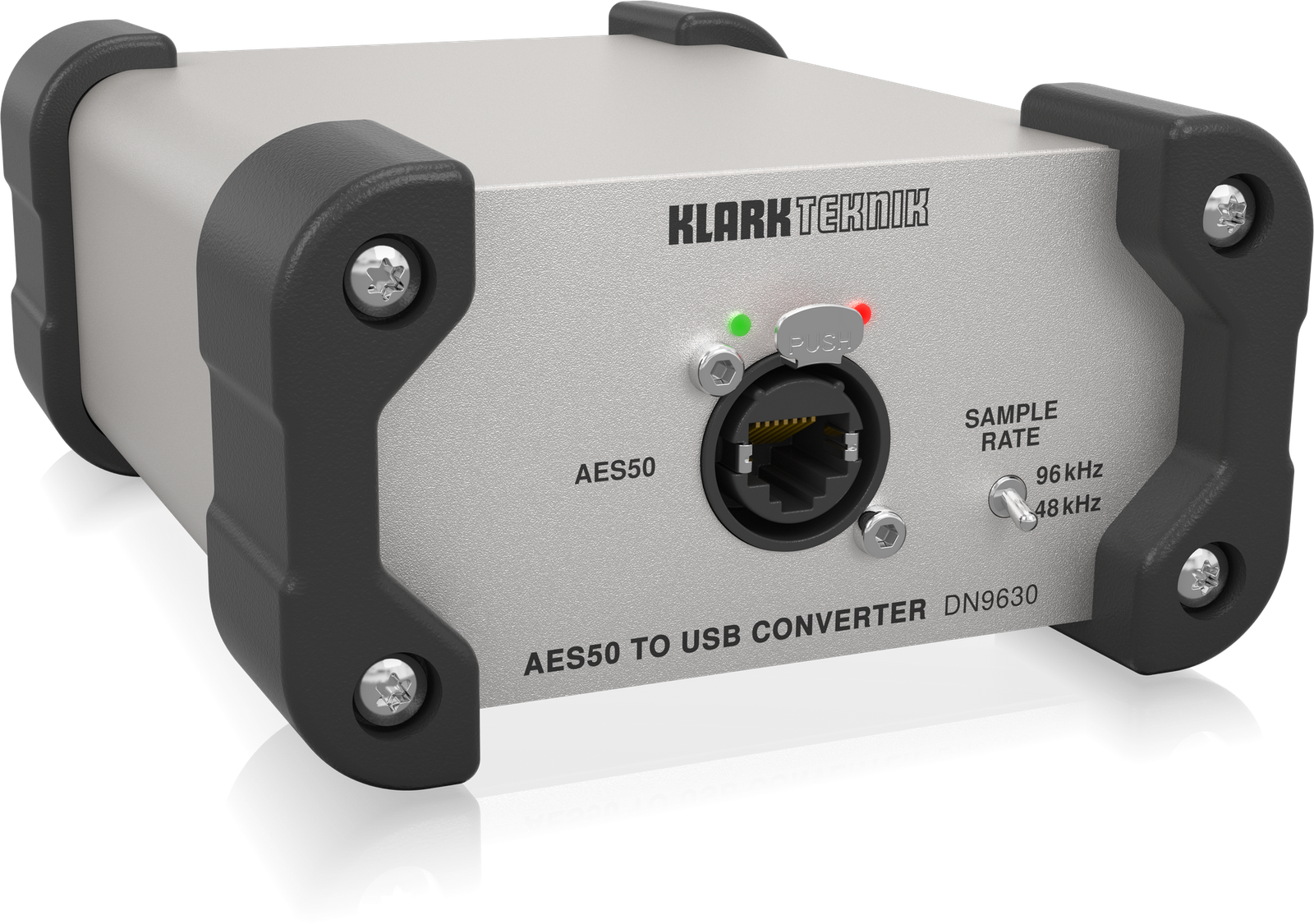

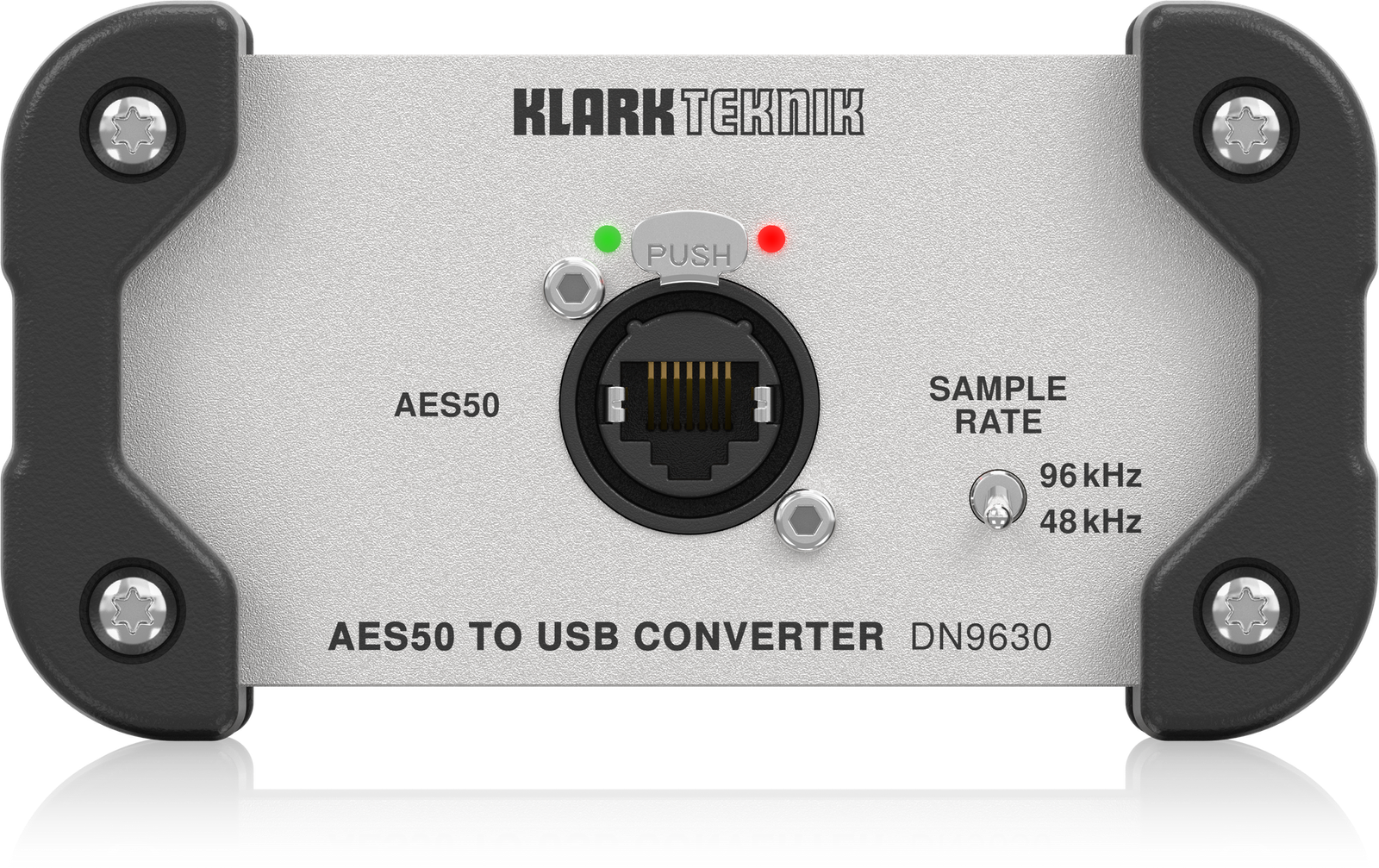

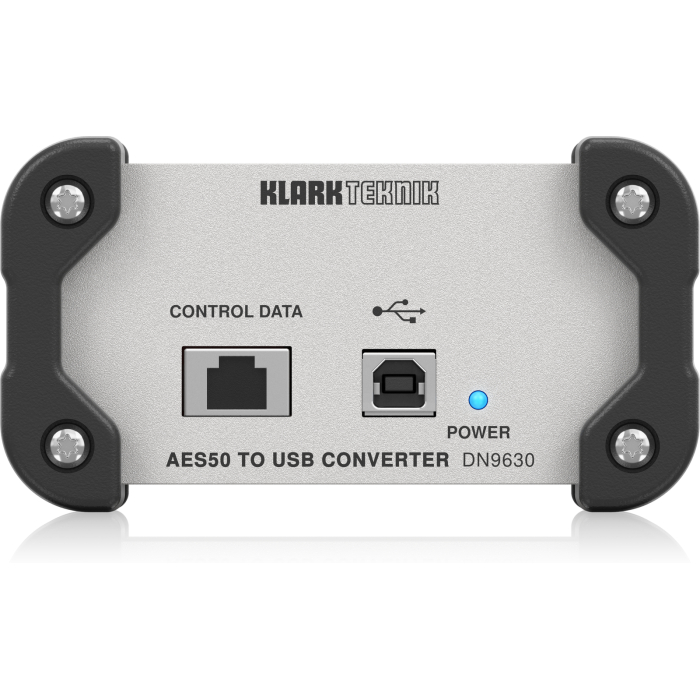

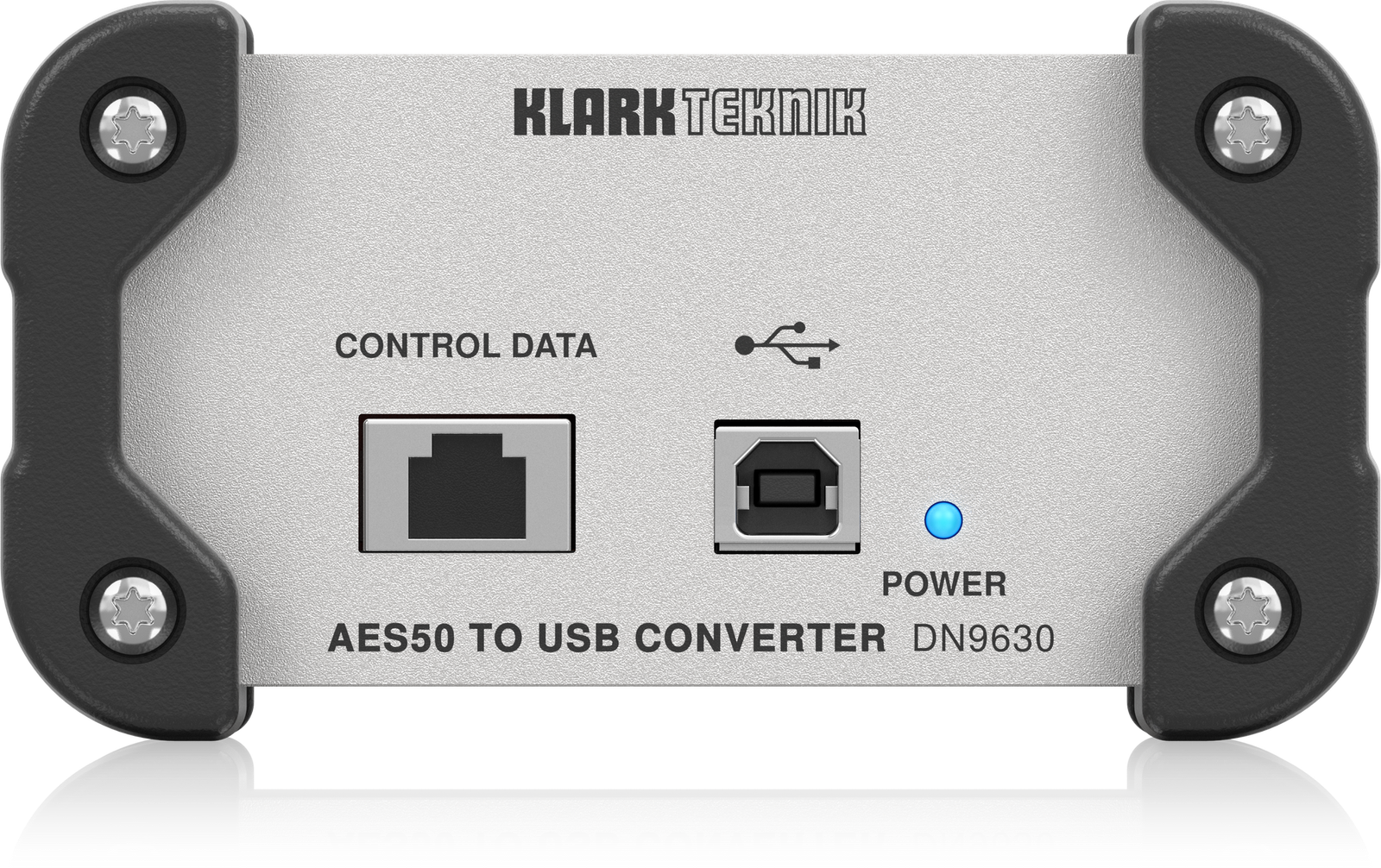

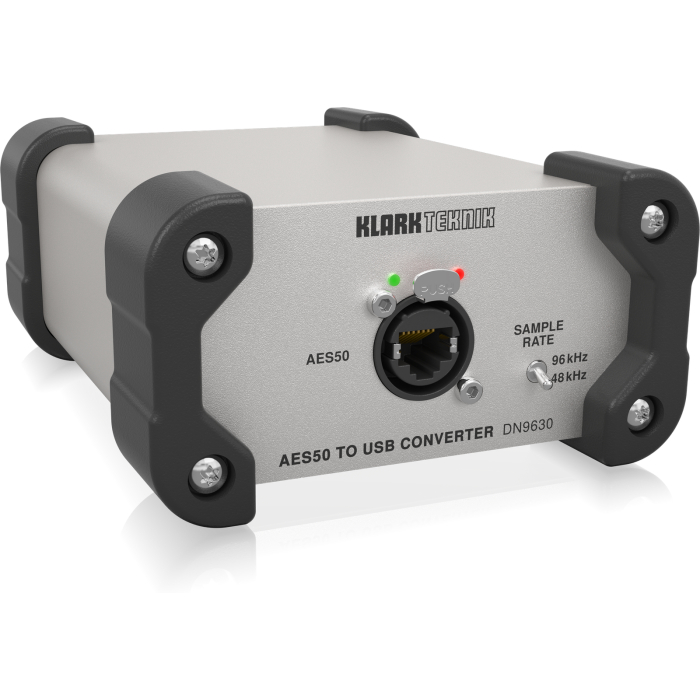

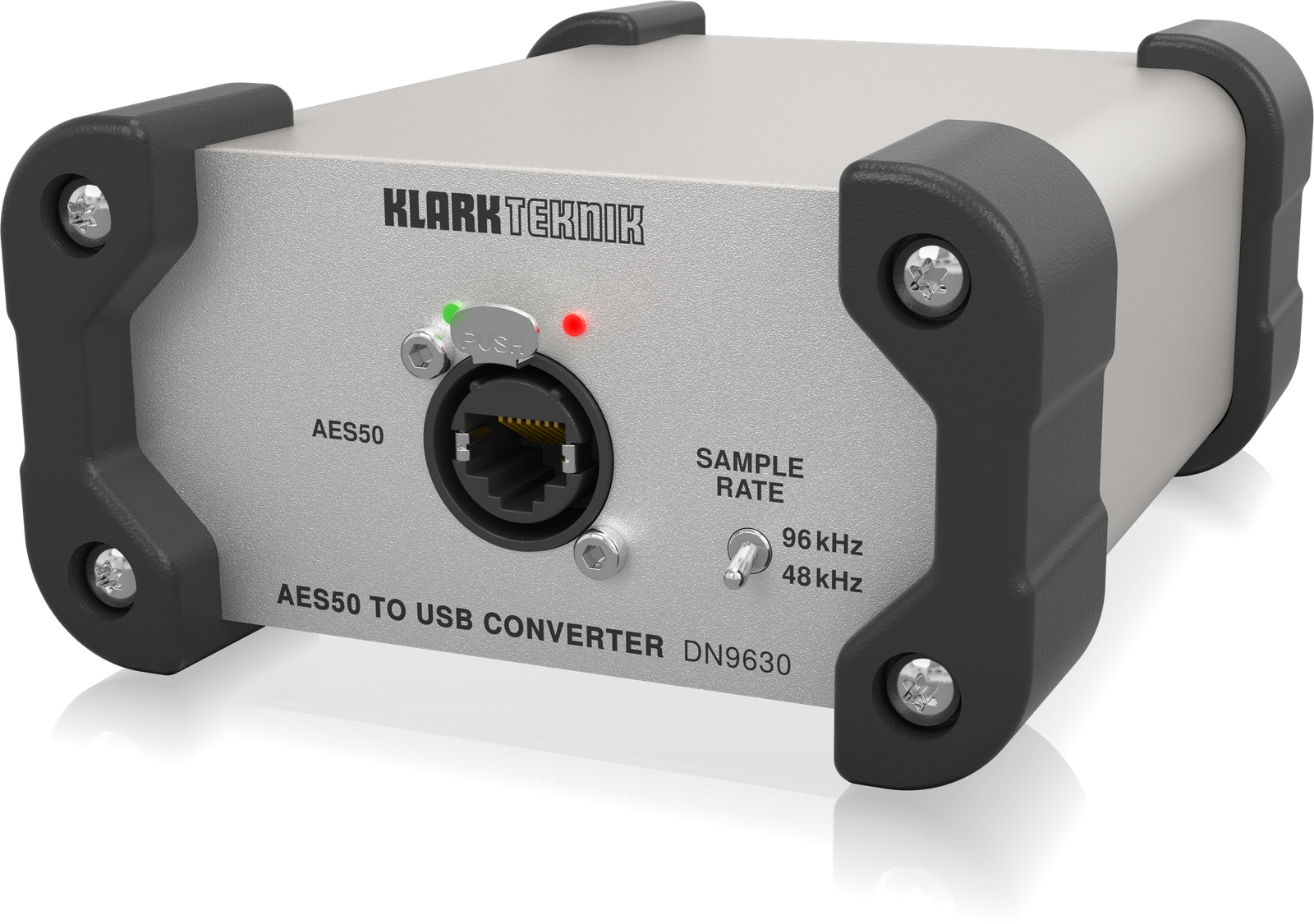

DN9630 AES50 to USB 2.0 Converter

The DN9630 greatly simplifies the connection of computers to AES50 audio networks, providing simultaneous multi-channel computer audio recording and playback. This makes it an ideal choice for use with MIDAS digital consoles and other AES50 equipped products. The single USB 2.0 interface connects directly to a Windows PC or Apple Mac, featuring a high channel count with up to 48 bidirectional channels at 48 kHz and 24 bidirectional channels at 96 kHz sample rates.

Features

AES50 to USB 2.0 converter for simultaneous computer audio recording and playback
Up to 48 bidirectional channels at 48 kHz and 24 bidirectional channels at 96 kHz
Switchable 48 kHz and 96 kHz sample rate operation
Operates from incoming AES50 clock
Powered via USB 2.0 interface
Native Core Audio driver support in Mac OS X, software drivers available for Windows PC
LED indicators monitor network activity and speed
Compact and rugged design with durable aluminium extrusion casing

Specifications

Specification	Details
Compatibility	OS X Native Core Audio Driver, Windows PC drivers available
Channels	48-channel bidirectional at 48kHz, 24-channel at 96kHz
Inputs	Ethernet (AES50)
Outputs	USB
USB	1 x Type B
Data I/O	Ethernet (control data)
