Klark Teknik DN9620 Dual Port AES50 Extender and Multiplexer – 500m Range (Pair)

The DN9620 offers an advanced solution to overcome the 100-meter distance limitation of Ethernet and CAT5 cabling in AES50 networks. With a set of DN9620 units, you can extend up to two AES50 connections over a significant distance—500 meters with multimode optical fiber or 100 meters with CAT5 copper cable. This feature greatly simplifies long-haul cable connections with a single bidirectional snake cable.

Features

• Comes with a pair of DN9620 Dual Port AES50 Extenders and a 19″ rackmount adapter bracket
• Allows extension of two AES50 connections up to 500 meters via optical fiber or 100 meters via Cat5 cable
• Supports high channel capacity – 48 channels at 96 kHz or 96 channels at 48 kHz, typically in bidirectional operation

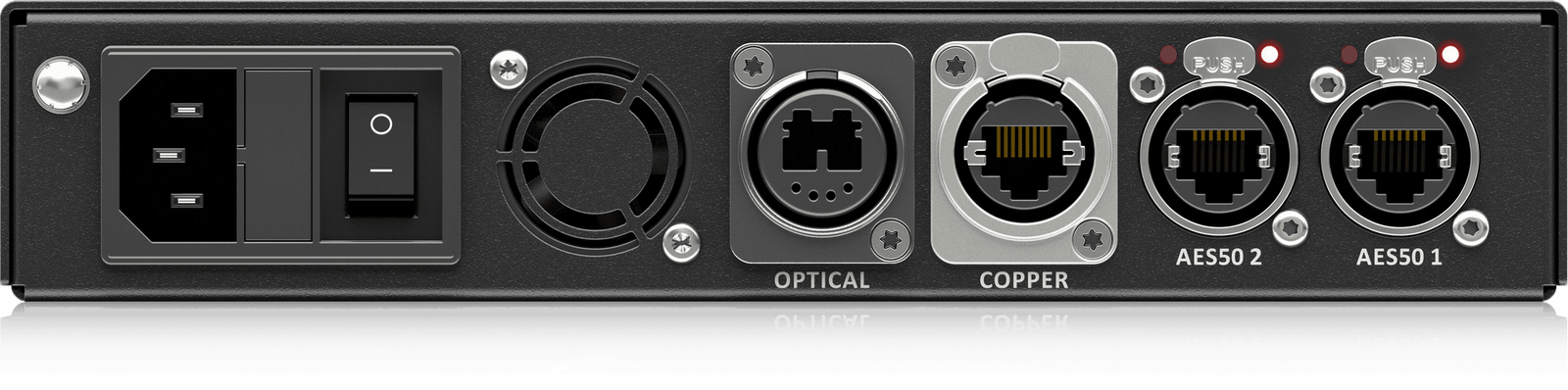

• Features Neutrik etherCON connectors for AES50 ports and copper snake connections
• Utilizes Dual-fiber Neutrik opticalCON DUO connector for optical fiber snake connections

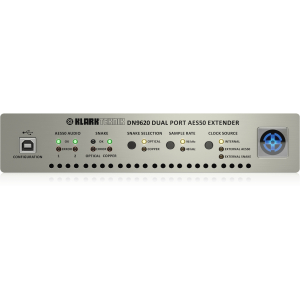

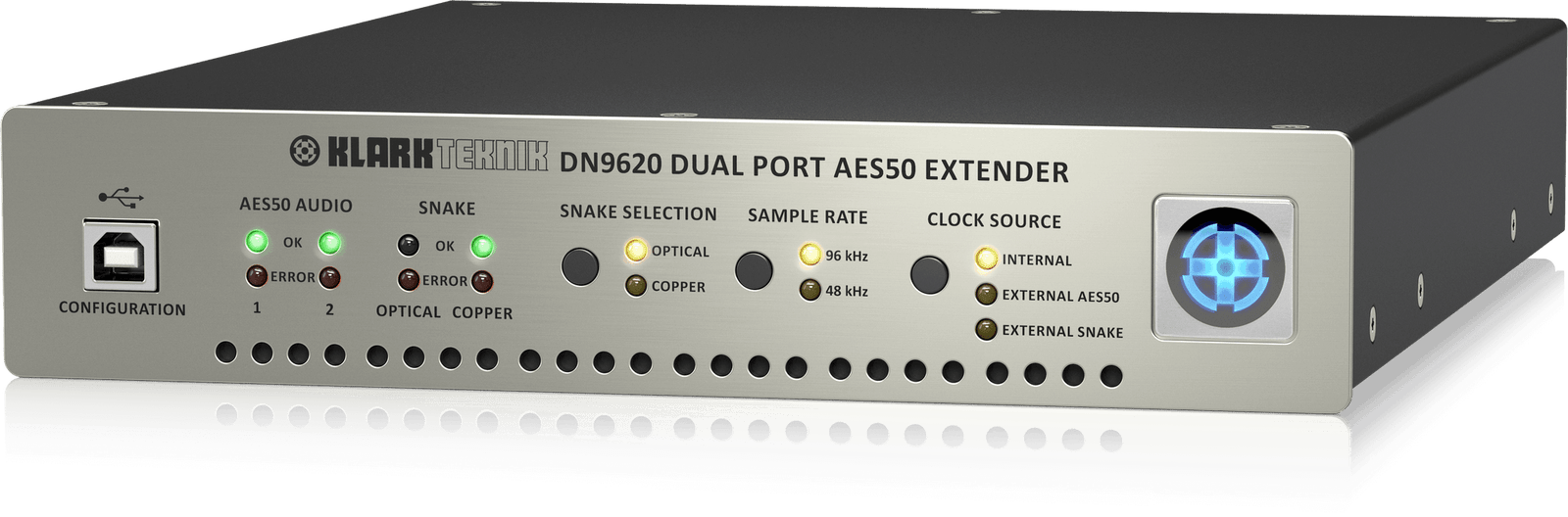

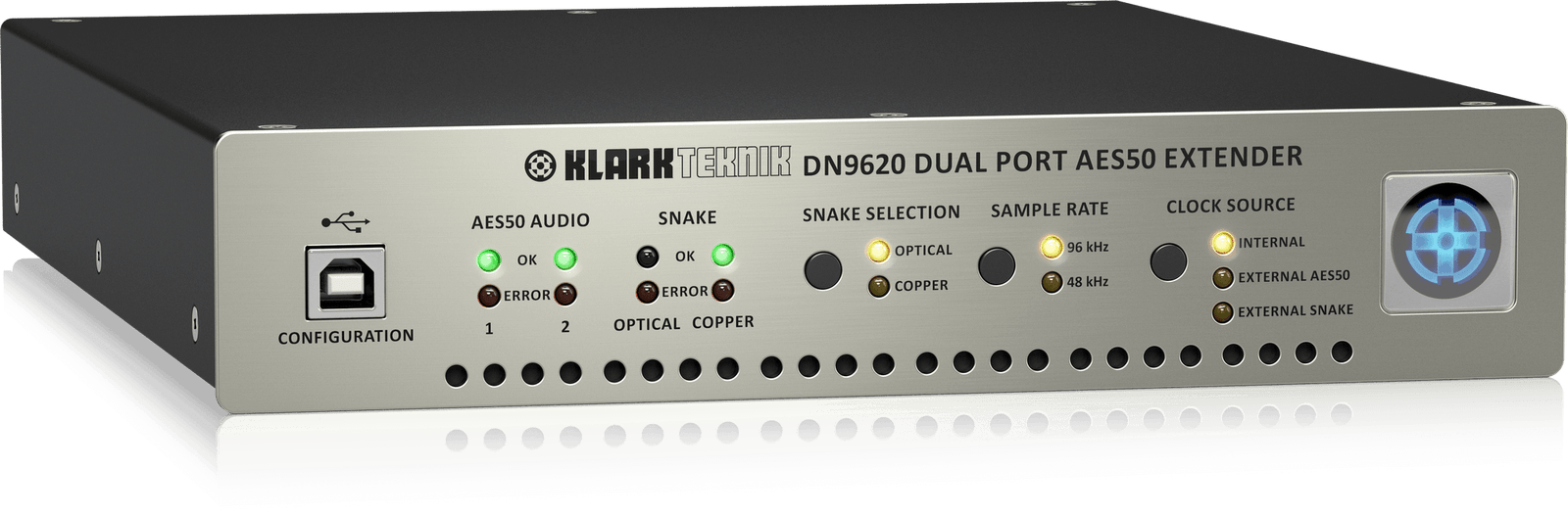

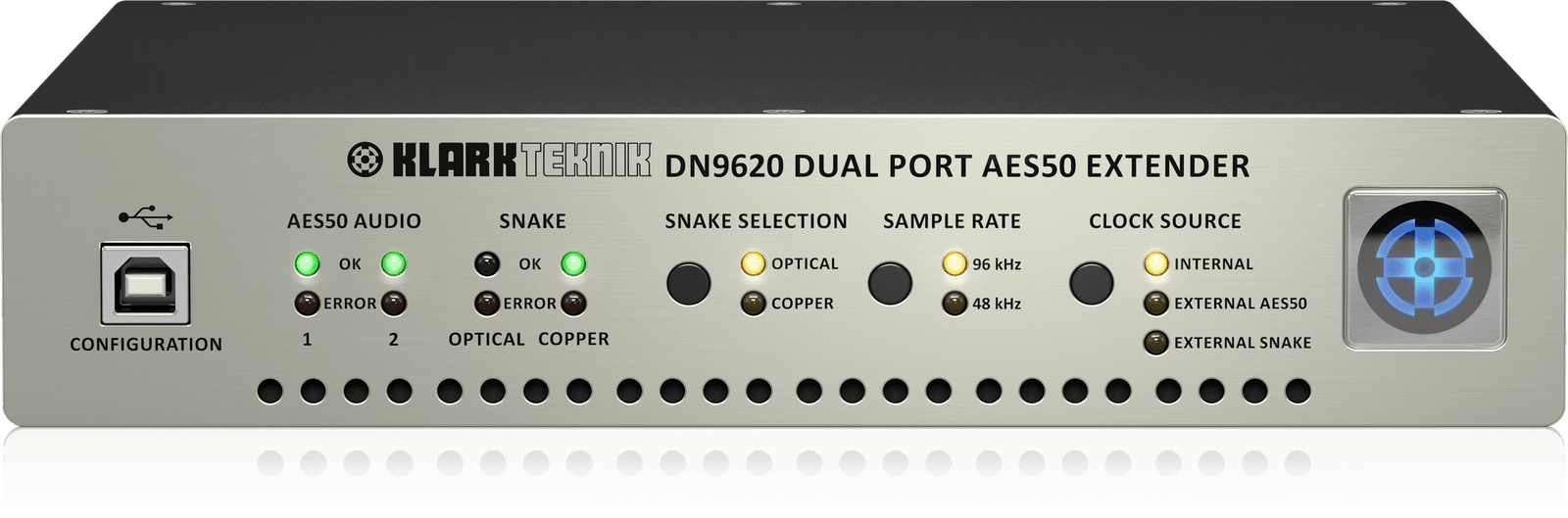

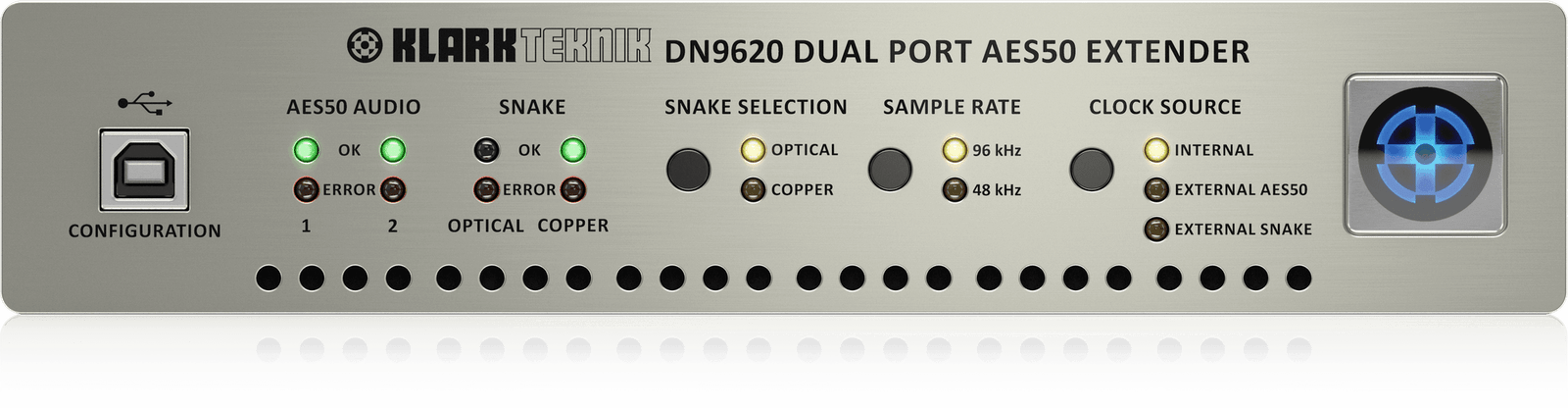

• Front panel clock source options with push button selection and LED indication
• Status indicator LEDs on the front panel for each AES50 port alongside optical and copper snake connections
• Durable half-width 1U rackmount chassis, suitable for portable applications
• Equipped with an auto-ranging universal switch-mode power supply

Specifications
