Audio Video Interfaces

Klark Teknik DN4816U StageConnect Interface Bridge with Multi-Channel USB I/O and Behringer Ultranet I/O

Klark Teknik

AED 1258.95 inc VAT.

The Klark Teknik DN4816U interface box enables the sharing of 32 audio channels between StageConnect devices, Behringer Ultranet, and USB audio on a PC. Ideal for applications such as sending USB audio to Behringer P16 mixers, using a Midas MR18 as an input box for Behringer WING, or recording directly in a DAW. It supports single XLR cable interconnection for multi-channel audio and offers scalable connectivity options. DN48XX Series devices can be daisy-chained with automatic channel allocation.

In stock
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: DN4816U Categories: , Brand:

Description

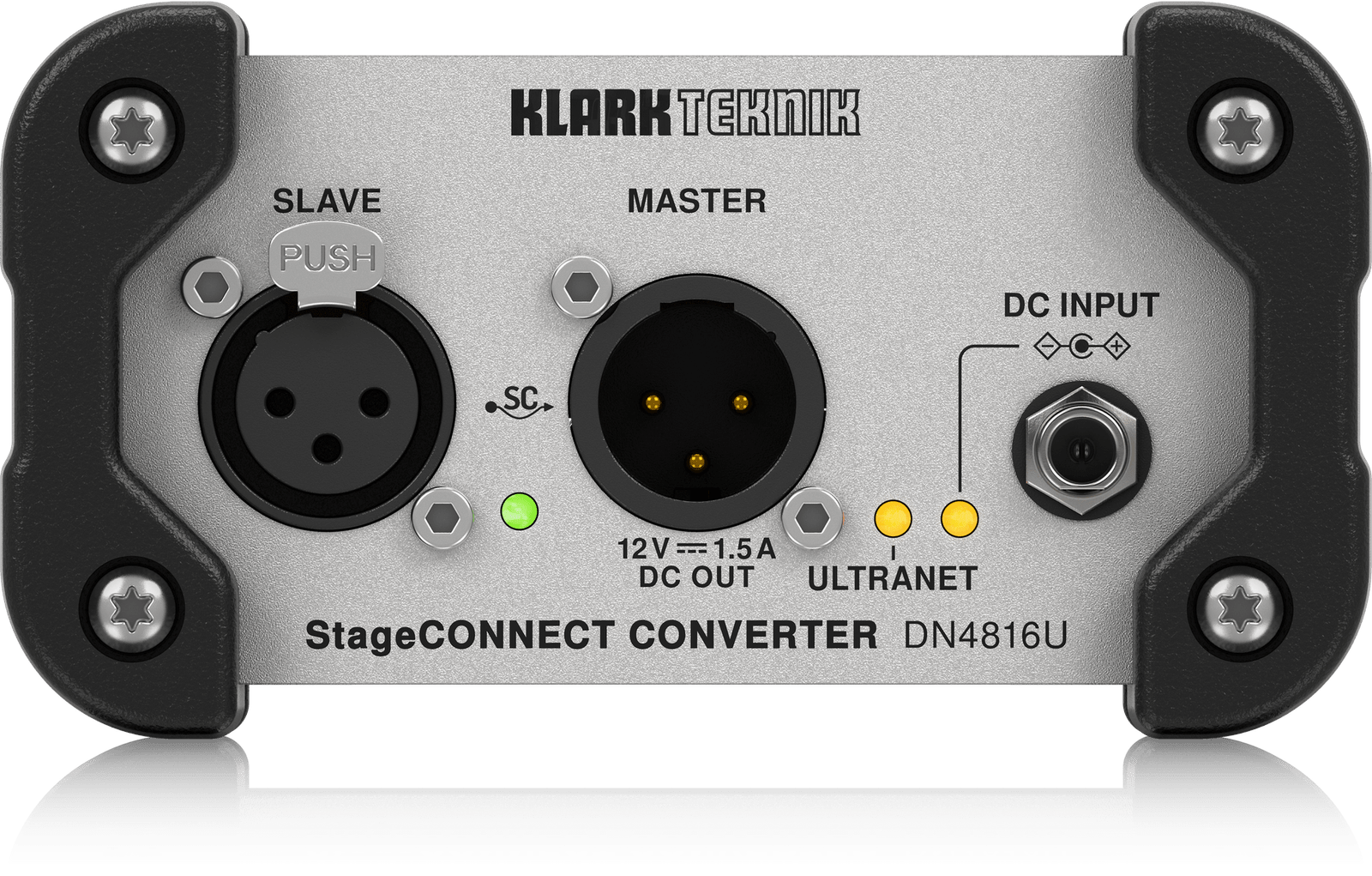

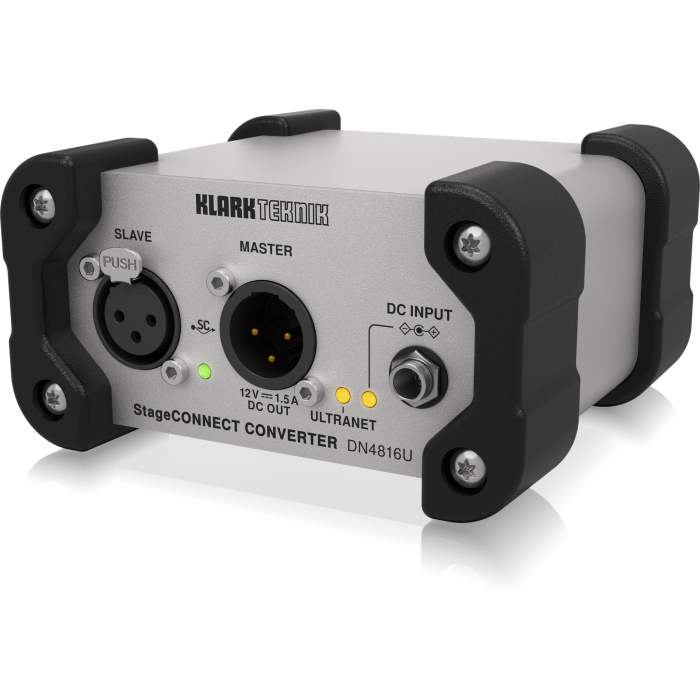

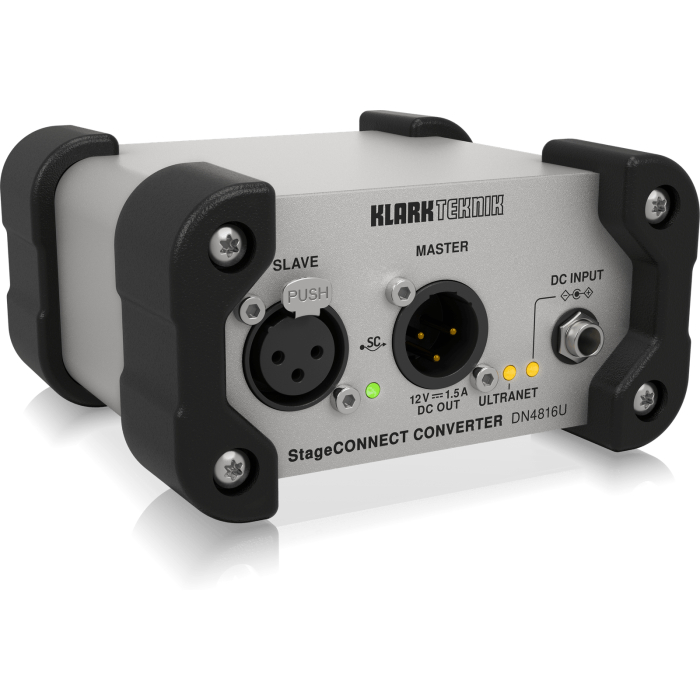

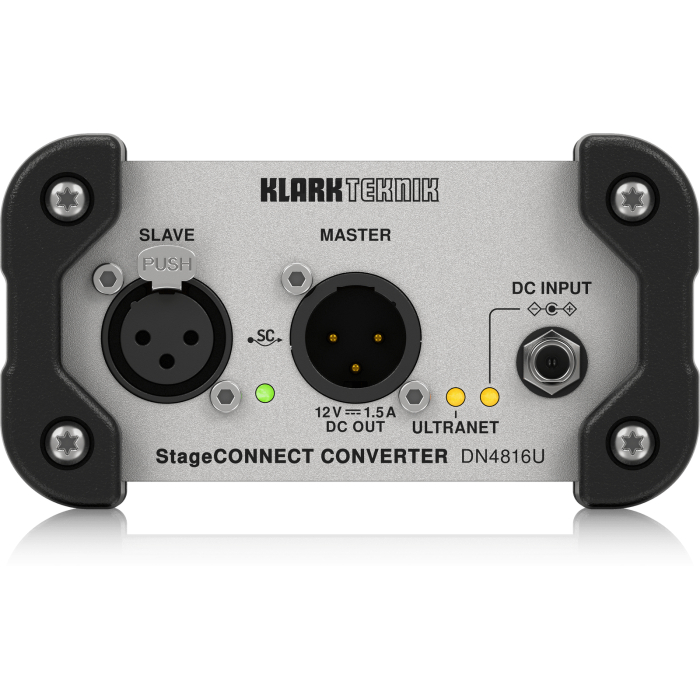

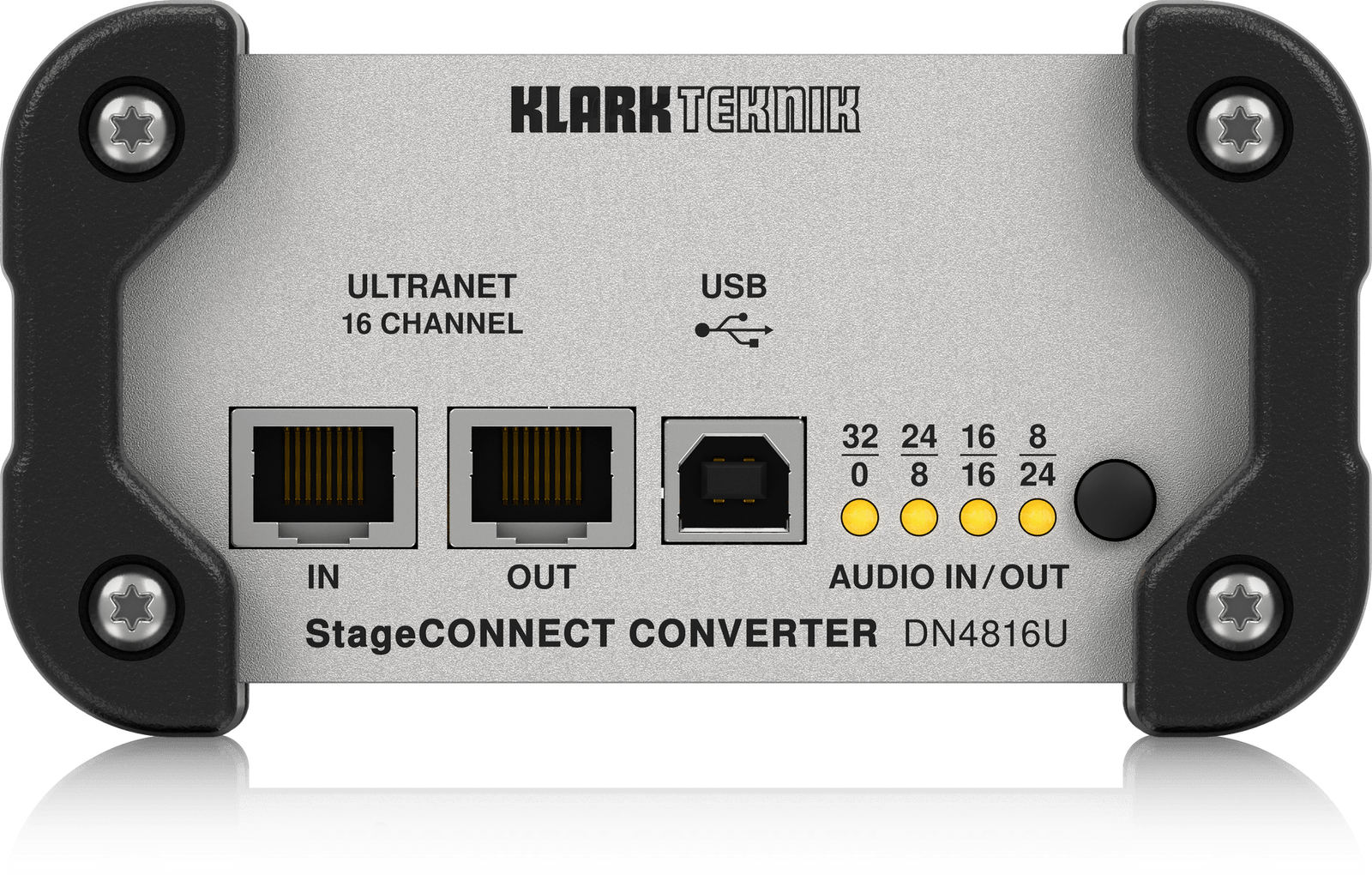

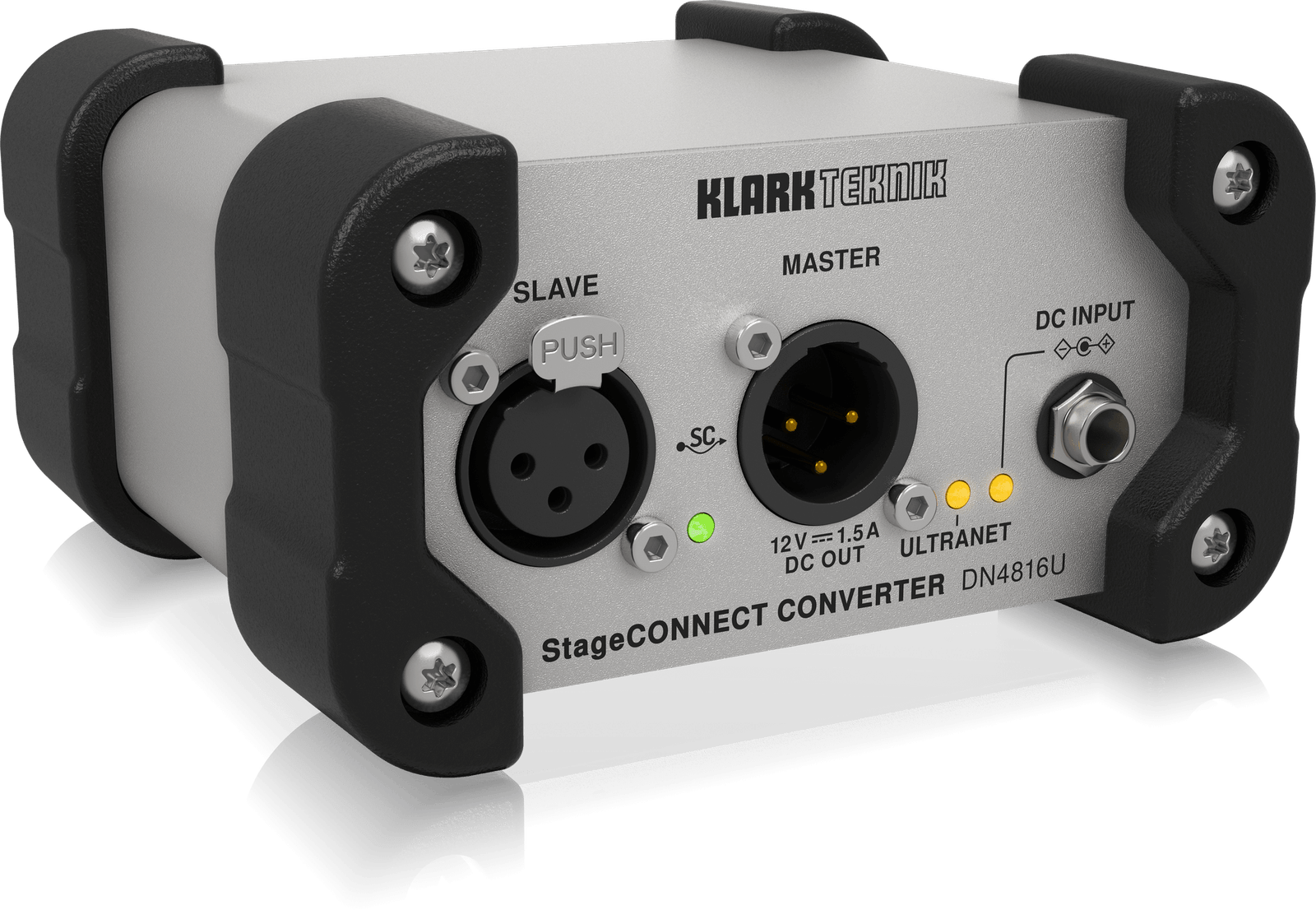

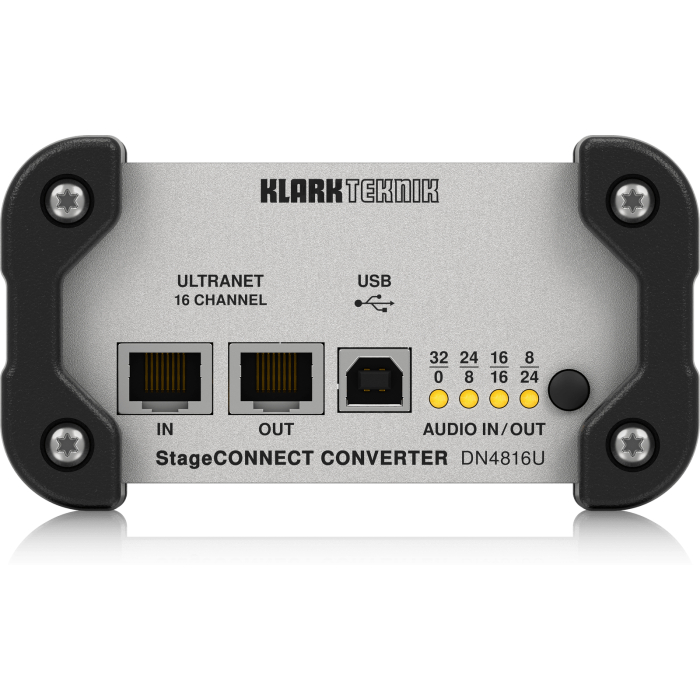

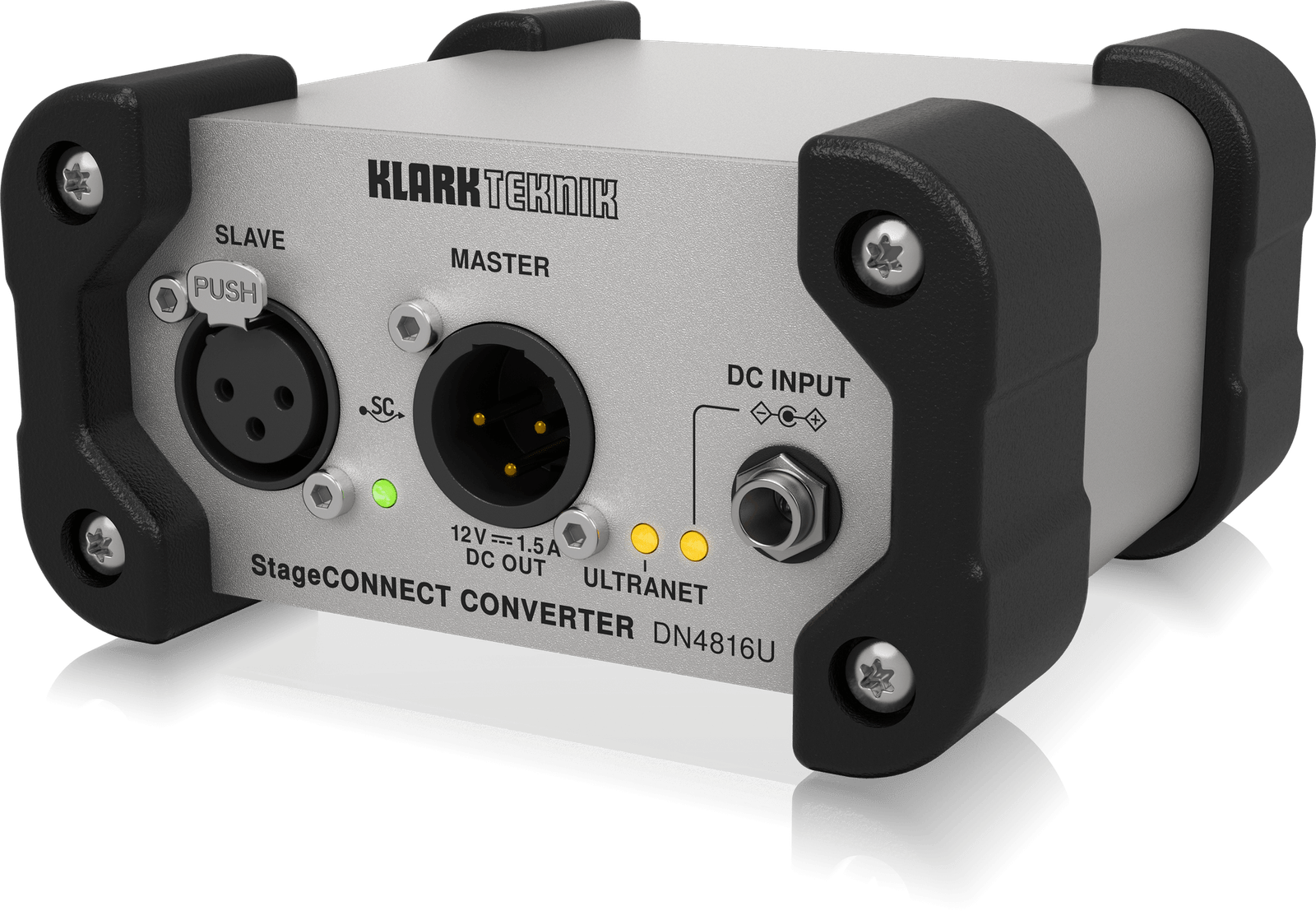

Klark Teknik DN4816U Audio Interface

The Klark Teknik DN4816U is a versatile and compact audio interface designed for seamless integration between StageConnect devices, Behringer Ultranet systems, and USB audio on your PC. It allows for a wide range of applications, including sending USB audio to Behringer P16 personal monitor mixers, using a Midas MR18 as a 16-channel input box for Behringer WING, or recording 32 channels from WING directly into your DAW. The DN4816U achieves multi-channel audio transmission with a single XLR cable, making connectivity both straightforward and scalable.

Features

  • Compact DI Box sized interface for connecting StageConnect and Behringer Ultranet systems with USB multi-channel audio.
  • StageConnect supports 32-channel audio transmission with sub-millisecond latency, 24-bit uncompressed PCM at 44.1/48 kHz.
  • 32-channel asynchronous sample rate conversion offers connections to various clock domains at 0.4 ms latency.
  • Supports bi-directional audio configurations with control data and 12 VDC/18 W remote power.
  • Includes Master and Slave ports for exchanging multi-channel audio with other StageConnect devices.
  • Provides capability for sending StageConnect or USB signals to P16 personal monitoring mixers or Turbosound iQ speakers.
  • Converts Behringer Ultranet signals to StageConnect or USB streams.
  • Slave mode compatibility with StageConnect enabled mixing consoles, stageboxes, and hubs.
  • External power supply supports stand-alone operation with remote power output via the StageConnect Master port.

Specifications

Processing

Specification Details
StageConnect bus capacity 32 ch, 24-Bit PCM audio
I/O latency 0.1 ms

Connectors

Specification Details
Ultranet 2 x RJ45
Shielded CAT5e cable max. length 75 m
StageConnect 1 XLR male, 1 XLR female
Shielded bal. 110-Ohm DMX cable max. 40 m
USB Type B
USB audio in / out configurations 32 / 0, 24 / 8, 16 / 16, 8 / 24 channels
USB audio class 2 compatible with OS Win10 (ASIO/WDM), OSX (CoreAudio), Linux

Power

Specification Details
Power supply 12 V DC / 2.5 A, 30 W adapter included,
remote power input via Slave XLR (female),
remote power output via Master XLR (male)
12 V DC / 1.5 A, 18 W
Power consumption 9 W

Physical

Specification Details
Standard operating temperature range 5° – 45° C (41° – 113° F)
Dimensions 118 x 63 x 112 mm (4.7 x 2.5 x 4.4″)
Weight 0.71 kg (1.57 lbs)
