Klark Teknik DN4816U StageConnect Interface Bridge with Multi-Channel USB I/O and Behringer Ultranet I/O

Name: Klark Teknik DN4816U StageConnect Interface Bridge with Multi-Channel USB I/O and Behringer Ultranet I/O
Brand: Klark Teknik
SKU: DN4816U
Price: 1258.95 AED
Availability: InStock

AED 1258.95 inc VAT.

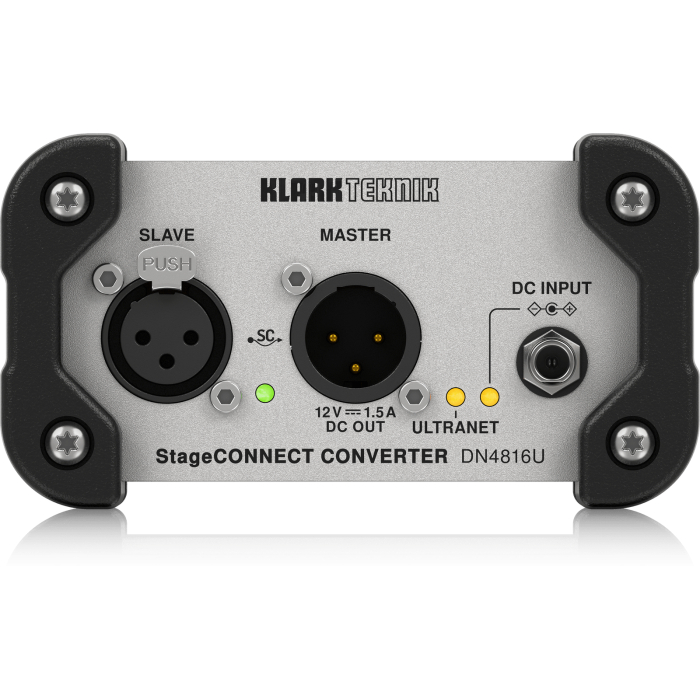

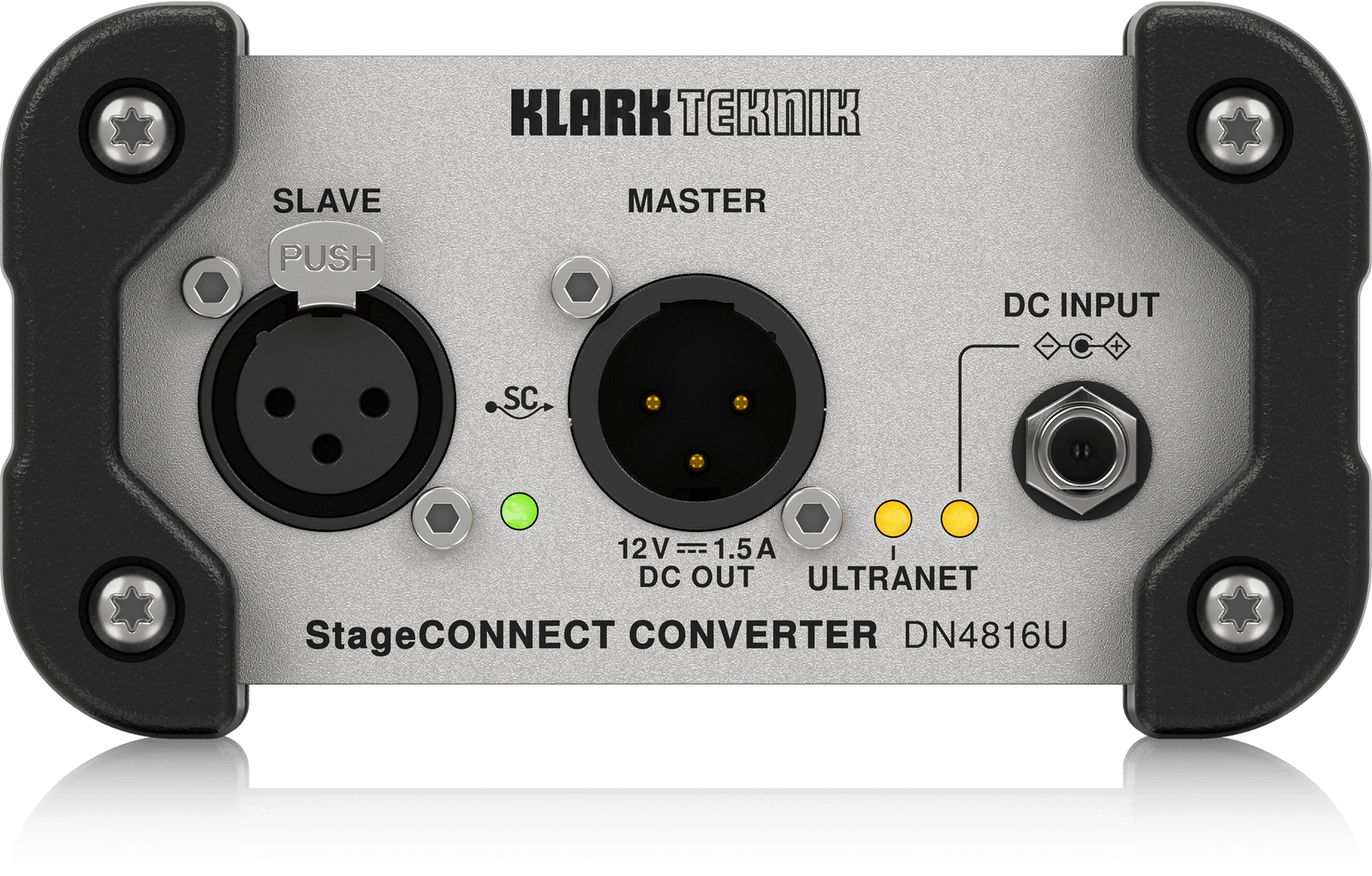

The Klark Teknik DN4816U is a versatile interface box engineered for seamless audio integration across StageConnect devices, Behringer Ultranet, and USB audio on a PC. It supports 32 channels, enabling USB audio transmission to Behringer P16 mixers, functions as an input box for various mixers, and facilitates direct recording to a DAW. Utilizing a single XLR cable for multi-channel audio, it offers scalable connectivity options and automatic channel allocation when daisy-chained with DN48XX Series devices.

In stock

Estimated Delivery: 2–3 business days across the UAE
Free Shipping & Returns : On all orders over AED 1000

Guaranteed Safe And Secure Checkout

SKU: DN4816U Categories: Audio Video Interfaces, Electronics Audio Brand: Klark Teknik

Description
Additional information

Description

Klark Teknik DN4816U: Multi-Channel Audio Interface

The Klark Teknik DN4816U is your go-to universal compact interface designed for seamlessly interconnecting 32 channels of audio between StageConnect devices, Behringer Ultranet, and USB audio on your PC. This versatile interface box caters to various audio setups including personal monitor mixers, input boxes, and direct recording to DAW via a Behringer WING.

Key Features

DI Box sized, offering scalable connectivity for StageConnect and Behringer Ultranet systems
32-channel StageConnect audio transmission with sub-millisecond latency, 24-Bit uncompressed PCM audio
Asynchronous 32-channel sample rate conversion with 0.4 ms latency
Bi-directional audio configurations with control data and 12 VDC/18 W remote power
Compatibility for transmitting StageConnect or USB signals to personal monitoring mixers or speakers
Master and Slave modes for flexible audio exchange within a StageConnect device chain
Behringer Ultranet to StageConnect or USB stream conversion
External power supply to support stand-alone functionalities and remote power output

Specifications

Specification	Details
StageConnect Bus Capacity	32 channels, 24-Bit PCM audio
I/O Latency	0.1 ms
Ultranet Connectors	2 x RJ45
Shielded CAT5e Cable Max Length	75 m
StageConnect Connectors	1 XLR male, 1 XLR female
Shielded Balanced 110-Ohm DMX Cable Max Length	40 m
USB Connector	Type B
USB Audio In/Out Configurations	32/0, 24/8, 16/16, 8/24 channels
USB Audio Class 2 Compatibility	Windows 10 (ASIO/WDM), macOS (CoreAudio), Linux
Power Supply	12 V DC / 2.5 A, 30 W adapter; Remote power input (Slave XLR) and output (Master XLR), 12 V DC / 1.5 A, 18 W
Power Consumption	9 W
Operating Temperature Range	5° – 45° C (41° – 113° F)
Dimensions	118 x 63 x 112 mm (4.7 x 2.5 x 4.4 in)
Weight	0.71 kg (1.57 lbs)
