Klark Teknik DN32-MADI MADI Expansion Module with 32 Bidirectional Channels

Klark Teknik

AED 1650.60 inc VAT.

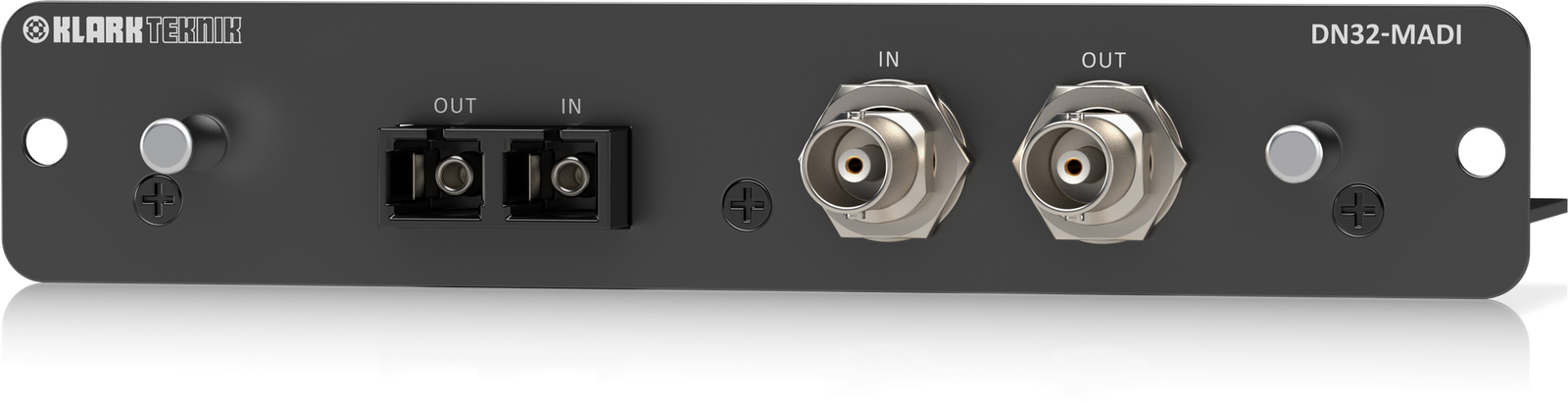

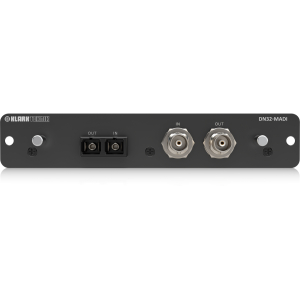

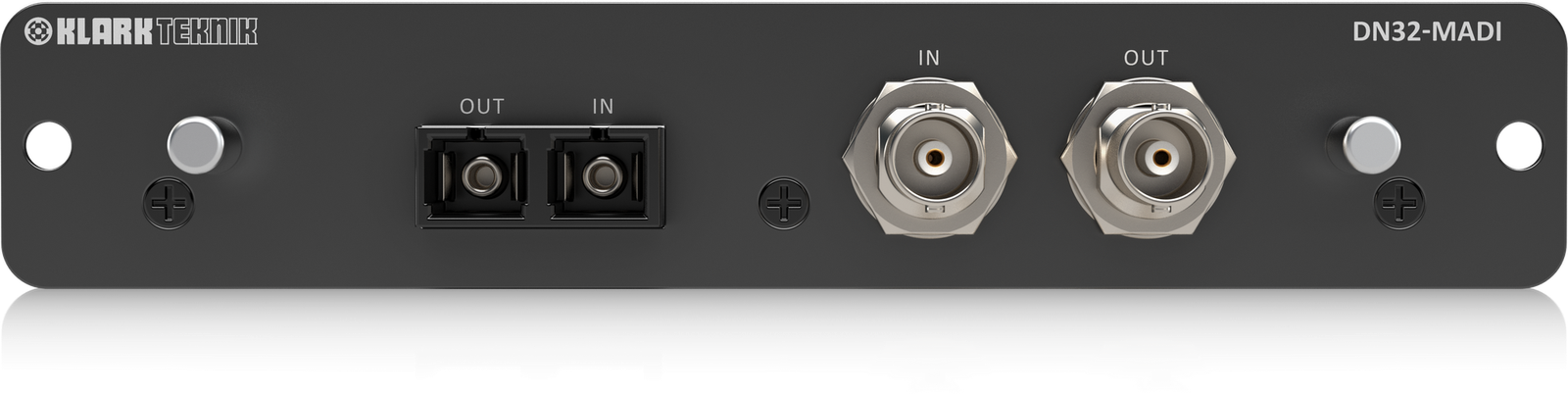

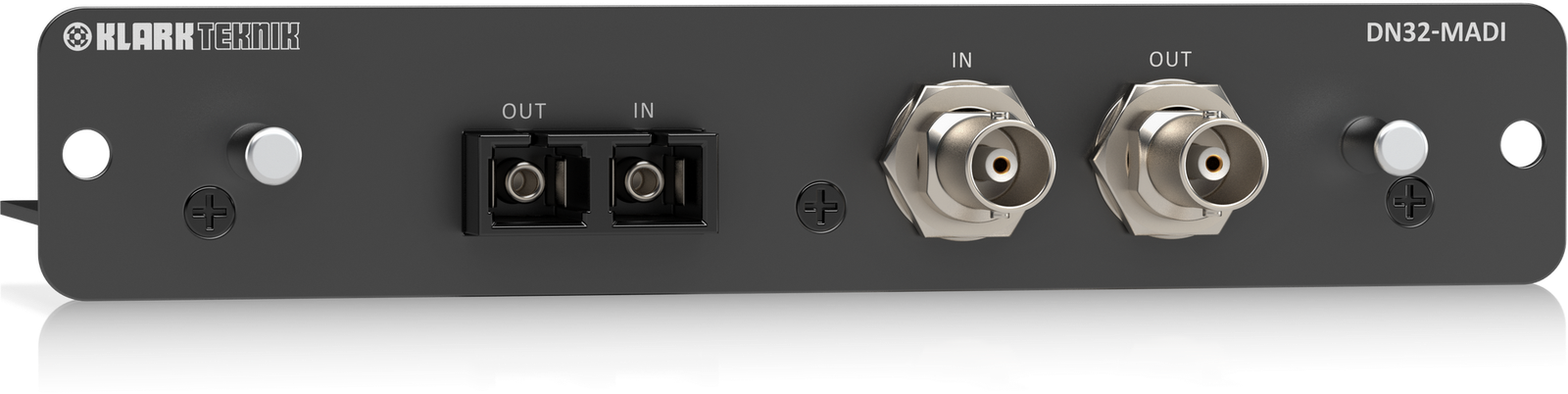

The DN32-MADI expansion card allows the Midas M32 or Behringer X32 digital console to transmit 24-bit multichannel audio at 44.1 or 48 kHz with other MADI-compatible devices, supporting AES10-1991 (up to 56 x 56 channels) and AES10-2003 (up to 64 x 64 channels).

In stock
Request Quote
  • Check Mark Estimated Delivery: 2–3 business days across the UAE
  • Check Mark Free Shipping & Returns : On all orders over AED 1000
  • Stripe
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
SKU: DN32-MADI Categories: , Brand:

Description

DN32-MADI Expansion Card

The DN32-MADI expansion card is an essential addition to your Midas M32 or Behringer X32 digital console. It allows seamless exchange of 24-bit multichannel audio streams at 44.1 or 48 kHz with any MADI compatible devices. Whether you are setting up a permanent installation or working in live/studio recording or broadcasting, this card brings flexibility and high performance.

Features

  • MADI (AES10-compliant) expansion module for Midas and Behringer digital consoles
  • Supports up to 32 bidirectional channels at 48 kHz sample rate
  • Operates up to 500 meters over optical fibre and 100 meters over coaxial copper link
  • Equipped with SC-Duplex connector for optical transmission
  • Copper transmission on 75 ohm BNC connectors
  • Dual-redundant operation for failover from optical to copper connections
  • Functions both as a MADI clock master and a MADI clock slave
  • Selects 32 input and output channels (1-32, 33-64) from 64 MADI channels

Specifications

Specification Details
Type Dante Expansion Card
Compatibility Midas M32, Behringer X32
Channels 32
Inputs 1 x BNC, 1 x Optical
Outputs 1 x BNC, 1 x Optical
